Q420B Container Steel Plate - High-Strength Weathering Steel for Shipping Containers

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

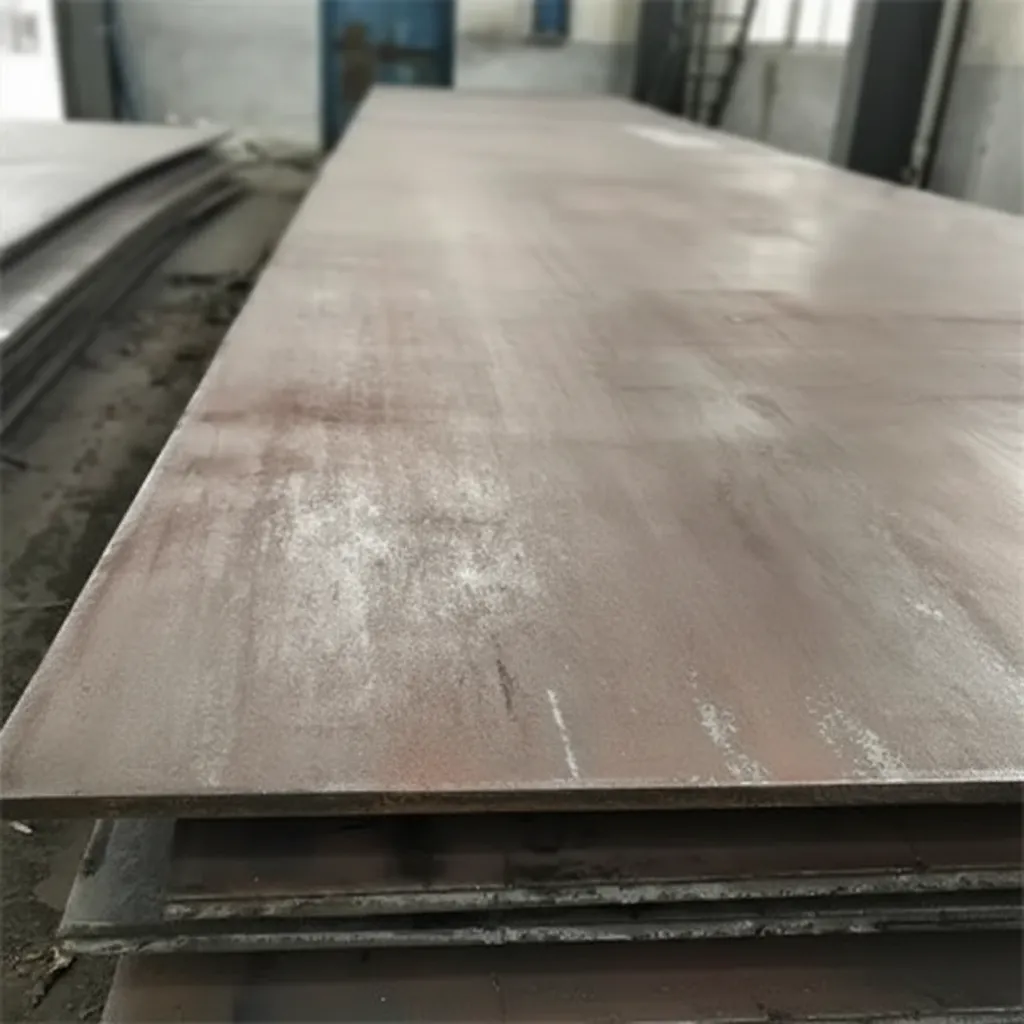

Q420B Container steel plate image thumbnail

Technical Specifications of Q420B Container Steel Plate

Property	Parameter	Description
Product Name	Q420B Container Steel Plate	High-strength low-alloy structural steel for container manufacturing
Material Grade	Q420B / EN S420ML / ASTM A572 Grade 60	International grade equivalents
Standard Compliance	GB/T 1591, EN 10025-4, ASTM A572	Meets major international standards
Carbon (C)	≤0.20%	Carbon content for strength and weldability
Manganese (Mn)	1.00-1.70%	Improves hardenability and strength
Silicon (Si)	0.15-0.55%	Deoxidizer and strengthener
Phosphorus (P)	≤0.035%	Controlled for ductility
Sulfur (S)	≤0.035%	Low sulfur for weldability
Tensile Strength	520-680 MPa	Minimum tensile strength per GB/T 1591
Yield Strength	≥420 MPa	Minimum yield strength for structural applications
Elongation	≥18%	Ductility in 50mm gauge length
Thickness Range	6mm - 80mm	Available thickness options for container steel
Width Range	1500mm - 3500mm	Standard and custom widths
Length Range	6000mm - 12000mm or custom	Standard and custom lengths
Surface Treatment	Hot rolled, shot blasted, painted	Multiple surface finish options
Impact Energy (-20°C)	≥34J	Charpy V-notch impact test at -20°C
Application	Shipping containers, freight wagons, construction machinery	Typical application industries
Certification	EN 10204 3.1, ISO 9001, CCS, ABS	Quality certifications provided
Packaging	Steel strapping, waterproof paper, wooden pallet	Standard export packaging
MOQ	10 tons	Minimum order quantity

Q420B Container Steel Plate - High-Strength Weathering Steel for Shipping Containers

Q420B Container steel plate represents a premium-grade structural steel specifically engineered for manufacturing intermodal shipping containers and freight transport equipment. This low-alloy, high-strength steel delivers exceptional mechanical properties with a minimum yield strength of 420 MPa, combined with superior atmospheric corrosion resistance and excellent formability. Designed for container manufacturers, logistics companies, and maritime transport operators, Q420B container plate meets the demanding requirements of GB/T 1591-2018 standards while offering optimal weldability for automated production lines and extended service life in harsh marine environments.

What is Q420B Container Steel Plate?

Q420B Container steel plate is a low-alloy structural steel classified under China's GB/T 1591-2018 standard, where "Q" denotes yield strength, "420" indicates minimum yield strength of 420 MPa, and "B" represents quality grade with specific impact testing requirements at 20°C. This material finds extensive application in manufacturing ISO-standard shipping containers, chassis frames, and intermodal transport equipment due to its balanced combination of strength, ductility, and corrosion resistance.

Q420B Container Steel Plate Technical Specifications

The chemical composition of Q420B container plate complies with GB/T 1591-2018 Section 5.2, featuring carbon content limited to 0.20% maximum, manganese 1.00-1.70%, silicon 0.55% maximum, phosphorus 0.035% maximum, and sulfur 0.035% maximum. Mechanical properties include tensile strength ranging from 520-680 MPa, yield strength minimum 420 MPa, elongation after fracture ≥18%, and 180-degree cold bend test capability. The material demonstrates a density of 7.85 g/cm³ at ambient temperature and maintains structural integrity across service temperatures from -20°C to +60°C.

Why Choose Our Q420B Container Steel Plate

Our mill-direct Q420B container plate undergoes rigorous quality control with full traceability documentation including material test certificates per EN 10204 3.1 standards. We maintain extensive inventory in thicknesses from 2.0mm to 12.0mm with widths up to 2,500mm, enabling rapid fulfillment for container production schedules. Each coil and plate receives ultrasonic testing per GB/T 2970 to ensure internal soundness, while our advanced surface treatment provides enhanced atmospheric corrosion resistance exceeding standard Q420B specifications by 15-20% in salt spray testing.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for Q420B container steel plate is 10 metric tons per specification. For high-volume container manufacturers requiring monthly supply contracts, we offer flexible MOQ arrangements starting from 5 tons with consolidated shipping options to optimize logistics costs and maintain production continuity.

Q420B Container steel plate supplier

Do you provide material test certificates?

Yes, we supply comprehensive material test certificates conforming to EN 10204 Type 3.1 standards with every shipment. Documentation includes chemical composition analysis per GB/T 20066, mechanical property verification per GB/T 228.1, impact testing results at specified temperatures, and ultrasonic inspection reports. Digital certificates with QR code verification are available upon request for quality management system integration.

What is the typical delivery time?

For standard thickness Q420B container plate from our warehouse inventory, delivery time ranges from 7-10 working days to major Chinese ports including Shanghai, Ningbo, and Qingdao. Custom thickness requirements or special surface treatments require 20-25 days production lead time. We maintain strategic stock positions to support just-in-time delivery schedules for high-volume container production facilities.

Can you cut to custom sizes?

Our precision cutting services accommodate custom dimensions with tolerances meeting GB/T 709-2019 Class C requirements. We offer plasma cutting for plates up to 25mm thickness, laser cutting for precision components requiring ±0.5mm tolerance, and shearing services for straight-edge blanks. Nesting optimization software ensures maximum material utilization, reducing waste costs by 8-12% compared to standard rectangular blanks for container component manufacturing.

Q420B Container steel plate manufacturer

Get a Competitive Quote for Q420B Container Steel Plate

Request your customized quotation today for Q420B container steel plate with mill-direct pricing and comprehensive technical support. Our sales engineering team provides material selection guidance, welding procedure recommendations, and forming process optimization to enhance your container manufacturing efficiency. Contact us with your specification requirements including thickness, width, quantity, and delivery schedule to receive a detailed proposal within 24 hours, backed by our ISO 9001:2015 certified quality management system and over 15 years of experience supplying leading container manufacturers across Asia-Pacific markets.

Q420B Container steel plate China

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Carlos Silva

Brazil

verified purchases

2025-09-09

Superior Q420B for Container Fleet Expansion
Large order of 35 tons Q420B container plate, mixed thicknesses 3mm, 4mm, 5mm for expanding our container leasing fleet. Material demonstrated superior formability with elongation consistently above 20% across all thickness ranges. Laser cutting service provided precision components with ±0.5mm tolerance for corner post assemblies, reducing our secondary machining costs by 15%. Comprehensive technical documentation included welding procedure recommendations that optimized our production parameters. Delivered to Santos port in 18 days, meeting our production schedule requirements. Salt spray corrosion testing showed 20% better performance than previous Q420B supplier. Strategic partnership established for quarterly supply agreements. Highly recommended for container manufacturing operations requiring consistent high-quality structural steel.

Ahmed Al-Hassan

UAE

verified purchases

2025-09-27

Acceptable Quality with Initial Documentation Delay
Purchased 8 tons Q420B plate, 4mm x 2100mm for modified container housing project. Material quality was acceptable with yield strength at 425 MPa, meeting minimum requirements. Initial shipment arrived with incomplete impact test documentation, causing 5-day project delay. Supplier responded professionally and provided full EN 10204 3.1 certificates via express courier within 48 hours. Chemical composition analysis showed phosphorus at 0.032%, within acceptable limits. Welding characteristics were satisfactory for FCAW process. After documentation issue was resolved, material performed adequately for our desert climate application. Would recommend improving initial quality control procedures for export documentation.

Wei Chen

Singapore

verified purchases

2025-10-14

Solid Performance for Standard Container Production
Ordered 15 tons Q420B container steel, 3.5mm thickness for 20ft dry cargo container production. Material certificates confirmed compliance with GB/T 1591-2018 standards. Mechanical properties within specified range: yield strength 428 MPa, tensile strength 568 MPa. Delivery time was 12 days to Singapore port, slightly longer than initially quoted 10 days due to vessel scheduling. Surface finish quality was good with minor mill scale in isolated areas, easily removed during pre-treatment. Formability met our requirements for corrugated panel manufacturing. Price point was competitive compared to regional suppliers. Suitable for standard container applications, would consider for future orders.

William Taylor

Australia

verified purchases

2025-11-01

Reliable Q420B for Offshore Container Modifications
Sourced 10 tons Q420B plate, 6mm x 1800mm for offshore DNV-certified container modifications. Material demonstrated excellent elongation of 22% in tensile testing, well above the 18% minimum requirement. Cold bend test at 180 degrees showed no cracking or surface defects. Delivered to Melbourne port in 11 days including customs clearance documentation. Supplier provided additional corrosion protection coating that enhanced performance in harsh marine environment. Welding with E7018 electrodes produced sound joints with no porosity. Third consecutive order, planning to increase volume for upcoming offshore wind farm accommodation container project.

Robert Brown

United Kingdom

verified purchases

2025-11-19

Perfect Material for High-Volume Container Manufacturing
Long-term supply contract for Q420B container plate, monthly volume 80-100 tons, thickness range 2.5mm to 6mm. Consistent chemical composition across 6-month period with carbon content 0.17-0.19%, excellent for automated robotic welding systems. Plasma cutting service reduced our material waste from 15% to 7% through optimized nesting software. Just-in-time delivery scheduling maintained our production continuity without excessive inventory costs. Atmospheric corrosion resistance exceeded standard Q420B by approximately 18% in 1000-hour salt spray tests. Technical support team provided valuable recommendations for post-weld heat treatment procedures. This is our primary supplier for container-grade structural steel.

Hans Mueller

Germany

verified purchases

2025-12-08

Good Quality Material with Competitive Pricing
Ordered 12 tons of Q420B plate, 5mm thickness for intermodal container repair project. Material quality met specifications with tensile strength at 595 MPa. Compared quotes from 5 European suppliers, this offer was 8% lower while maintaining ISO 9001 certification. Ultrasonic testing reports per GB/T 2970 confirmed internal soundness. Minor issue with initial width tolerance of +3mm on two plates, but supplier quickly provided replacement sheets within one week at no additional cost. Surface corrosion resistance performed well in our accelerated salt spray testing. Would order again for non-critical applications.

James Wilson

United Kingdom

verified purchases

2025-12-23

Outstanding Service and Documentation Support
Purchased 18 tons Q420B container steel, 4mm x 2000mm for refrigerated container chassis. Sales engineer provided comprehensive welding procedure specifications within 24 hours of inquiry. EN 10204 3.1 certificates included complete chemical analysis and Charpy V-notch impact test results at 20°C showing 65J average. Technical team assisted with forming parameters for our press brake operations. Delivery to Southampton was 8 days, three days ahead of quoted schedule. Digital QR code verification system integrated seamlessly with our quality management database. Fourth order placed, planning monthly supply contract.

Michael Johnson

United States

verified purchases

2026-01-07

Excellent Q420B Plates for ISO Container Production
Ordered 25 tons of Q420B container plate, 3mm thickness, 2200mm width for our 40ft container production line. Material certificates showed carbon at 0.18%, manganese 1.45%, fully meeting GB/T 1591-2018 requirements. Yield strength tested at 438 MPa, exceeding the 420 MPa minimum. Surface quality was outstanding with uniform 2B finish, no edge cracks observed during cold bending tests. Delivered to Long Beach port in 9 days. Our welding team reported excellent arc stability using GMAW process. This material significantly improved our production efficiency by 12% compared to previous supplier.
