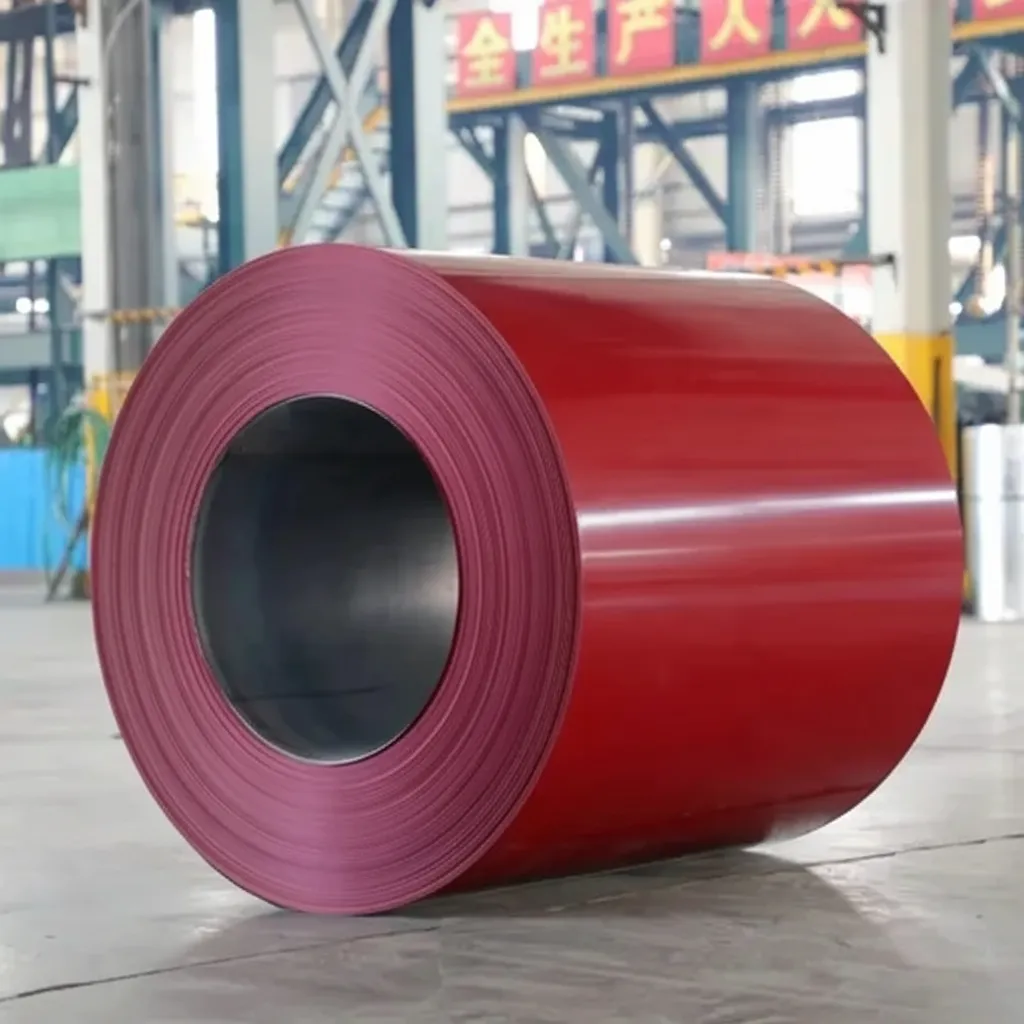

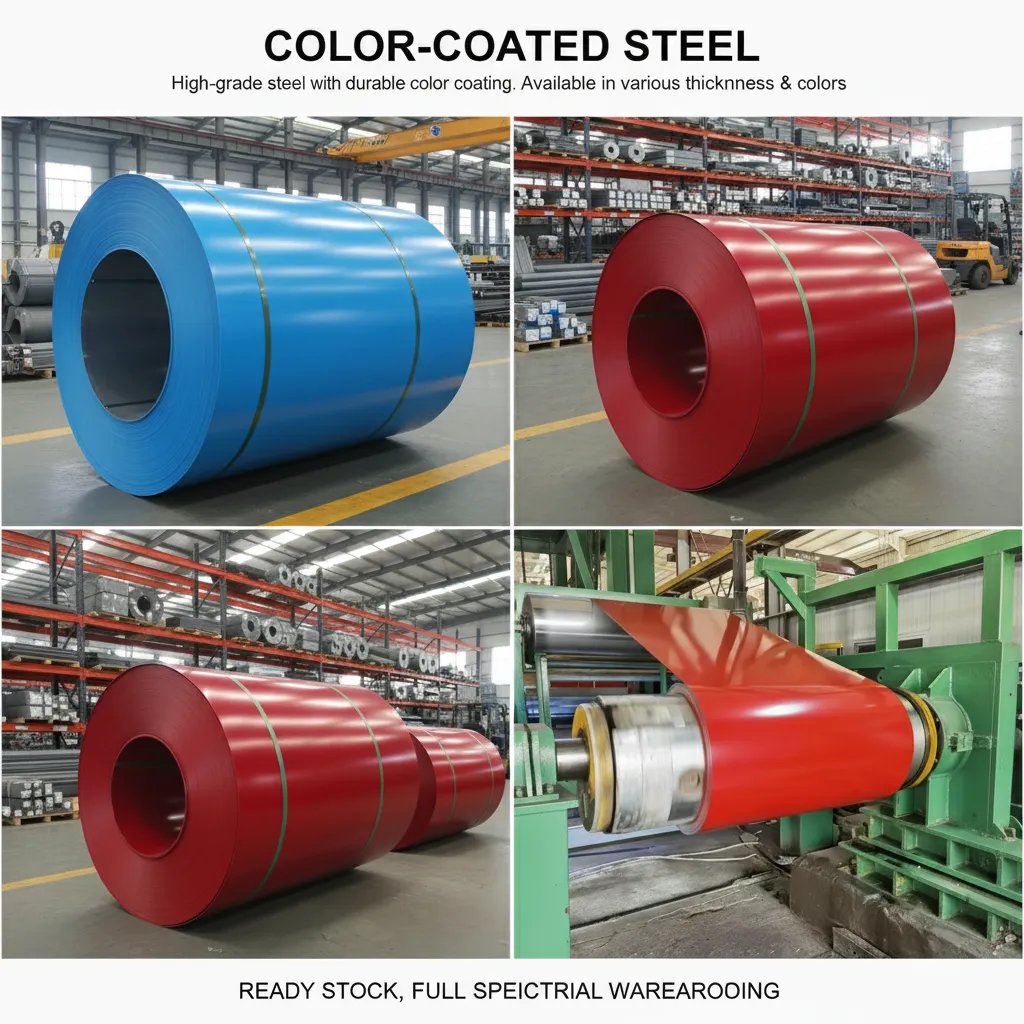

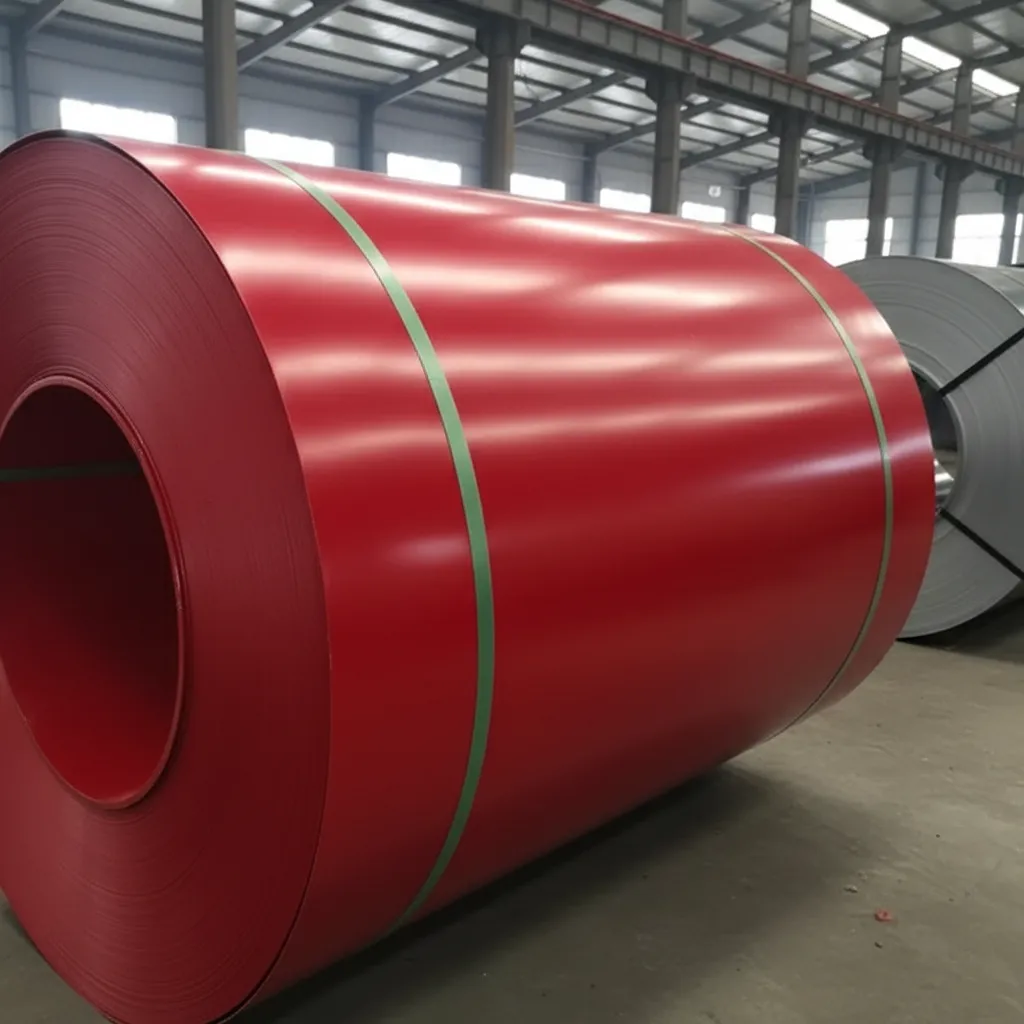

Hot Dip Galvanized Prepainted Steel Coil - ASTM A653, AZ150, 0.12-2.0mm Thickness

Technical Specifications of Hot Dip Galvanized Prepainted Steel Coil

Hot Dip Galvanized Prepainted Steel Coil - ASTM A653, AZ150, 0.12-2.0mm Thickness

Hot dip galvanized prepainted steel coil represents a premium-grade coating solution that combines the superior corrosion protection of zinc galvanization with factory-applied organic paint systems. This dual-layer protection system finds extensive application in architectural cladding, roofing panels, appliance manufacturing, and metal building components where both durability and aesthetic appeal are critical requirements. Engineered for construction contractors, metal fabricators, and industrial manufacturers, these coils deliver exceptional weather resistance while maintaining color stability and formability for roll-forming operations.

What is Hot Dip Galvanized Prepainted Steel Coil?

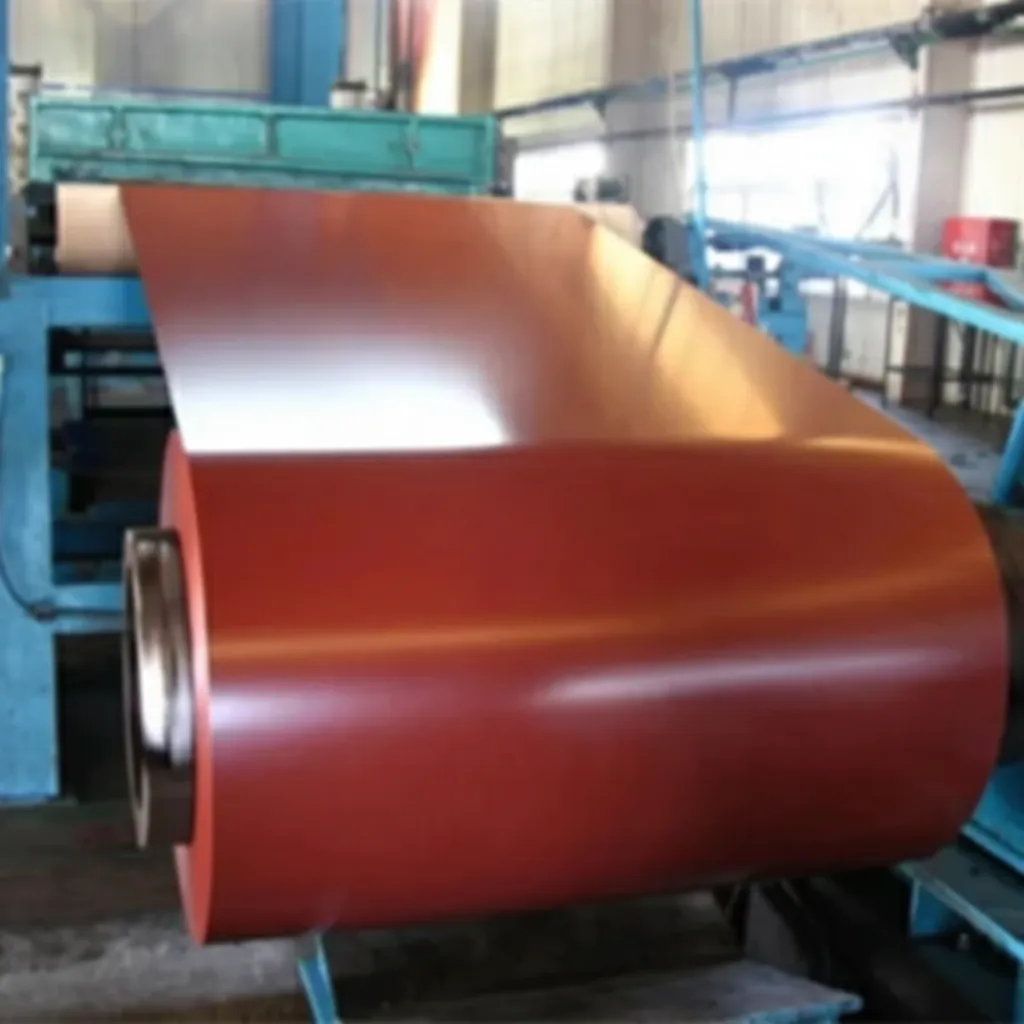

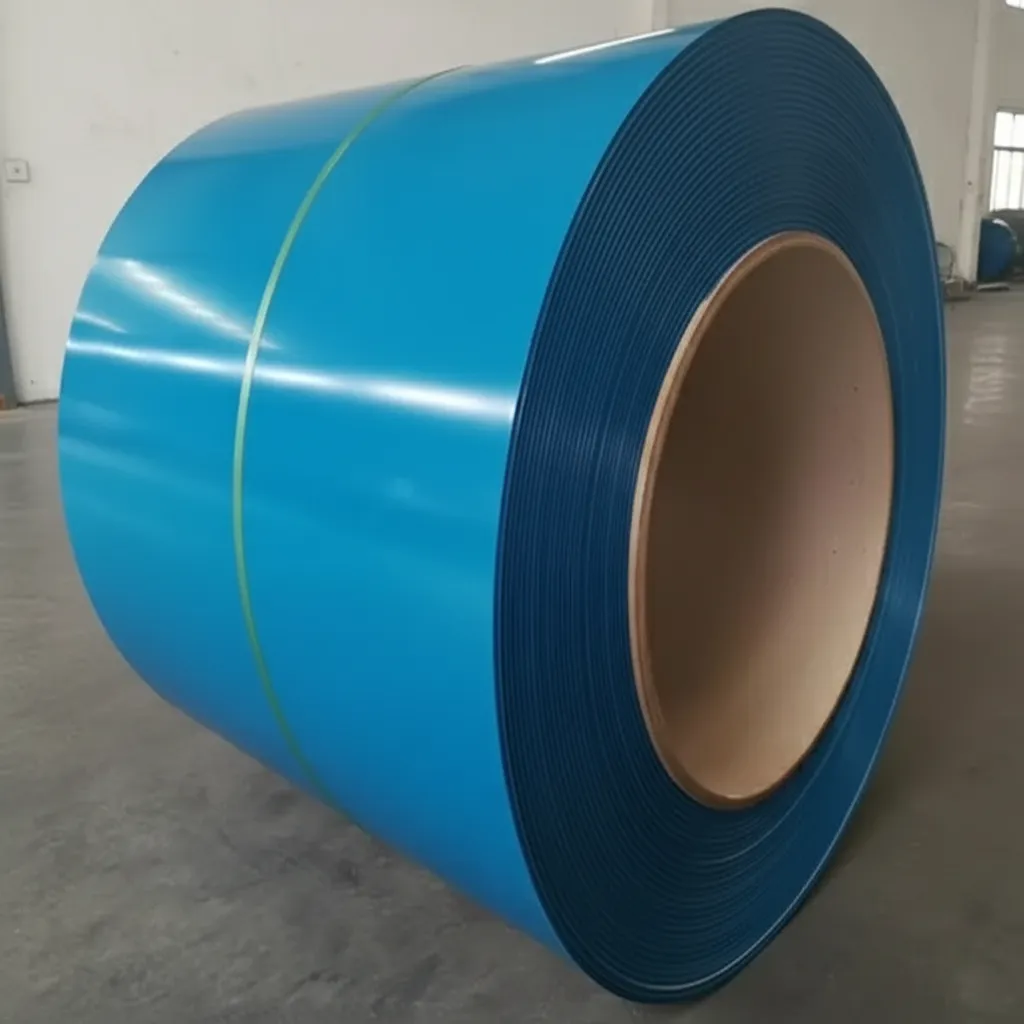

Hot dip galvanized prepainted steel coil is a multi-layer composite material consisting of cold-rolled steel substrate, hot-dip zinc coating per ASTM A653 specifications, chemical conversion treatment, and factory-applied polyester or PVDF paint systems. The manufacturing process begins with continuous galvanizing at temperatures of 450-460°C, followed by chromate passivation and electrostatic spray coating, resulting in a finished product with coating weights ranging from AZ50 to AZ150 and paint film thickness of 15-25 micrometers on the topside.

Hot Dip Galvanized Prepainted Steel Coil Technical Specifications

Our galvanized prepainted coils comply with ASTM A653/A653M-20 for zinc coating and ASTM A755/A755M for paint adhesion requirements. Available substrate thickness ranges from 0.12mm to 2.0mm with width options between 600mm and 1,250mm. Zinc coating mass meets AZ150 designation (150 g/m² total both sides) per ASTM A653 Section 8.3, providing minimum 7-year corrosion resistance in C3 environments according to ISO 12944-2 classification. Tensile strength of the base steel achieves 270-500 MPa depending on grade selection (DX51D, SGCC, or commercial quality), with elongation values of 20-38% ensuring optimal forming characteristics for curved panel applications.

Why Choose Our Prepainted Galvanized Coils

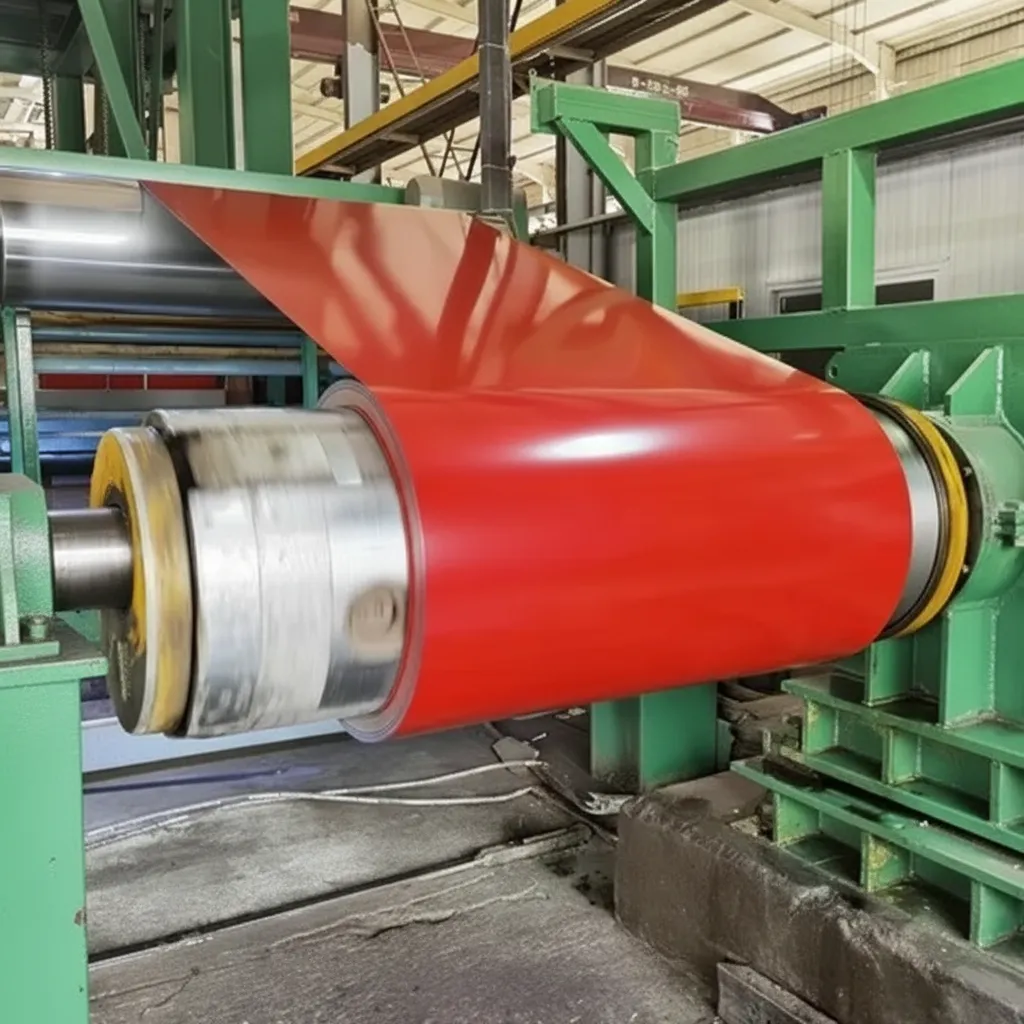

Our manufacturing facility operates continuous coil coating lines with precision tension control systems that maintain uniform paint thickness within ±2 micrometers across the entire coil width. All products undergo rigorous quality testing including T-bend flexibility tests per ASTM D4145, cross-hatch adhesion testing meeting 5B classification under ASTM D3359, and salt spray resistance verification exceeding 500 hours without blistering per ASTM B117. We maintain ISO 9001:2015 certification and provide complete mill test certificates documenting chemical composition, mechanical properties, and coating weight measurements traceable to NIST standards.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 25 metric tons per specification, equivalent to approximately 3-5 coils depending on thickness and width selection. For established customers with ongoing requirements, we offer flexible MOQ arrangements down to 10 tons for stock colors including white gray (RAL 9002), ocean blue (RAL 5020), and brick red (RAL 3011). Custom color orders require 25-ton minimum due to paint kitchen setup costs and quality control batch requirements.

Do you provide material test certificates?

Yes, we supply comprehensive EN 10204 Type 3.1 mill test certificates with every shipment, documenting substrate chemical composition per ASTM E415 optical emission spectroscopy, tensile properties from ASTM E8 testing, zinc coating weight verified by ASTM A90 triple-spot test method, and paint film thickness measured using electromagnetic gauges calibrated to ISO 2808 standards. Certificates include heat number traceability and third-party inspection stamps when specified.

What is the typical delivery time?

For standard colors and specifications maintained in our warehouse inventory (0.4-0.7mm thickness, 1,000mm width, AZ150 coating), delivery time is 7-10 working days to major Asian ports including Shanghai, Busan, and Singapore. Custom orders requiring specific RAL colors, non-standard widths, or special coating weights have production lead times of 25-30 days from deposit receipt, including 5 days for paint formulation, 15 days for coating line scheduling, and 5 days for quality inspection and packaging.

Can you cut to custom sizes?

Our service center provides precision slitting to custom widths from 100mm to 1,250mm with tolerance of ±2mm, and shearing to specified lengths from 500mm to 6,000mm with squareness within 1.5mm per meter. We utilize servo-driven slitter heads maintaining edge burr height below 30 micrometers per ISO 9445-2 requirements. Cut-to-length processing adds 3-5 days to delivery schedule and incurs additional processing charges of $45-$65 per ton depending on complexity and minimum piece length specifications.

Get a Competitive Quote for Hot Dip Galvanized Prepainted Steel Coil

Contact our technical sales team for mill-direct pricing on hot dip galvanized prepainted steel coil tailored to your project requirements. We provide detailed quotations within 24 hours including FOB/CIF terms, packaging specifications, and estimated delivery schedules. Our application engineers offer complimentary consultation on material selection, forming parameters, and fastening system compatibility to ensure optimal performance in your specific climate zone and building design.
