Dry Container Steel Plate - High-Strength Corrugated Shipping Container Steel Sheets

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

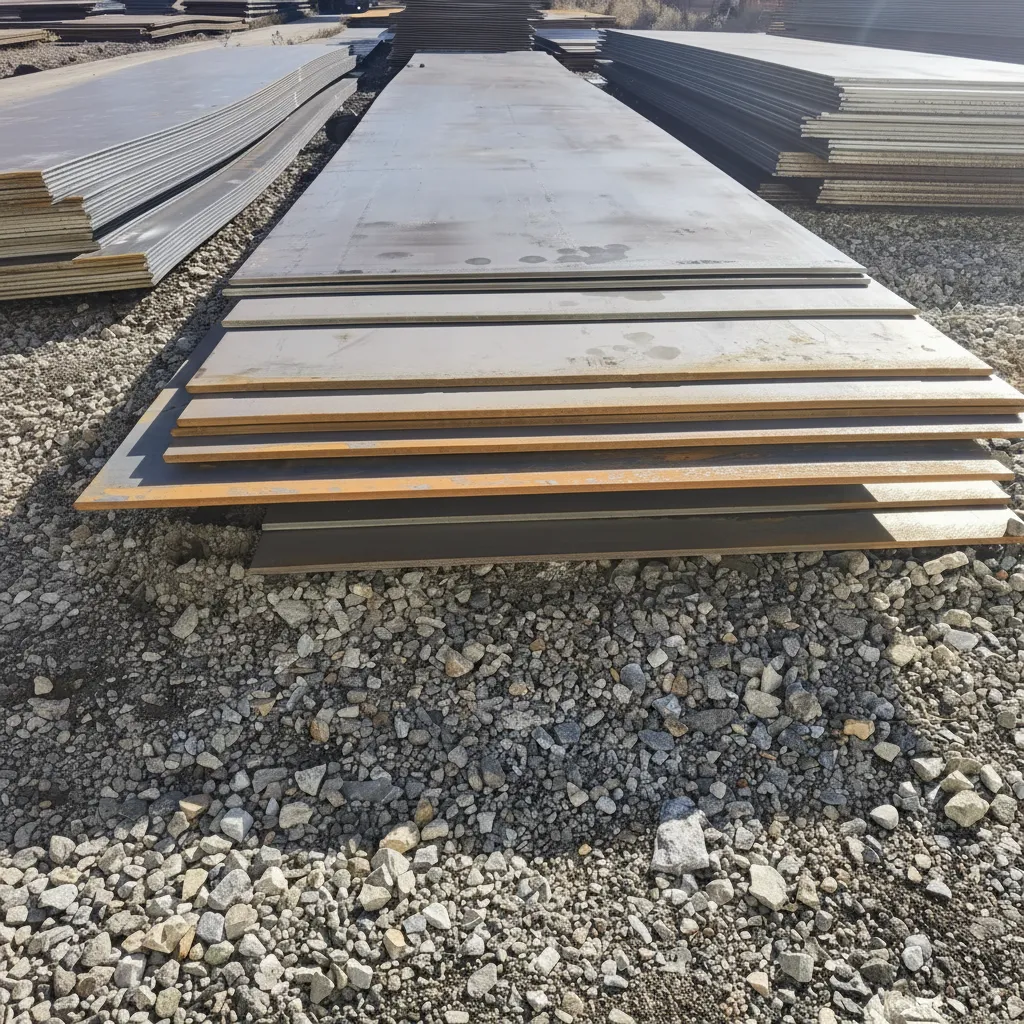

Dry container steel plate image thumbnail

Technical Specifications of Dry Container Steel Plate

Property	Parameter	Description
Product Name	Dry Container Steel Plate	Hot-rolled steel plate for ISO dry freight container manufacturing
Material Grade	CCS-A / CCS-B / AH36 / DH36	Container grade steel per international standards
Standard Compliance	ISO 1496-1, IICL, CSC, CCS	Meets container manufacturing and certification standards
Carbon (C)	≤0.21%	Carbon content for optimal strength and weldability
Manganese (Mn)	0.50-1.50%	Enhances strength and toughness
Phosphorus (P)	≤0.035%	Controlled for improved ductility
Sulfur (S)	≤0.035%	Low sulfur for enhanced weldability
Silicon (Si)	0.10-0.50%	Deoxidizer and strength enhancer
Tensile Strength	400-520 MPa	Minimum tensile strength per ISO 1496-1
Yield Strength	≥235 MPa	Minimum yield strength for structural integrity
Elongation	≥21%	Ductility in 50mm gauge length
Thickness Range	1.6 - 6.0 mm	Standard thickness for container panels and corrugations
Width Range	1000 - 2200 mm	Available width options for container manufacturing
Surface Treatment	Hot-rolled, Pickled, Oiled	Surface finish options for corrosion protection
Corrosion Resistance	Painted or Corten grade available	Enhanced durability for marine transport environment
Application	20ft/40ft dry containers, side panels, roof, floor	ISO standard shipping container components
Certification	ISO 1496-1, CCS, ABS, Lloyd's Register	Quality certifications for container manufacturing
Packaging	Steel strapping, waterproof paper, wooden pallet	Standard export packaging for steel plate
MOQ	25 tons	Minimum order quantity per specification

Dry Container Steel Plate - High-Strength Corrugated Shipping Container Steel Sheets

Dry container steel plate represents a specialized category of corrugated steel sheets engineered specifically for manufacturing ISO shipping containers used in global freight transportation. These premium-grade structural steel panels combine exceptional tensile properties with superior corrosion resistance, making them the preferred choice for container manufacturers, shipping lines, and container modification companies seeking durable, cost-effective materials that comply with international maritime standards.

What is Dry Container Steel Plate?

Dry container steel plate is a hot-rolled or cold-rolled corrugated steel sheet manufactured to precise specifications for constructing the walls, floors, and roofs of standard dry freight containers. These plates typically feature a thickness range of 1.6mm to 2.0mm with corrugation depths of 25mm to 38mm, providing optimal strength-to-weight ratios while maintaining structural integrity under stacking loads up to 192,000 kg as required by ISO 1496-1:2013 standards.

Dry Container Steel Plate Technical Specifications

Standard dry container steel plates are manufactured from Corten steel grades such as COR-TEN A (ASTM A242) or SPA-H (JIS G3114), featuring a minimum yield strength of 345 MPa and tensile strength ranging from 480-550 MPa. The chemical composition typically includes carbon content limited to 0.12% maximum, manganese 0.20-0.50%, phosphorus 0.07-0.15%, and copper 0.25-0.55%, delivering enhanced atmospheric corrosion resistance that extends service life in marine environments by 4-8 times compared to conventional carbon steel.

Why Choose Our Dry Container Steel Plate

Our factory-direct dry container steel plates undergo rigorous quality control processes including ultrasonic testing per ASTM A435 and dimensional verification to ISO 6346 tolerances. We maintain extensive inventory of corrugated profiles including standard 25mm pitch patterns and custom configurations, enabling rapid fulfillment with typical lead times of 15-25 days for mill-direct orders. Each shipment includes complete mill test certificates documenting mechanical properties, chemical analysis, and coating thickness measurements.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for dry container steel plate is 25 metric tons per specification, though we accommodate smaller trial orders of 10 tons for qualified container manufacturers. Mixed container loads combining different corrugation patterns or thicknesses are available with a 30-ton minimum to optimize freight economics.

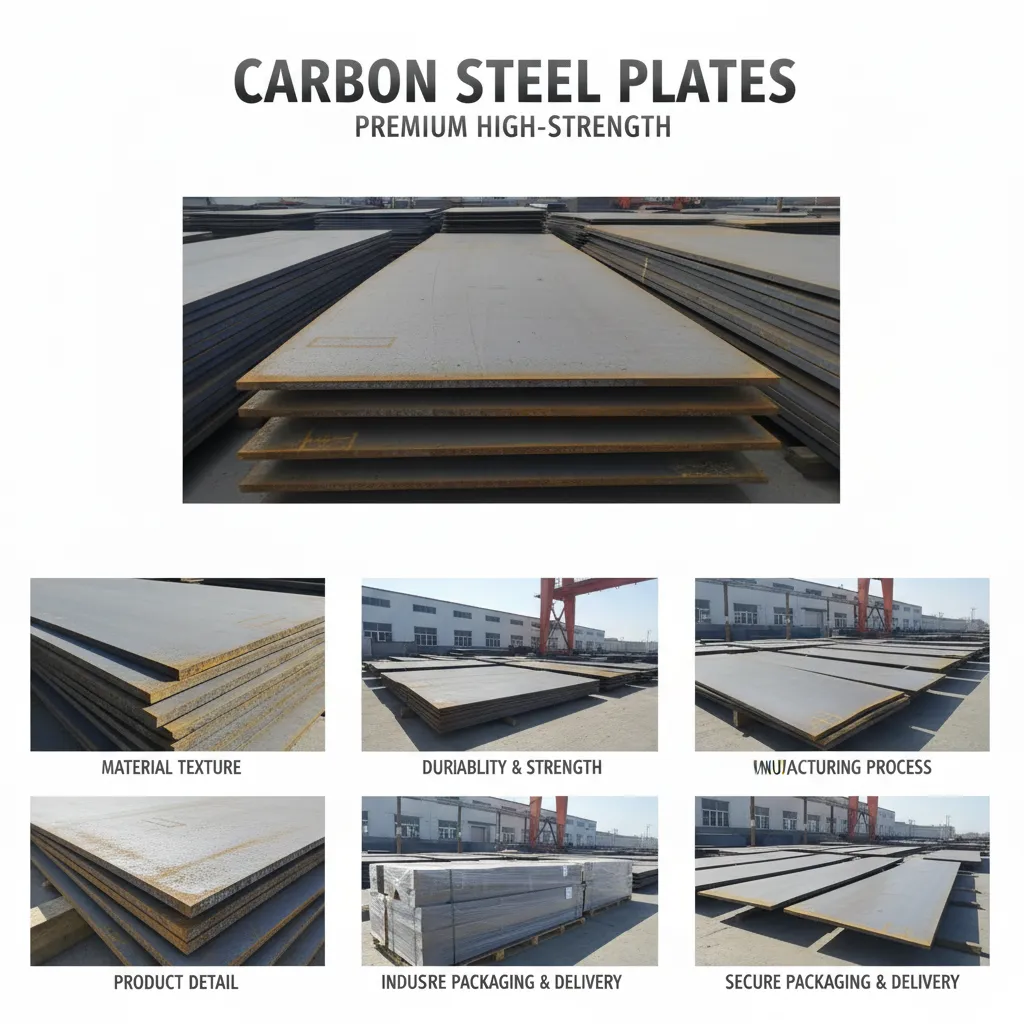

Dry container steel plate supplier

Do you provide material test certificates?

Yes, we supply comprehensive mill test certificates (MTC 3.1 per EN 10204) with every shipment, documenting tensile test results per ASTM A370, chemical composition analysis via optical emission spectrometry, and coating weight verification. Additional third-party inspection by SGS, BV, or Lloyd's Register can be arranged at buyer's request.

What is the typical delivery time?

Standard corrugated dry container steel plates from our regular production schedule ship within 20-28 days after deposit confirmation. Custom corrugation patterns or non-standard thicknesses require 35-45 days for tooling preparation and manufacturing. Express production for urgent container repair projects can be expedited to 12-15 days with applicable rush charges.

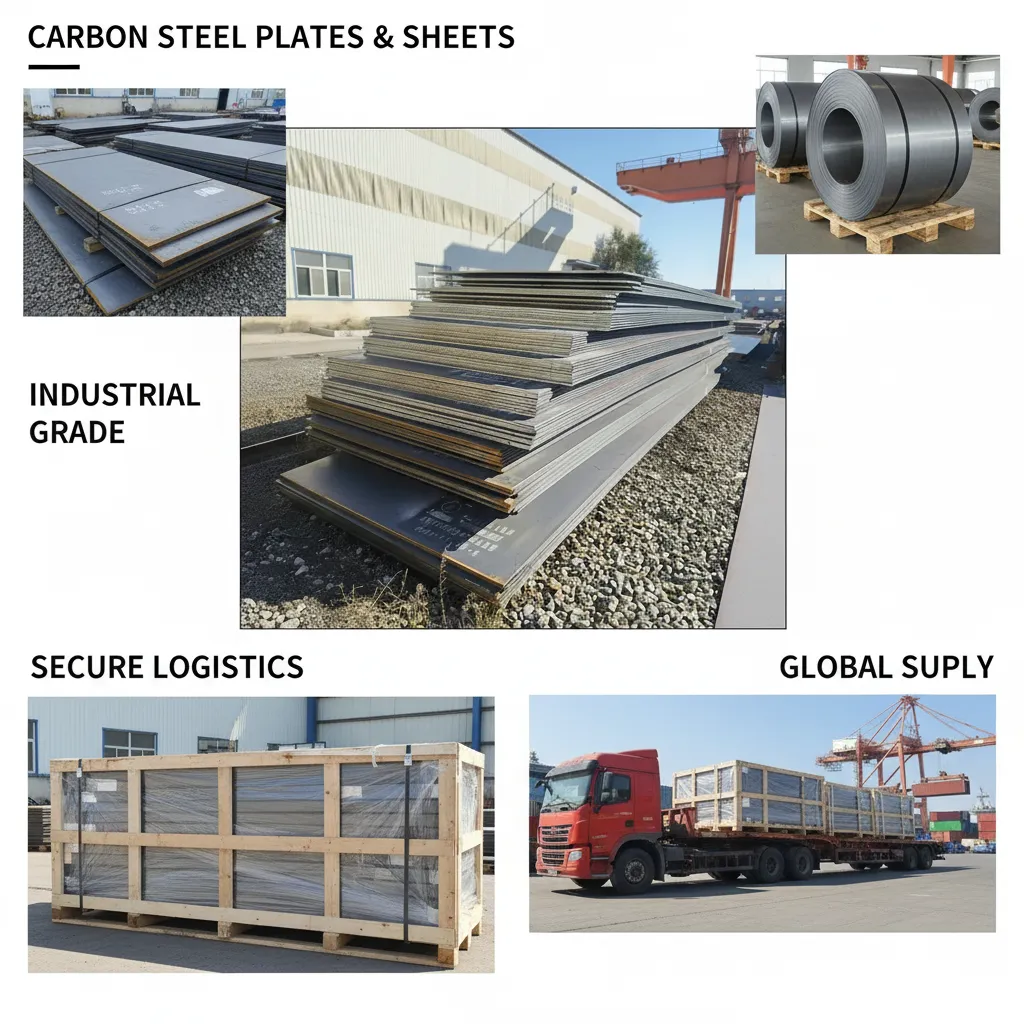

Dry container steel plate manufacturer

Can you cut to custom sizes?

Our precision cutting services accommodate custom panel dimensions from 1000mm to 12,000mm length and 800mm to 2,400mm width, with cutting tolerances of ±2mm. We provide shearing, laser cutting, and water jet cutting options depending on thickness and volume requirements, with finished edges deburred to prevent handling injuries during container assembly operations.

Get a Competitive Quote for Dry Container Steel Plate

Request your detailed quotation today by providing your required specifications including corrugation profile, thickness, dimensions, quantity, and delivery location. Our technical sales team responds within 4 business hours with mill-competitive pricing, material availability confirmation, and shipping cost estimates. Contact us now to secure factory-direct rates for your container manufacturing or refurbishment projects.

Dry container steel plate China
