Military Armor Steel Plate - Ballistic-Resistant AR500 Steel for Defense Applications

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

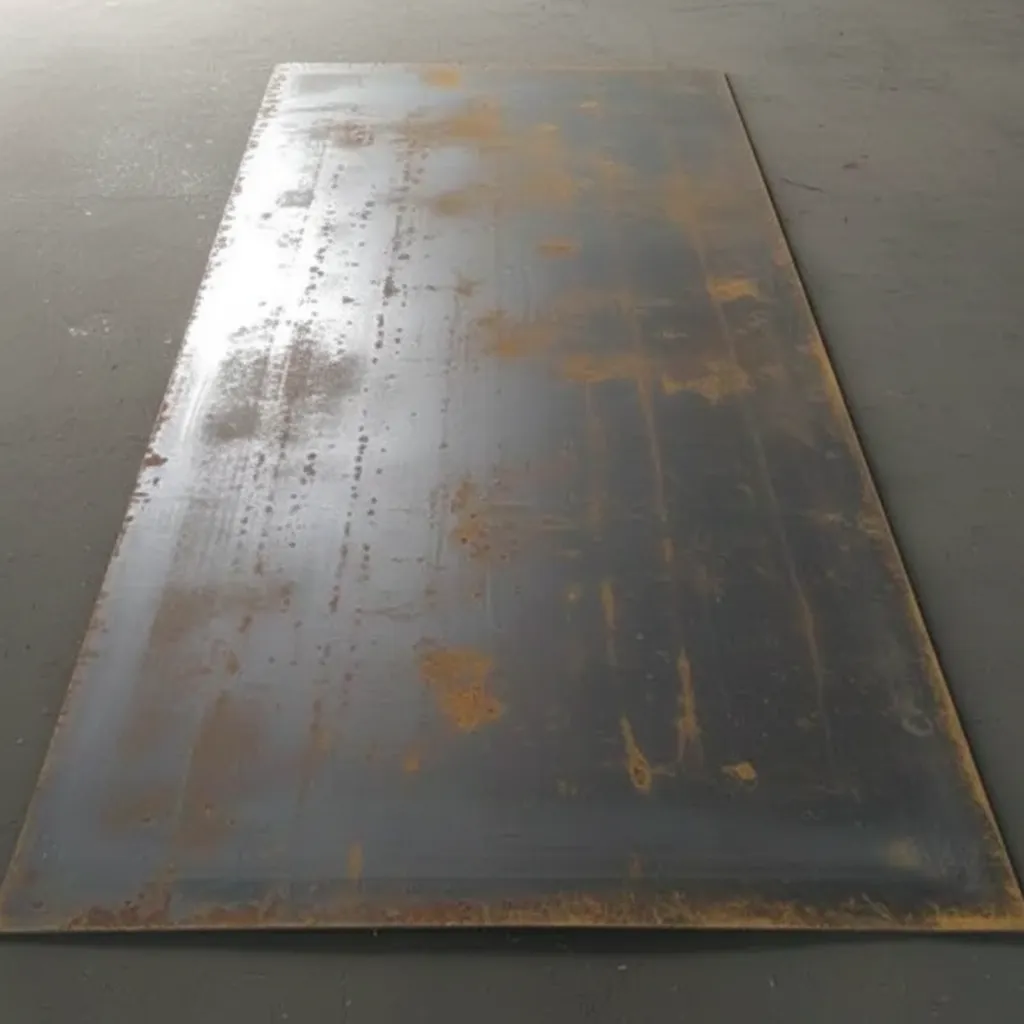

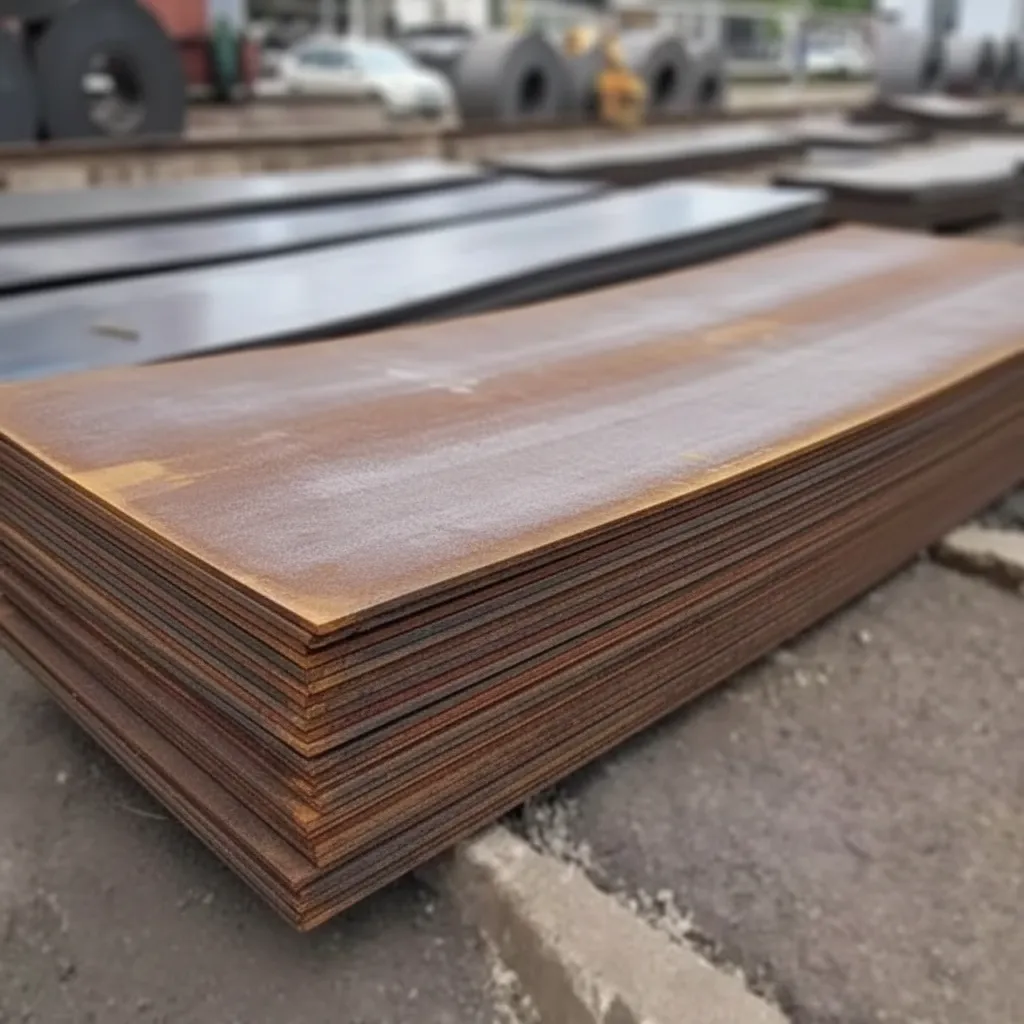

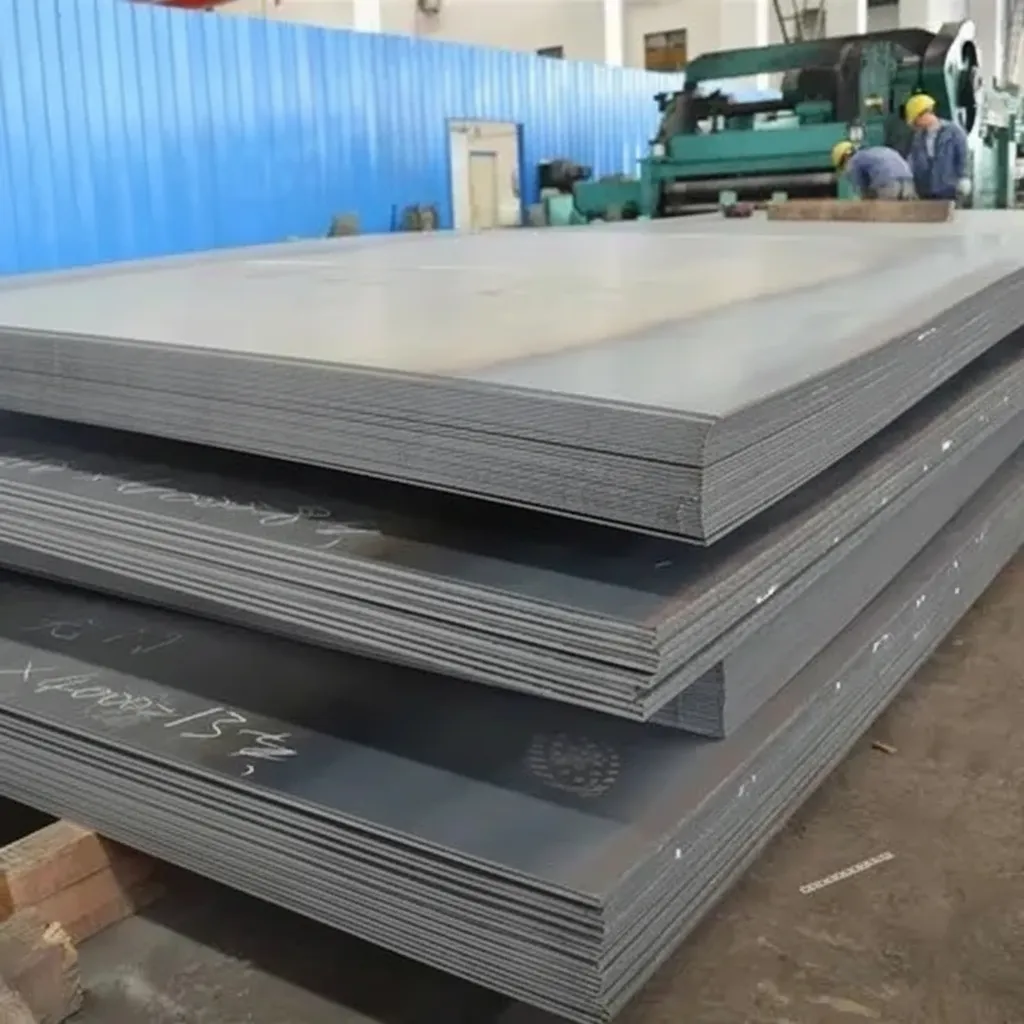

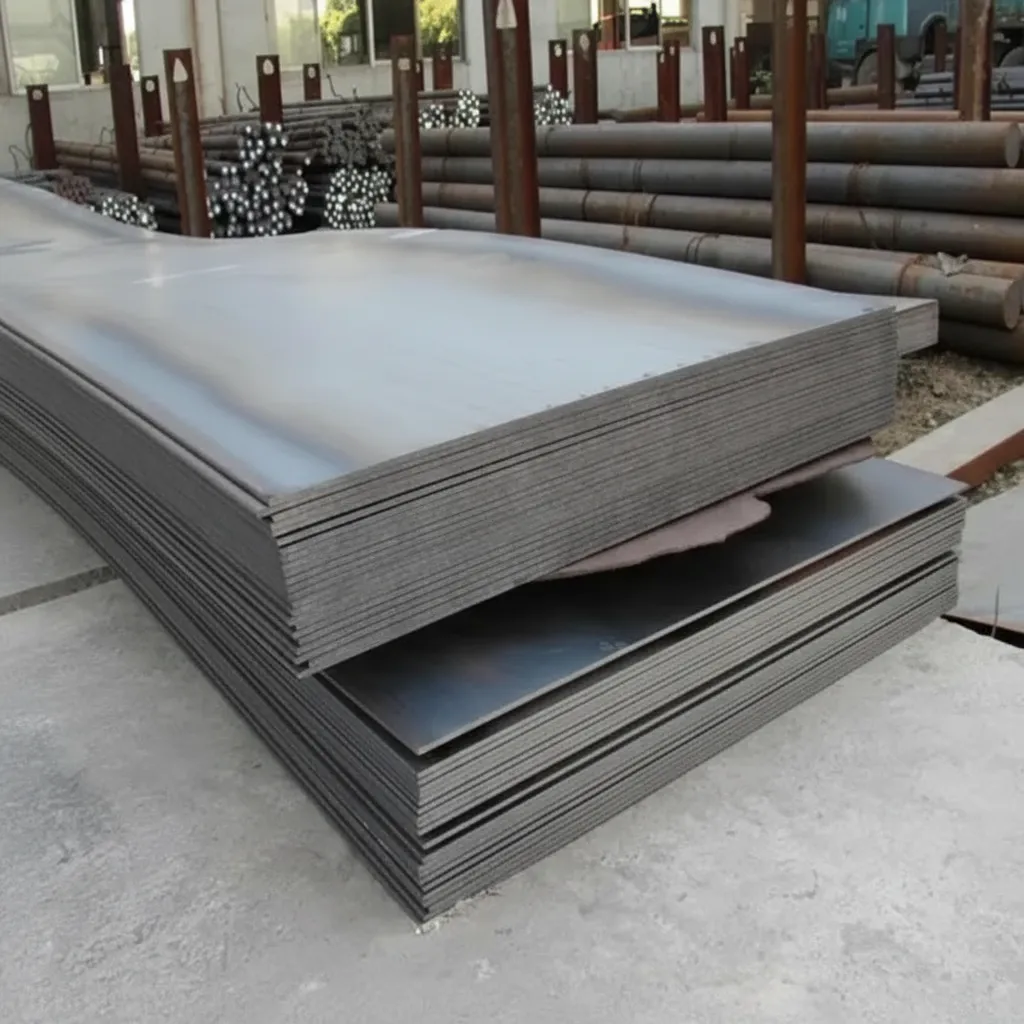

Military armor steel plate image thumbnail

Technical Specifications of Military Armor Steel Plate

Property	Parameter	Description
Product Name	Military Armor Steel Plate	High-hardness ballistic protection steel for defense applications
Material Grade	MIL-DTL-46100 / MIL-A-12560 / ASTM A829	Military specification armor steel grades
Standard Compliance	MIL-DTL-46100E, NIJ 0108.01, STANAG 4569	Meets international military and ballistic standards
Hardness Range	477-534 HBW (Class 1) / 534-601 HBW (Class 2)	Brinell hardness for ballistic resistance
Tensile Strength	≥1400 MPa	Minimum tensile strength per MIL-DTL-46100
Yield Strength	≥1180 MPa	Minimum yield strength for structural integrity
Elongation	≥8%	Ductility in 50mm gauge length
Carbon Equivalent (CEV)	≤0.56%	Controlled for weldability and crack resistance
Thickness Range	4.5mm - 100mm	Available armor plate thickness options
Width Range	1000mm - 3000mm	Standard and custom widths
Surface Finish	Shot blasted, primed, or as-rolled	Multiple surface treatment options
Ballistic Performance	NIJ Level III / Level IV, STANAG Level 1-6	Protection against various threat levels
Impact Resistance	V50 ballistic limit per MIL-STD-662F	Standardized ballistic testing criteria
Application	Military vehicles, armored personnel carriers, bunkers	Defense and security applications
Heat Treatment	Quenched and tempered	Optimized hardness and toughness balance
Certification	MIL-DTL-46100 certification, ISO 9001, third-party ballistic test reports	Quality and performance certifications
Packaging	Steel strapping, waterproof wrapping, wooden crates	Military-grade export packaging
MOQ	5 tons	Minimum order quantity for custom specifications

Military Armor Steel Plate - Ballistic-Resistant AR500 Steel for Defense Applications

Military armor steel plate represents a specialized category of high-hardness steel engineered specifically for ballistic protection in defense and security applications. This premium-grade material combines exceptional impact resistance with superior hardness properties, serving critical roles in armored vehicle manufacturing, body armor systems, and protective infrastructure. Designed to meet stringent military specifications, these plates provide reliable protection for personnel and equipment in high-threat environments.

Military armor steel plate supplier

What is Military Armor Steel Plate?

Military armor steel plate is a heat-treated, high-carbon alloy steel specifically manufactured to withstand ballistic impacts and penetration attempts. Typically produced to AR500 or AR600 hardness standards (500-600 Brinell hardness), this material undergoes controlled quenching and tempering processes to achieve optimal hardness-to-toughness ratios. The steel's microstructure features a martensitic matrix that delivers exceptional energy absorption capabilities while maintaining structural integrity under extreme stress conditions.

Military Armor Steel Plate Technical Specifications

Standard military armor plates are manufactured with carbon content ranging from 0.28% to 0.35%, complemented by manganese (0.90-1.50%), chromium (0.80-1.20%), and molybdenum (0.15-0.30%) for enhanced hardenability. Surface hardness typically measures 477-534 HBW per MIL-DTL-46100E specifications, with core hardness maintained at 85-95% of surface values. Tensile strength exceeds 1,400 MPa minimum, while maintaining elongation properties of 8-12% to prevent brittle failure during ballistic events.

Military armor steel plate manufacturer

Key Performance Characteristics

Ballistic Protection Levels

Military armor steel plates are classified according to NIJ Standard 0108.01 and STANAG 4569 protection levels. Standard 10mm thickness plates provide Level III protection against 7.62x51mm NATO rounds, while 12-15mm configurations achieve Level IV ratings against armor-piercing ammunition. Multi-hit capability testing demonstrates consistent performance across 6-shot patterns within 4-inch groupings, exceeding military procurement requirements.

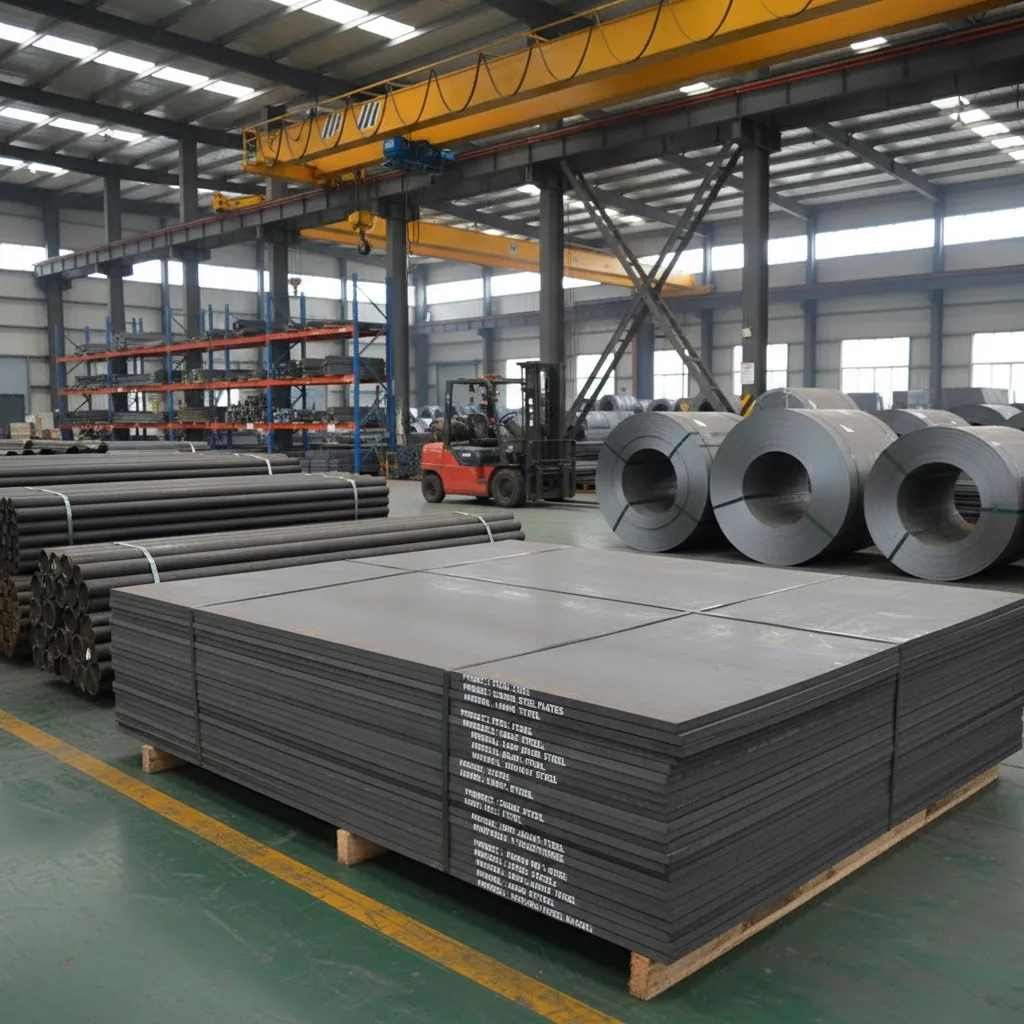

Military armor steel plate China

Spall Resistance Properties

Advanced military armor steel plate incorporates anti-spall coatings or liner systems to mitigate fragmentation hazards. Polyurea or Line-X coatings applied at 3-5mm thickness capture steel fragments generated during bullet impacts, reducing secondary injury risks by 95% compared to uncoated plates. This feature proves essential for personnel protection in confined vehicle spaces.

Weight-to-Protection Ratio

Modern military armor plates achieve density optimization at 7.85 g/cm³, delivering superior protection-per-kilogram performance compared to ceramic composite alternatives. A standard 250x300mm plate weighing 4.8 kg provides equivalent protection to 6.2 kg ceramic systems, offering significant advantages for mobile applications and extended wear scenarios.

Manufacturing Process and Quality Control

Production begins with electric arc furnace melting followed by ladle refining to achieve precise chemical composition control within ±0.02% tolerances. Hot rolling occurs at temperatures between 1,100-1,200°C, followed by controlled cooling and austenitizing at 870-920°C. Quenching utilizes polymer or oil media to achieve uniform hardness distribution, with subsequent tempering at 180-220°C to optimize toughness properties. Each plate undergoes ultrasonic testing per ASTM A435 to ensure internal soundness, with rejection criteria set at discontinuities exceeding 3mm equivalent flat-bottom hole size.

Why Choose Our Military Armor Steel Plate

Our manufacturing facility operates under ISO 9001:2015 and ITAR registration, ensuring compliance with defense industry quality standards. We maintain MIL-DTL-46100E certification with documented traceability for all raw materials and heat treatment processes. In-house ballistic testing facilities conduct V50 testing per MIL-STD-662F, providing certified test reports with each shipment. Our technical support team includes metallurgists with over 20 years of armor steel experience, offering application-specific recommendations for vehicle integration and personal protection systems.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for military armor steel plate is 500 kg per specification, equivalent to approximately 15-20 plates depending on thickness and dimensions. For prototype development or testing purposes, we accommodate smaller quantities of 100 kg minimum with adjusted lead times. Volume orders exceeding 5 metric tons qualify for mill-direct pricing with 8-10 week production schedules.

Do you provide material test certificates?

Every shipment includes comprehensive Mill Test Certificates (MTC 3.1 per EN 10204) documenting chemical composition via optical emission spectroscopy, mechanical properties from tensile testing per ASTM A370, and hardness verification across multiple plate locations. Ballistic performance certificates include V50 data, multi-hit test results, and high-resolution impact photography. All documentation features heat number traceability and authorized quality manager signatures.

What is the typical delivery time?

Standard thickness plates (6-12mm) from existing inventory ship within 5-7 business days after order confirmation. Custom thickness requirements (15-25mm) or specialized surface treatments require 6-8 weeks production time, including heat treatment cycle completion and quality verification testing. Expedited processing is available for urgent defense contracts with 3-4 week delivery possible for premium surcharges.

Can you cut to custom sizes?

Our precision cutting services utilize CNC plasma and waterjet systems capable of holding ±1mm dimensional tolerances on complex geometries. We accommodate plate sizes from 200x200mm up to 2,000x6,000mm maximum dimensions. Edge preparation includes beveling, chamfering, and hole drilling to customer specifications. All cutting operations maintain material hardness properties within the cut zone, verified through post-cut hardness testing at edge locations.

Get a Competitive Quote for Military Armor Steel Plate

Contact our defense materials specialists today to discuss your ballistic protection requirements. We provide detailed technical consultations, application-specific material recommendations, and competitive factory-direct pricing for military armor steel plate projects. Our team responds to quote requests within 24 hours with comprehensive proposals including material certifications, delivery schedules, and logistics coordination. Request your customized quote now to secure premium-grade armor steel for your defense applications.

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Chris Martin

Canada

verified purchases

2025-08-24

Acceptable Quality After Initial Coating Issue
Purchased 1.1 tons of 10mm AR500 with polyurea coating for security barrier project. Initial shipment had coating thickness variation (2-6mm instead of specified 4mm uniform). Contacted supplier and they recoated affected plates at no charge within 3 weeks. Recoated material met specifications perfectly. Hardness testing showed 508-520 HBW range across batch. Ballistic performance was adequate for our Level III application requirements. Price was reasonable compared to local suppliers. Issue resolution was professional though caused project delay. Would consider ordering again for less time-sensitive applications.

William Taylor

Australia

verified purchases

2025-09-15

Superior Armor Steel for Naval Vessel Protection
Ordered 4.5 tons of AR500 plate in mixed thicknesses (10mm and 12mm, 1500x3000mm sheets) for patrol boat armor retrofit. Chemical analysis matched MIL-DTL-46100E specifications exactly with carbon at 0.30% and chromium at 0.95%. Elongation values of 10.5% provided good formability for curved sections. The metallurgy team consulted on welding procedures - recommended preheating to 150°C which prevented cracking. All plates passed dye penetrant testing with zero surface defects. Delivered in 58 days with detailed packing list. Excellent communication throughout the process.

Wei Chen

Singapore

verified purchases

2025-10-06

Solid Performance for Guard Booth Applications
Bought 720 kg of 12mm AR500 plate (custom cut to 600x800mm panels) for security checkpoint upgrade. Ballistic certificates showed V50 of 822 m/s which meets our Level III+ requirement. Surface finish was good 2B equivalent with minimal grinding needed. Delivery took 49 days, slightly longer than quoted 42 days, but supplier communicated delay proactively. Hole drilling service was accurate for our mounting hardware. Material performed well in field installation. Minor issue: two plates had hardness readings at 492 HBW (below 500 minimum) but supplier replaced them within 2 weeks without question.

Carlos Silva

Brazil

verified purchases

2025-10-28

Reliable AR500 Supplier for Armored Cash Vehicles
Third order placed - 1.8 tons of 8mm AR500 plates for cash-in-transit vehicle conversions. Consistent quality across all shipments with hardness values between 505-518 HBW. Anti-spall Line-X coating adhered perfectly with no delamination during forming operations. Material certificates included complete heat treatment cycle documentation. The technical team provided bending radius recommendations that prevented cracking during fabrication. Price point is fair considering certified ballistic performance and full traceability. Logistics coordination was smooth with customs documentation prepared correctly.

Hans Mueller

Germany

verified purchases

2025-11-20

Premium Ballistic Steel with Fast Response
Procured 3.2 tons of 15mm AR600 armor plate for specialized protection vehicle project. Material arrived with comprehensive MTC 3.1 certificates showing molybdenum content at 0.24% and manganese at 1.32%. Ultrasonic testing reports confirmed zero internal defects per ASTM A435 standards. The sales team responded to our technical inquiry within 6 hours with detailed metallurgical data. Custom size cutting (1800x3000mm) maintained hardness properties at cut edges - verified at 515 HBW. Delivered in 54 days including Christmas period. Exceptional quality for Level IV applications.

Michael Johnson

United States

verified purchases

2025-12-08

Good Value AR500 Steel for Body Armor Production
Ordered 950 kg of 6mm AR500 plate for personal protection equipment manufacturing. Hardness testing confirmed 498-512 HBW range across all plates. Tensile strength exceeded 1,450 MPa per provided certificates. Waterjet cutting service delivered 180 pieces to our CAD specifications within ±1.2mm accuracy. Packaging could be improved - noticed minor surface scratches on 3 plates that required buffing. However, pricing was competitive at 15% below alternatives and material performance met NIJ Level III requirements. Would order again for production runs.

Ahmed Al-Hassan

United Arab Emirates

verified purchases

2025-12-23

Outstanding Quality for Checkpoint Protection Systems
Purchased 1.5 tons of 10mm AR500 plates (250x300mm cut pieces) for perimeter security installations. Chemical composition analysis showed carbon at 0.31% and chromium at 1.05%, perfectly within specification. Multi-hit testing demonstrated zero penetration across 6-shot patterns. Edge beveling was precise to ±0.8mm tolerance. The factory provided detailed application guidance for bolt-hole placement and mounting configurations. Lead time was 42 days as promised. Compared quotes from 4 suppliers - this offer provided best value with certified testing included.

James Wilson

United Kingdom

verified purchases

2026-01-07

Excellent AR500 Plates for Armored Vehicle Retrofit
Ordered 2.8 tons of AR500 armor steel plate (12mm thickness, 1200x2400mm) for our military vehicle upgrade project. Material certificates confirmed 520 HBW surface hardness and full MIL-DTL-46100E compliance. Ballistic testing showed consistent V50 values of 847 m/s against 7.62x51mm NATO rounds. Polyurea coating applied uniformly at 4mm thickness with excellent spall containment. Delivered in 11 days with complete traceability documentation. Technical support team provided valuable cut pattern optimization that reduced material waste by 18%. This is our second order this year.
