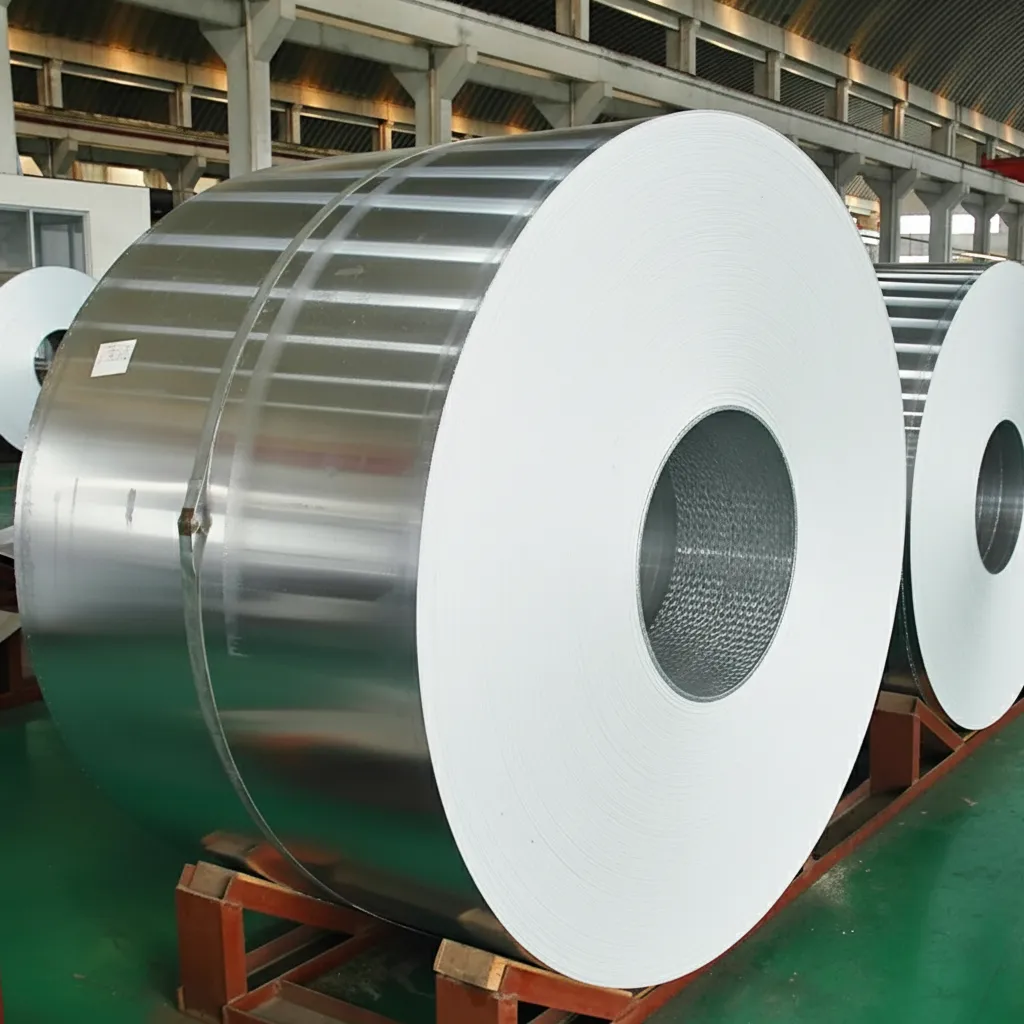

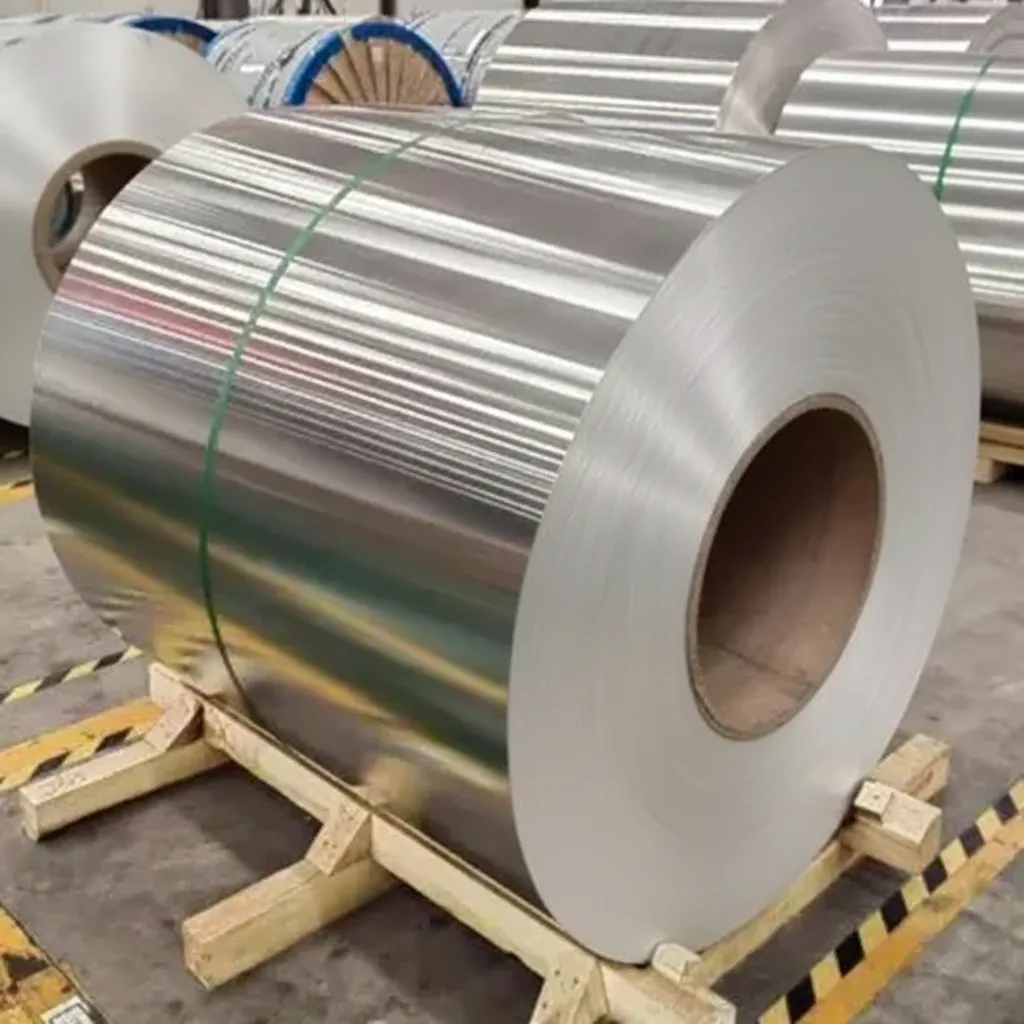

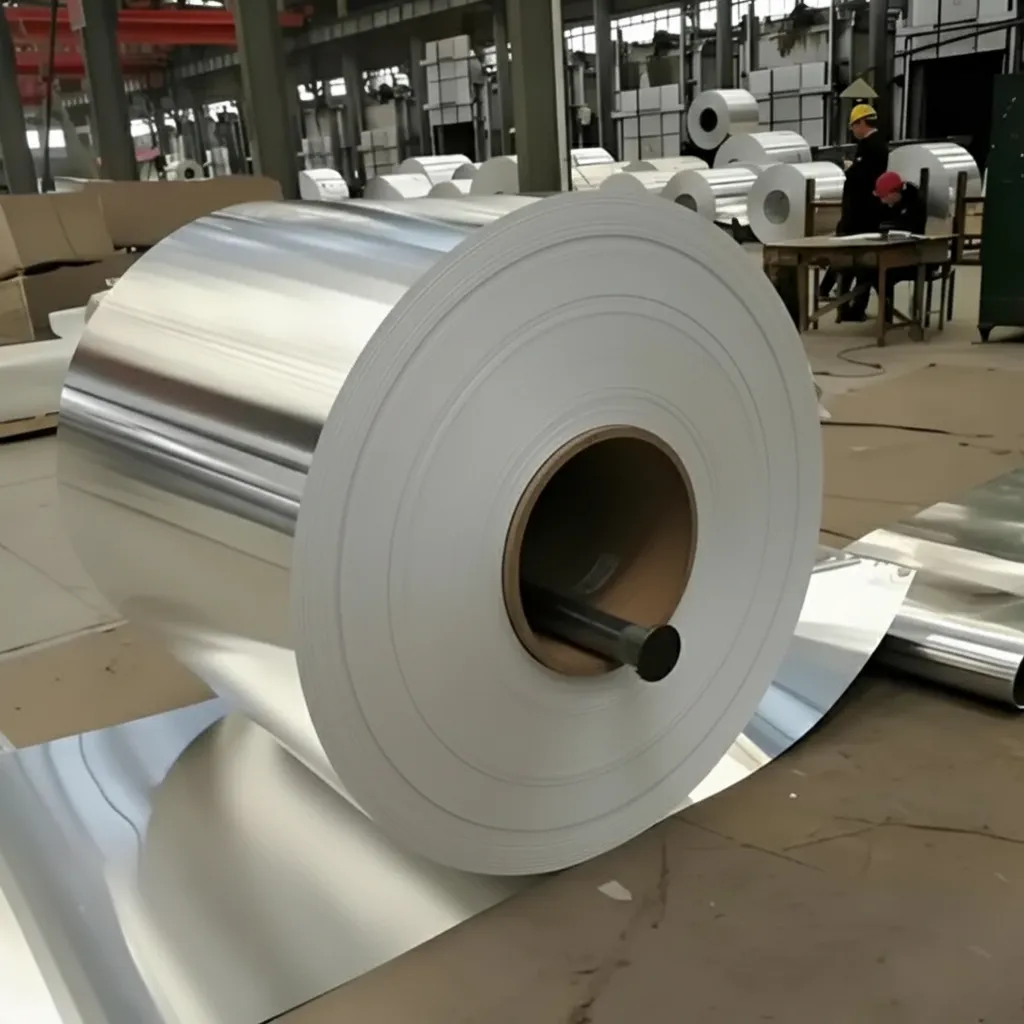

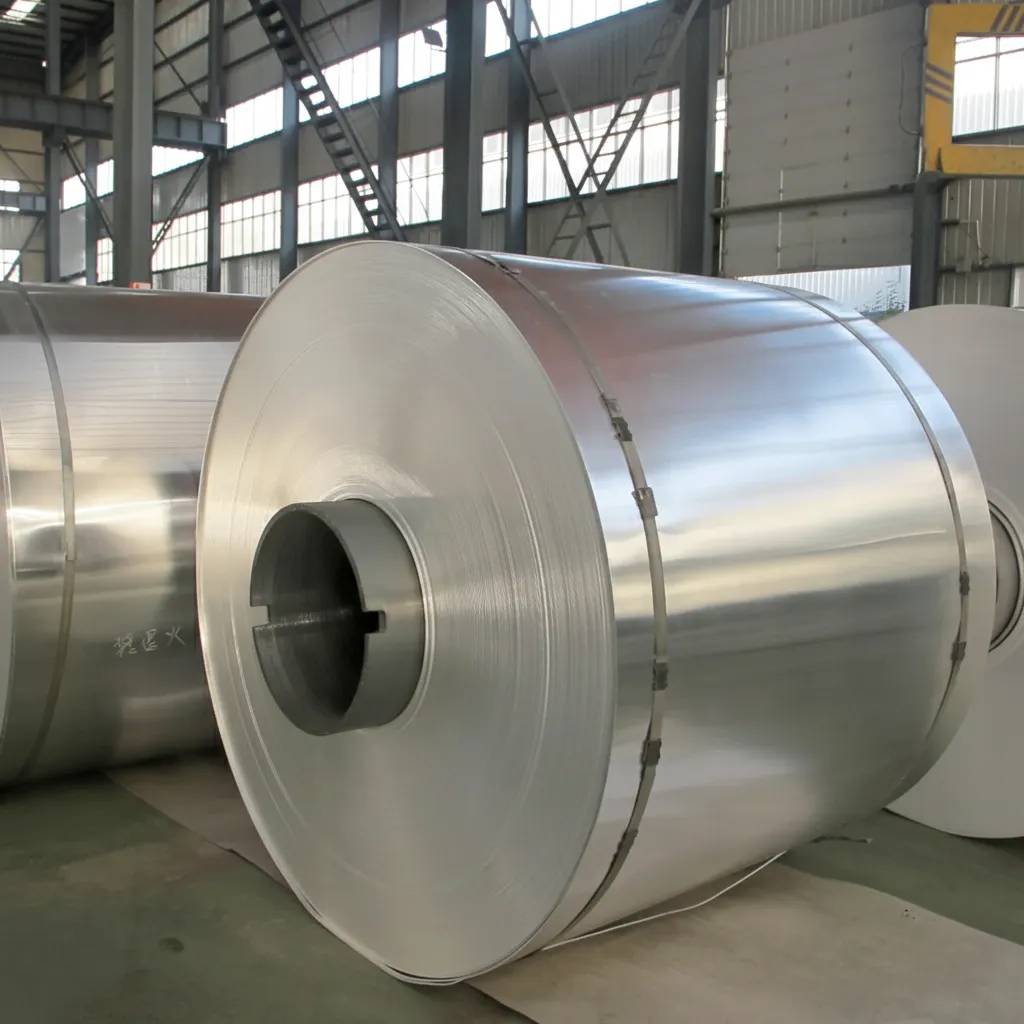

GI GL Steel Coil - Galvanized & Galvalume Steel Coils for Construction

Technical Specifications of GI GL Steel Coil

GI GL Steel Coil - Galvanized & Galvalume Steel Coils for Construction

GI GL steel coil represents two premier categories of coated steel products engineered for superior corrosion protection in demanding construction and industrial applications. Galvanized (GI) coils feature zinc coating through hot-dip galvanizing, while Galvalume (GL) coils utilize an aluminum-zinc alloy coating providing exceptional durability. These coated steel solutions serve critical roles in roofing systems, wall cladding, structural components, and manufacturing sectors requiring extended service life in corrosive environments. Manufactured to international standards including ASTM A653, EN 10346, and JIS G3302, our mill-direct GI GL steel coil offerings deliver factory-competitive pricing with consistent quality for contractors, fabricators, and distributors worldwide.

What is GI GL Steel Coil?

GI GL steel coil refers to continuously coated steel products where base steel substrates undergo protective metallic coating processes. Galvanized steel coil receives pure zinc coating (typically Z275 to Z600 per square meter), while Galvalume coil features 55% aluminum, 43.4% zinc, and 1.6% silicon alloy coating (AZ150 to AZ185 standard). Both coating systems provide sacrificial protection, with GL coils offering superior heat reflectivity and extended lifespan in atmospheric exposure compared to conventional galvanized material.

GI GL Steel Coil Technical Specifications

Our GI GL steel coil production adheres to stringent international specifications. Base steel grades range from commercial quality DX51D to structural grade S350GD per EN 10346, with tensile strength from 270 MPa to 550 MPa depending on grade selection. Coating thickness for GI coils spans 40-275 g/m² (Z120-Z600), while GL coils typically feature AZ150 (150 g/m²) coating mass. Standard coil dimensions include 0.12mm to 4.0mm thickness, 600mm to 1500mm width, with coil weight reaching 3-8 metric tons. Surface finishes available include regular spangle, minimized spangle, and zero spangle options meeting ASTM A653/A653M-20 Section 6 requirements.

Why Choose Our GI GL Steel Coil Solutions

Our manufacturing facility operates advanced continuous galvanizing lines capable of producing 800,000 metric tons annually with precise coating weight control within ±10 g/m² tolerance. We maintain comprehensive quality certifications including ISO 9001:2015, EN 10204 3.1 material certificates, and SGS third-party inspection verification. All GI GL steel coil products undergo rigorous testing protocols including coating adhesion per ASTM D3359, salt spray resistance exceeding 1000 hours for GL grades per ASTM B117, and mechanical property validation. Our technical support team provides application-specific recommendations for forming, welding, and finishing processes to optimize performance in your specific construction or manufacturing requirements.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for GI GL steel coil is 25 metric tons per specification, equivalent to approximately 3-5 coils depending on thickness and width parameters. For established customers with consistent purchasing patterns, we accommodate mixed container loads with 10-ton minimums per individual specification. Custom slit widths require 50-ton minimum to justify tooling setup costs.

Do you provide material test certificates?

Yes, we supply comprehensive EN 10204 Type 3.1 mill test certificates with every shipment, documenting chemical composition per heat analysis, mechanical properties including yield strength and elongation, coating weight verification, and dimensional tolerances. Additional third-party inspection certificates from SGS, BV, or TÜV are available upon request at nominal cost, typically adding 3-5 business days to delivery schedule.

What is the typical delivery time?

Standard GI GL steel coil specifications from existing inventory ship within 7-10 business days after payment confirmation. Custom orders requiring specific coating weights, surface treatments, or non-standard dimensions typically require 25-35 days production lead time. Sea freight transit times vary by destination: 18-22 days to US West Coast ports, 30-35 days to European ports, and 12-15 days to Southeast Asian destinations from our manufacturing facility.

Can you cut to custom sizes?

Our precision slitting capabilities accommodate custom width requirements from 20mm to 1500mm with ±0.5mm tolerance, ideal for roll forming operations and specialized fabrication needs. We also provide cut-to-length services producing sheets from 500mm to 6000mm length with ±2mm cutting precision. Minimum quantities for slitting services start at 10 tons per width specification, while cut-to-length orders require 15-ton minimums to optimize processing efficiency and cost-effectiveness.

Get a Competitive Quote for GI GL Steel Coil

Request your customized quotation today for premium-grade GI GL steel coil tailored to your project specifications. Our sales engineering team responds within 4 business hours with detailed pricing, technical data sheets, and logistics solutions. Contact us with your required dimensions, coating specifications, volume requirements, and delivery destination to receive mill-direct pricing advantages. We support global shipping with flexible Incoterms including FOB, CFR, and CIF arrangements to streamline your procurement process.
