PPGI PPGl Steel Coil - Galvanized Pre-Painted Cold Rolled Steel Coil for Construction & Manufacturing

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

Technical Specifications of PPGI PPGL Steel Coil

Property	Parameter	Description
Product Name	PPGI PPGL Steel Coil	Pre-painted galvanized and galvalume steel coil
Base Material	Galvanized (GI) / Galvalume (GL)	Hot-dipped zinc or aluminum-zinc coated steel
Standard Compliance	ASTM A755, EN 10169, JIS G3312	Meets major international standards
Coating Type	Polyester (PE), Silicon Modified Polyester (SMP), PVDF	Multiple coating options for different applications
Base Steel Grade	SGCC, DX51D, SGLCC, CS Type B	Commercial and structural grade options
Thickness Range	0.13 - 1.5 mm	Available thickness options
Width Range	600 - 1500 mm	Standard and custom widths
Zinc Coating (PPGI)	40 - 275 g/m²	Zinc coating weight per square meter
AZ Coating (PPGL)	30 - 185 g/m²	Aluminum-zinc coating weight
Top Paint Thickness	15 - 25 μm	Standard top coating thickness
Back Paint Thickness	5 - 10 μm	Protective back coating
Tensile Strength	≥270 MPa	Minimum tensile strength per ASTM A755
Yield Strength	≥140 MPa	Minimum yield strength
Color Options	RAL / Pantone color chart	Customizable color selection
Coil ID	508 mm / 610 mm	Standard inner diameter options
Coil Weight	3 - 8 tons	Standard coil weight range
Application	Roofing, wall cladding, appliances, construction	Typical application industries
Certification	ISO 9001, EN 10204 3.1, SGS	Quality certifications provided
Packaging	Waterproof paper, steel strapping, wooden pallet	Standard export packaging
MOQ	25 tons	Minimum order quantity

PPGI PPGL Steel Coil - Galvanized Pre-Painted Cold Rolled Steel Coil for Construction & Manufacturing

PPGI PPGL steel coil represents a premium category of pre-painted galvanized steel products engineered for demanding construction and manufacturing applications. These factory-coated steel coils combine the corrosion resistance of zinc coating with decorative paint finishes, delivering superior durability and aesthetic versatility for roofing, wall cladding, appliances, and industrial enclosures. Manufactured to international standards including ASTM A755/A755M and EN 10169, our PPGI PPGL steel coils serve contractors, metal fabricators, and building material distributors seeking cost-effective solutions with extended service life.

What is PPGI PPGL Steel Coil?

PPGI (Pre-Painted Galvanized Iron) and PPGL (Pre-Painted Galvalume) steel coils are cold-rolled steel substrates with metallic zinc or aluminum-zinc alloy coating, followed by chemical treatment and organic paint application. The continuous coil coating process ensures uniform film thickness ranging from 15-25 microns per surface, providing exceptional resistance to atmospheric corrosion, UV degradation, and mechanical abrasion compared to post-fabrication painting methods.

PPGI PPGL Steel Coil Technical Specifications

Our PPGI PPGL steel coils comply with ASTM A755/A755M-17 Section 6 for coating mass and EN 10169:2012 for organic coatings. Base metal thickness ranges from 0.14mm to 1.2mm with tolerance ±0.02mm per ASTM A1008/A1008M. Zinc coating mass options include Z60 (60 g/m²), Z100, Z150, and Z275 conforming to ASTM A653/A653M. Aluminum-zinc coating (55% Al-Zn) provides 2-6 times longer corrosion resistance than pure zinc in marine environments. Paint systems include polyester (PE), silicon modified polyester (SMP), polyvinylidene fluoride (PVDF), and plastisol with pencil hardness ≥2H per ASTM D3363.

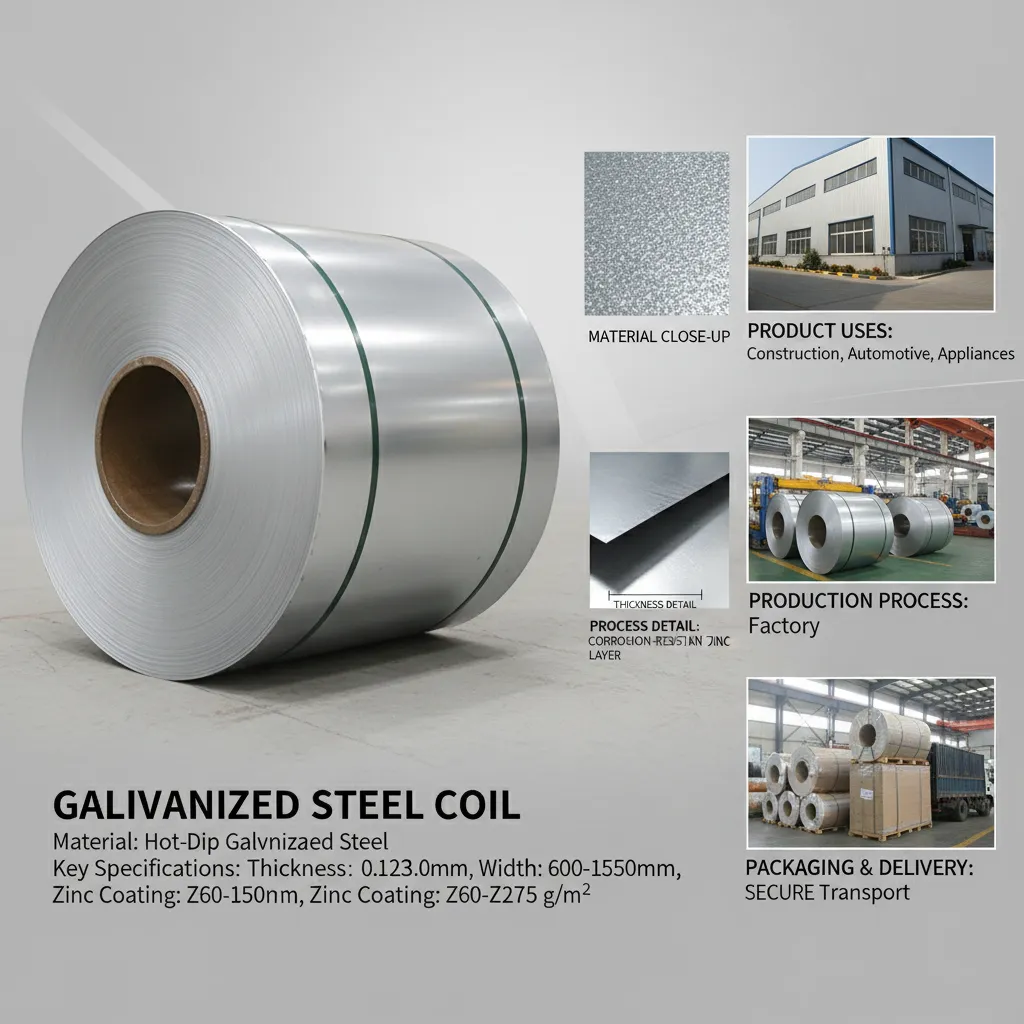

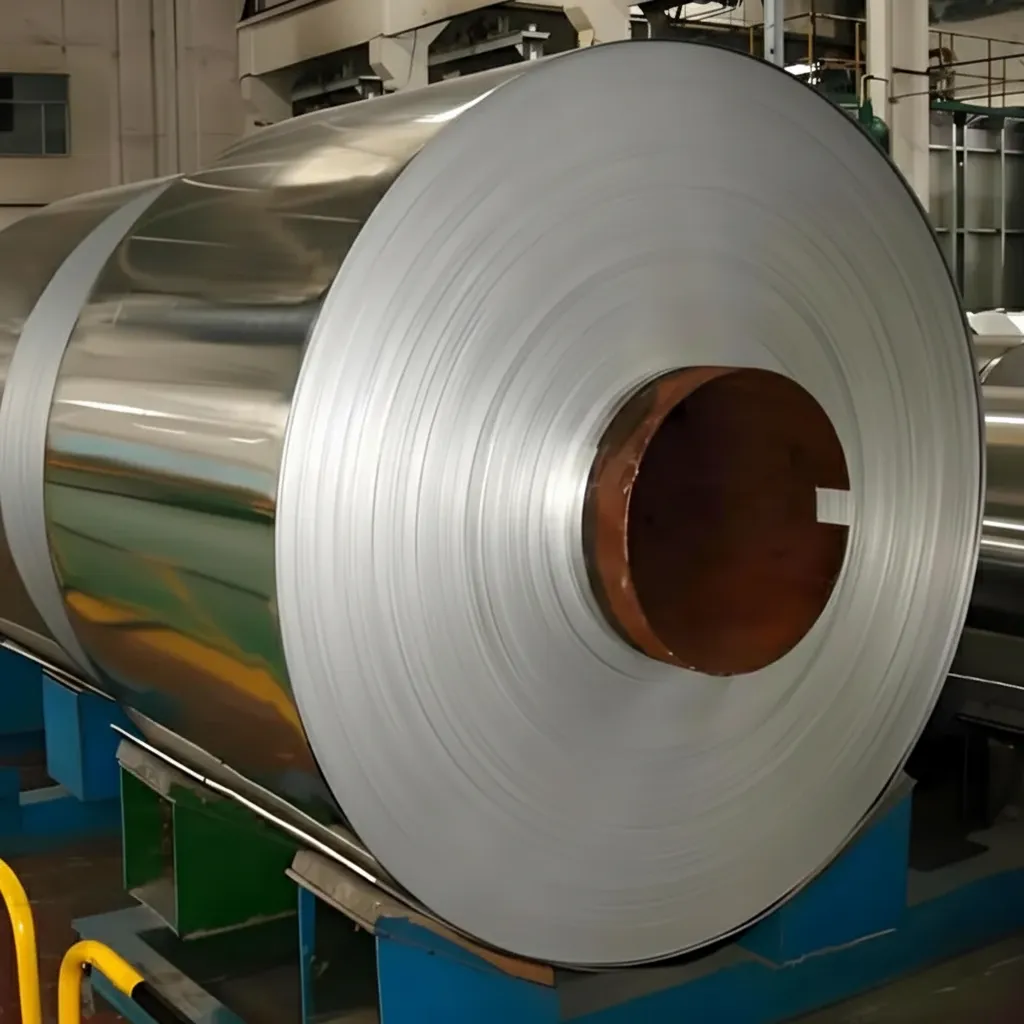

PPGI PPGL steel coil supplier

Why Choose Our PPGI PPGL Steel Coil

We maintain mill-direct partnerships with ISO 9001:2015 certified steel mills producing 500,000 metric tons annually. Our PPGI PPGL coils undergo five-stage pre-treatment including alkaline degreasing, water rinsing, chromate passivation, and primer application before topcoat. Quality control includes adhesion testing per ASTM D3359 (minimum 4B classification), impact resistance testing per ASTM D2794 (minimum 50 lb-in), and salt spray testing per ASTM B117 (500+ hours for PVDF systems). We provide complete material traceability with mill test certificates documenting chemical composition, mechanical properties, and coating performance data.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 25 metric tons per specification to optimize production efficiency and freight costs. For trial orders or specialized color requirements, we accommodate reduced quantities of 10 tons with adjusted pricing. Mixed container loading is available for orders combining multiple thicknesses or paint colors within the same coating type.

Do you provide material test certificates?

Yes, we supply comprehensive mill test certificates (MTC) per EN 10204 Type 3.1 for every shipment. Documentation includes chemical composition analysis per ASTM E1019, tensile testing results per ASTM E8/E8M showing yield strength and elongation values, coating weight verification per ASTM A90/A90M, and paint film thickness measurements. Third-party inspection by SGS, BV, or Intertek can be arranged upon request.

What is the typical delivery time?

Lead time for stock colors (RAL 9002, RAL 3009, RAL 5015) is 15-20 days from deposit receipt to port of loading. Custom color matching requires additional 7-10 days for paint formulation and color approval. Production scheduling depends on order volume, with priority given to confirmed letters of credit. We maintain safety stock of common specifications in 0.35mm-0.50mm thickness range for expedited delivery within 7-10 days.

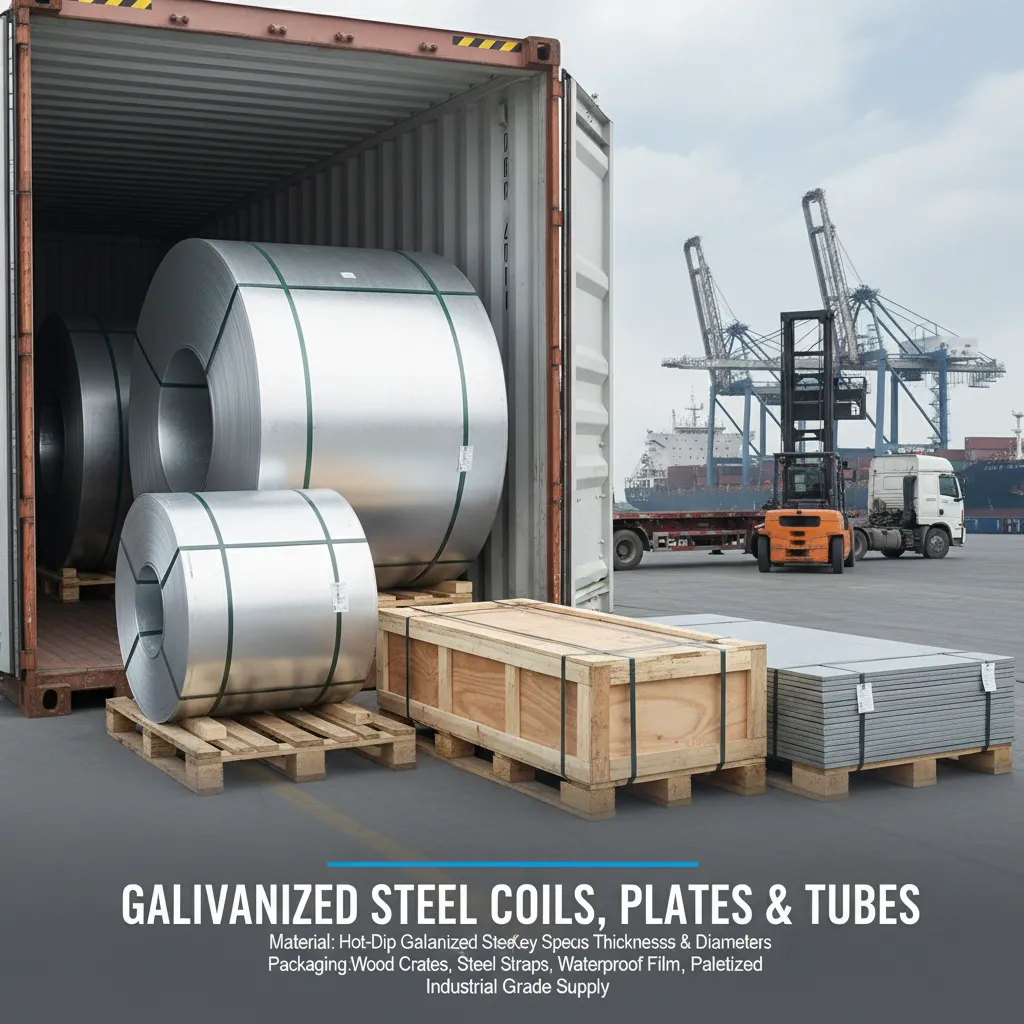

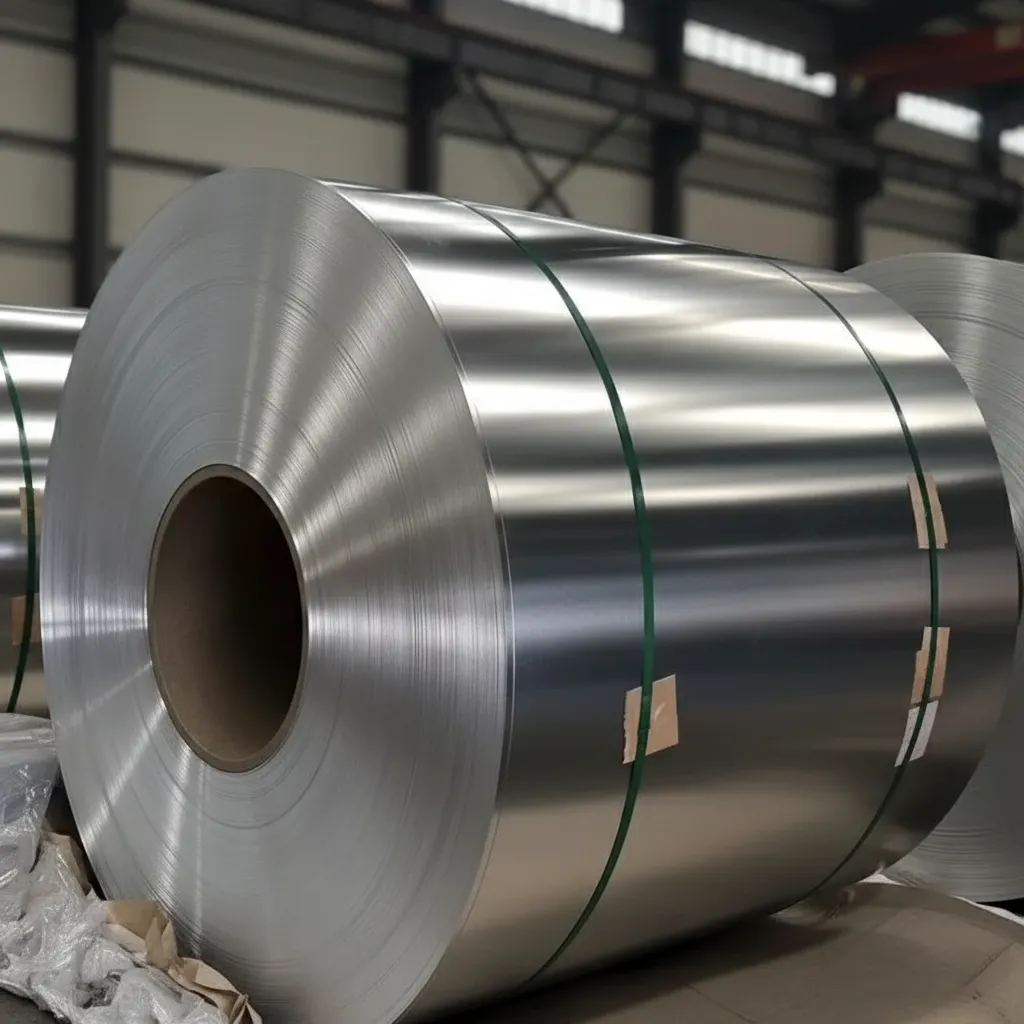

PPGI PPGL steel coil manufacturer

Can you cut to custom sizes?

Our slitting lines accommodate custom widths from 600mm to 1,250mm with tolerance ±3mm per EN 10143. Sheet cutting services are available for lengths up to 12 meters with precision ±5mm using CNC guillotine shears. We provide edge trimming, deburring, and protective film application for sheets destined for direct installation. Minimum cutting quantity is 5 tons per width specification to justify tooling setup costs.

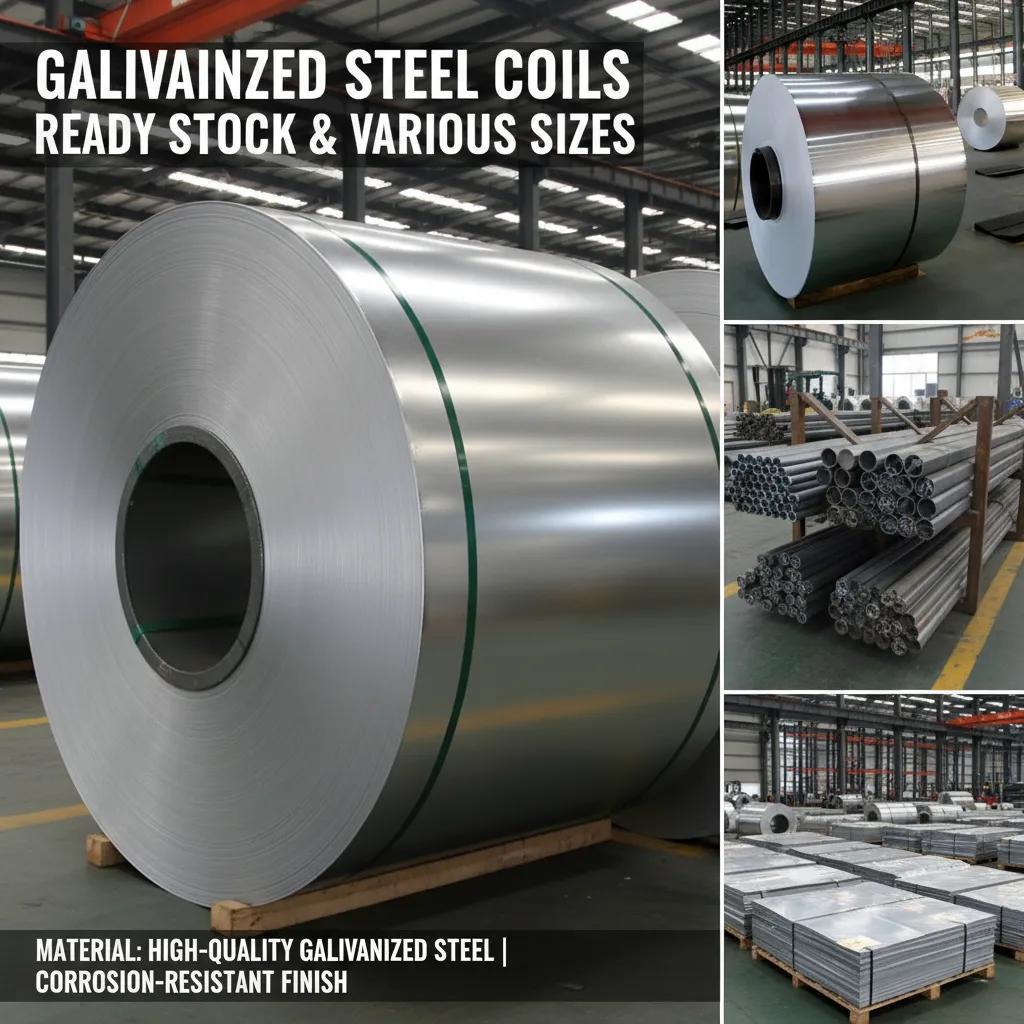

PPGI PPGL steel coil China

Get a Competitive Quote for PPGI PPGL Steel Coil

Request factory-direct pricing for your PPGI PPGL steel coil requirements today. Our technical sales team provides detailed quotations within 24 hours including FOB/CIF terms, packaging specifications, and estimated delivery schedules. Submit your inquiry with thickness, width, coating type, color code, and destination port for accurate cost calculation. Volume discounts available for annual contracts exceeding 500 metric tons with flexible payment terms and consignment inventory options for qualified distributors.

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

David Anderson

Canada

verified purchases

2025-09-10

Perfect PPGI Coils for HVAC Duct Manufacturing
This is our fourth order - 26 tons of PPGI coils (0.38mm thickness, 1200mm width, Z100 coating). Material consistently delivers excellent formability for our duct fabrication process. Coating adhesion passes T-bend testing without cracking at 1T radius. Chemical composition analysis shows carbon content at 0.042%, ideal for our welding operations. The supplier maintains stock of our standard specifications, enabling 10-day delivery from order confirmation. Annual contract pricing reduced our material costs by 12% compared to spot purchases.

Carlos Silva

Brazil

verified purchases

2025-09-28

Acceptable Quality with Delivery Delay Resolved
Purchased 20 tons of PPGI coils (0.40mm thickness, Z120 coating) for agricultural building roofing. Material quality met ASTM A755 standards with polyester paint at 20 microns thickness. Initial delivery was delayed by 12 days due to production scheduling issues. Supplier provided compensation by upgrading paint system to SMP at no extra cost. Tensile strength tested at 320 MPa, within specified range. Color matching to RAL 5015 was acceptable but showed slight variation under direct sunlight. Issue was resolved professionally.

Ahmed Al-Hassan

UAE

verified purchases

2025-10-15

Reliable PPGI Coils for Roofing Panels
We ordered 30 tons of PPGI coils (0.45mm thickness, Z100 coating, RAL 3009 red) for villa roofing project in Dubai. Material withstood high temperature testing at 80°C without paint blistering. ASTM A653 compliance verified through mill certificates. Coil packaging was excellent with protective wrapping. Delivery took 19 days to Jebel Ali port. Some minor edge rust on 3 coils due to sea freight humidity, but supplier provided 5% material credit without dispute. Would order again for future projects.

William Taylor

Australia

verified purchases

2025-11-02

Superior PPGL Performance in Marine Environment
Ordered 22 tons of PPGL steel coil (0.42mm thickness, AZ150 aluminum-zinc coating) for coastal equipment enclosures. After 14 months of exposure to salt spray conditions, coating shows minimal degradation. Material certificates documented 55% aluminum content meeting AS 1397 standards. The chromate passivation treatment proved highly effective. Cut-to-length service provided sheets at 2400mm with ±3mm precision. Third-party SGS inspection confirmed all specifications before shipment.

Hans Mueller

Germany

verified purchases

2025-11-20

Premium PVDF Coated Coils for Architectural Project
Purchased 18 tons of PPGL coils with PVDF coating (0.60mm thickness, custom color match to RAL 3009) for commercial building facade. Salt spray testing exceeded 600 hours with no visible degradation. The silicon modified polyester primer provided excellent adhesion. EN 10169:2012 compliance verified through TÜV inspection. Color consistency across all coils was remarkable. Slitting tolerance maintained at ±2mm for our 950mm width requirement. Delivered 16 days from deposit payment.

Michael Torres

United States

verified purchases

2025-12-08

Good Value PPGI Coils for Appliance Manufacturing
Ordered 25 tons of PPGI coils (0.35mm thickness, 1250mm width, RAL 9002 white) for refrigerator door panels. Material met ASTM A755 specifications with polyester paint system. Impact resistance tested at 55 lb-in per ASTM D2794. Pricing was 8% lower than domestic suppliers. Minor color variation on 2 coils but within acceptable Delta E tolerance. Lead time was 22 days, slightly longer than quoted 20 days. Overall solid quality for the price point.

James Wilson

United Kingdom

verified purchases

2025-12-23

Outstanding Quality PPGI for Industrial Cladding
We purchased 32 tons of PPGI steel coil (0.50mm gauge, Z150 coating, custom RAL 7035) for factory wall panels. The five-stage pre-treatment process delivered superior corrosion resistance compared to our previous supplier. EN 10204 Type 3.1 certificates documented zinc coating at 152 g/m² both sides. Pencil hardness measured 3H on topcoat. Technical team responded within 4 hours with coating thickness data. This is our second order in 6 months.

Robert Chen

Singapore

verified purchases

2026-01-07

Excellent PPGL Coils for Warehouse Roofing
Ordered 28 tons of PPGL coils (0.47mm thickness, 1000mm width, RAL 5015) for our warehouse expansion project. The aluminum-zinc coating performed exceptionally well during salt spray testing. Mill certificates confirmed 55% Al-Zn composition per ASTM A792. Paint adhesion tested at 5B classification, exceeding our 4B requirement. Delivery completed in 18 days to Singapore port. Material showed no edge waviness issues during installation.
