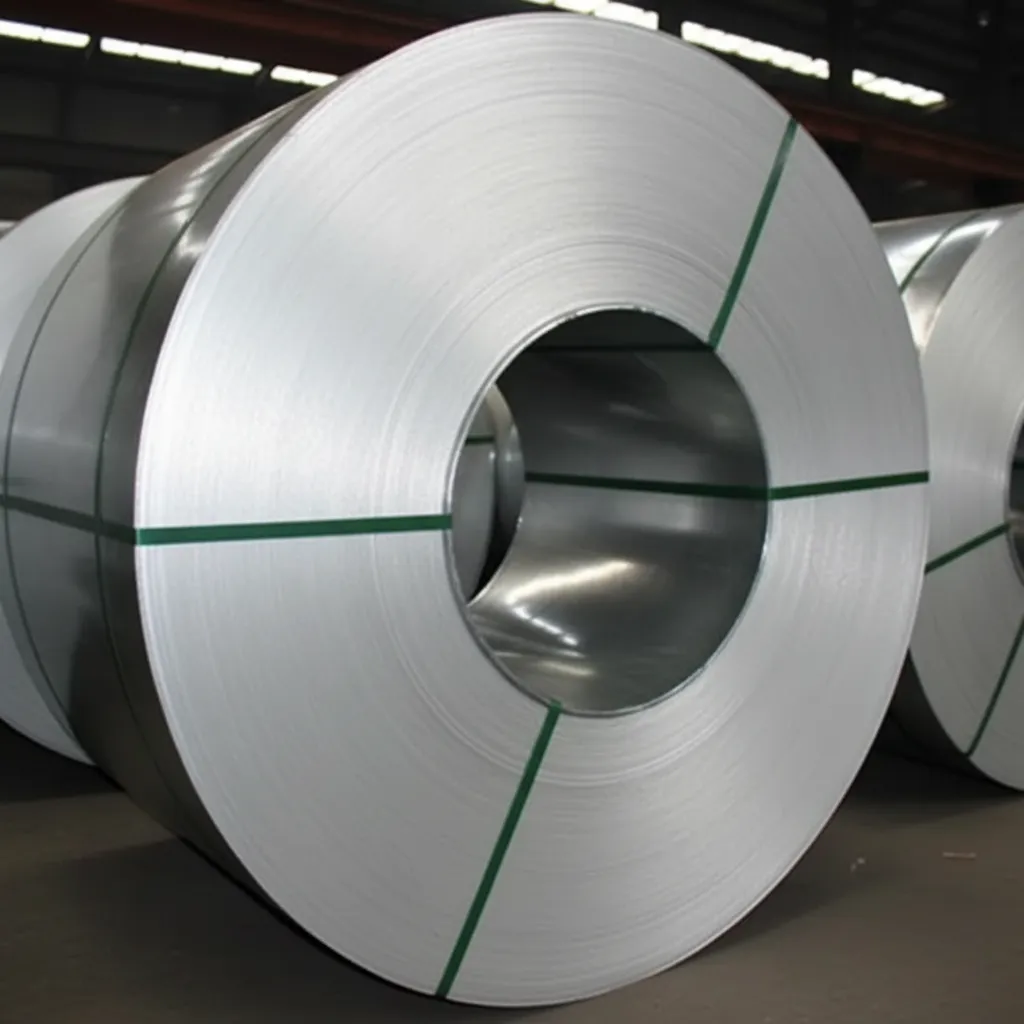

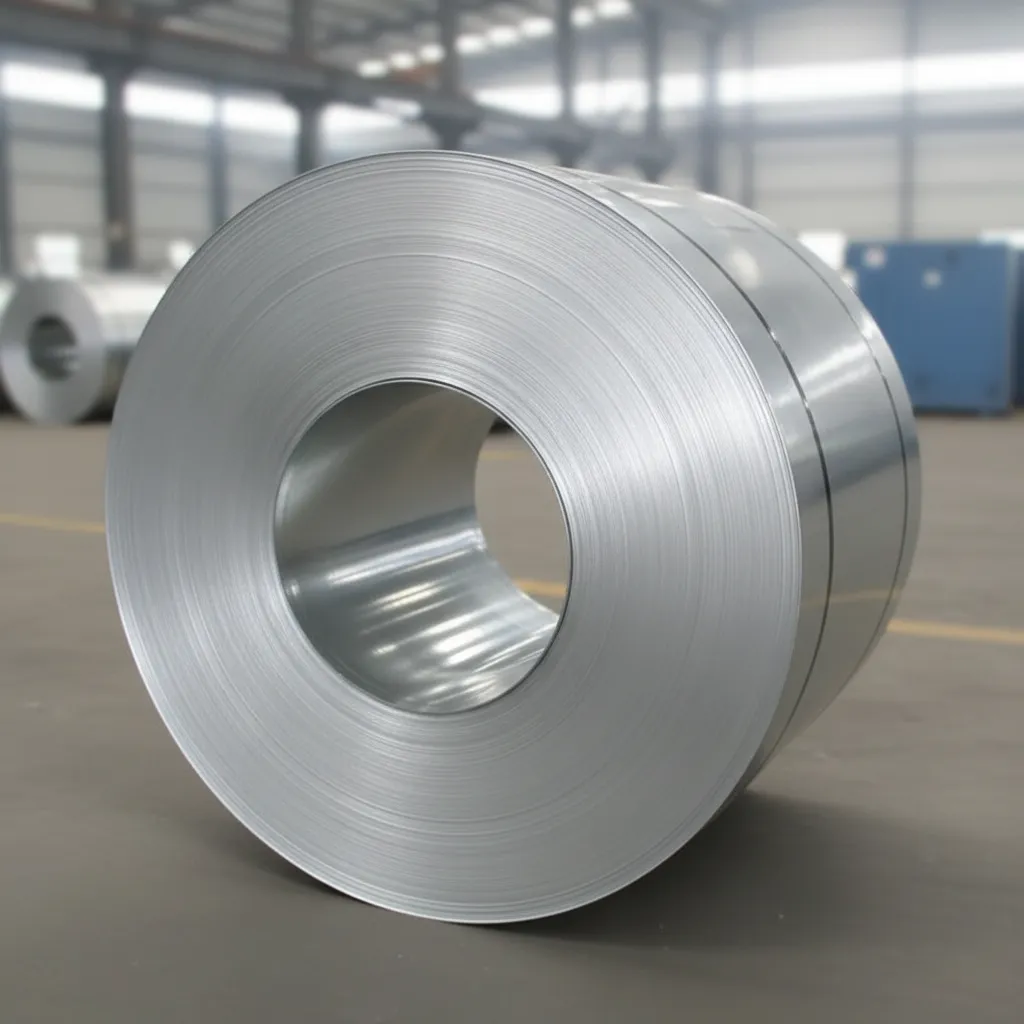

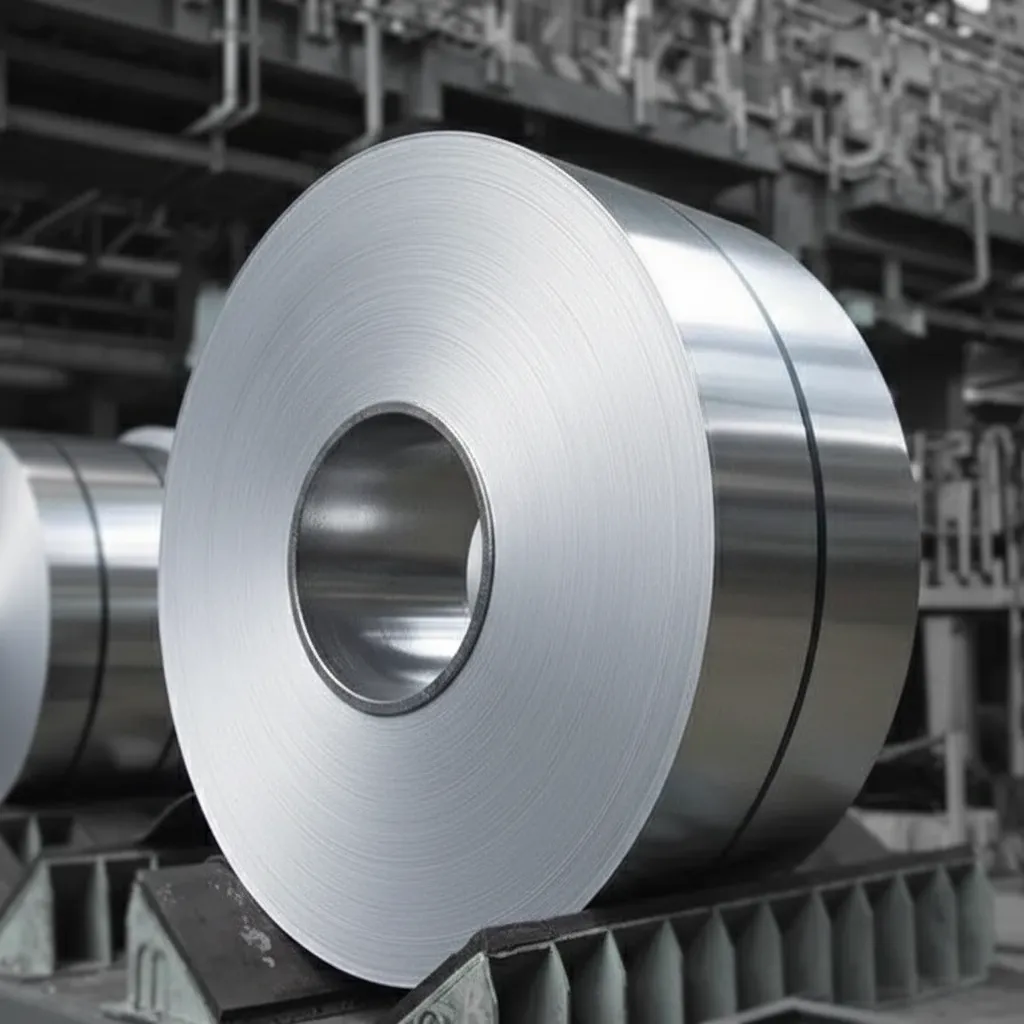

Electrolytic Tinplate for Packaging - Food-Grade Corrosion-Resistant Steel Coil

Technical Specifications of Electrolytic Tinplate for Packaging

Electrolytic Tinplate for Packaging - Food-Grade Corrosion-Resistant Steel Coil

Electrolytic tinplate for packaging represents a specialized cold-rolled steel substrate coated with a thin layer of tin through electroplating, specifically engineered for food and beverage container applications. This premium-grade material combines the structural integrity of low-carbon steel with the exceptional corrosion resistance and non-toxicity of tin, making it the preferred choice for manufacturers requiring food-safe packaging solutions. Our electrolytic tinplate serves critical roles in the canning industry, aerosol container production, and specialty packaging sectors where product preservation and consumer safety are paramount.

What is Electrolytic Tinplate for Packaging?

Electrolytic tinplate for packaging is a cold-rolled steel sheet product with a uniform tin coating applied via electrochemical deposition, typically ranging from 2.8 to 11.2 grams per square meter (g/m²) per side. The base steel substrate undergoes rigorous cold reduction to achieve thickness tolerances of ±0.01mm, followed by continuous electrolytic tinning lines that deposit pure tin (99.85% minimum purity per ASTM A623) onto both surfaces. This manufacturing process creates a metallurgical bond between the steel core and tin coating, providing superior adhesion compared to hot-dip methods while enabling precise coating weight control essential for cost-effective packaging applications.

Electrolytic Tinplate for Packaging Technical Specifications

Our electrolytic tinplate conforms to ASTM A623/A623M-20 and EN 10202:2001 standards, featuring base steel thickness from 0.15mm to 0.49mm with temper grades ranging from T-1 (soft) to T-6 (extra hard). The tin coating weight classifications include E2.8/2.8, E5.6/5.6, and E11.2/11.2 (coating weight per side in g/m²), with chromium passivation layers of 10-120 mg/m² Cr applied for enhanced corrosion resistance. Mechanical properties vary by temper: T-3 grade exhibits tensile strength of 345-415 MPa with 32-38% elongation, while T-5 grade achieves 485-585 MPa tensile strength with 8-16% elongation, enabling diverse forming requirements from shallow-drawn cans to complex aerosol containers.

Why Choose Our Electrolytic Tinplate for Packaging

Our mill-direct electrolytic tinplate delivers factory-competitive pricing through vertical integration of steelmaking, cold rolling, and electroplating operations, eliminating intermediary markups typical in distribution channels. We maintain ISO 9001:2015 and FSSC 22000 certifications, with each coil accompanied by material test certificates documenting chemical composition per ASTM E1019, coating weight verification per ASTM A599, and surface finish measurements meeting T3/T4 brightness standards. Our production facilities achieve coating uniformity within ±5% across coil width, superior to industry-standard ±10% tolerance, ensuring consistent lithographic printing performance and lacquer adhesion for decorated packaging applications.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 25 metric tons per specification (thickness, coating weight, and temper grade combination), equivalent to approximately 5-7 coils depending on width and gauge. For established customers with consistent purchasing patterns, we offer flexibility to combine multiple specifications within a 50-ton minimum shipment, enabling inventory optimization for packaging manufacturers requiring various tinplate grades for different product lines.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting chemical analysis results from optical emission spectrometry (carbon, manganese, phosphorus, sulfur per ASTM E415), tin coating weight verification through coulometric stripping per ASTM A599, and mechanical property test data including tensile strength, yield strength, and elongation values from transverse specimens. Certificates include heat number traceability, production date, and compliance statements for FDA 21 CFR 175.300 and EU Regulation 10/2011 for food contact materials.

What is the typical delivery time?

Standard lead time ranges from 35 to 45 days from purchase order confirmation for stock specifications (0.18-0.30mm thickness, E5.6/5.6 coating, T-3/T-4 temper grades), including 20-25 days for steel substrate production, 7-10 days for electrolytic tinning and passivation, and 5-7 days for quality inspection and logistics preparation. Custom specifications requiring special base steel chemistry or non-standard coating weights may extend lead times to 55-65 days, with production scheduling coordinated through our technical sales team to align with your packaging line requirements.

Can you cut to custom sizes?

Our slitting capabilities accommodate custom widths from 600mm to 1,250mm with edge trimming tolerance of ±0.5mm, and we provide precision cut-to-length services for sheets ranging from 600mm to 2,000mm in length with squareness deviation under 1.5mm per meter. For high-volume orders exceeding 100 tons annually, we offer dedicated slitting programs with width tolerances tightened to ±0.3mm and specialized edge conditioning (rounded, deburred, or square-cut) tailored to your stamping press or can body maker specifications, minimizing material waste and optimizing your production efficiency.

Get a Competitive Quote for Electrolytic Tinplate for Packaging

Contact our technical sales team today to receive a detailed quotation for electrolytic tinplate that meets your specific packaging application requirements. Our metallurgical engineers provide complimentary consultations to optimize material specifications based on your forming processes, product shelf-life requirements, and cost targets. Request mill test certificate samples, coating weight analysis reports, and formability test data to validate our material quality before committing to production volumes. We offer flexible Incoterms including FOB, CFR, and CIF with competitive freight arrangements through our logistics partners, ensuring reliable supply chain performance for your packaging manufacturing operations.
