Hot Rolled Wear Resistant Steel Plate - ASTM A537 / AR400 / AR500 Grade

Technical Specifications of Hot Rolled Wear Resistant Steel Plate

Hot Rolled Wear Resistant Steel Plate - ASTM A537 / AR400 / AR500 Grade

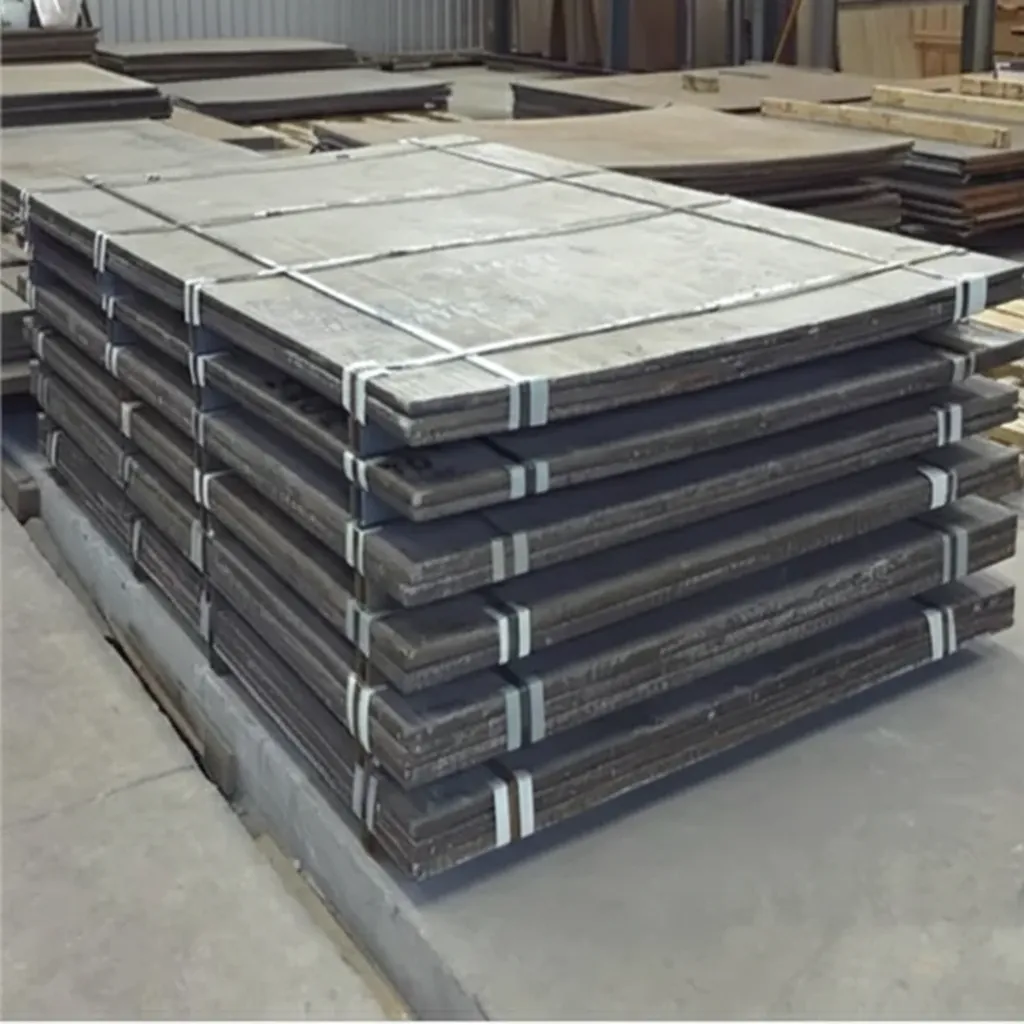

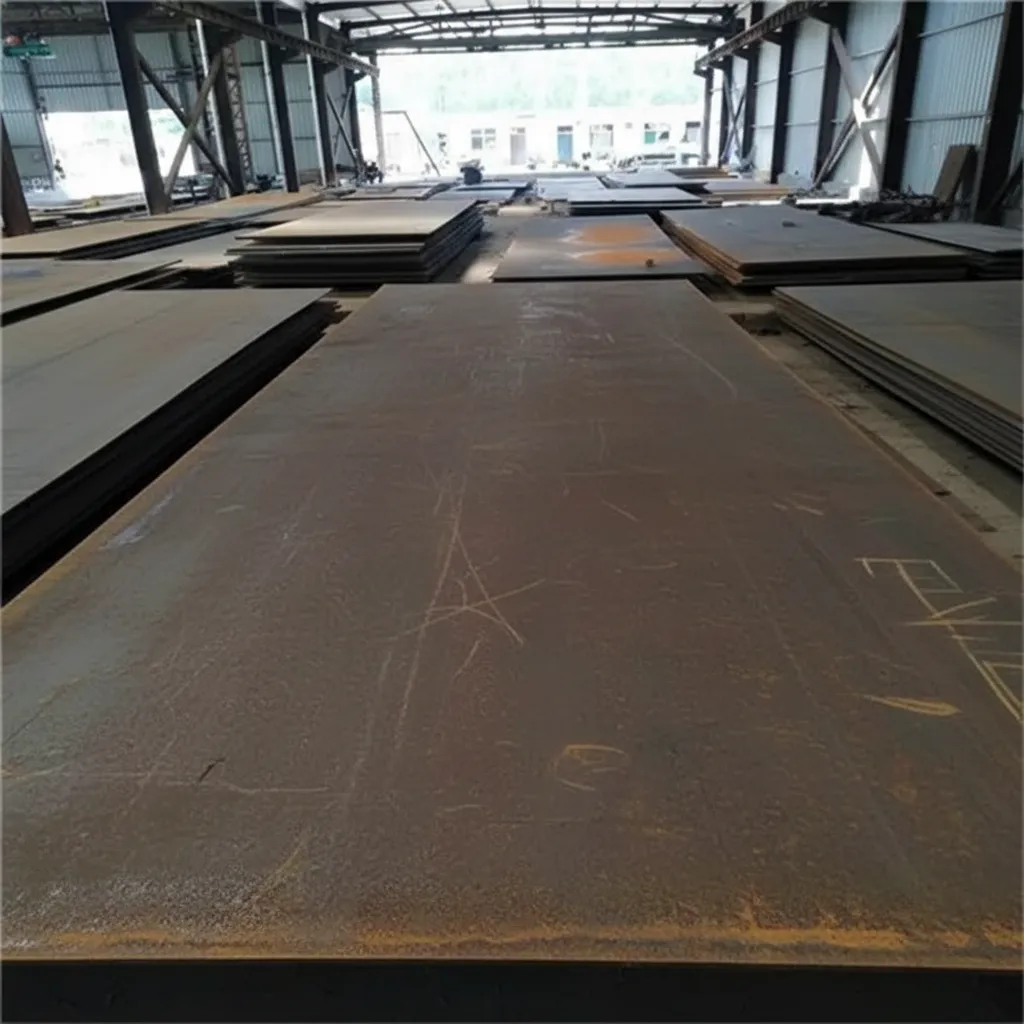

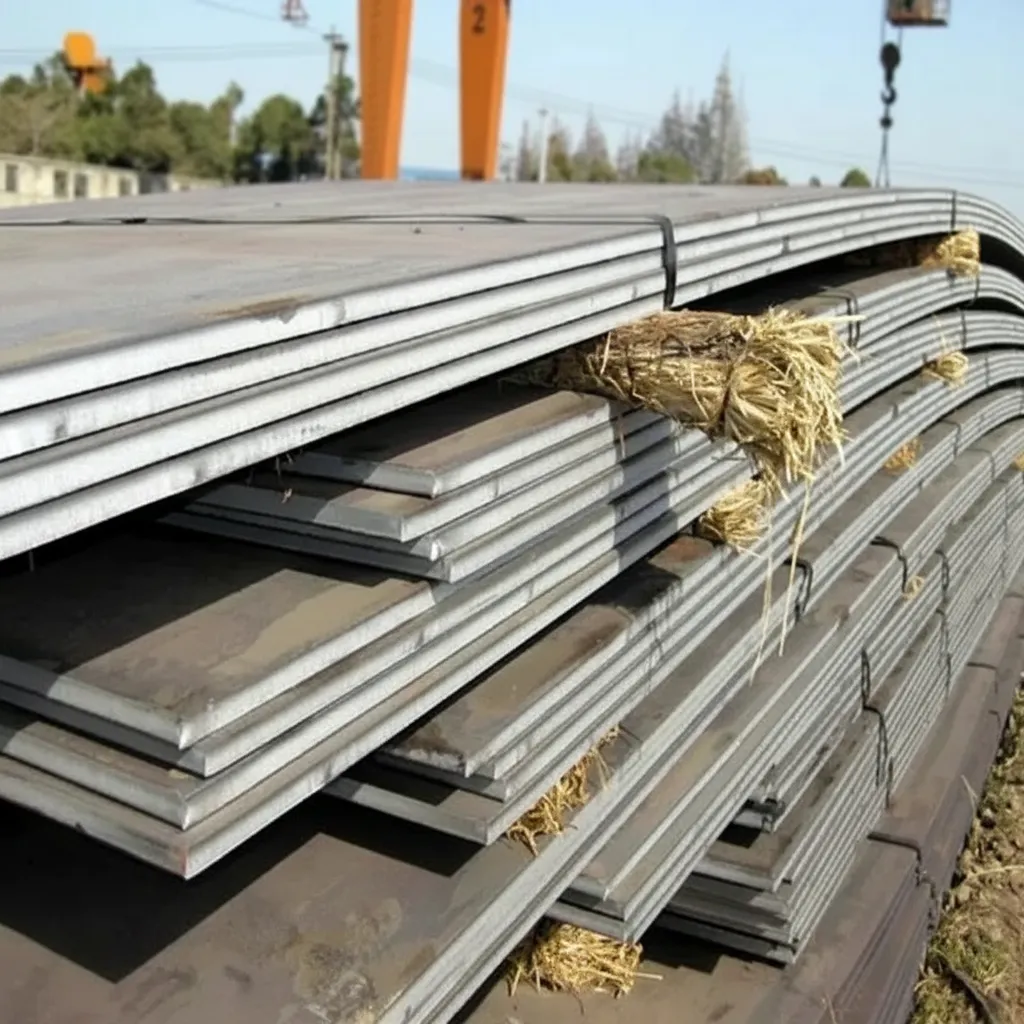

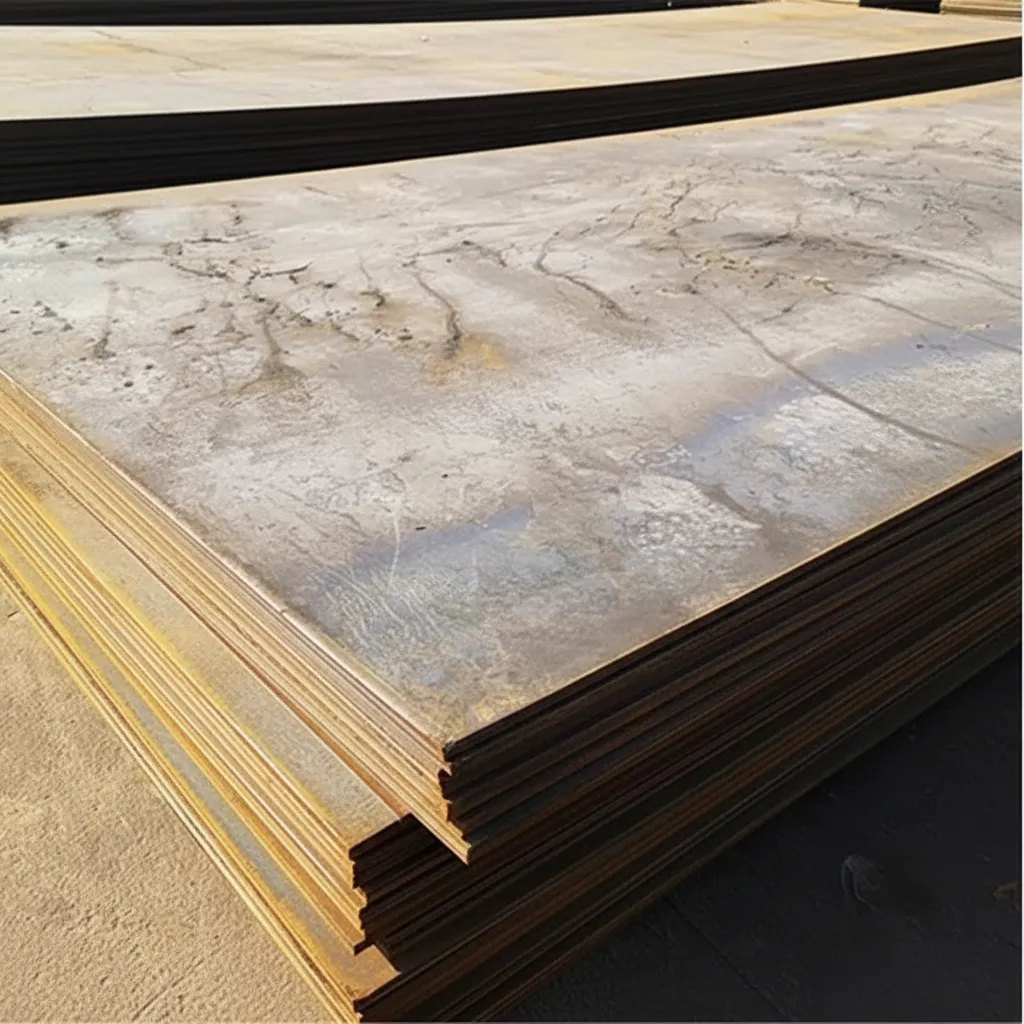

Hot rolled wear resistant steel plate is a specialized high-carbon alloy steel product engineered to withstand severe abrasive conditions in heavy-duty industrial environments. Manufactured through controlled hot rolling processes at temperatures exceeding 1,200°C, these plates deliver exceptional surface hardness ranging from 360 to 540 HBW while maintaining superior impact toughness. Primarily serving mining operations, cement production facilities, aggregate processing plants, and material handling systems, this premium-grade steel extends equipment service life by 3-5 times compared to conventional structural steel. Available in AR400, AR500, and ASTM A537 specifications, our mill-direct wear plates offer cost-effective solutions for customers seeking to minimize downtime and maintenance expenses.

What is Hot Rolled Wear Resistant Steel Plate?

Hot rolled wear resistant steel plate is a through-hardened carbon alloy steel product specifically designed for applications involving sliding abrasion, impact, and material flow. The manufacturing process involves heating steel billets to 1,200-1,300°C followed by controlled rolling and quenching to achieve a martensitic microstructure with uniform hardness distribution throughout the plate thickness. This metallurgical structure provides exceptional resistance to gouging, scratching, and wear while maintaining adequate ductility for fabrication operations including cutting, bending, and welding.

Hot Rolled Wear Resistant Steel Plate Technical Specifications

Our wear resistant plates comply with ASTM A537 Class 1 for pressure vessel applications and proprietary AR (Abrasion Resistant) grades. Chemical composition includes carbon content of 0.15-0.28%, manganese 0.90-1.50%, chromium 0.30-1.00%, and molybdenum 0.15-0.50% depending on hardness grade. Typical mechanical properties include tensile strength of 1,250-1,550 MPa for AR400 grade and 1,400-1,850 MPa for AR500 grade. Brinell hardness values range from 360-440 HBW (AR400) to 460-540 HBW (AR500) measured per ASTM E10 standard. Plates are supplied in thicknesses from 6mm to 80mm with standard dimensions up to 3,000mm × 12,000mm.

Why Choose Our Hot Rolled Wear Resistant Steel Plate?

We maintain strategic partnerships with ISO 9001:2015 certified mills specializing in abrasion-resistant steel production. Our quality control protocol includes ultrasonic testing per ASTM A435, dimensional inspection to ±2mm tolerance, and hardness verification across minimum five test points per plate. Each shipment includes mill test certificates (EN 10204 3.1) documenting chemical analysis, mechanical properties, and heat treatment parameters. With warehouse inventory exceeding 5,000 tons across AR400 and AR500 grades, we provide same-week delivery for standard dimensions and 3-4 week lead times for custom-cut plates. Our technical team offers complimentary fabrication consultation including welding procedure specifications and thermal cutting recommendations.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity is 5 tons for stock thickness grades (8mm, 10mm, 12mm, 16mm, 20mm). For non-standard thicknesses or custom dimensions, the MOQ increases to 10 tons to justify mill production runs. We accommodate smaller quantities for sample testing purposes with applicable small-lot surcharges. Mixed-grade orders combining AR400 and AR500 specifications can meet the 5-ton threshold collectively.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates as standard documentation with every shipment. These certificates include complete chemical composition analysis performed via optical emission spectrometry, mechanical property test results from transverse tensile specimens, Brinell hardness readings from minimum five locations, and heat treatment parameters. Additional third-party inspection certificates from SGS, BV, or TÜV can be arranged upon request with 5-7 business days notice and applicable inspection fees.

What is the typical delivery time?

For in-stock standard dimensions, delivery occurs within 5-7 business days from order confirmation to your designated port or facility. Custom thickness plates requiring mill production have lead times of 25-30 calendar days, including manufacturing, quality inspection, and logistics coordination. Expedited production is available for urgent requirements with 15-18 day delivery at premium pricing. International shipments add 15-25 days for ocean freight depending on destination port.

Can you cut to custom sizes?

We provide comprehensive value-added processing including plasma cutting (tolerance ±3mm), oxy-fuel cutting for thick sections, laser cutting for precision parts (tolerance ±0.5mm), and beveling preparation for welding. Our CNC cutting equipment handles plates up to 80mm thickness with nested cutting optimization to minimize material waste. Custom shapes including circles, rings, and complex contours are produced from CAD file specifications. Surface grinding services achieve Ra 3.2μm finish when required for specific applications.

Get a Competitive Quote for Hot Rolled Wear Resistant Steel Plate

Request your customized quotation today by providing specifications including grade (AR400/AR500/A537), thickness, dimensions, quantity, and delivery location. Our sales engineers respond within 4 business hours with factory-direct pricing, technical data sheets, and delivery schedules. Volume purchasers benefit from tiered pricing structures and flexible payment terms including letters of credit and 30-60 day accounts for qualified customers. Contact our team to discuss your wear plate requirements and discover how our mill-direct sourcing delivers value-driven solutions for your abrasion-critical applications.
