| Property | Parameter | Description |
|---|---|---|

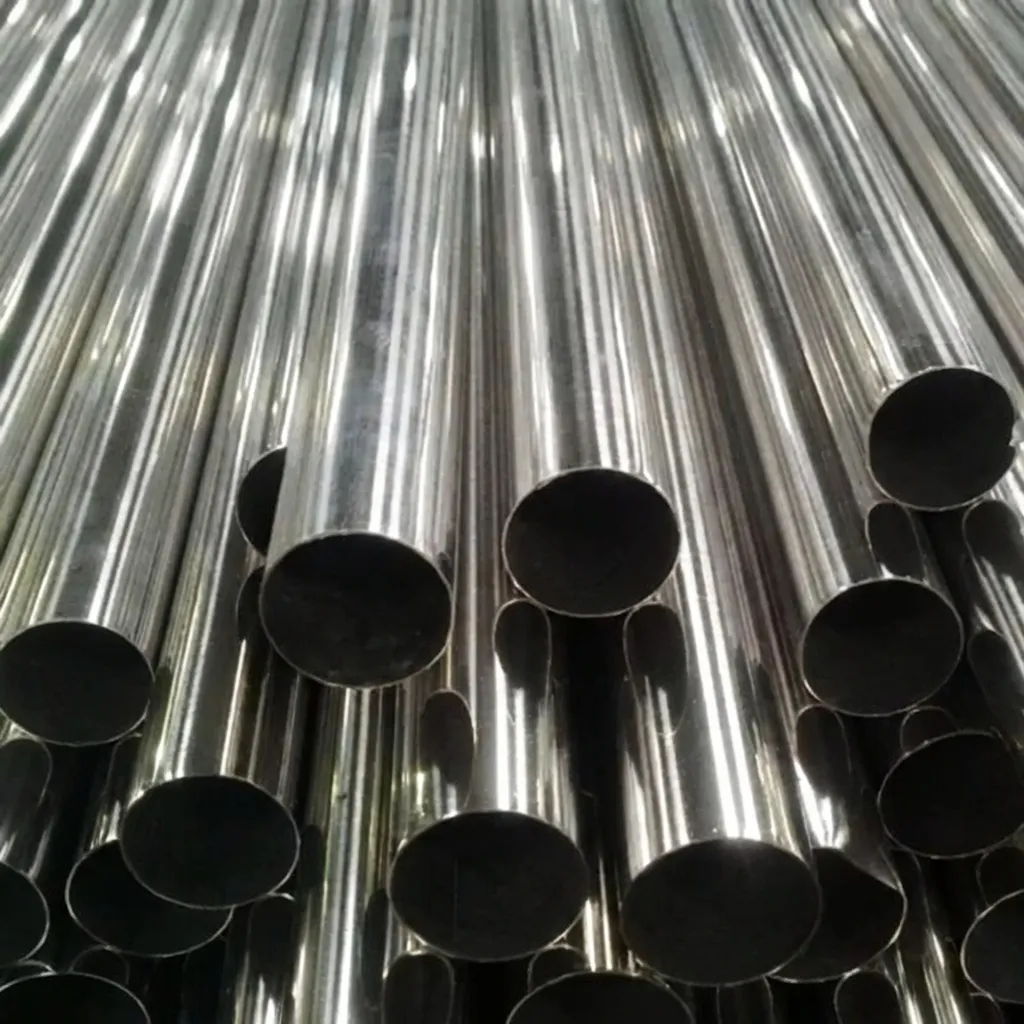

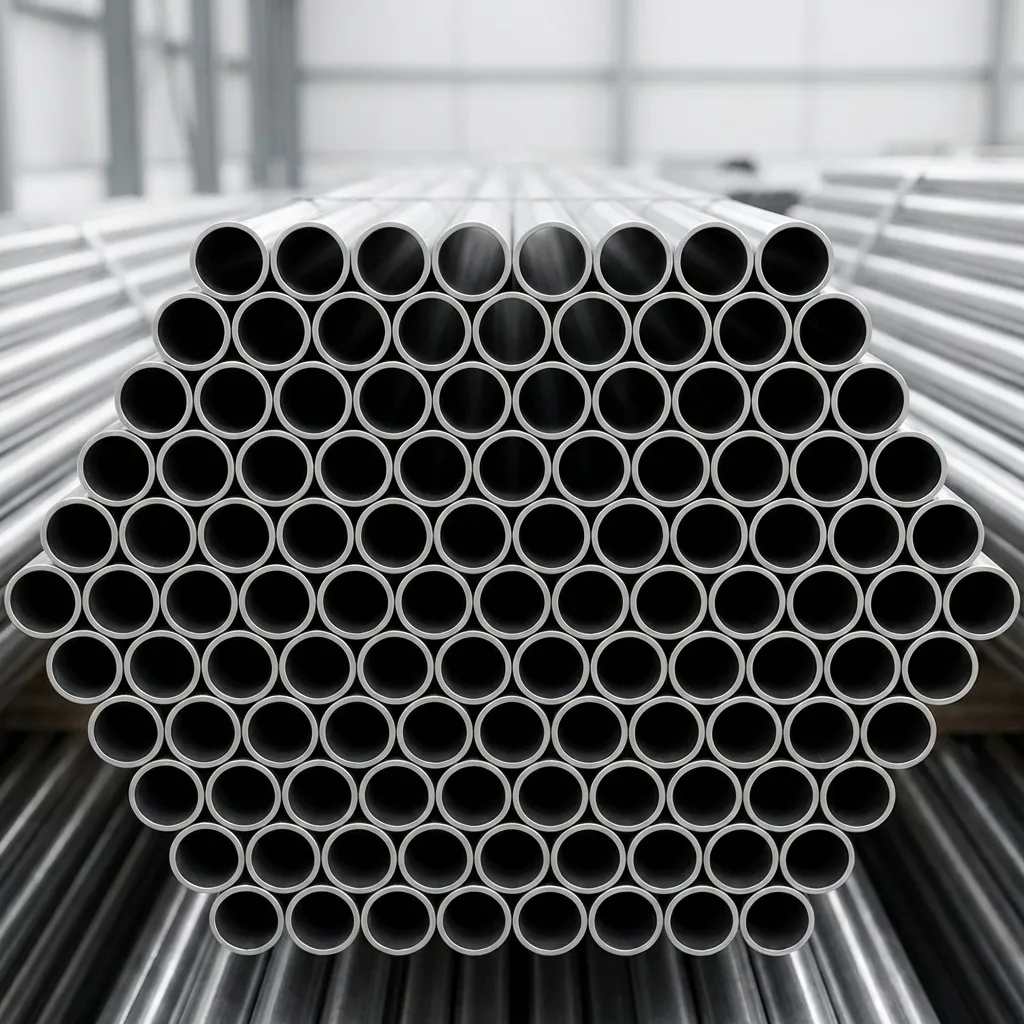

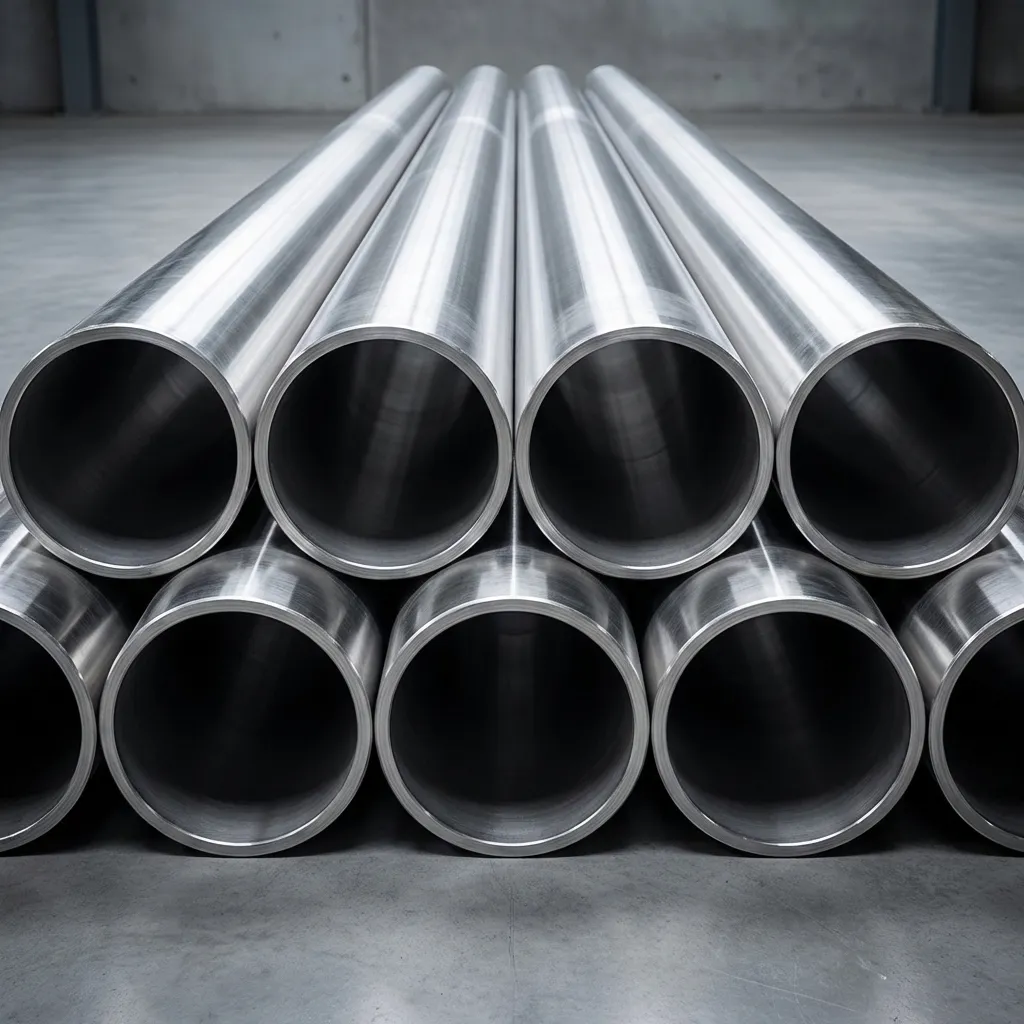

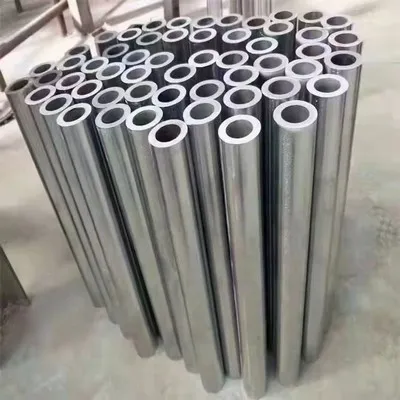

| Product Name | 310 Stainless Steel Pipe | Austenitic high-temperature resistant stainless steel pipe |
| Material Grade | ASTM A213 TP310 / ASTM A312 TP310S / EN 1.4845 / UNS S31000 / GB 06Cr25Ni20 | International grade equivalents with superior heat resistance |
| Manufacturing Process | Hot-finished or cold-finished seamless / welded (ERW, SAW) | Seamless preferred for high-temperature service |
| Standard Compliance | ASTM A312, ASTM A213, ASME SA312, EN 10216-5, GB/T 14976 | Meets major global pressure piping and boiler tube standards |
| Carbon (C) | ≤0.08% | Controlled for thermal stability and creep resistance |
| Chromium (Cr) | 24.0–26.0% | Primary contributor to oxidation resistance at high temperatures |
| Nickel (Ni) | 19.0–22.0% | Stabilizes austenite structure and enhances hot strength |
| Manganese (Mn) | ≤2.0% | Deoxidizer and strength modifier |
| Silicon (Si) | ≤1.5% | Improves scale adhesion and oxidation resistance |
| Tensile Strength | ≥515 MPa | Minimum per ASTM A312 at room temperature |
| Yield Strength | ≥205 MPa | Minimum yield strength (0.2% offset) |
| Elongation | ≥35% | Minimum ductility in 50 mm gauge length |
| OD Range | 6 mm – 1219 mm | Standard and custom outer diameters available |
| Wall Thickness | 0.5 mm – 60 mm | Includes standard schedules (Sch 5 to XXS) and special thicknesses |
| Length | 5.8 m – 12 m or cut-to-length | Custom lengths available per client specification |
| Surface Finish | BA, 2B, Pickled, Polished, Bead Blasted | Options for corrosion resistance and aesthetic requirements |
| Application | Furnace components, heat exchangers, exhaust manifolds, petrochemical reformers | Designed for continuous service up to 1150°C in oxidizing atmospheres |
| Certification | EN 10204 3.1/3.2, ISO 9001, API 5L, PED 2014/68/EU | Comprehensive quality documentation for global markets |

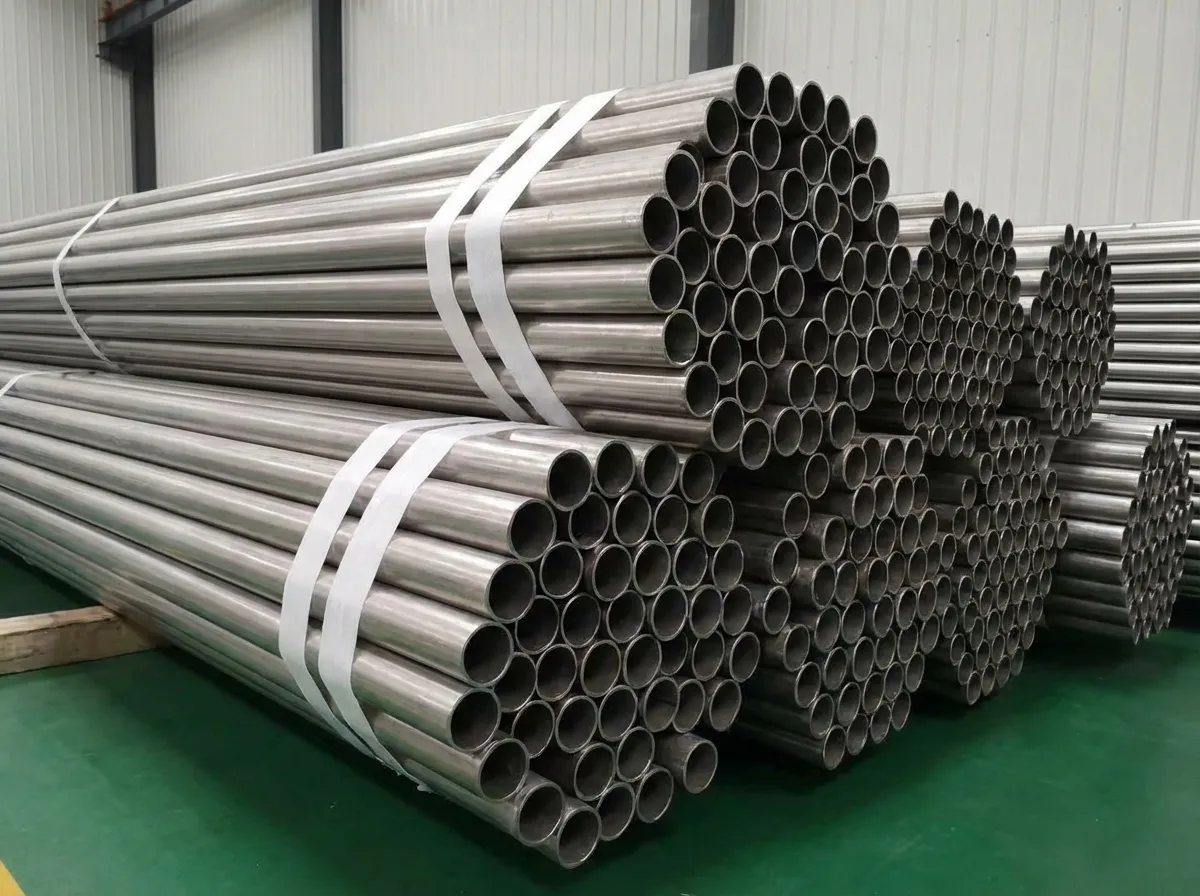

| Packaging | Wooden pallets, waterproof wrapping, plastic end caps, steel banding | Export-grade protection against moisture and mechanical damage |
| MOQ | 1 ton (standard grades), 3 tons (custom dimensions/finishes) | Flexible minimum order quantity based on production planning |
Acceptable Quality 310 Stainless Steel Pipe with Minor Issues Resolved
Decent product quality overall, with one issue that was resolved. We ordered 5.1 tons of 310 seamless pipe (OD 101.6 mm, WT 6.0 mm) for experimental furnace baffle plates. Upon receipt, 4 of 28 pipes showed slight discoloration (light straw hue) on localized areas — indicating minor variation in final annealing quench rate, though still within ASTM A213 hardness limits (HRB 90–94). Supplier responded within 18 hours, dispatched replacement set with updated quench protocol documentation, and offered a 3% credit. They also confirmed tighter temperature band control (±5°C) for future orders. Overall acceptable. For R&D applications requiring absolute surface uniformity, suggest requesting batch-specific thermal history logs.
