316L Stainless Steel Pipe - ASTM A312 Seamless/Welded Tubing

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

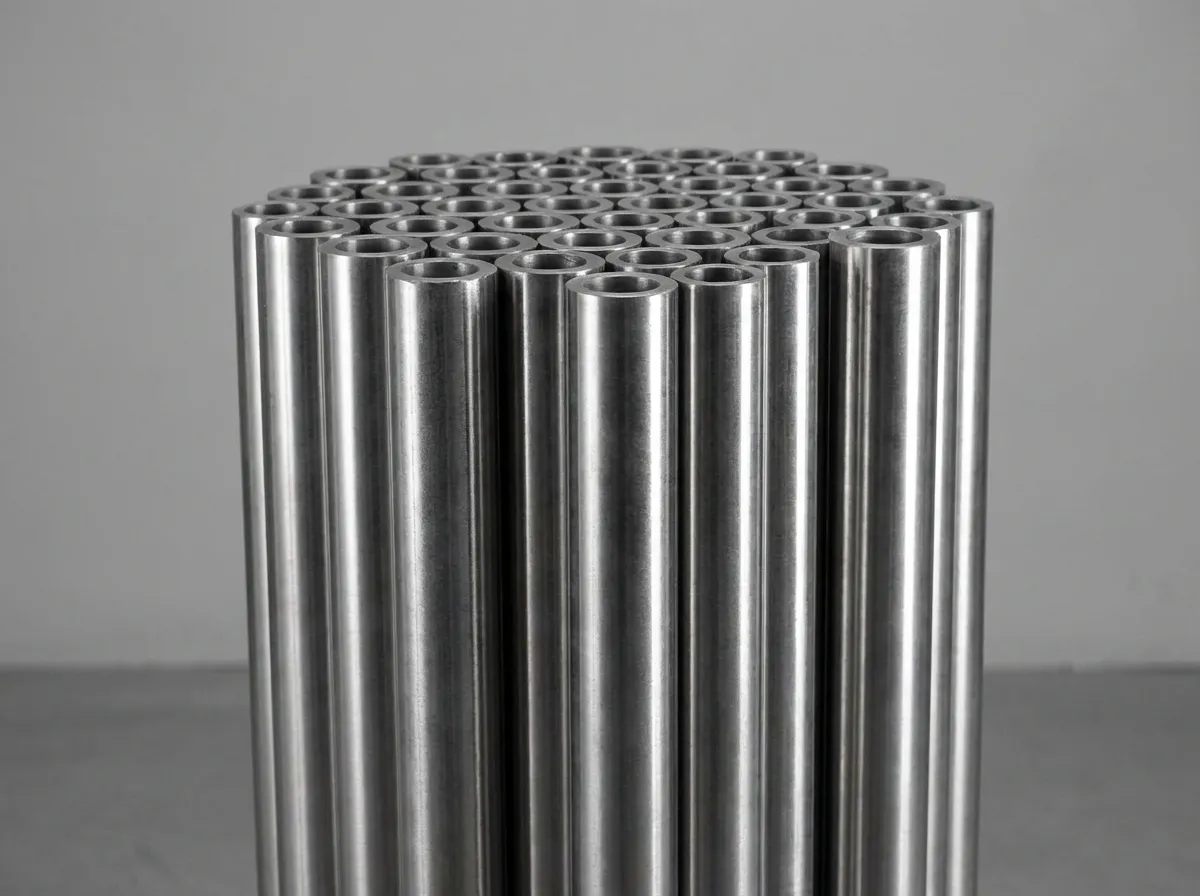

316L stainless steel pipe image thumbnail

Technical Specifications of 316L Stainless Steel Pipe

Property	Parameter	Description
Product Name	316L Stainless Steel Pipe	Low-carbon austenitic stainless steel pipe with superior corrosion resistance
Material Grade	316L / EN 1.4404 / UNS S31603 / JIS SUS316L	International grade equivalents
Standard Compliance	ASTM A312, ASTM A269, EN 10217-7, JIS G3459	Meets major international pipe standards
Carbon Content (C)	≤0.03%	Low carbon for improved weldability and corrosion resistance
Chromium (Cr)	16.0-18.0%	Provides excellent corrosion resistance
Nickel (Ni)	10.0-14.0%	Enhances ductility and toughness
Molybdenum (Mo)	2.0-3.0%	Improves pitting and crevice corrosion resistance
Manganese (Mn)	≤2.0%	Improves strength and workability
Silicon (Si)	≤1.0%	Deoxidizer and strengthener
Tensile Strength	≥515 MPa	Minimum tensile strength per ASTM A312
Yield Strength	≥205 MPa	Minimum yield strength at 0.2% offset
Elongation	≥35%	Ductility in 50mm gauge length
Hardness	≤217 HBW / ≤95 HRB	Maximum hardness values
OD Range	6mm - 914mm	Available outer diameter options
Wall Thickness	0.5mm - 50mm	Standard and custom thickness available
Length	5.8m - 12m or custom	Standard and custom lengths
Surface Finish	Bright Annealed (BA), Polished, Pickled	Multiple surface treatment options
Manufacturing Process	Seamless / Welded (TIG/ERW)	Hot-finished or cold-drawn seamless, or welded options
Application	Chemical processing, marine, pharmaceutical, food processing	Typical application industries
Temperature Range	-196°C to 925°C	Operating temperature range
Corrosion Resistance	Excellent in chloride environments	Superior to 304, PRE ≥24
Certification	EN 10204 3.1, ISO 9001, PED 2014/68/EU	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps, wooden case	Standard export packaging
MOQ	500 kg	Minimum order quantity

316L Stainless Steel Pipe - ASTM A312 Seamless/Welded Tubing

316L stainless steel pipe represents a premium-grade austenitic chromium-nickel tubing solution engineered for superior corrosion resistance in demanding industrial environments. This low-carbon variant of 316 alloy finds extensive application in chemical processing, marine infrastructure, pharmaceutical manufacturing, and food production systems where exceptional resistance to chloride-induced pitting and crevice corrosion is paramount. Manufactured to ASTM A312/A312M standards, our 316L pipes serve critical roles in industries requiring both structural integrity and long-term durability against aggressive media.

What is 316L Stainless Steel Pipe?

316L stainless steel pipe is an austenitic chromium-nickel-molybdenum alloy tubing with carbon content limited to 0.03% maximum, specifically designed to eliminate carbide precipitation during welding operations. The "L" designation indicates this low-carbon modification, which maintains optimal corrosion resistance in heat-affected zones without requiring post-weld annealing. Containing 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, this alloy demonstrates exceptional resistance to sulfuric, phosphoric, and acetic acids while maintaining mechanical strength across temperatures from cryogenic to 800°F (427°C).

316L Stainless Steel Pipe Technical Specifications

Our 316L pipes comply with ASTM A312/A312M-2021 Section 5 requirements, featuring density of 7.98 g/cm³ at 20°C and tensile strength of 515 MPa minimum per standard specifications. Chemical composition adheres to UNS S31603 designation with chromium 16.0-18.0%, nickel 10.0-14.0%, molybdenum 2.0-3.0%, and carbon ≤0.030%. Available in seamless (ASTM A312 TP316L) and welded configurations (ASTM A358 Class 1), our inventory spans NPS 1/8" through NPS 48" with wall schedules from 5S to XXS. Surface finishes include mill finish, 2B cold-rolled, and electropolished to Ra ≤0.4 μm for sanitary applications.

316L stainless steel pipe supplier

Why Choose Our 316L Stainless Steel Pipe

Our manufacturing process incorporates solution annealing at 1900-2050°F (1038-1121°C) followed by rapid water quenching, ensuring complete carbide dissolution and optimal corrosion resistance. Each production lot undergoes PMI verification, hydrostatic testing to 1.5x design pressure per ASME B31.3, and intergranular corrosion testing according to ASTM A262 Practice E. Mill test certificates document full chemical analysis, mechanical properties, and heat treatment parameters traceable to original melt numbers. Our 316L pipes meet EN 10088-2:2014 Grade 1.4404 and JIS G3459 SUS316L equivalencies for international project compliance.

Superior Welding Characteristics

The reduced carbon content of 316L eliminates sensitization risks during multi-pass welding, making it the preferred choice for fabricated piping systems requiring extensive field welding. Compatible with GTAW, GMAW, and SMAW processes using ER316L filler metals, our pipes maintain corrosion resistance across all heat-affected zones without mandatory stress-relief annealing.

Enhanced Molybdenum Content Benefits

The 2-3% molybdenum addition provides superior resistance to chloride stress-corrosion cracking compared to 304L alternatives, with pitting resistance equivalent number (PREN) of approximately 24-26. This elevated PREN value ensures reliable performance in coastal atmospheric exposure, brackish water systems, and chloride-contaminated process streams.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 500 kilograms for stock sizes with mill-direct pricing available for orders exceeding 5 metric tons. Custom dimensions require minimum 2-ton orders with 8-10 week lead times from mill scheduling. Sample lengths up to 1 meter are available for material qualification testing at nominal handling charges.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting chemical composition per heat analysis, mechanical properties from actual test specimens, heat treatment parameters, and hydrostatic test results. Supplementary PMI reports, intergranular corrosion test data per ASTM A262, and dimensional inspection records are available upon request to meet project QA/QC requirements.

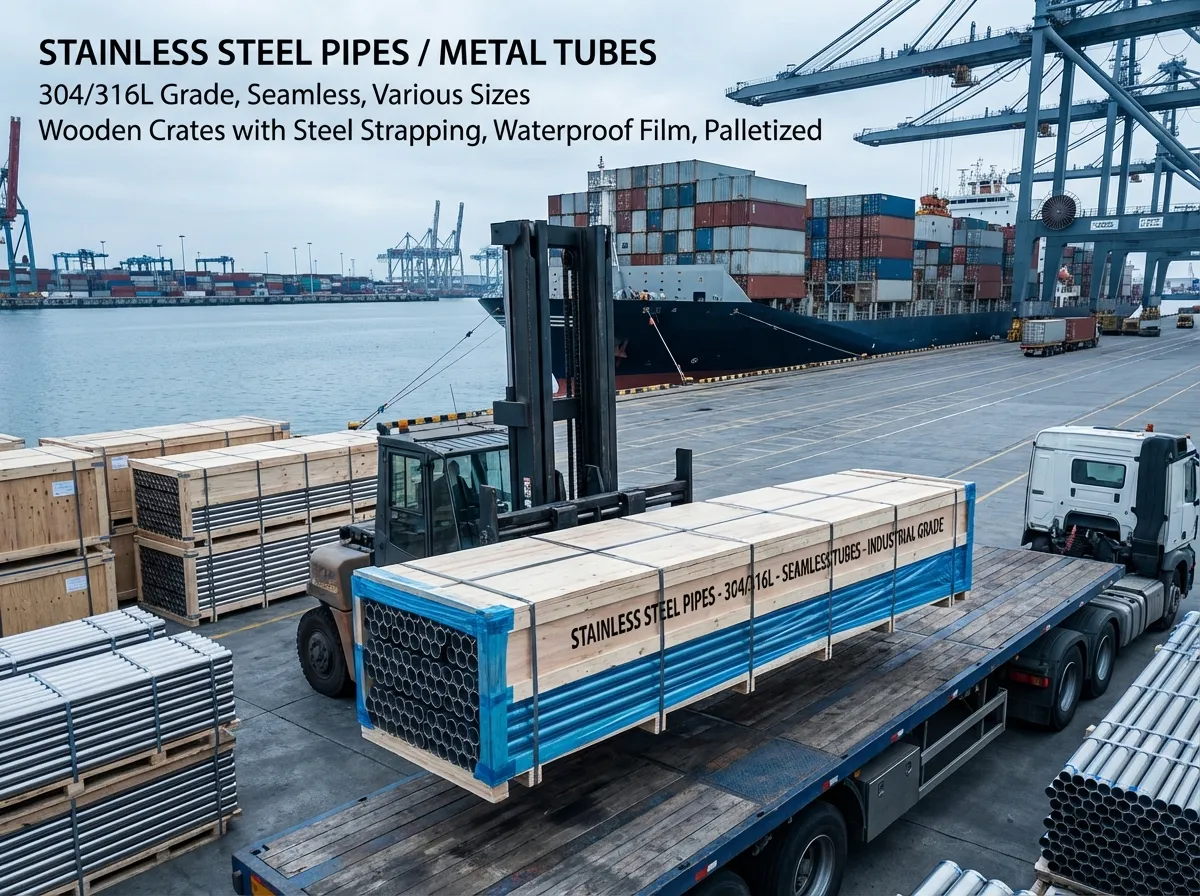

316L stainless steel pipe wholesale

What is the typical delivery time?

Stock sizes in schedules 10S through 40S with NPS 1/2" to NPS 12" ship within 5-7 business days from our regional distribution centers. Non-stock dimensions require 6-8 weeks for seamless production or 4-6 weeks for welded configurations, subject to mill capacity. Expedited processing is available for critical-path projects with premium scheduling fees.

Can you cut to custom sizes?

Our fabrication facility provides precision cutting services with tolerances of ±1.5mm using abrasive saws or orbital cutting equipment to prevent heat-affected zone contamination. We offer beveling to ASME B16.25 specifications, end-facing, and deburring services. Custom lengths from 100mm to 12 meters can be processed with certified dimensional reports and end-marking per customer specifications.

Get a Competitive Quote for 316L Stainless Steel Pipe

Request your detailed quotation today and benefit from our mill-direct sourcing relationships, eliminating intermediary markups while ensuring full material traceability. Our technical sales team provides professional consultation on material selection, specification compliance, and cost optimization for your specific application requirements. Volume pricing structures and scheduled delivery programs are available for annual contracts and multi-phase projects.

24/7 customer support available via phone, email, and online chat
Free samples for quality evaluation with certified test reports
Competitive pricing for bulk orders with flexible payment terms
Professional technical consultation on alloy selection and application engineering

Contact us today to get your free quote within 24 hours!

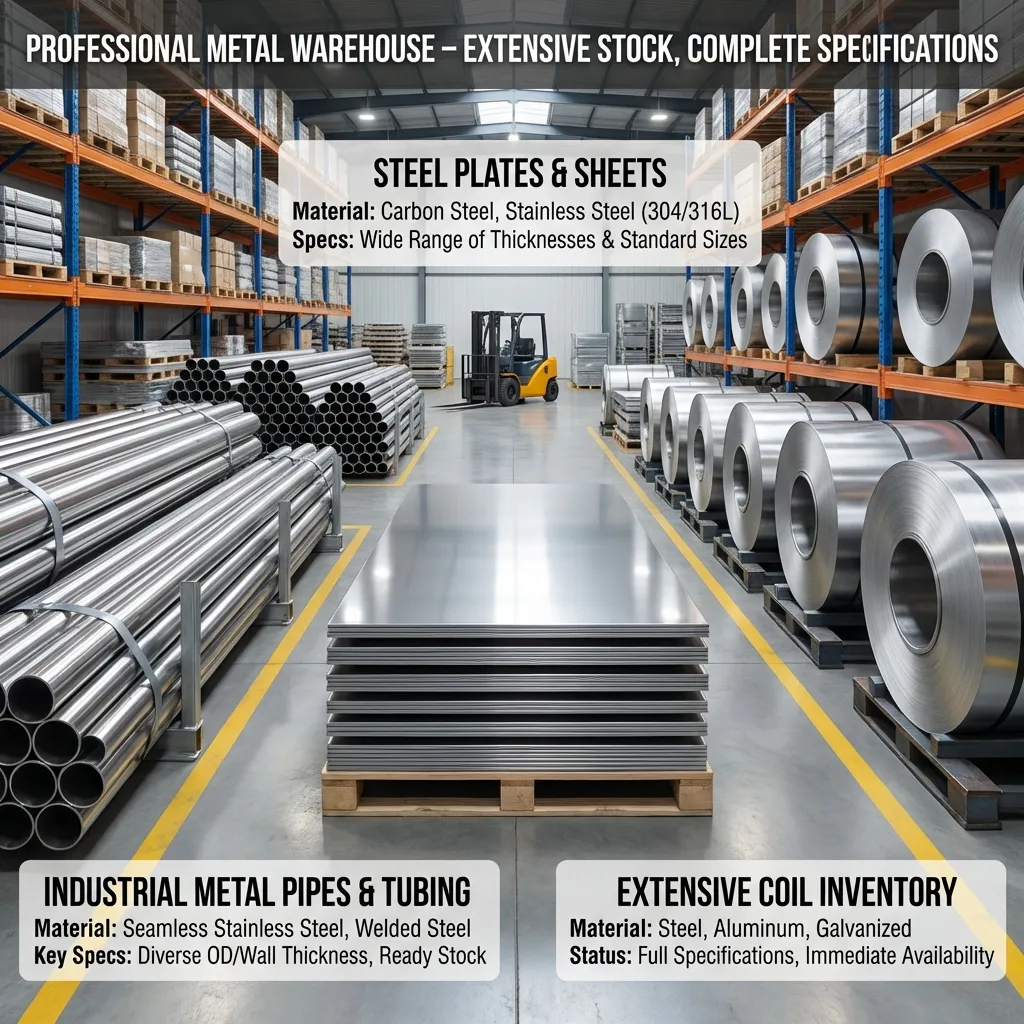

316L stainless steel pipe manufacturer
