310 Stainless Steel Pipe Manufacturer - High-Temperature Resistant Seamless & Welded Pipes

Kuaima Steel Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$1105 1-49 ton Base price

$1055 50-99 ton 4.5% off

$1030 ≥100 ton 6.8% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 ton

Shipping total: To be negotiated

Subtotal of goods US$ 1,105.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of 310 Stainless Steel Pipe

Property	Parameter	Description
Product Name	310 Stainless Steel Pipe	High-temperature austenitic stainless steel pipe
Material Grade	310 / 310S / EN 1.4845 / UNS S31008	International grade equivalents
Standard Compliance	ASTM A312, ASTM A213, EN 10216-5	Meets major international standards
Carbon (C)	≤0.08% (310S: ≤0.08%)	Carbon content for high-temperature strength
Chromium (Cr)	24.0-26.0%	Provides excellent oxidation resistance
Nickel (Ni)	19.0-22.0%	Enhances high-temperature stability
Manganese (Mn)	≤2.0%	Improves hot working properties
Silicon (Si)	≤1.5%	Deoxidizer and heat resistance enhancer
Tensile Strength	≥515 MPa	Minimum tensile strength per ASTM A312
Yield Strength	≥205 MPa	Minimum yield strength at room temperature
Elongation	≥40%	Ductility in 50mm gauge length
OD Range	6mm - 630mm	Available outer diameter options
Wall Thickness	0.5mm - 50mm	Standard and custom thickness available
Length	6m - 12m or custom	Standard and custom lengths
Heat Resistance	Up to 1150°C	Continuous service temperature range
Surface Finish	Annealed & Pickled, Bright Annealed	Multiple surface treatment options
Application	Furnaces, heat exchangers, petrochemical	High-temperature industrial applications
Certification	EN 10204 3.1, ISO 9001, PED	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps	Standard export packaging
MOQ	1 ton	Minimum order quantity

310 Stainless Steel Pipe Manufacturer - High-Temperature Resistant Seamless & Welded Pipes

310 stainless steel pipe manufacturer specializes in producing premium-grade austenitic stainless steel pipes engineered for extreme high-temperature applications. With exceptional oxidation resistance up to 1150°C and superior creep strength, these pipes serve critical roles in furnace components, heat treatment equipment, and petrochemical processing systems. Our manufacturing facility delivers both seamless and welded configurations to meet diverse industrial requirements across thermal processing, power generation, and chemical manufacturing sectors.

What is 310 Stainless Steel Pipe?

310 stainless steel pipe represents a high-chromium, high-nickel austenitic alloy containing 24-26% chromium and 19-22% nickel per ASTM A312 specifications. This composition provides outstanding resistance to oxidation and carburization in elevated temperature environments. The material maintains structural integrity at temperatures where conventional austenitic grades would fail, making it the preferred choice for continuous service up to 1040°C and intermittent exposure to 1150°C.

310 Stainless Steel Pipe Technical Specifications

Our manufacturing standards comply with ASTM A312/A312M-21 for seamless and welded pipes. The chemical composition includes carbon content limited to 0.25% maximum, manganese 2.0% maximum, silicon 1.5% maximum, phosphorus 0.045% maximum, and sulfur 0.030% maximum. Mechanical properties demonstrate tensile strength of 515 MPa minimum, yield strength of 205 MPa minimum, and elongation of 40% minimum in 50mm gauge length. The material density measures 7.98 g/cm³ at 20°C with thermal conductivity of 14.2 W/m·K at 100°C.

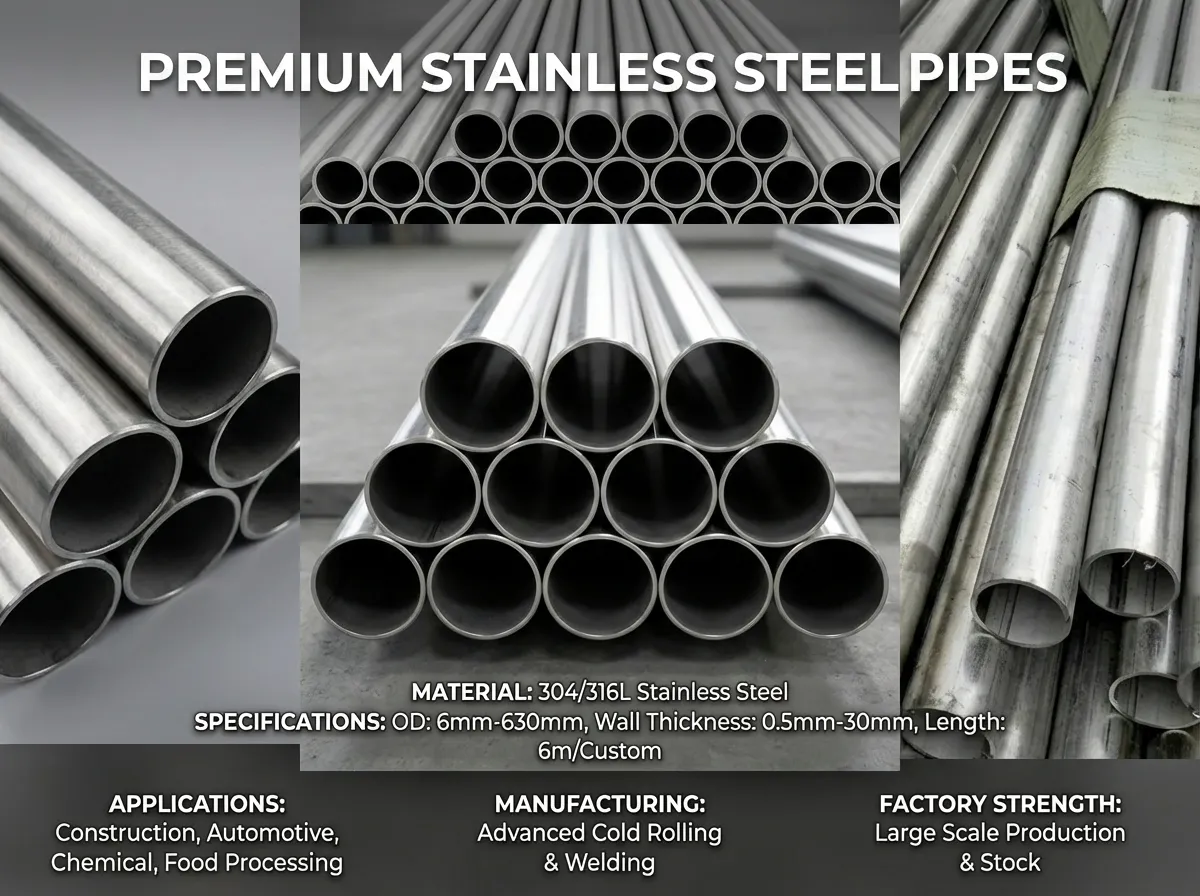

310 stainless steel pipe manufacturer supplier

Manufacturing Capabilities and Quality Control

Our production facility operates advanced seamless pipe mills and precision TIG/MIG welding systems for fabricating pipes from 6mm to 610mm outside diameter with wall thickness ranging from Schedule 5S to XXS. Each production batch undergoes comprehensive testing including positive material identification, hydrostatic pressure testing to 1.5 times design pressure, ultrasonic examination per ASTM E213, and radiographic inspection for welded configurations. We maintain ISO 9001:2015 certification and provide full material traceability documentation.

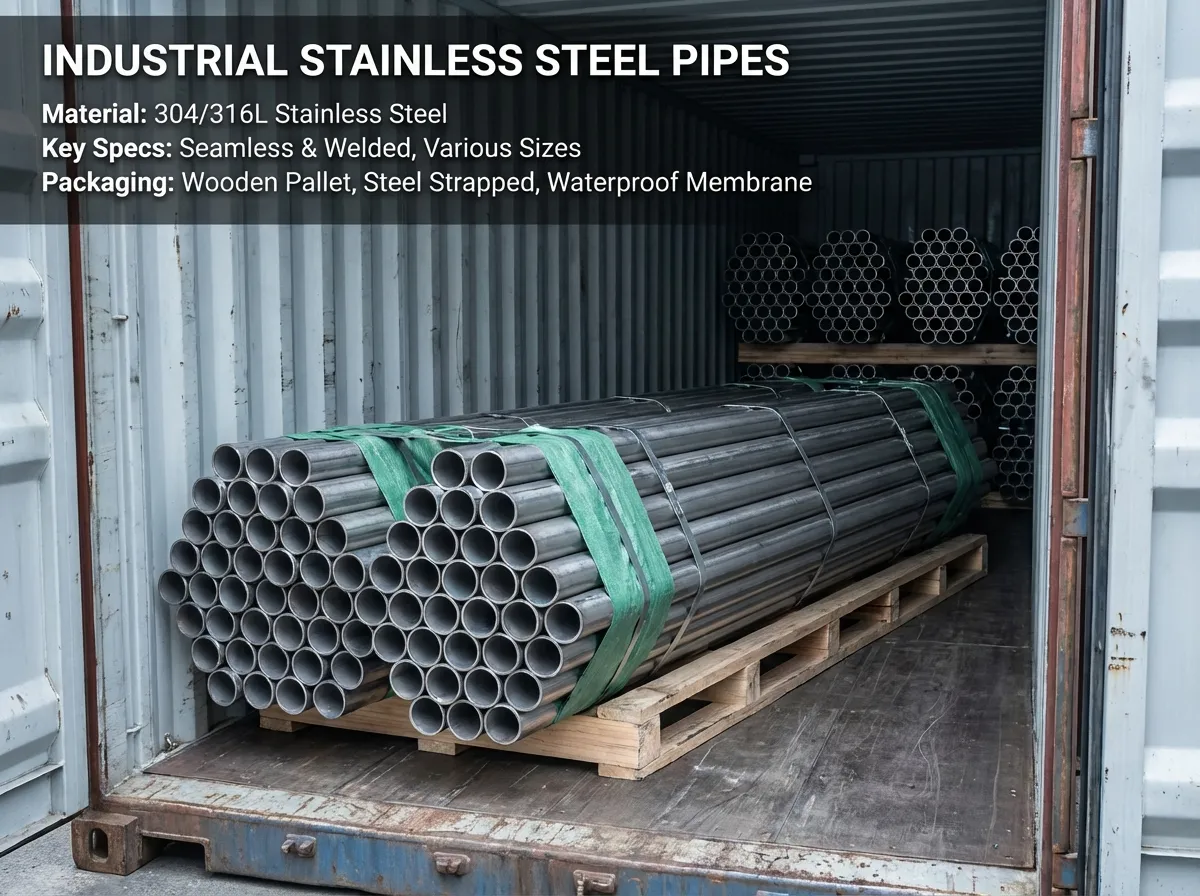

310 stainless steel pipe manufacturer China

Seamless Pipe Production Process

Seamless 310 stainless steel pipes are manufactured through rotary piercing of solid billets followed by pilgering or cold drawing to achieve precise dimensional tolerances. This process eliminates weld seams, providing uniform mechanical properties throughout the pipe cross-section and enhanced reliability for high-pressure applications. Our seamless production achieves surface roughness of Ra 0.8μm or better with dimensional accuracy within ±0.5mm on outside diameter.

Welded Pipe Manufacturing Technology

Welded configurations utilize precision-formed strip material joined by automatic TIG welding with 100% argon shielding gas. Post-weld heat treatment at 1040-1120°C ensures complete solution annealing and carbide dissolution. The weld zone receives full penetration radiographic examination and undergoes mechanical testing to verify strength equivalency with base material. Our welded pipes meet ASME B31.3 requirements for process piping systems.

High-Temperature Performance Characteristics

The elevated chromium and nickel content in 310 stainless steel pipe creates a tenacious chromia scale that resists oxidation and prevents metal loss at temperatures up to 1150°C. Creep rupture strength maintains 35 MPa at 1000°C for 10,000 hours service life. The alloy demonstrates superior resistance to sulfidation, carburization, and thermal cycling compared to 304 or 316 grades, extending equipment service intervals in demanding thermal environments.

Oxidation and Scaling Resistance

Laboratory testing confirms oxidation rates below 0.15 mg/cm² after 100 hours exposure at 1100°C in air atmosphere. The protective chromia layer regenerates continuously during service, preventing catastrophic oxidation failure. This performance characteristic finds extensive application in furnace muffles, radiant tubes, and thermocouple protection tubes where alternative materials would require frequent replacement.

Thermal Expansion and Conductivity Properties

The coefficient of thermal expansion measures 16.0 × 10⁻⁶/°C between 20-538°C, requiring appropriate allowance for thermal growth in piping design calculations. Thermal conductivity of 14.2 W/m·K at 100°C increases to 21.4 W/m·K at 500°C, influencing heat transfer calculations for process equipment applications. These properties guide proper support spacing and expansion joint placement in high-temperature piping systems.

Industrial Applications and Use Cases

310 stainless steel pipe serves critical functions in petroleum refining furnace tubes, ethylene cracking units, and reformer applications where sustained temperatures exceed 900°C. Heat treatment facilities employ these pipes for atmosphere control systems, quench tanks, and furnace structural components. Chemical processing industries utilize the material for nitric acid concentrators, sulfuric acid production equipment, and high-temperature reactor vessels requiring both corrosion and heat resistance.

Petrochemical Processing Equipment

Ethylene production facilities install 310 stainless steel pipes in cracking furnace radiant sections where tube metal temperatures reach 1050°C. The material resists carburization from hydrocarbon process streams while maintaining mechanical strength under internal pressures of 3-5 MPa. Service life typically extends 3-5 years before metallurgical degradation necessitates replacement, significantly outperforming lower-alloy alternatives.

Thermal Processing and Heat Treatment

Industrial furnace manufacturers specify these pipes for atmosphere circulation systems, burner nozzles, and heating element supports operating in continuous service at 980-1040°C. The material withstands thermal shock from rapid heating and cooling cycles without cracking or warping. Fabrication includes complex bending, flanging, and threading operations to accommodate diverse furnace configurations and retrofit applications.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity is 500 kilograms per specification, though we accommodate smaller quantities for prototype development and testing applications. Volume pricing becomes available for orders exceeding 5,000 kilograms with delivery scheduling options to match your project timeline and inventory management requirements.

Do you provide material test certificates?

Every shipment includes EN 10204 Type 3.1 mill test certificates documenting chemical composition analysis, mechanical property test results, heat treatment records, and non-destructive examination reports. Additional certifications available include NACE MR0175 compliance for sour service, PED 2014/68/EU for pressure equipment, and customer-specified third-party verification testing.

What is the typical delivery time?

Standard stock sizes ship within 5-7 business days from order confirmation. Custom dimensions requiring special production runs deliver in 4-6 weeks depending on complexity and quantity. Expedited manufacturing available for critical path projects with premium scheduling, reducing lead times to 2-3 weeks for urgent requirements.

Can you cut to custom sizes?

Our precision cutting services provide pipes cut to exact lengths with tolerances of ±1mm using automated saw cutting equipment. We perform beveling, threading to ASME B1.20.1 standards, and end preparation for welding including J-prep and V-groove configurations. Custom fabrication encompasses bending to specified radii, flange attachment, and complete spool piece assembly per customer drawings.

Get a Competitive Quote for 310 Stainless Steel Pipe

Request your customized quotation today and benefit from our mill-direct pricing structure that eliminates intermediary markups. Our technical sales team provides comprehensive support including material selection guidance, pressure-temperature rating calculations, and compliance verification for your specific application requirements. We maintain strategic inventory positions to ensure rapid fulfillment of both standard and specialized pipe configurations.

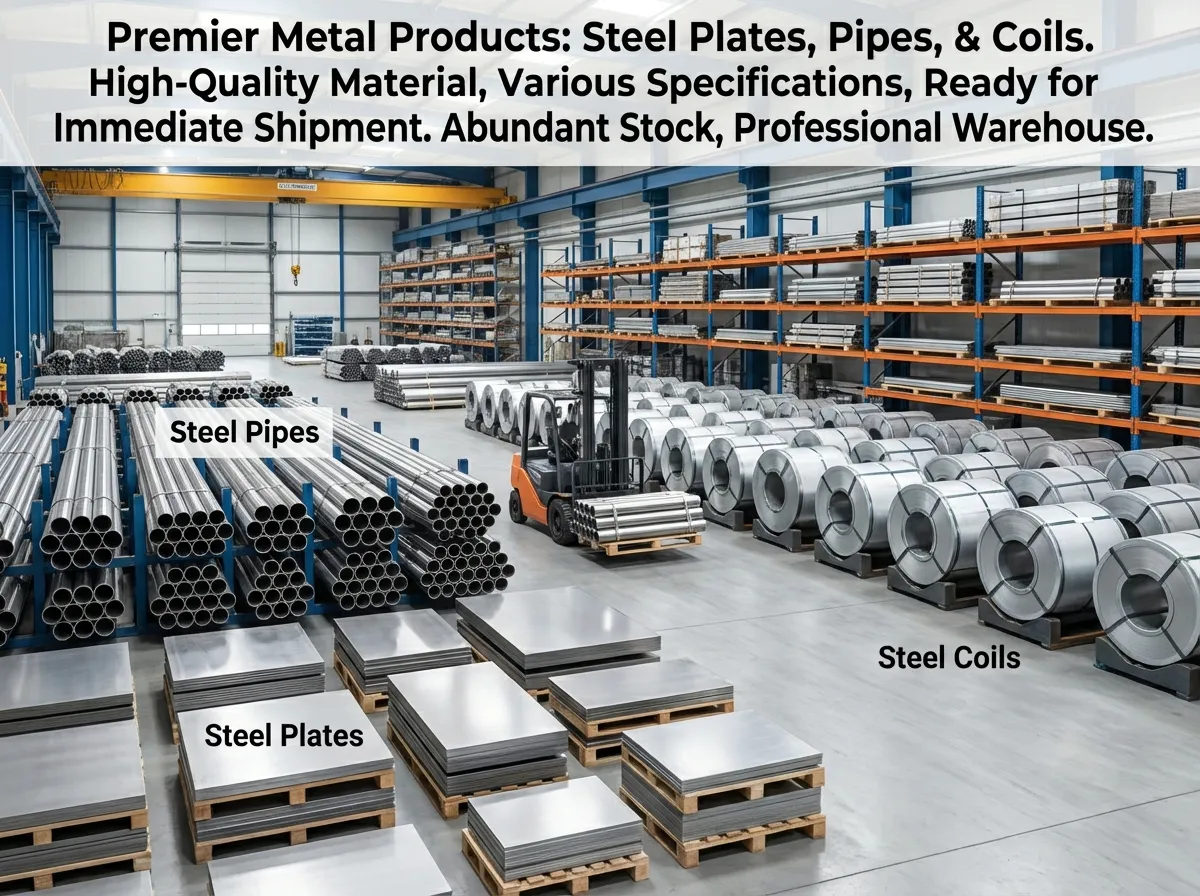

310 stainless steel pipe manufacturer wholesale

24/7 customer support available via phone, email, and online chat
Free samples for quality evaluation and metallurgical testing
Competitive pricing for bulk orders with flexible payment terms
Professional technical consultation from certified materials engineers
Global logistics coordination with consolidated shipping options
Complete documentation package including material certifications and test reports

Contact us today to get your free quote within 24 hours!
