| Property | Parameter/Value | Description |
|---|---|---|
| Standard | ASTM A276, JIS, DIN, EN | International standards ensuring consistent quality and mechanical properties |
| Material Grade | 316 (UNS S31600), 1.4401 | Austenitic stainless steel containing molybdenum for improved corrosion resistance |
| Chemical Composition | Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: ≤0.08% | Molybdenum increases pitting resistance in chloride-rich environments |
| Density | Approximately 8.0 g/cm³ | Typical density of austenitic stainless steels |
| Melting Point | 1370–1400°C | Suitable for high-temperature applications |
| Tensile Strength | ≥515 MPa (75,000 psi) | High strength supports structural and heavy load-bearing applications |
| Yield Strength | ≥205 MPa (30,000 psi) | Maintains structural integrity under stress |
| Elongation | ≥35% | Excellent ductility provides flexibility and toughness |
| Corrosion Resistance | Outstanding in marine, chemical, acidic environments | Performs well in harsh environments, superior to 304 grade |
| Surface Finish | Hot Rolled, Mill, Annealed Pickled, Polished, NO.4 | Multiple finish options for aesthetic and technical needs |
| Sizes (Common) | 20x20x3mm to 200x200x12mm | Wide sizing options with custom lengths and thicknesses available |
| Manufacturing Process | Hot rolled, Welded, Bent | Processes ensure precision shape, strength, and adaptability |
| Applications | Marine, chemical processing, building, food industry, frames | Used in demanding environments requiring durability and corrosion resistance |

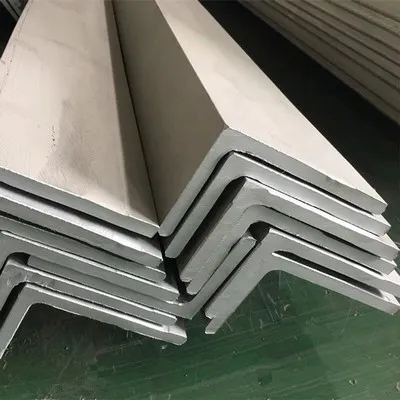

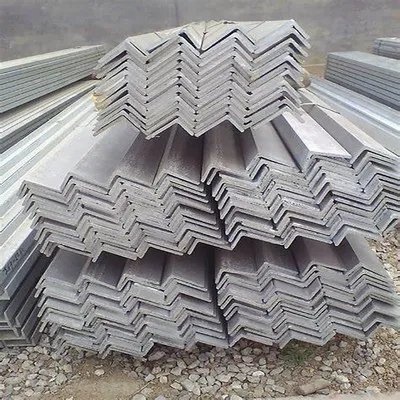

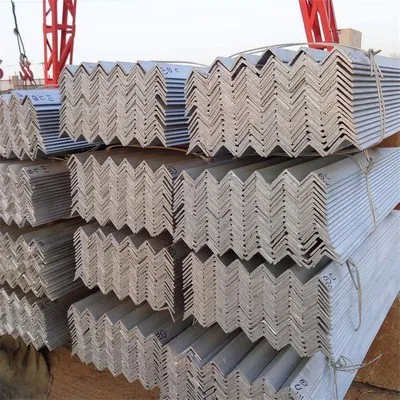

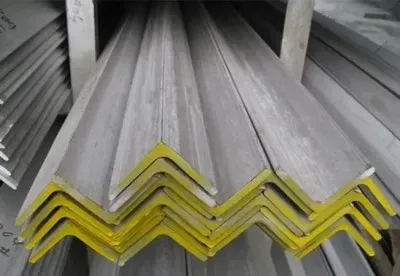

316 stainless steel angle
316 Stainless Steel Angle Product Attributes
316 Stainless Steel Angle Product Introduction
Applications and Benefits of 316 Stainless Steel Angle in Industrial Construction
316 stainless steel angle is widely used in construction, shipbuilding, and chemical industries due to its superior resistance to corrosion and high-temperature strength. As a structural component, this material is ideal for frameworks, support systems, bridges, and marine structures where longevity and reliability are critical. Compared to 304 grade, 316 stainless steel angle contains molybdenum, which offers enhanced resistance to chloride environments and acids. Its resilience in saltwater and humid conditions makes it the first choice for coastal and offshore applications. Using 316 stainless steel angle ensures structural durability, low maintenance, and compliance with international engineering standards.
Technical Specifications and Mechanical Performance of 316 Stainless Steel Angle Bar
316 stainless steel angle bar is available in equal and unequal angles with sizes ranging from 20×20×3 mm to 200×200×20 mm, suitable for diverse project needs. Manufactured according to ASTM A276 and A484 standards, it guarantees uniform chemical composition and precise dimensional accuracy. The material typically provides a tensile strength of 515 MPa and a yield strength of 205 MPa, maintaining excellent machinability and weldability. Finished options include mill, polished, and brushed surfaces for varied architectural and industrial applications. 316 stainless steel angle maintains its structural integrity even under high pressure, heat, or exposure to corrosive chemicals.
Advantages and Key Industries Using 316 Stainless Steel Structural Angle
The main advantages of 316 stainless steel angle lie in its exceptional corrosion resistance, mechanical stability, and aesthetic finish. Its molybdenum-bearing alloy structure allows superior performance in harsh environments like seawater, petrochemical refineries, and wastewater treatment plants. It is also widely applied in food processing, pharmaceuticals, and energy equipment where hygiene and safety are critical. Industries appreciate 316 stainless steel angles for their longevity, cost efficiency, and minimal need for replacement. Selecting the right size and finish of 316 stainless steel angle contributes to safer, more sustainable, and cost-effective infrastructure solutions.
