| Property | Parameter/Value | Description |
|---|---|---|
| Standard | ASTM A276, A484, JIS, DIN, EN | International standards for quality and performance |
| Material Grade | 316L (UNS S31603), 1.4404 | Austenitic stainless steel with low carbon, improved weldability, and corrosion resistance |
| Chemical Composition | Cr: 16-18%, Ni: 10-14%, Mo: 2-3%, C: ≤0.035% | Higher molybdenum content for superior pitting resistance; low carbon to prevent weld decay |
| Density | 8.0 g/cm³ | Standard austenitic alloy density |
| Melting Point | 1400°C (2550°F) | Suitable for high-temperature environments |
| Tensile Strength | 515 MPa (75,000 psi) | Strong and reliable for heavy load-bearing applications |
| Yield Strength | 205 MPa (30,000 psi) | Withstands moderate structural use; resists deformation |
| Elongation | ≥35% (typically up to 40%) | High ductility ensures flexibility and toughness |
| Corrosion Resistance | Outstanding in chlorides, acids, seawater | Excellent pitting, crevice, and general corrosion resistance in harsh environments |
| Surface Finish | Black, Bright, Polished, Matt, NO.4 | Range of finishes to suit aesthetics and durability |
| Sizes (Common) | 20x20x3mm – 100x100x10mm | Widely available size range; custom sizes possible |
| Manufacturing Process | Hot Rolled, Welded, Bent | Processing methods for required strength and shape |
| Applications | Marine, chemical, construction, food, power | Reliable in aggressive environments and critical structures |

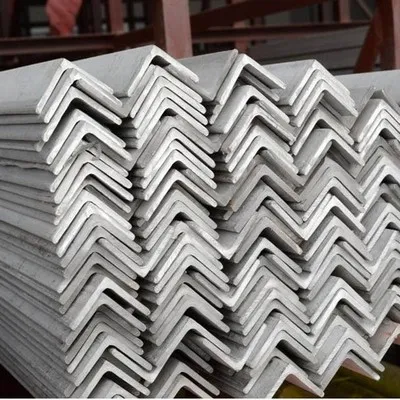

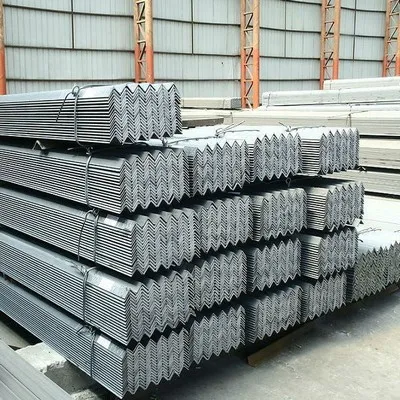

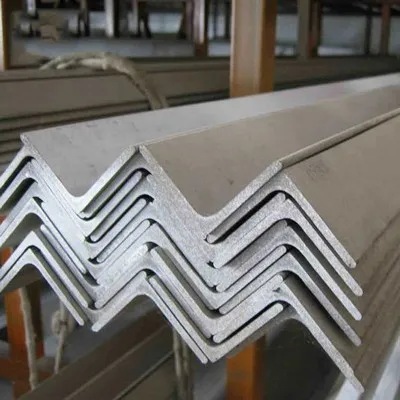

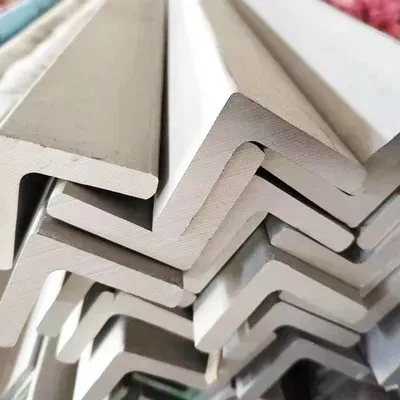

316L stainless steel angle steel
316L Stainless Steel Angle Steel Product Attributes
316L Stainless Steel Angle Steel Product Introduction
Product Overview and Technical Specifications of 316L Stainless Steel Angle Steel
The [316L stainless steel angle steel] is a low-carbon, high-performance structural material derived from the 316 grade. Engineered for superior corrosion resistance and mechanical durability, it is commonly produced through hot rolling or cold forming processes. Typical dimensions range from 20×20×3 mm up to 200×200×20 mm, and standard lengths are 3–6 meters or available per custom order. The chemical composition includes 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, providing excellent resistance against chloride environments and acid exposure. Manufactured under ASTM A276 and EN 10088 standards, 316L stainless steel angle steel guarantees consistent quality for structural, architectural, and industrial applications worldwide.
Performance Advantages and Mechanical Benefits of 316L Stainless Steel Angle Bar
The [316L stainless steel angle bar] offers exceptional durability and corrosion resistance, especially in marine and chemical environments. Its low carbon content prevents carbide precipitation during welding, which helps maintain weld integrity and mechanical performance at high temperatures. The molybdenum alloying enhances pitting resistance, making it ideal for use in saltwater or industrial acid conditions. Furthermore, 316L stainless steel angle steel retains its strength and ductility even after long-term exposure to harsh conditions, providing engineers with a cost-effective material that reduces maintenance and extends service life. Its ease of fabrication also allows for precision cutting, bending, and welding to suit various architectural and mechanical designs.
Industry Applications and Use Scenarios of 316L Stainless Steel Angle Profiles
A [316L stainless steel angle profile] serves as a vital material in industries requiring both strength and corrosion control. It is widely used in marine shipbuilding, offshore platforms, petrochemical facilities, and wastewater processing plants. Due to its smooth surface and rust-free appearance, it is also favored in architectural structures such as exterior frameworks, staircases, and support rails. In facilities handling acids, alkalis, or salt solutions, 316L stainless steel angle steel helps ensure operational reliability and safety. Beyond industrial uses, it finds applications in energy infrastructure, pressure vessels, and food-grade equipment, where hygienic and long-lasting performance are crucial. Its versatility, combined with international quality compliance, makes 316L stainless steel angle steel a preferred choice for demanding engineering projects.
