| Property | Parameter | Description |
|---|---|---|
| Nominal Size | 16" (406.4 mm) | Large diameter pipe commonly used in industrial and utility applications . |
| Material Grade | 304, 304L, 316, 316L | Austenitic stainless steel grades providing excellent corrosion resistance . |
| Outer Diameter (OD) | 16.625" ± 0.015" (422.28 mm) | Precision outer diameter conforming to ASTM standards . |
| Wall Thickness | 0.188" – 0.750" (4.78 – 19.05 mm) | Multiple schedule options (5S, 10S, 40S, 80S, 120, 160) for various pressures . |
| Inside Diameter (ID) | Varies with wall thickness | Calculated from OD minus twice the wall thickness . |
| Weight per Foot | 5.42 – 48.10 lbs/ft (depending on wall) | Varies based on schedule and wall thickness selected . |
| Manufacturing Type | Seamless, Welded | Available in seamless (hot/cold rolled) or welded configurations . |
| Standards | ASTM A312, ASTM A213, DIN 17457 | Compliance with international manufacturing and testing standards . |
| Pressure Rating | 150 – 2500+ PSI | Depends on schedule; higher wall thickness supports elevated pressures . |
| Operating Temperature | -196°C to +870°C | Suitable for cryogenic to high-temperature industrial applications . |
| Corrosion Resistance | Excellent | Resists oxidation, pitting, and crevice corrosion in most environments . |
| Surface Finish | Polished, Pickled, Mill, Bright | Available finishes for different applications and aesthetic requirements . |
| Tolerance (OD) | ±0.015" to ±0.025" | Manufacturing tolerance ensures dimensional accuracy and consistency . |
| Chromium Content | 16 – 18% (304 grade) | Primary element providing corrosion resistance . |
| Nickel Content | 8 – 13% (304 grade) | Enhances corrosion resistance and workability . |
| Tensile Strength | 515 – 620 MPa | Ultimate strength under tension; varies by grade and condition . |
| Yield Strength | 205 – 310 MPa | Stress at which permanent deformation begins . |
| Density | 8.0 g/cm³ | Mass per unit volume of stainless steel . |
| Modulus of Elasticity | 193 GPa | Measures stiffness and rigidity of the material . |
| Elongation | ≥ 40% (annealed) | Ductility indicating material flexibility before breaking . |
| End Finish | Plain, beveled, threaded, flanged | Various end preparations for different connection methods . |
| Weldability | Excellent | Can be welded without pre-heat or post-weld treatment in most cases . |
| Applications | Oil & gas, power generation, marine, chemical | Used in large-scale piping systems for major utilities . |
| Length Options | 20 ft (standard), or custom cut | Standard or custom lengths available per specification . |
| Flow Capacity | Very high (large cross-section) | Suitable for high-volume fluid and gas transport . |
| Flanged Options | Available with flange connections | Bolt-together connections for large-diameter systems . |
| Structural Support | Heavy-duty support required | Requires substantial support structure due to weight . |
| Handling Equipment | Cranes, lifting lugs required | Specialized equipment needed for installation . |
| Installation Complexity | High (professional installation) | Requires skilled technicians and specialized equipment . |
| Tolerance (WT) | ±10% or per specification | Wall thickness tolerance per ASTM standards . |
| Thermal Expansion | 15.9 × 10⁻⁶/°C | Coefficient of thermal expansion for design calculations . |

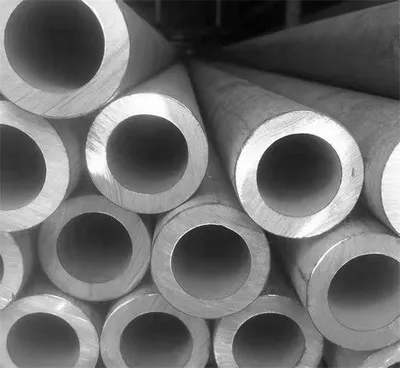

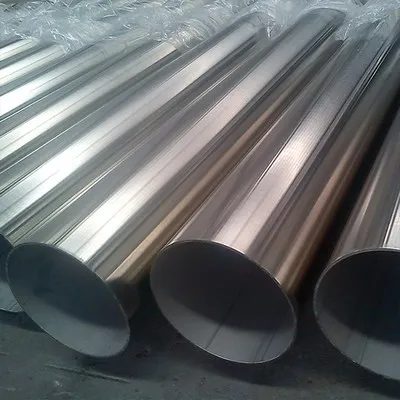

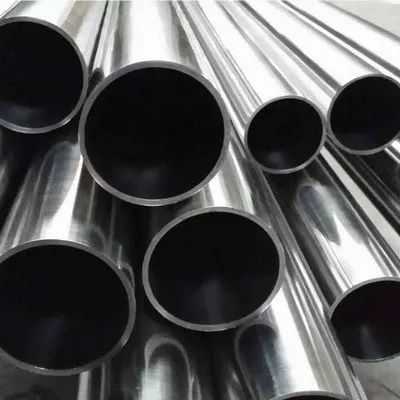

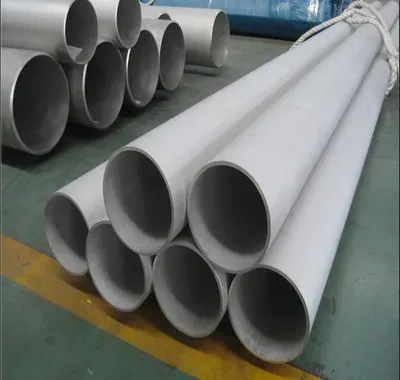

16 inch stainless steel pipe
Feihong Steel Co., Ltd.
Verified
Custom manufacturer
6yrs
CN
CN
16 Inch Stainless Steel Pipe Product Attributes
16 Inch Stainless Steel Pipe Product Introduction
Large-Diameter Applications of 16 Inch Stainless Steel Pipe in Industrial Infrastructure
The 16 inch stainless steel pipe represents a critical large-diameter piping component engineered for high-capacity fluid transport and major industrial systems requiring exceptional flow rates. A 16 inch stainless steel pipe delivers superior capacity for petroleum distribution, municipal water supply networks, and large-scale industrial processing facilities requiring substantial volume conveyance. Industries including oil refining, power generation, chemical manufacturing, and water treatment plants depend on 16 inch stainless steel pipes for reliable performance in demanding operational environments. The 16 inch stainless steel pipe excels in transporting corrosive chemicals, high-temperature fluids, and aggressive process liquids where material integrity and system reliability are absolutely critical. Major infrastructure projects including district heating systems, marine applications, and offshore installations specify 16 inch stainless steel pipes when designing comprehensive fluid distribution networks. When selecting 16 inch stainless steel pipe solutions for specific applications, engineers prioritize pressure ratings, material grades, and wall thickness specifications matching exact operational requirements. Investment in quality 16 inch stainless steel pipe systems provides measurable advantages including optimized hydraulic efficiency, reduced pumping energy requirements, extended service life, and superior corrosion resistance compared to conventional materials in large-scale industrial and infrastructure applications.
Technical Specifications and Dimensional Standards for 16 Inch Stainless Steel Pipe Systems
Understanding the precise specifications and dimensional standards of 16 inch stainless steel pipe ensures accurate system design and seamless integration into existing infrastructure. Standard 16 inch stainless steel pipe outer diameter measures 16.0 inches according to ANSI/ASME B36.10 specifications, with available wall thicknesses ranging from Schedule 10 (0.165 inches) through Schedule 160 (0.500 inches), accommodating diverse pressure classifications. The 16 inch stainless steel pipe is manufactured in grades including 304, 304L, 316, 316L, and duplex variants, enabling selection of appropriate material compositions for specific corrosion resistance requirements and temperature conditions. Seamless 16 inch stainless steel pipe variants deliver maximum pressure ratings and enhanced purity essential for critical applications, while welded options provide economical alternatives for moderate-pressure systems. Wall thickness selection for 16 inch stainless steel pipe directly influences pressure capacity, with Schedule 40 accommodating standard industrial pressures and Schedule 80 supporting elevated-pressure applications. Compliance with ASTM A312, ASTM A358, EN 10217-1, and ISO 2604 international standards guarantees consistent quality, documented pressure ratings, and complete material traceability throughout manufacturing of 16 inch stainless steel pipe products.
Performance Advantages and Strategic Applications of 16 Inch Stainless Steel Pipe in Major Industrial Projects
The exceptional properties of 16 inch stainless steel pipe establish it as the premier choice for large-capacity infrastructure systems demanding maximum reliability and extended service life. Superior corrosion resistance ensures 16 inch stainless steel pipe maintains structural integrity in both marine environments and chemically aggressive processing facilities, dramatically reducing maintenance requirements. A 16 inch stainless steel pipe maintains excellent mechanical properties across extreme temperature ranges, supporting simultaneous cryogenic and high-temperature steam applications within complex industrial systems. Its large internal diameter minimizes fluid velocity and pressure drop, optimizing hydraulic efficiency and reducing energy consumption compared to smaller-diameter alternatives. Enhanced flow capacity of 16 inch stainless steel pipe reduces system complexity by eliminating parallel pipeline configurations, simplifying installation and reducing overall project costs. Companies investing in 16 inch stainless steel pipe infrastructure for major industrial projects achieve substantial competitive advantages including optimized system efficiency, reduced operational energy costs, extended equipment service intervals, improved safety compliance, enhanced system reliability, and measurable performance gains compared to conventional materials or smaller-diameter alternatives in large-scale industrial and municipal infrastructure applications.
