316 Stainless Steel Sheet - ASTM A240 Grade 316 SS Plate for Corrosion Resistance

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

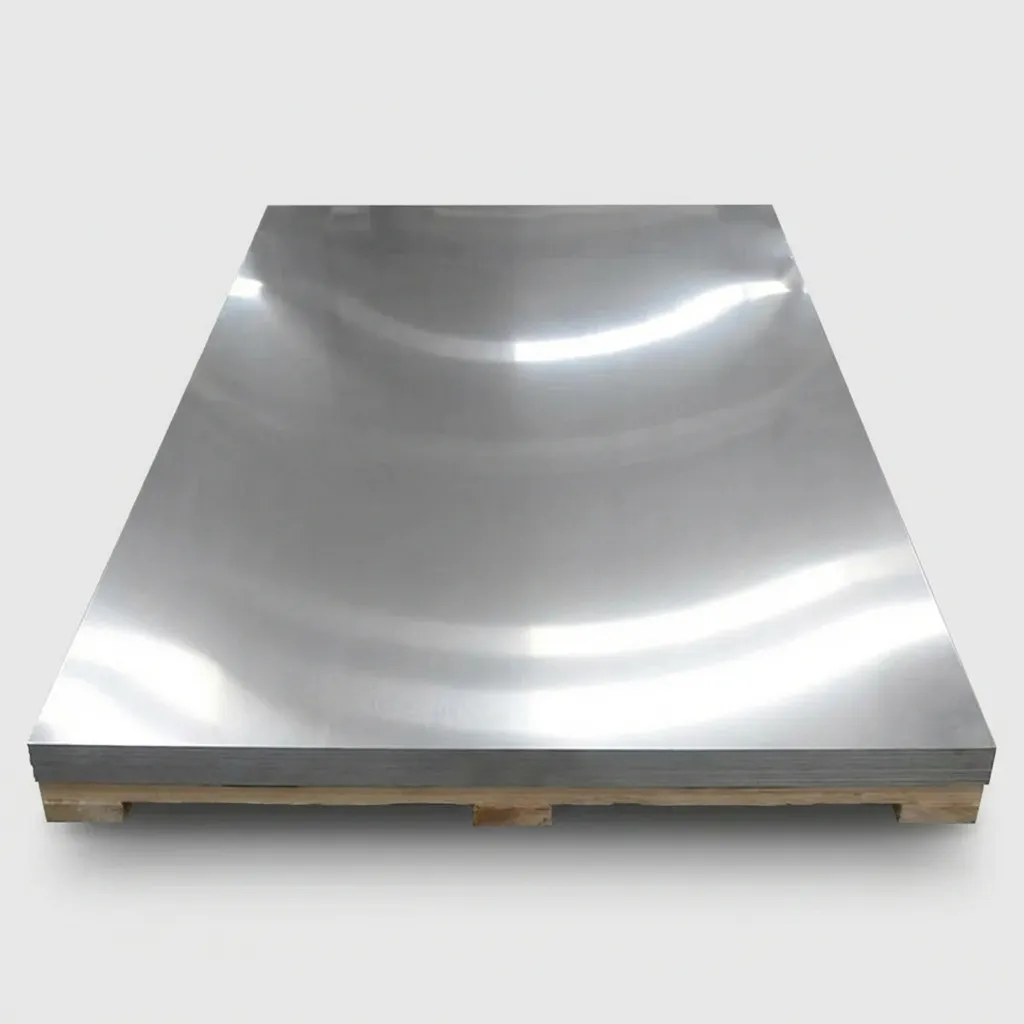

316 stainless steel sheet image thumbnail

Technical Specifications of 316 Stainless Steel Sheet

Property	Parameter	Description
Product Name	316 Stainless Steel Sheet	Austenitic chromium-nickel stainless steel with molybdenum
Material Grade	316 / EN 1.4401 / UNS S31600	International grade equivalents
Standard Compliance	ASTM A240, EN 10088-2, JIS G4304	Meets major international standards
Carbon Content (C)	≤0.08%	Standard carbon content for strength
Chromium (Cr)	16.0-18.0%	Provides corrosion resistance
Nickel (Ni)	10.0-14.0%	Enhances ductility and toughness
Molybdenum (Mo)	2.0-3.0%	Improves pitting and crevice corrosion resistance
Manganese (Mn)	≤2.0%	Improves hot working properties
Silicon (Si)	≤1.0%	Deoxidizer and strengthener
Tensile Strength	≥515 MPa	Minimum tensile strength per ASTM A240
Yield Strength	≥205 MPa	Minimum yield strength at 0.2% offset
Elongation	≥40%	Ductility in 50mm gauge length
Hardness	≤217 HBW	Brinell hardness maximum
Thickness Range	0.3 - 80 mm	Available thickness options
Width Range	1000 - 2000 mm	Standard and custom widths
Length Range	2000 - 6000 mm or custom	Standard and custom lengths
Surface Finish	2B, BA, No.4, HL, Mirror, 8K	Multiple surface treatment options
Application	Chemical processing, marine, pharmaceutical, food processing	Typical application industries
Certification	EN 10204 3.1, ISO 9001, PED	Quality certifications provided
Packaging	Wooden pallet, waterproof paper, steel straps	Standard export packaging
MOQ	1 ton	Minimum order quantity

316 Stainless Steel Sheet - ASTM A240 Grade 316 SS Plate for Corrosion Resistance

316 stainless steel sheet represents a premium-grade austenitic chromium-nickel material enhanced with molybdenum for superior corrosion resistance in aggressive environments. This versatile alloy finds extensive application in marine equipment, chemical processing facilities, pharmaceutical manufacturing, and food production systems where exceptional durability against chloride-induced corrosion is paramount. Engineered to meet the demanding requirements of industries operating in harsh conditions, this material delivers reliable performance across temperatures ranging from cryogenic to elevated service conditions.

What is 316 Stainless Steel Sheet?

316 stainless steel sheet is an austenitic chromium-nickel-molybdenum alloy containing approximately 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. The molybdenum addition significantly enhances resistance to pitting and crevice corrosion in chloride environments compared to standard 304 grade. This material maintains a face-centered cubic crystal structure that provides excellent formability, weldability, and toughness across a wide temperature spectrum. Manufactured according to ASTM A240/A240M standards, it serves critical roles in applications where material integrity under corrosive attack is non-negotiable.

316 Stainless Steel Sheet Technical Specifications

The chemical composition of 316 stainless steel sheet per ASTM A240 includes carbon content limited to 0.08% maximum, chromium ranging from 16.0-18.0%, nickel between 10.0-14.0%, and molybdenum at 2.0-3.0%. The material exhibits a density of 7.98 g/cm³ at 20°C and demonstrates tensile strength of 515 MPa minimum with yield strength of 205 MPa minimum. Its thermal conductivity measures 16.3 W/m·K at 100°C, while the coefficient of thermal expansion stands at 15.9 μm/m·K between 0-100°C. The alloy maintains excellent mechanical properties with elongation of 40% minimum in 50mm gauge length.

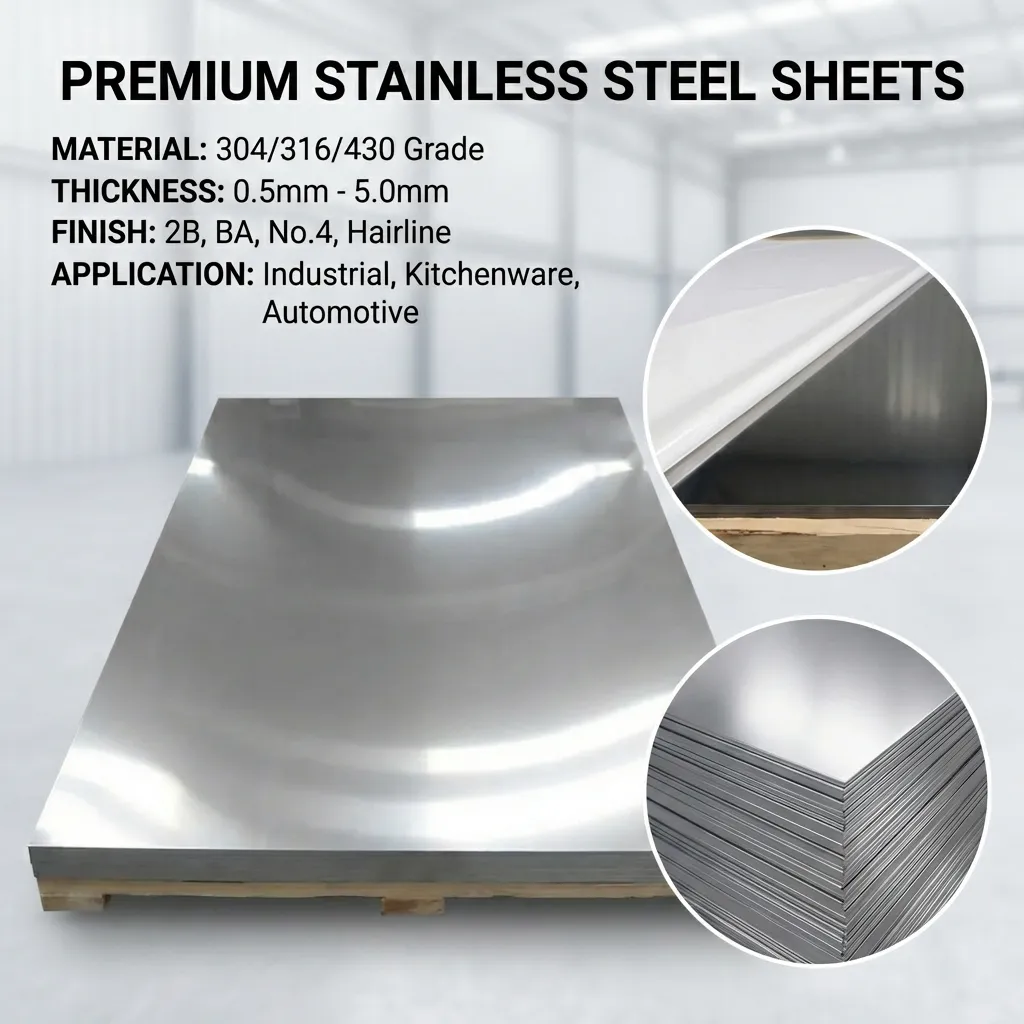

316 stainless steel sheet supplier

Corrosion Resistance Properties of Grade 316 Material

Grade 316 stainless steel sheet provides outstanding anti-corrosion properties in marine atmospheres, chemical processing streams, and pharmaceutical production environments. The 2-3% molybdenum content creates enhanced resistance to pitting corrosion with a Pitting Resistance Equivalent Number (PREN) of approximately 24-26, significantly higher than 304 grade. This material demonstrates exceptional durability against sulfuric acid, phosphoric acid, and organic acids at moderate concentrations and temperatures. In chloride-containing solutions, the alloy resists stress corrosion cracking up to temperatures of 60°C, making it the preferred choice for coastal installations and desalination equipment.

Manufacturing Standards and Certifications

316 stainless steel sheet is manufactured according to ASTM A240/A240M-20a Section 6.2 for chemical composition requirements and mechanical property specifications. The material complies with EN 10088-2:2014 European standards for flat products of corrosion-resisting steels, and meets JIS G4304 requirements for hot-rolled stainless steel plate, sheet, and strip. Each production lot undergoes rigorous testing including spectroscopic analysis, tensile testing per ASTM A370, and intergranular corrosion testing according to ASTM A262 Practice E. Mill test certificates (MTC) per EN 10204 3.1 are provided documenting full traceability and compliance verification.

Applications Across Industrial Sectors

This austenitic alloy serves critical roles in marine engineering for propeller shafts, pump components, and offshore platform structures exposed to saltwater environments. Chemical processing facilities employ 316 sheet for reactor vessels, heat exchangers, and piping systems handling corrosive media. The pharmaceutical industry relies on this material for cleanroom equipment, storage tanks, and process vessels requiring FDA compliance and superior sanitation properties. Food processing operations utilize 316 grade for brewing equipment, dairy processing machinery, and commercial kitchen installations where both corrosion resistance and hygiene standards are essential.

Surface Finishes and Processing Options

316 stainless steel sheet is available in multiple surface finishes to meet specific application requirements. The 2B finish, achieved through cold rolling followed by annealing and descaling, provides a smooth, moderately reflective surface suitable for general fabrication. BA (Bright Annealed) finish delivers a highly reflective, mirror-like appearance ideal for architectural applications and decorative installations. No. 4 finish, produced by grinding with progressively finer abrasives, creates a brushed appearance commonly specified for kitchen equipment and food processing machinery. Each finish maintains the underlying corrosion resistance while offering distinct aesthetic and functional characteristics.

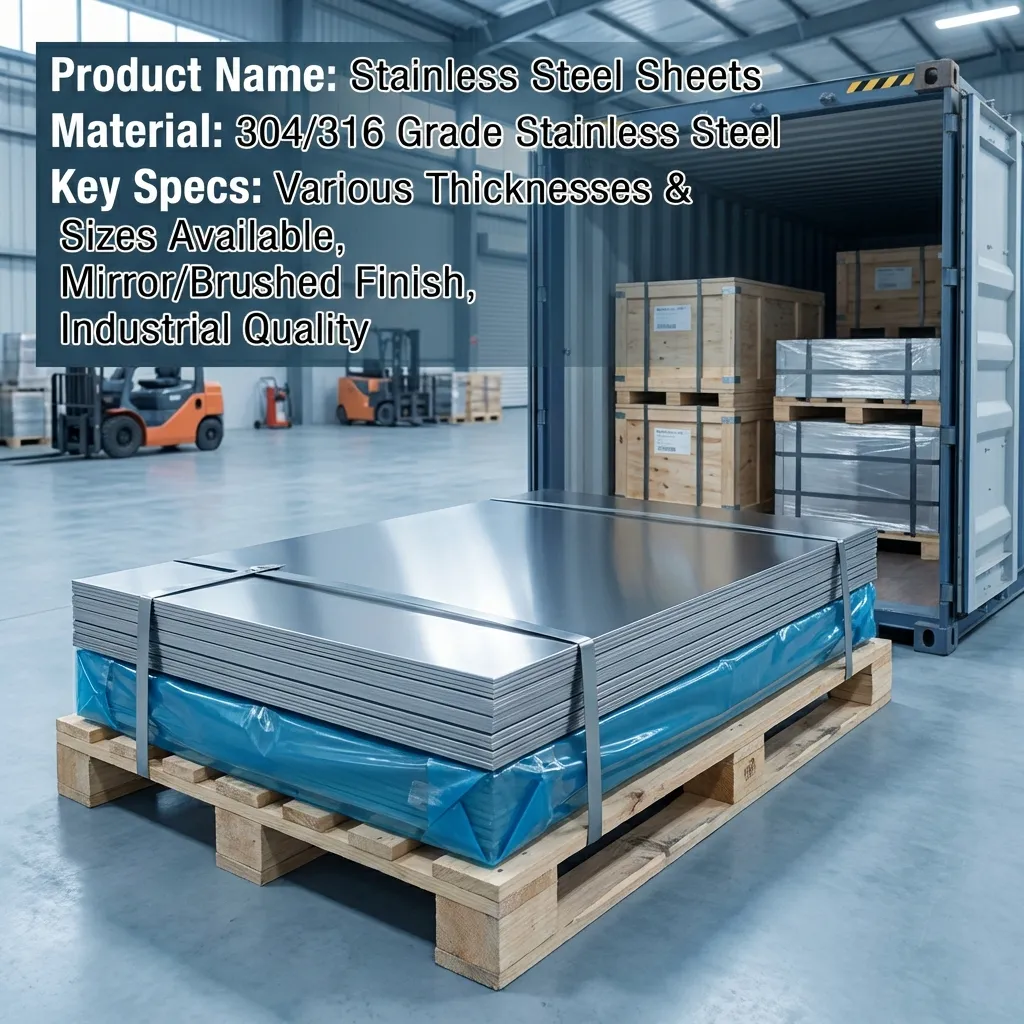

316 stainless steel sheet wholesale

Welding Characteristics and Fabrication Guidelines

Grade 316 demonstrates excellent welding characteristics across all conventional fusion welding processes including TIG (GTAW), MIG (GMAW), and stick welding (SMAW). For optimal weld performance, AWS ER316L filler metal is recommended to minimize carbon content and prevent sensitization in the heat-affected zone. Interpass temperature should be maintained below 150°C to preserve corrosion resistance properties. The material exhibits superior resistance to hot cracking compared to higher carbon grades, and post-weld heat treatment is typically not required for most applications. Proper joint design and adequate shielding gas coverage ensure sound welds with mechanical properties matching the base material.

Comparison with Alternative Stainless Grades

When compared to 304 stainless steel, grade 316 offers superior resistance to chloride-induced corrosion and higher strength at elevated temperatures, though at a cost premium of approximately 15-20%. Against 316L low-carbon variant, standard 316 provides slightly higher strength but increased susceptibility to sensitization during welding. Duplex stainless steel 2205 delivers higher strength and enhanced stress corrosion cracking resistance, yet requires more specialized welding procedures and offers reduced formability. For applications requiring extreme corrosion resistance, super austenitic grades like 904L or 6-moly alloys surpass 316 performance but command significantly higher material costs.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for 316 stainless steel sheet is one full sheet (typically 4x8 feet or 1219x2438mm), with reduced MOQ available for stock sizes. Volume orders exceeding 5 metric tons qualify for mill-direct competitive pricing with lead times of 4-6 weeks for custom specifications.

Do you provide material test certificates?

Yes, we supply comprehensive Mill Test Certificates (MTC) per EN 10204 3.1 with every shipment, documenting chemical composition via spectroscopic analysis, mechanical properties from tensile testing, and heat number traceability. Third-party inspection certificates are available upon request for critical applications requiring independent verification.

What is the typical delivery time?

Stock sizes in common finishes (2B, BA, No.4) ship within 3-5 business days from our distribution centers. Custom thickness, width, or length specifications require 6-8 weeks for mill production and quality verification. Expedited processing is available for urgent requirements with premium scheduling fees.

Can you cut to custom sizes?

Our precision cutting services include shearing, laser cutting, plasma cutting, and waterjet cutting to your exact dimensional requirements with tolerances of ±0.5mm. We provide edge deburring, protective film application, and custom packaging to prevent surface damage during transportation. CAD file uploads streamline the quotation process for complex geometries.

Get a Competitive Quote for 316 Stainless Steel Sheet

Partner with our technical sales team to source mill-certified 316 stainless steel sheet that meets your exact specifications and delivery timeline. Our metallurgical experts provide application-specific material selection guidance, ensuring optimal performance for your operating environment. With direct mill relationships and strategically located inventory, we deliver value-driven pricing without compromising quality or service standards.

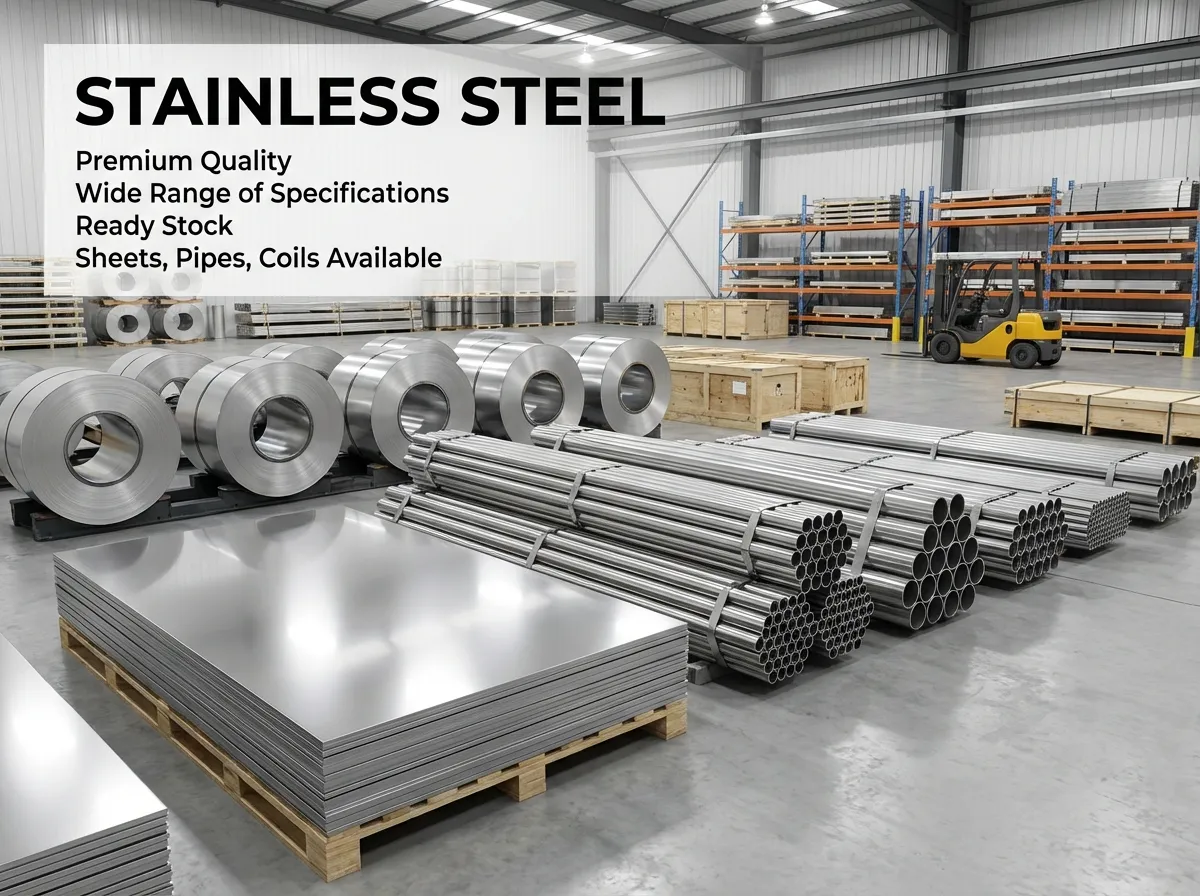

316 stainless steel sheet China

24/7 customer support available via phone, email, and live chat
Free samples for quality evaluation with full material certification
Competitive pricing for bulk orders with volume discount structures
Professional technical consultation from certified materials engineers
Flexible payment terms and logistics coordination worldwide
ISO 9001:2015 certified quality management systems

Contact us today to get your free quote within 24 hours! Our material specialists are ready to discuss your project requirements and recommend the optimal 316 stainless steel sheet solution.
