Customized Special Shape Steel Pipe - Precision Fabrication for Industrial Applications

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

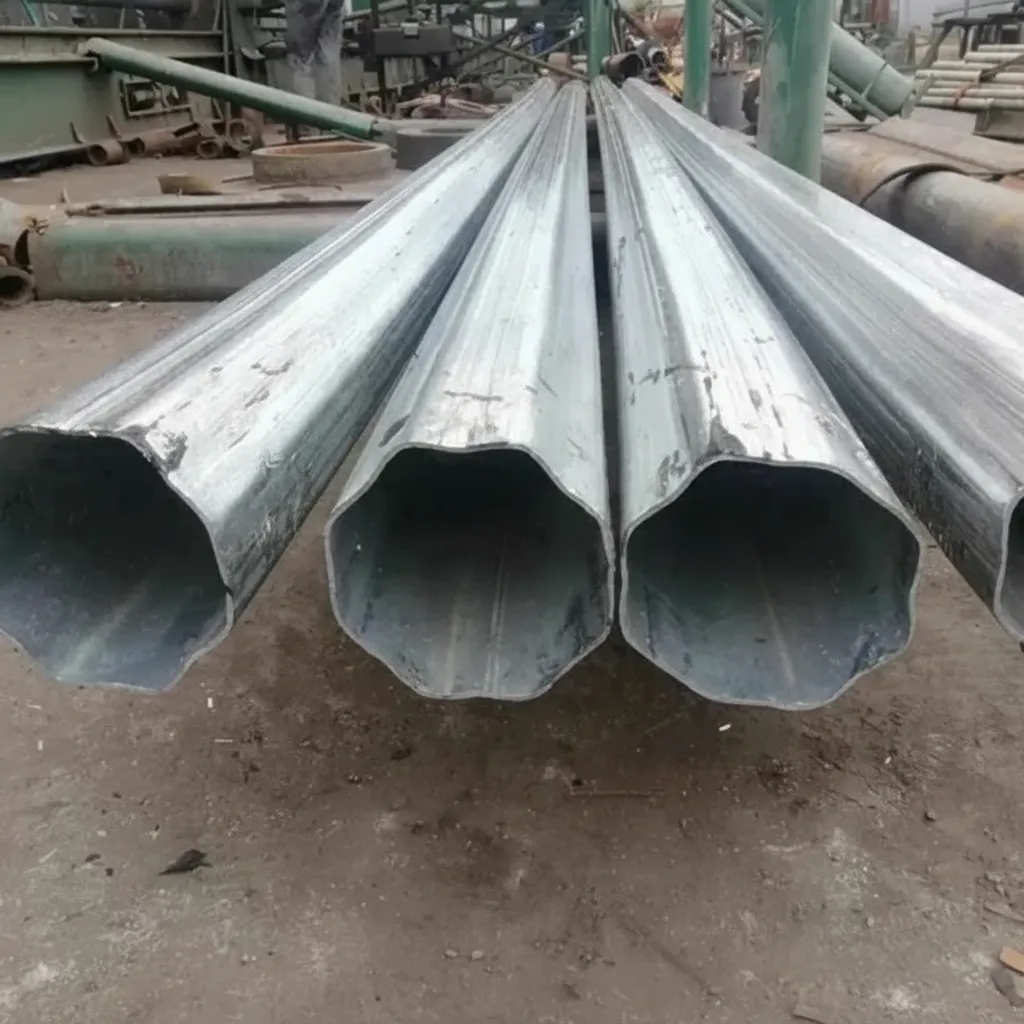

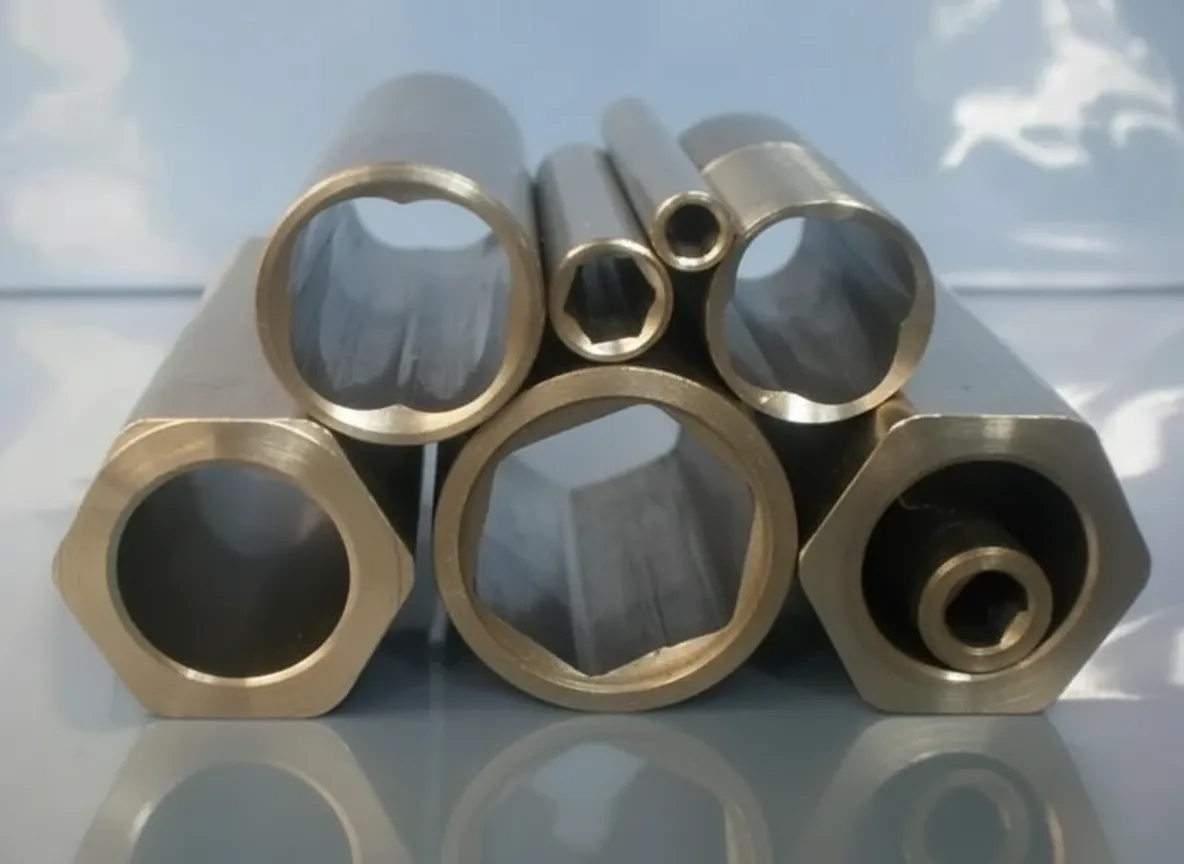

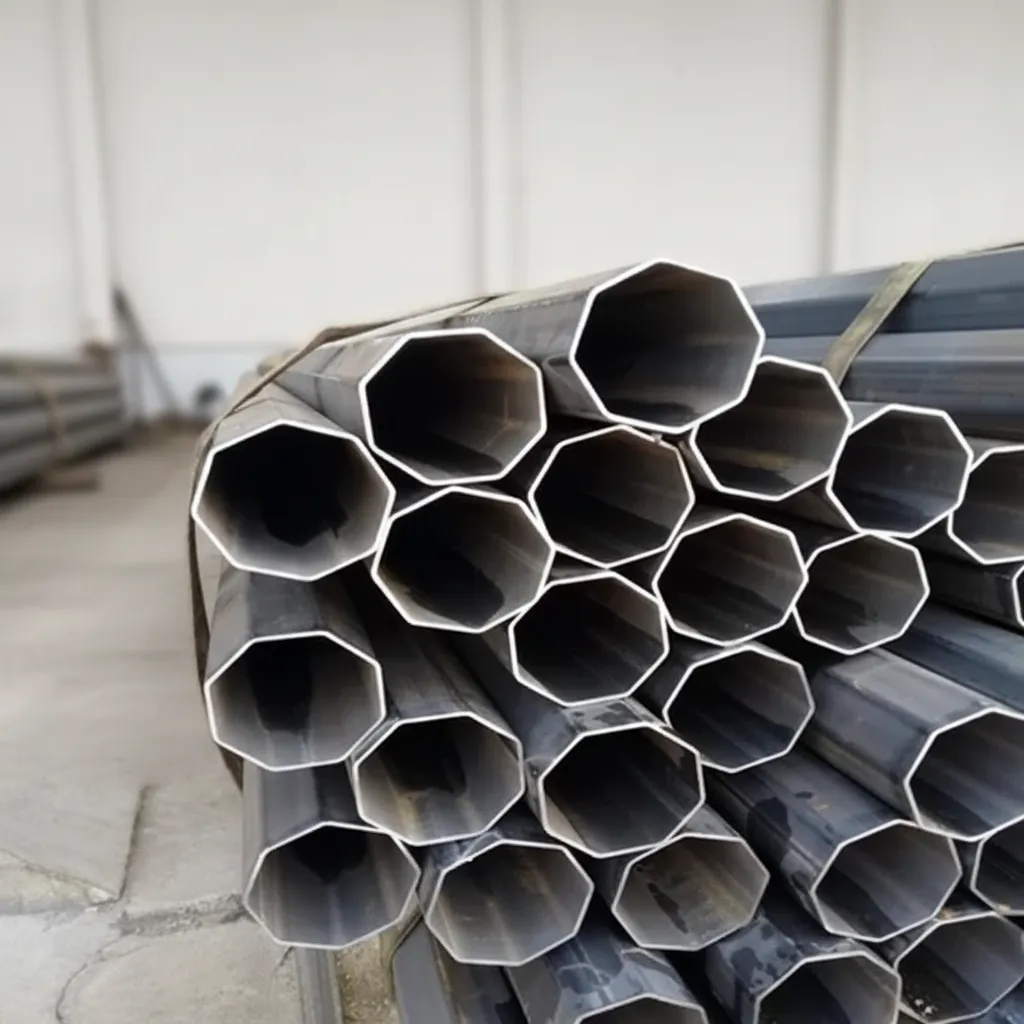

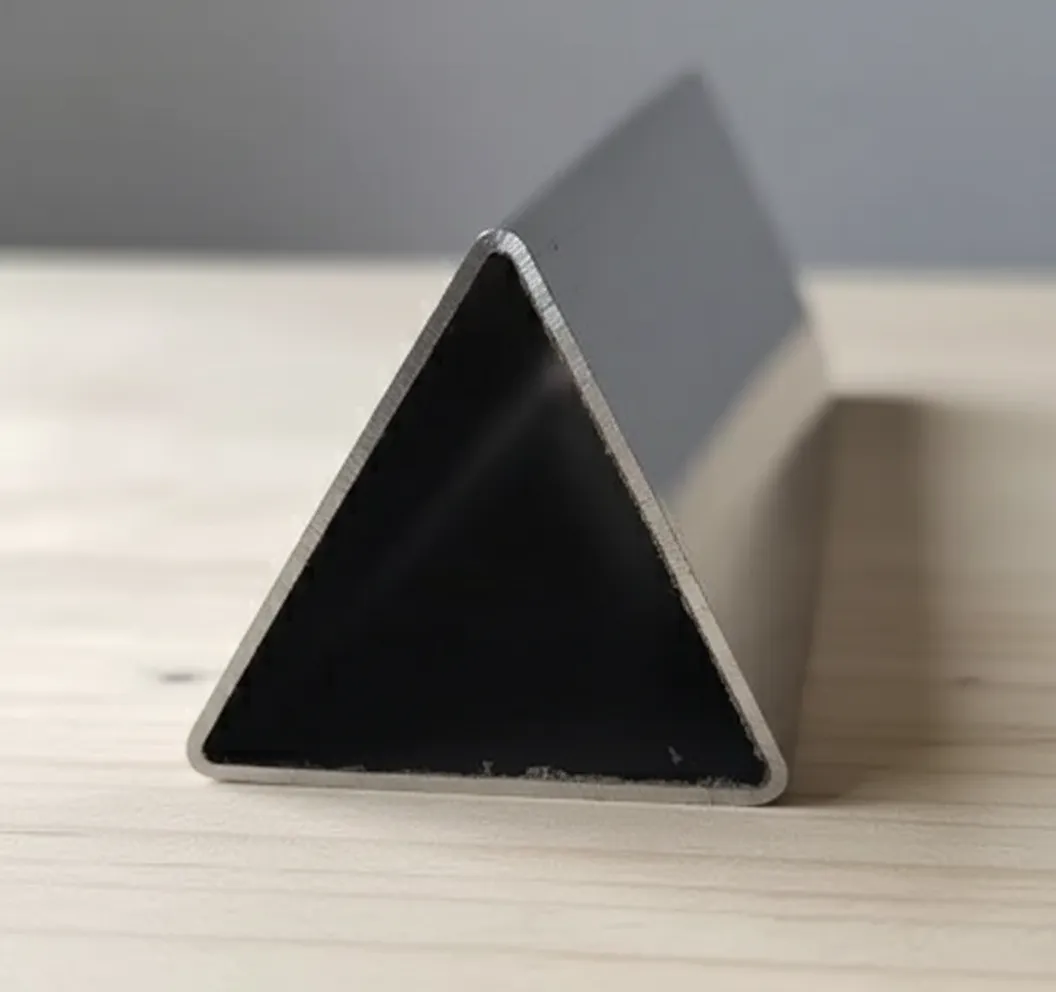

Customized special shape steel pipe image thumbnail

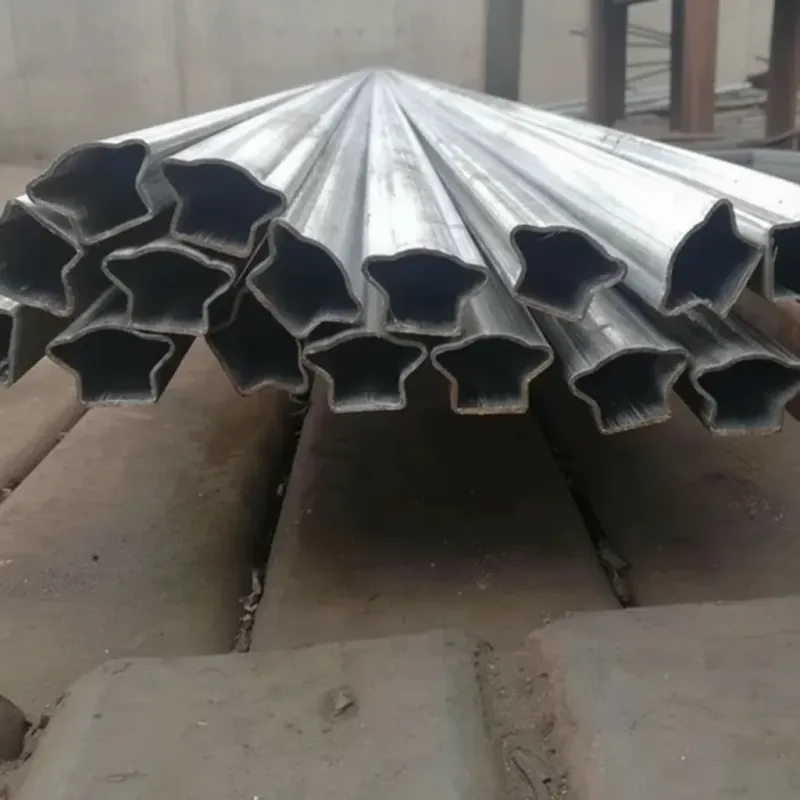

Customized special shape steel pipe image

Technical Specifications of Customized Special Shape Steel Pipe

Property	Parameter	Description
Product Name	Customized Special Shape Steel Pipe	Non-standard profile steel tubing per customer design
Material Grade	Q235B / Q345B / ASTM A500 / SS400 / S235JR	Carbon steel and structural steel grades available
Standard Compliance	ASTM A500, EN 10210, EN 10219, GB/T 6728	Meets major international standards
Manufacturing Process	Cold Formed / Hot Rolled / Welded (ERW/HFW)	Process selected based on shape complexity
Carbon (C)	≤0.20% (Q235B) / ≤0.22% (Q345B)	Carbon content per material grade
Manganese (Mn)	≤1.40% (Q235B) / ≤1.70% (Q345B)	Enhances strength and toughness
Silicon (Si)	≤0.35%	Deoxidizer in steelmaking process
Phosphorus (P)	≤0.045%	Controlled for improved ductility
Sulfur (S)	≤0.045%	Low sulfur for better weldability
Tensile Strength	≥370 MPa (Q235B) / ≥470 MPa (Q345B)	Minimum tensile strength per standard
Yield Strength	≥235 MPa (Q235B) / ≥345 MPa (Q345B)	Minimum yield strength per standard
Available Shapes	Elliptical, D-shape, Hexagonal, Triangular, Flat-sided Oval, Half-round, etc.	Fully customizable cross-section profiles
Wall Thickness	1.0mm - 30mm	Standard and custom thickness options
Length	1m - 12m or custom	Cut-to-length service available
Surface Finish	Black, Galvanized, Painted, Powder Coated, Polished	Multiple surface treatment options
Application	Architecture, Furniture, Machinery, Automotive, Handrails	Typical application industries
Certification	ISO 9001, EN 10204 3.1, SGS, BV	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps, waterproof wrapping	Standard export packaging
MOQ	5 tons	Minimum order quantity for custom shapes

Customized Special Shape Steel Pipe - Precision Fabrication for Industrial Applications

Customized special shape steel pipe delivers engineered profile solutions for projects where standard round or square tubing cannot meet design requirements. These non-standard profile tubes—including hexagonal, elliptical, D-shaped, triangular, and other irregular cross-sections—serve critical roles in architectural frameworks, automotive components, mechanical assemblies, and specialized industrial equipment. As a mill-direct supplier with over 15 years of profile steel fabrication experience, we produce custom-shaped steel pipes to precise dimensional tolerances, offering both carbon steel and stainless steel options with factory-competitive pricing for global B2B buyers.

Customized special shape steel pipe supplier

What Is Customized Special Shape Steel Pipe?

Customized special shape steel pipe refers to hollow steel tubing manufactured with non-standard cross-sectional profiles tailored to specific engineering or aesthetic requirements. Unlike conventional round, square, or rectangular pipes produced to stock dimensions, these custom profiles are fabricated using dedicated roller dies, cold-drawing mandrels, or precision welding techniques to achieve unique geometries specified by the customer.

Customized special shape steel pipe wholesale

Customized Special Shape Steel Pipe Technical Specifications

Our special shape steel pipe production covers a broad range of parameters to accommodate diverse industrial demands. Below are the key technical details:

Parameter	Available Range
Profile Types	Hexagonal, elliptical, D-shape, triangular, half-round, flat-sided oval, sector, plum-blossom, and custom CAD profiles
Material Grades	Q235B, Q345B (EN S235JR / S355JR), ASTM A500 Grade B/C, SS304, SS316L, 20# seamless steel
Wall Thickness	0.5 mm – 20 mm
Outer Dimension	10 mm – 500 mm (max circumscribed circle)
Length	Up to 12,000 mm, cut-to-length available
Dimensional Tolerance	±0.10 mm on wall thickness per ASTM A500; ±0.5 mm on profile outline
Surface Finish	Hot-rolled black, cold-drawn bright, galvanized (≥275 g/m²), painted, or polished up to 320 grit
Manufacturing Process	Cold drawing, roll forming, ERW welding + reshaping, hot extrusion
Applicable Standards	ASTM A500/A500M-21, EN 10219-1:2006, GB/T 6728-2017, JIS G3466

Key Advantages of Our Special Shape Steel Pipe Fabrication

Precision Die Engineering: In-house CNC die manufacturing enables profile accuracy within ±0.10 mm, reducing secondary machining costs for buyers.
Flexible Material Selection: Carbon steel, stainless steel, and alloy steel grades are all available, meeting requirements from structural load-bearing to corrosive environment resistance.
Low MOQ for Custom Profiles: Dedicated production lines accommodate orders starting from 1 metric ton, making small-batch prototyping and pilot runs economically viable.
Integrated Post-Processing: Cutting, beveling, drilling, galvanizing, and powder coating are performed in-house to deliver ready-to-install components.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for custom shape steel pipes?

Our standard MOQ is 1 metric ton per profile specification. For new die development projects, we recommend a minimum of 3 metric tons to optimize per-unit tooling cost allocation.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 Mill Test Certificates covering chemical composition, mechanical properties, and dimensional inspection results traceable to the production heat number.

Customized special shape steel pipe China

What is the typical delivery time for special shape steel pipe orders?

Standard profiles with existing dies ship within 15–20 working days. New profile development—including die design, sampling, and bulk production—typically requires 30–40 working days depending on complexity.

Can you produce special shape pipes from customer-supplied drawings?

Absolutely. We accept DXF, DWG, STEP, and PDF drawings. Our engineering team reviews each profile for manufacturability and provides a detailed feasibility report along with a quotation within 48 hours.

Get a Competitive Quote for Customized Special Shape Steel Pipe

Share your profile drawings, material grade, quantity, and surface finish requirements with our technical sales team. We provide value-driven pricing with transparent cost breakdowns—including die charges, material costs, and processing fees. Contact us today to receive a detailed proposal within two business days and accelerate your project timeline.

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Chris Martin

Canada

verified purchases

2025-02-20

Outstanding Sector-Profile Pipes for Automotive Tooling Application
Procured 1.5 tons of sector-shaped steel pipes in Q345B, 90° sector angle, 80mm radius, 4.5mm wall, cold-drawn bright finish for automotive fixture tooling. Minimum 1-ton MOQ made this pilot run economically viable—previous suppliers required 5 tons minimum for custom dies. Quotation with full cost breakdown including die charges received within 24 hours of submitting our STEP file. Profile accuracy measured at ±0.07mm, exceeding spec. EN 10204 3.1 certificates provided with heat traceability. Shipped in 19 working days. This is exactly the kind of low-MOQ custom capability we needed for prototype validation before scaling.

Wei Chen

Singapore

verified purchases

2025-03-14

Acceptable Custom Profile Quality with Initial Tolerance Issue Resolved
Ordered 2 tons of plum-blossom profile pipes in 20# seamless steel, 70mm circumscribed circle, 4mm wall, for a pilot run in our client's mechanical assembly. First sample batch showed wall thickness deviation of +0.18mm on one lobe, slightly outside the ±0.10mm spec. Raised the issue with the technical team—they acknowledged the tooling adjustment needed and delivered a corrected second sample within 8 working days at no additional charge. Final bulk delivery met spec and arrived in 42 working days total from order. Mill certificates were complete. Appreciate the responsive handling, though the initial sample revision extended our project timeline by 10 days.

Ahmed Al-Hassan

UAE

verified purchases

2025-04-02

Reliable Flat-Sided Oval Pipes for Infrastructure Project
Ordered 10 tons of flat-sided oval profile pipes in S235JR, 150×80mm, 5mm wall thickness, painted finish. Supplier accepted our PDF drawings and confirmed manufacturability within 48 hours as stated. Dimensional inspection on arrival showed all 24 sampled pieces within ±0.4mm on profile outline. Pricing was competitive against two UAE-based distributors who were quoting imported stock. Delivery took 22 working days—2 days beyond estimate, though we were informed in advance. Paint adhesion tested satisfactory under cross-cut test. Would recommend for large infrastructure procurement.

William Taylor

Australia

verified purchases

2025-04-26

Premium Half-Round Steel Pipes for Offshore Deck Fittings
This is our second order—4 tons of half-round special shape pipes in ASTM A500 Grade C, 100mm flat width, 5mm wall, hot-dip galvanized. First order 6 months ago performed well in salt spray environment, so we returned with an expanded specification. Galvanizing coverage confirmed at 310 g/m² per our inspection. EN 10204 3.1 certificates matched production heat numbers exactly. Delivery in 16 working days to Sydney port. In-house cutting and beveling service saved us approximately AUD 4,200 in local processing costs. Reliable partner for marine-grade custom profiles.

Carlos Silva

Brazil

verified purchases

2025-05-24

Good Value Triangular Profile Pipes for Equipment Frames
Placed a 6-ton order for triangular cross-section carbon steel pipes in Q235B, 60mm side dimension, 3.5mm wall, hot-rolled black finish. Pricing was 9% below our previous Chinese supplier for the same profile. Mill certificates and packing list were accurate. Delivery ran 3 days over the quoted 20-day window due to port congestion—supplier proactively communicated the delay and provided updated tracking. Profile dimensions were within tolerance on all sampled pieces. Minor point: cut-length end squareness could be improved on longer pieces. Overall solid performance for the price.

Hans Mueller

Germany

verified purchases

2025-06-10

Superior SS316L Elliptical Pipes for Chemical Equipment
Procured 3.5 tons of SS316L elliptical special shape pipes, 80×50mm profile, 3mm wall thickness, polished to 320 grit interior and exterior. Carbon content on mill certificate confirmed at 0.018%, within our specification limit of 0.030% per ASTM A240. Surface roughness Ra measured at 0.4μm—fully meeting our sanitary process line requirements. Delivery completed in 38 working days including new die development. Die sampling approval took only one revision cycle. Highly competent engineering team throughout.

James Wilson

United Kingdom

verified purchases

2025-07-02

Outstanding D-Shape Tube Supply for Architectural Framework
Sourced 8 tons of D-shaped steel tubes in S355JR grade, 120mm outer dimension, 6mm wall, galvanized finish at 280 g/m². Profiles matched our DWG drawings precisely—engineering team responded with a feasibility report within 36 hours of submission. Galvanizing coating weight verified by our third-party inspector on arrival. Shipment arrived 2 days ahead of the 20-day schedule. This supplier handled a profile geometry our previous UK fabricator refused to quote. Will be placing follow-on order for Phase 2 of the project.

Michael Johnson

United States

verified purchases

2025-07-17

Excellent Custom Hexagonal Pipes for Mechanical Assembly
Ordered 5 tons of Q345B hexagonal special shape steel pipe, 45mm across flats, 4mm wall thickness, cold-drawn bright finish. Dimensional tolerance came in at ±0.08mm on profile outline—tighter than the ±0.5mm spec promised. EN 10204 3.1 mill certificates included chemical and mechanical data traceable to heat number. Delivered in 17 working days. We compared quotes from 4 suppliers and this was 12% more competitive on total landed cost. Already integrated into our conveyor drive shaft assemblies with zero secondary machining required.
