2205 Duplex Stainless Steel Plate - ASTM A240/A182 Grade UNS S32205/S32206

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

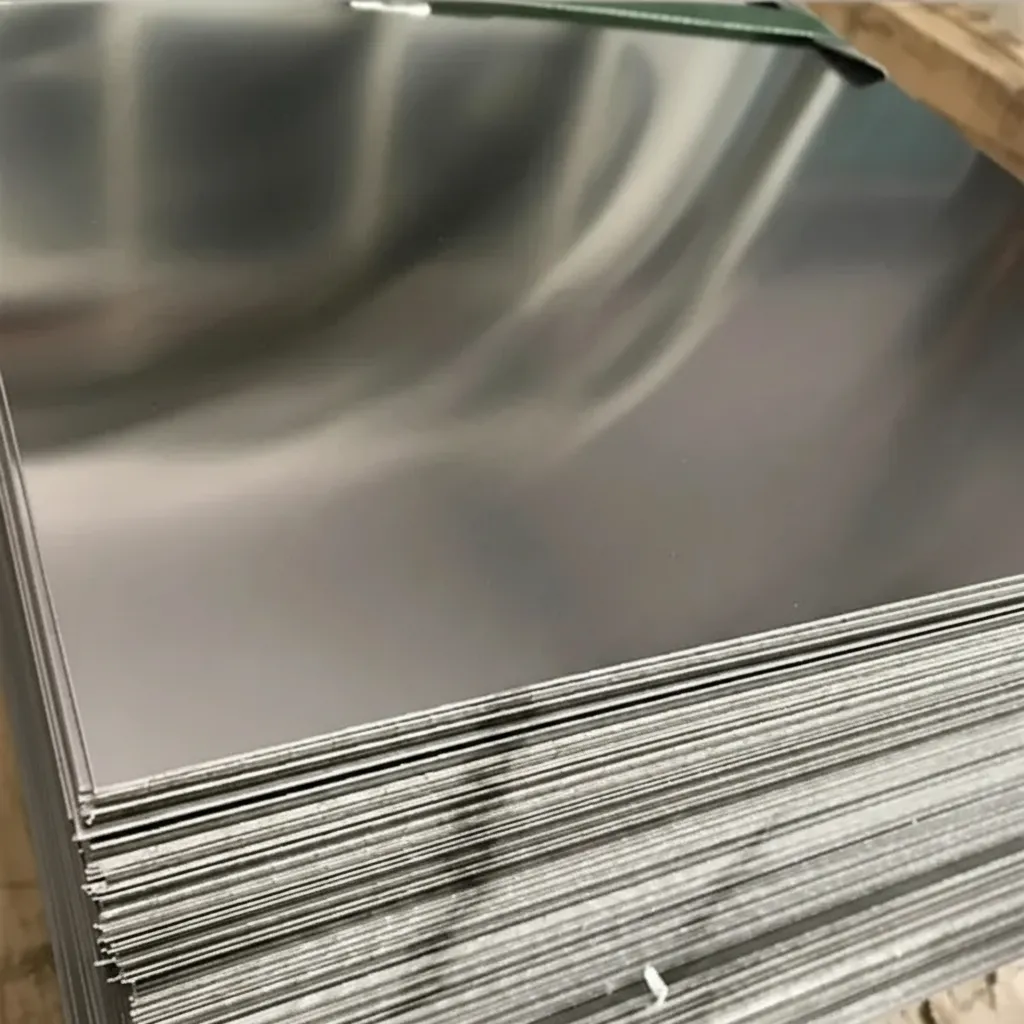

2205 duplex stainless steel plate image thumbnail

Technical Specifications of 2205 Duplex Stainless Steel Plate

Property	Parameter	Description
Product Name	2205 Duplex Stainless Steel Plate	Ferritic-austenitic stainless steel with superior strength and corrosion resistance
Material Grade	UNS S32205 / EN 1.4462 / ASTM A240	International grade equivalents
Standard Compliance	ASTM A240, EN 10088-2, ASME SA240	Meets major international standards
Carbon Content (C)	≤0.03%	Low carbon for improved weldability
Chromium (Cr)	22.0-23.0%	Provides excellent corrosion resistance
Nickel (Ni)	4.5-6.5%	Balances austenite-ferrite structure
Molybdenum (Mo)	3.0-3.5%	Enhances pitting and crevice corrosion resistance
Nitrogen (N)	0.14-0.20%	Strengthens austenite phase and improves PRE
Manganese (Mn)	≤2.0%	Stabilizes austenite formation
Tensile Strength	≥620 MPa	Minimum tensile strength per ASTM A240
Yield Strength	≥450 MPa	Minimum yield strength (0.2% offset)
Elongation	≥25%	Ductility in 50mm gauge length
Hardness	≤290 HBW	Brinell hardness maximum
PRE Number	≥35	Pitting Resistance Equivalent (Cr + 3.3Mo + 16N)
Thickness Range	3 - 100 mm	Available thickness options
Width Range	1000 - 3000 mm	Standard and custom widths
Surface Finish	2B, BA, No.1, Hot Rolled	Multiple surface treatment options
Application	Offshore, Chemical, Oil & Gas, Pulp & Paper	Typical application industries requiring high corrosion resistance
Certification	EN 10204 3.1, NACE MR0175, ISO 9001	Quality certifications provided
MOQ	1 ton	Minimum order quantity

2205 Duplex Stainless Steel Plate - ASTM A240/A182 Grade UNS S32205/S32206

2205 duplex stainless steel plate represents a specialized category of corrosion-resistant alloy that combines austenitic and ferritic microstructures in approximately equal proportions. This dual-phase composition delivers exceptional mechanical strength—nearly double that of conventional austenitic grades—while maintaining superior resistance to stress corrosion cracking and pitting in chloride-rich environments. Engineered for demanding industrial applications including offshore oil and gas platforms, chemical processing equipment, and desalination plants, this material serves critical roles where standard stainless steels fail to meet performance requirements.

What is 2205 Duplex Stainless Steel Plate?

2205 duplex stainless steel plate is a nitrogen-enhanced ferritic-austenitic alloy conforming to UNS S32205/S32206 designation, characterized by a balanced microstructure containing 40-60% ferrite in an austenitic matrix. Manufactured according to ASTM A240/A240M standards, this material exhibits a minimum yield strength of 450 MPa and demonstrates outstanding resistance to chloride-induced corrosion mechanisms that commonly affect single-phase stainless steels in marine and chemical processing environments.

2205 duplex stainless steel plate supplier

2205 Duplex Stainless Steel Plate Technical Specifications

The chemical composition comprises 21-23% chromium, 4.5-6.5% nickel, 2.5-3.5% molybdenum, and 0.14-0.20% nitrogen per ASTM A240 Section 6, delivering a Pitting Resistance Equivalent Number (PREN) exceeding 35. Mechanical properties include tensile strength of 620-880 MPa, elongation minimum 25% in 50mm gauge length, and Charpy V-notch impact energy of 60J at -40°C. Standard plate thicknesses range from 3mm to 100mm with widths up to 2500mm, supplied in hot-rolled, solution-annealed condition at 1020-1100°C.

Why Choose Our 2205 Duplex Stainless Steel Plate

Our manufacturing facility maintains ISO 9001:2015 and PED 2014/68/EU certifications, ensuring full traceability through mill test certificates per EN 10204 Type 3.1. Each plate undergoes ultrasonic testing per ASTM A435 and dimensional verification to ASTM A480 tolerances. We stock material certified to NACE MR0175/ISO 15156 for sour service applications and provide custom heat treatment services including stress relieving at 300-400°C for fabrication requirements. Factory-direct pricing eliminates distributor markups while maintaining delivery schedules of 15-25 days for standard dimensions.

2205 duplex stainless steel plate manufacturer

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 1 metric ton for stock dimensions. For custom thicknesses or special width requirements, the minimum order increases to 3 metric tons to optimize production efficiency. Sample pieces of 200x200mm are available for material qualification testing prior to bulk orders.

Do you provide material test certificates?

Yes, all shipments include EN 10204 Type 3.1 mill test certificates documenting chemical analysis by optical emission spectrometry, mechanical testing results, heat treatment parameters, and third-party inspection verification. Additional certifications such as NACE compliance, PMI reports, and ultrasonic testing records are available upon request at no extra charge.

What is the typical delivery time?

Stock thickness plates (6mm, 8mm, 10mm, 12mm) ship within 7-10 business days ex-works. Custom thickness production requires 20-30 days including solution annealing and quality inspection. Express processing is available for critical projects with 15-day lead times, subject to production capacity and 15% expedite fee.

Can you cut to custom sizes?

Our precision cutting services include plasma cutting for plates up to 80mm thickness (tolerance ±3mm), waterjet cutting for complex geometries (tolerance ±0.5mm), and shearing for straight cuts on material up to 25mm thick. Edge preparation options include beveling at 30-45° angles for welding preparation and surface grinding to Ra 3.2μm finish. Custom cutting adds 3-5 days to standard delivery schedules.

2205 duplex stainless steel plate China

Get a Competitive Quote for 2205 Duplex Stainless Steel Plate

Contact our technical sales team with your specifications including required dimensions, quantity, delivery location, and applicable standards. We provide detailed quotations within 24 hours including mill-direct pricing, estimated delivery schedules, and recommended testing protocols. Our metallurgical engineers offer complimentary consultation on material selection, welding procedures per AWS D1.6, and fabrication best practices to optimize your project performance and cost-efficiency.
