316L Stainless Steel Pipe - Corrosion-Resistant Welded & Seamless Tubing

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

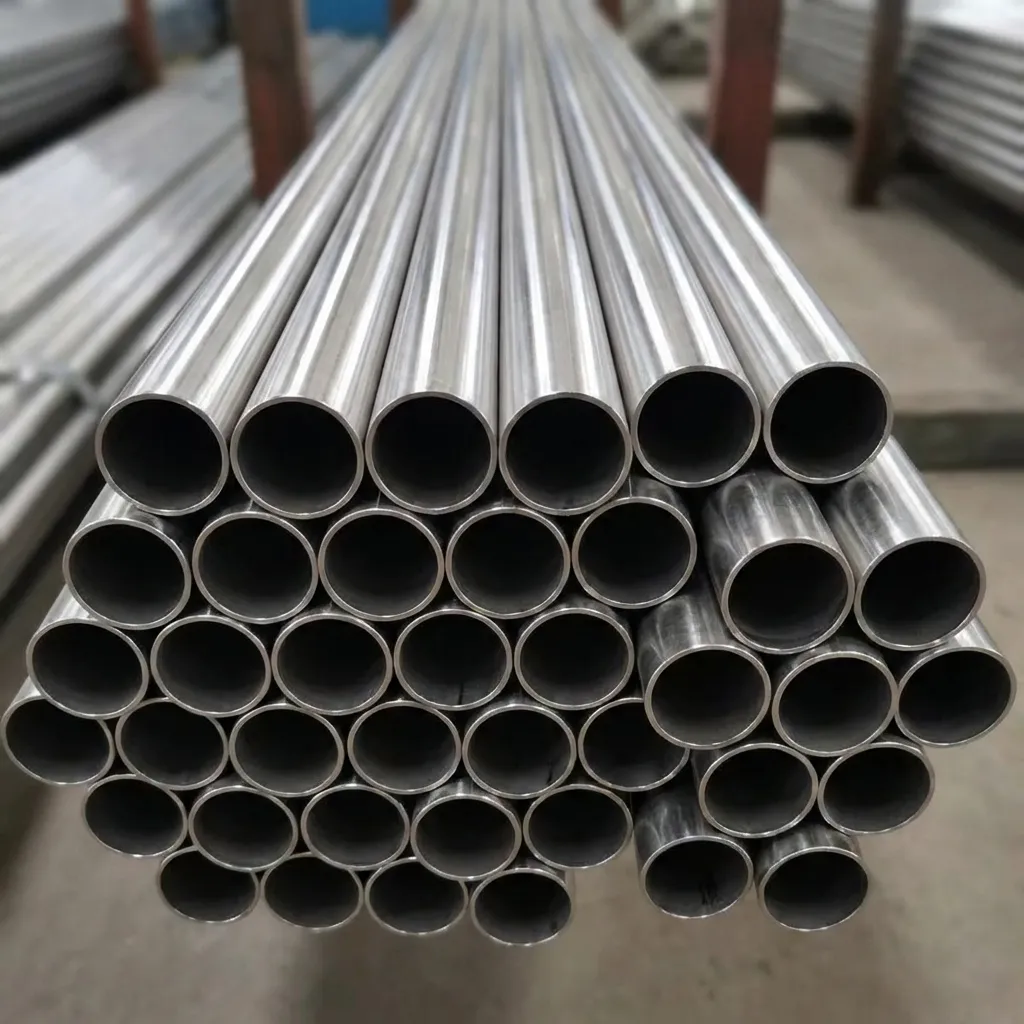

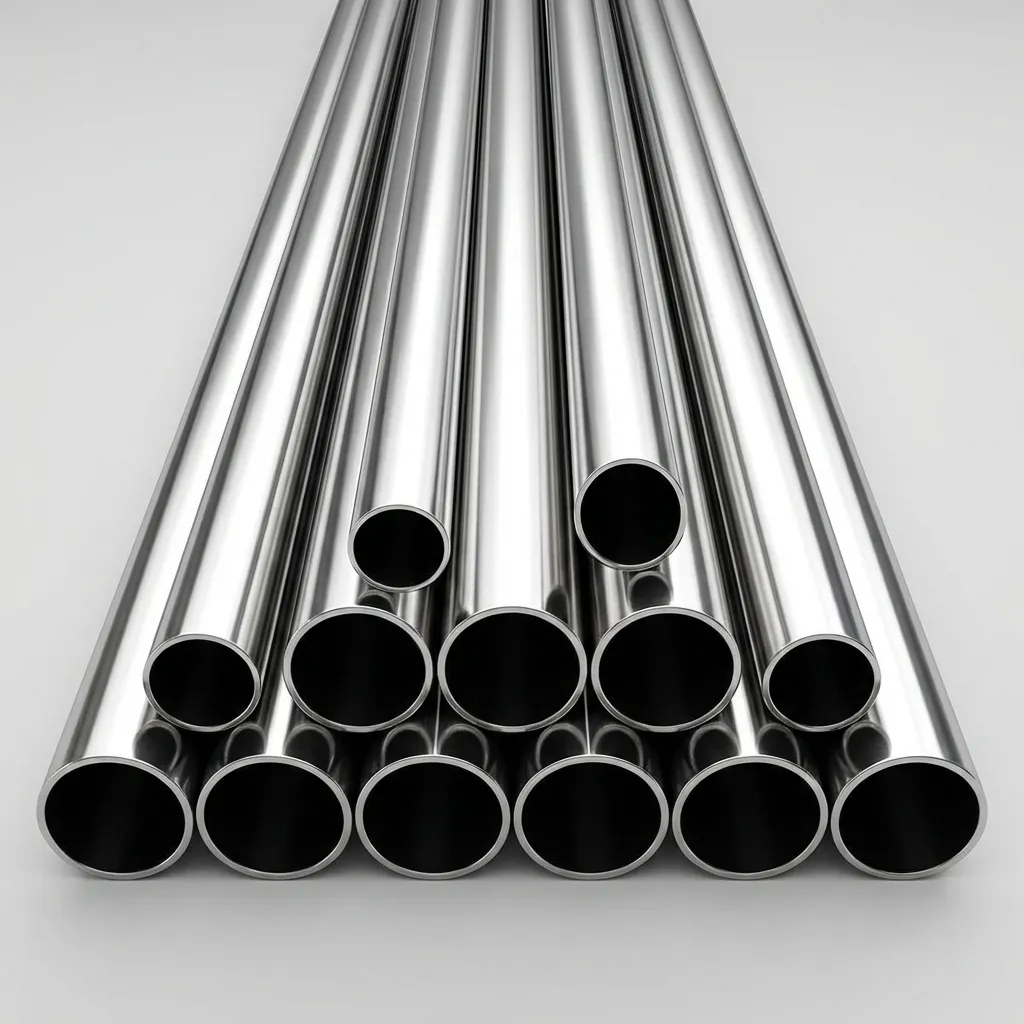

316L stainless steel pipe image thumbnail

Technical Specifications of 316L Stainless Steel Pipe

Property	Parameter	Description
Product Name	316L Stainless Steel Pipe	Low-carbon austenitic stainless steel pipe with superior corrosion resistance
Material Grade	316L / EN 1.4404 / UNS S31603 / JIS SUS316L	International grade equivalents
Standard Compliance	ASTM A312, ASTM A269, EN 10217-7, JIS G3459	Meets major international pipe standards
Carbon Content (C)	≤0.03%	Ultra-low carbon for enhanced weldability and corrosion resistance
Chromium (Cr)	16.0-18.0%	Provides excellent corrosion resistance
Nickel (Ni)	10.0-14.0%	Enhances ductility and austenitic stability
Molybdenum (Mo)	2.0-3.0%	Improves pitting and crevice corrosion resistance
Manganese (Mn)	≤2.0%	Improves hot working properties
Silicon (Si)	≤1.0%	Deoxidizer and strengthener
Tensile Strength	≥515 MPa	Minimum tensile strength per ASTM A312
Yield Strength	≥205 MPa	Minimum yield strength at 0.2% offset
Elongation	≥35%	Ductility in 50mm gauge length
Hardness	≤217 HBW / ≤95 HRB	Maximum hardness values
OD Range	6mm - 914mm	Available outer diameter options
Wall Thickness	0.5mm - 50mm	Standard and custom wall thickness
Length	5.8m - 12m or custom	Standard and cut-to-length options
Manufacturing Process	Seamless / Welded (TIG/ERW)	Hot-finished or cold-drawn seamless, welded and annealed
Surface Finish	Pickled, Annealed, Polished, Bright Annealed	Multiple surface treatment options
PRE Number	≥24	Pitting Resistance Equivalent for corrosion assessment
Application	Chemical processing, marine, pharmaceutical, food processing, oil & gas	Typical industrial applications
Temperature Range	-196°C to 925°C	Service temperature range
Corrosion Resistance	Excellent in chloride environments	Superior resistance to pitting and crevice corrosion
Weldability	Excellent	No post-weld heat treatment required
Certification	EN 10204 3.1/3.2, ISO 9001, PED, NACE MR0175	Quality certifications and material test reports provided
Packaging	Bundled with steel strips, plastic caps, wooden case	Standard export seaworthy packaging
MOQ	500 kg	Minimum order quantity

316L Stainless Steel Pipe - Corrosion-Resistant Welded & Seamless Tubing

316L stainless steel pipe represents a premium-grade austenitic chromium-nickel-molybdenum alloy tubing solution engineered for environments demanding exceptional corrosion resistance and superior weldability. With its reduced carbon content of 0.03% maximum, this material serves critical roles in chemical processing, marine applications, pharmaceutical manufacturing, and food-grade installations where contamination prevention and longevity are paramount. Our mill-direct 316L pipes meet rigorous international specifications while delivering cost-effective performance for industrial buyers seeking reliable corrosion-resistant piping systems.

What is 316L Stainless Steel Pipe?

316L stainless steel pipe is an extra-low carbon variant of standard 316 alloy, containing molybdenum (2.0-3.0%) for enhanced resistance to chloride-induced pitting and crevice corrosion. The "L" designation indicates carbon content limited to 0.03% maximum per ASTM A312/A312M specifications, which eliminates chromium carbide precipitation during welding operations. This austenitic material maintains a face-centered cubic crystal structure, providing excellent ductility and formability across temperature ranges from cryogenic to 870°C (1598°F) intermittent service conditions.

316L Stainless Steel Pipe Technical Specifications

Our 316L seamless and welded pipes comply with ASTM A312/A312M-2021 for seamless, welded, and heavily cold worked configurations. Chemical composition includes chromium 16.0-18.0%, nickel 10.0-14.0%, molybdenum 2.0-3.0%, with manganese ≤2.0%, silicon ≤0.75%, phosphorus ≤0.045%, and sulfur ≤0.030%. Mechanical properties deliver minimum tensile strength of 485 MPa (70 ksi), yield strength of 170 MPa (25 ksi), and elongation of 40% in 50mm gauge length. Available dimensions range from 6mm to 914mm outside diameter with wall thicknesses conforming to Schedule 5S through XXS per ASME B36.19M.

316L stainless steel pipe supplier

Corrosion Resistance Performance of 316L Piping

The molybdenum content in 316L stainless steel pipe provides superior resistance to chloride environments compared to conventional 304 grades, with a Pitting Resistance Equivalent Number (PREN) of approximately 24-26. This alloy demonstrates exceptional durability in marine atmospheres, brackish water systems, and chemical processing streams containing sulfuric acid, phosphoric acid, and acetic acid at moderate concentrations and temperatures. The extra-low carbon specification prevents sensitization during thermal exposure between 425-815°C, maintaining intergranular corrosion resistance per ASTM A262 Practice E testing protocols.

Welding Characteristics and Fabrication Guidelines

316L stainless steel pipe exhibits outstanding welding characteristics without requiring post-weld heat treatment for most applications, making it the preferred choice for complex fabrication projects. Compatible welding processes include Gas Tungsten Arc Welding (GTAW/TIG), Gas Metal Arc Welding (GMAW/MIG), and Shielded Metal Arc Welding (SMAW) using ER316L filler materials per AWS A5.9 specifications. Interpass temperature should not exceed 150°C to maintain corrosion resistance, while argon or argon-helium shielding gases prevent oxidation during fusion. The reduced carbon content eliminates carbide precipitation risks, ensuring weld zones maintain parent metal corrosion resistance properties.

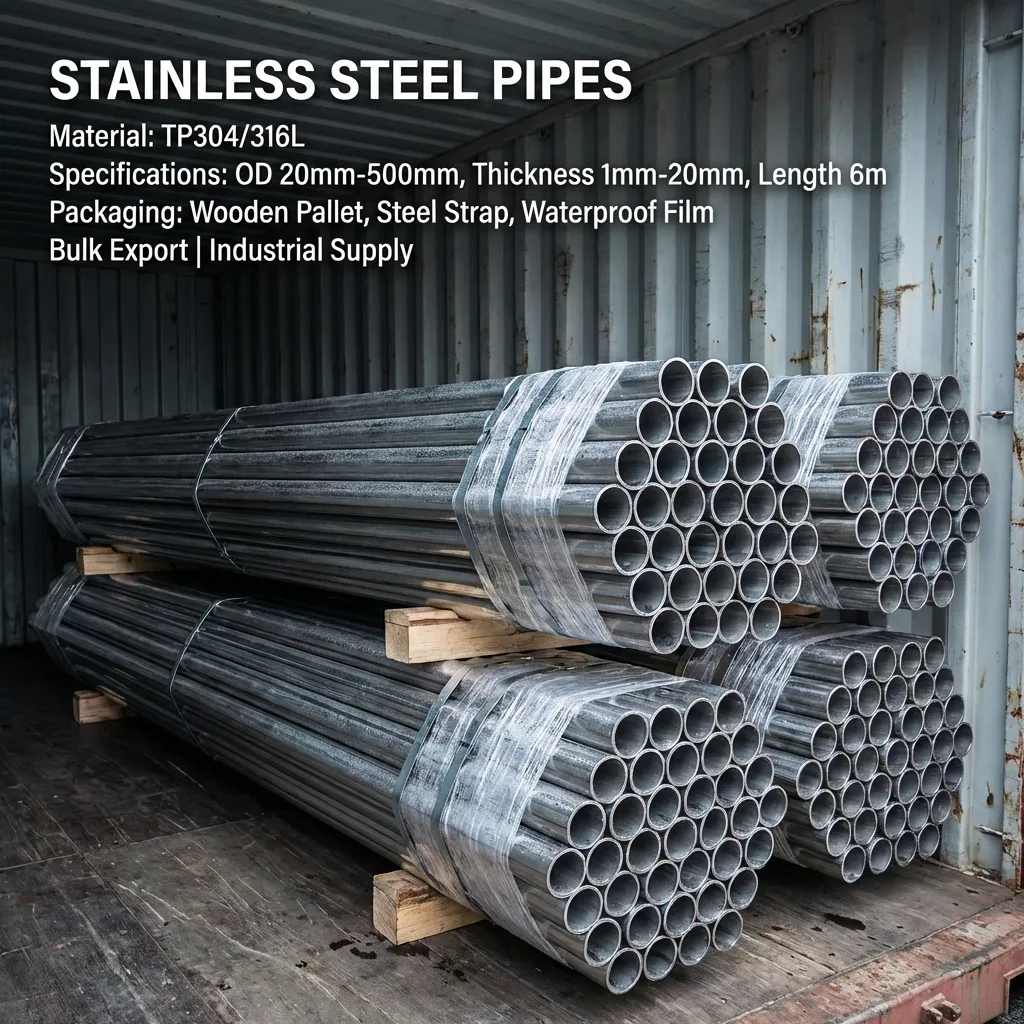

316L stainless steel pipe wholesale

Industrial Applications and Service Environments

316L stainless steel pipe finds extensive application in pharmaceutical clean-room distribution systems, food and beverage processing equipment, marine exhaust systems, and chemical transfer lines handling corrosive media. The material serves offshore oil and gas platforms for seawater cooling systems, desalination plants for brine handling, and pulp and paper mills for bleaching chemical transport. Architectural applications include coastal building facades, handrail systems, and water feature installations where aesthetic appearance must be maintained despite chloride exposure. Heat exchangers, condensers, and evaporators in power generation facilities utilize 316L tubing for superior thermal cycling resistance and minimal maintenance requirements.

Quality Certifications and Testing Standards

Our 316L stainless steel pipe production adheres to ISO 9001:2015 quality management systems with full material traceability from steel mill certification. Each production lot undergoes chemical composition verification via optical emission spectroscopy per ASTM E415, mechanical property testing per ASTM A370, and non-destructive examination including ultrasonic testing per ASTM A999 for seamless products and radiographic inspection per ASTM E1742 for welded configurations. Material Test Certificates (MTC) complying with EN 10204 Type 3.1 document chemical analysis, tensile properties, hardness values, and intergranular corrosion resistance test results. Additional certifications available include NACE MR0175/ISO 15156 for sour service environments and ASME B31.3 pressure piping code compliance documentation.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for 316L stainless steel pipe is 500 kilograms per size specification, though we accommodate smaller quantities for prototype projects or sampling requirements. Volume buyers ordering 5+ metric tons qualify for preferential mill-direct pricing with flexible delivery scheduling options.

Do you provide material test certificates?

Yes, comprehensive Material Test Certificates (MTC) per EN 10204 Type 3.1 accompany every shipment, documenting heat number traceability, chemical composition analysis, mechanical property test results, and compliance with specified ASTM, ASME, or EN standards. Third-party inspection services can be arranged upon request.

What is the typical delivery time?

Standard stock sizes ship within 3-5 business days from our distribution centers. Custom dimensions requiring mill production typically deliver within 4-6 weeks depending on specification complexity and current production schedules. Expedited processing available for urgent project requirements with premium freight arrangements.

Can you cut to custom sizes?

Our fabrication facility provides precision cutting services to customer-specified lengths with tolerances of ±1.5mm, beveling for weld preparation per ASME B16.25, and threading per ASME B1.20.1 standards. Additional value-added services include hydrostatic testing, passivation treatment per ASTM A380, and protective end capping for transportation.

Get a Competitive Quote for 316L Stainless Steel Pipe

Partner with our technical sales team to source factory-competitive 316L stainless steel pipe pricing backed by decades of metallurgical expertise and supply chain reliability. We provide comprehensive material selection consultation, application engineering support, and logistics coordination to ensure your project specifications are met on schedule and within budget.

24/7 customer support available via phone, email, and online chat
Free samples for quality evaluation with expedited shipping
Competitive pricing for bulk orders with volume discount structures
Professional technical consultation on material selection and fabrication methods

Contact us today to get your free quote within 24 hours!

316L stainless steel pipe manufacturer
