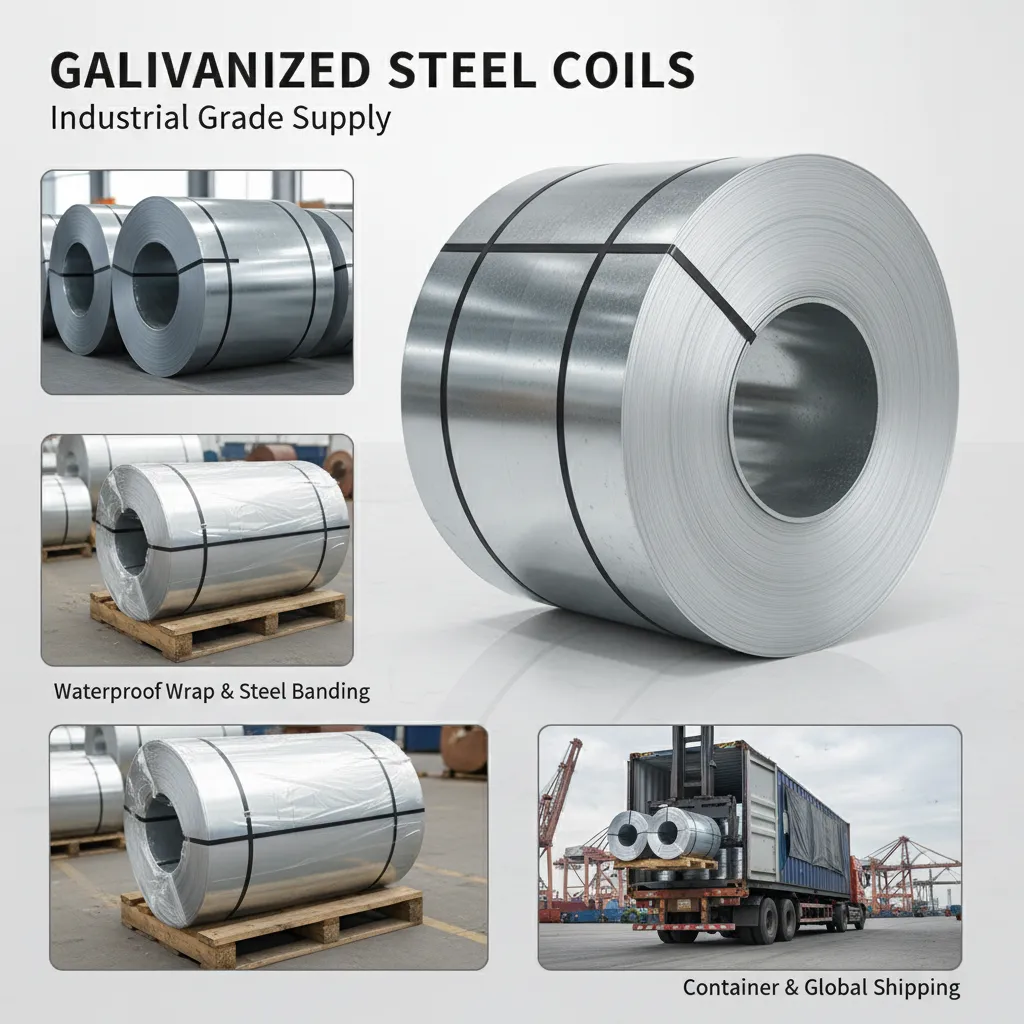

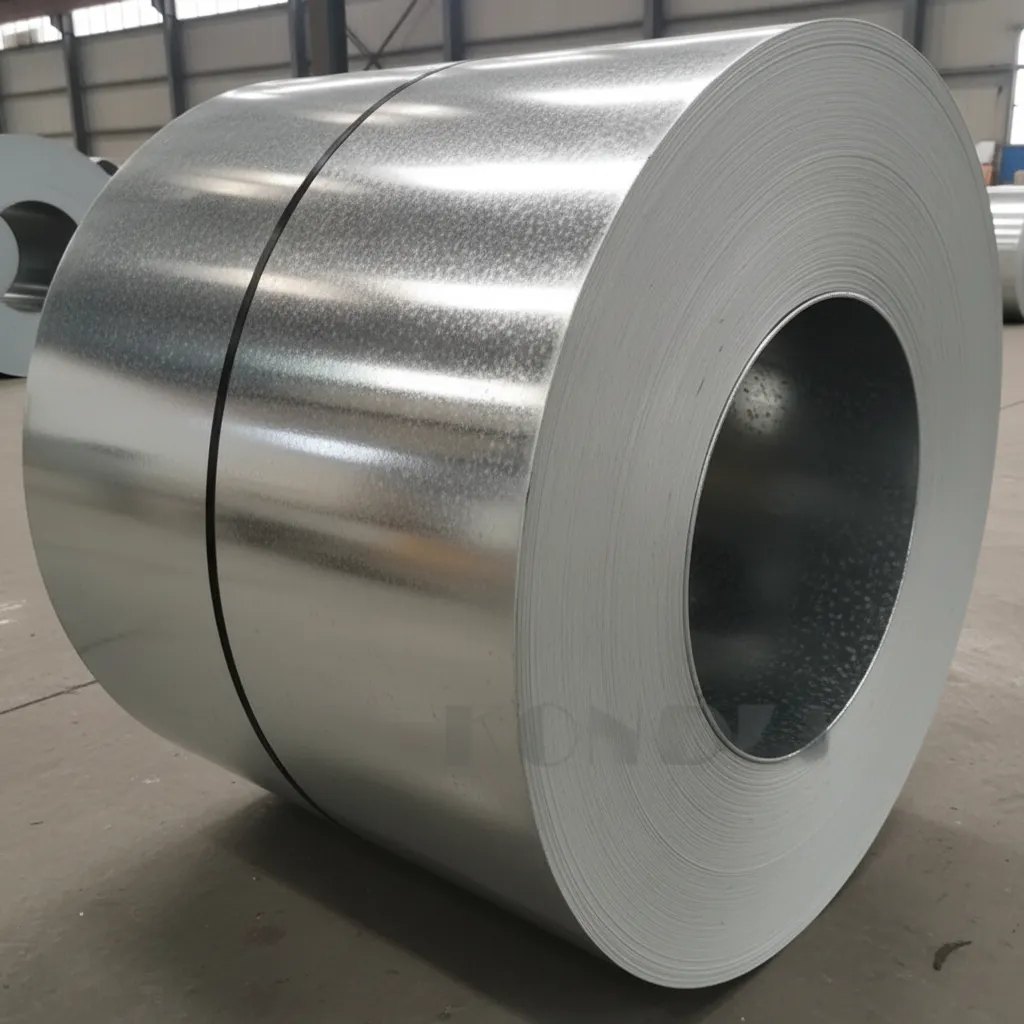

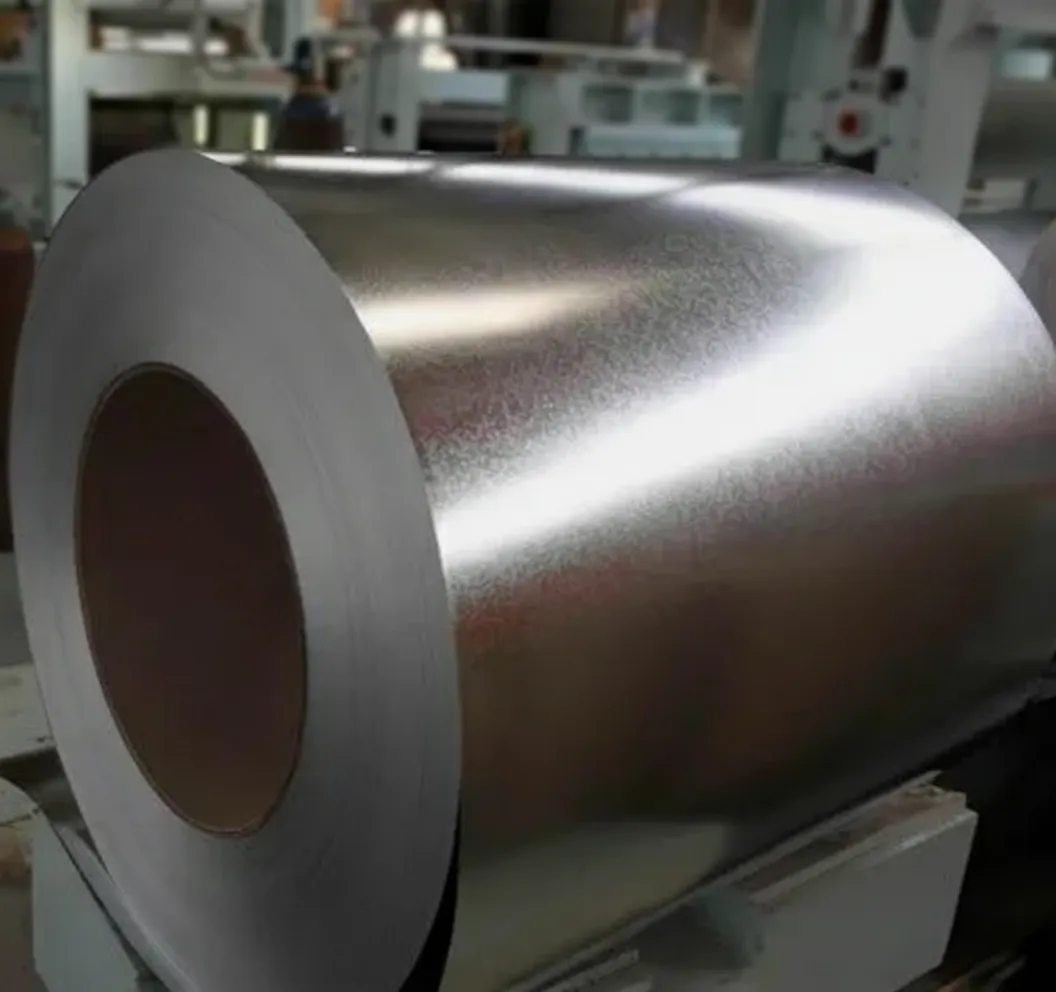

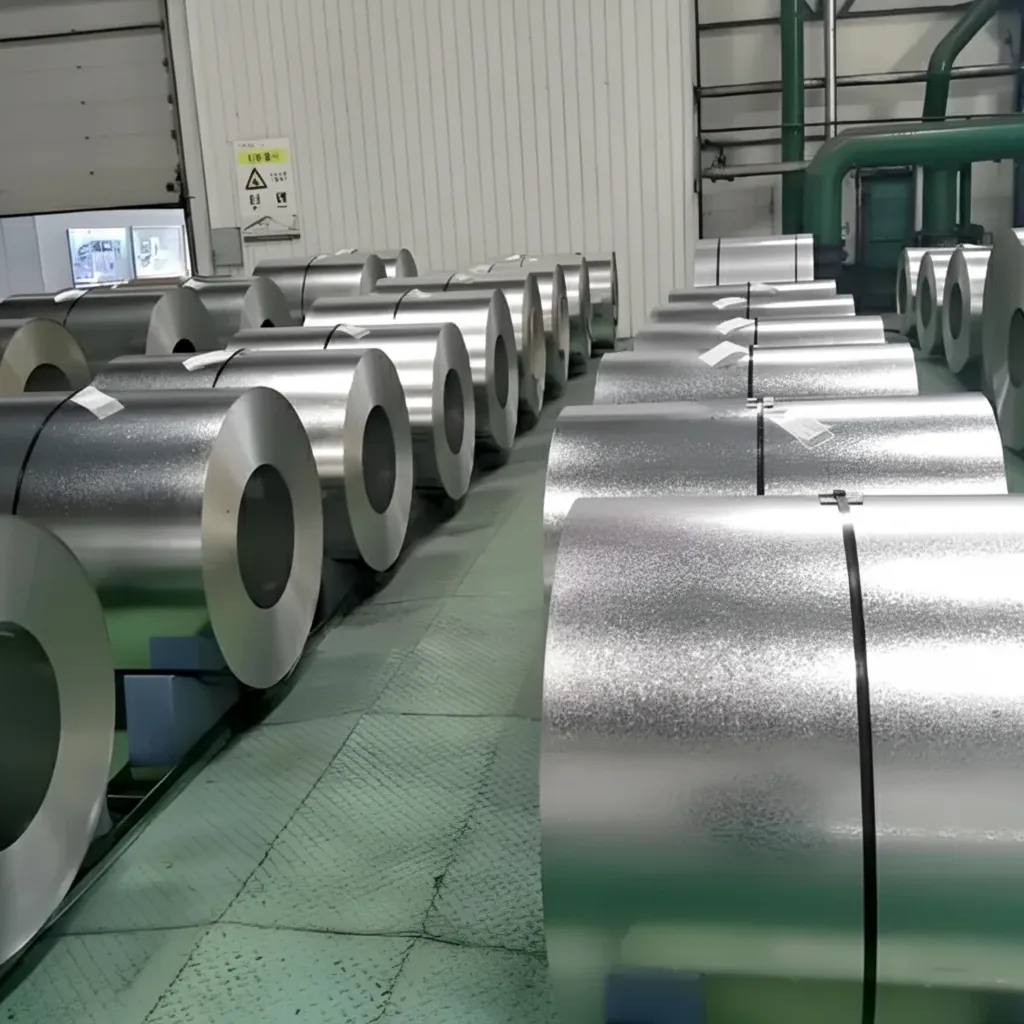

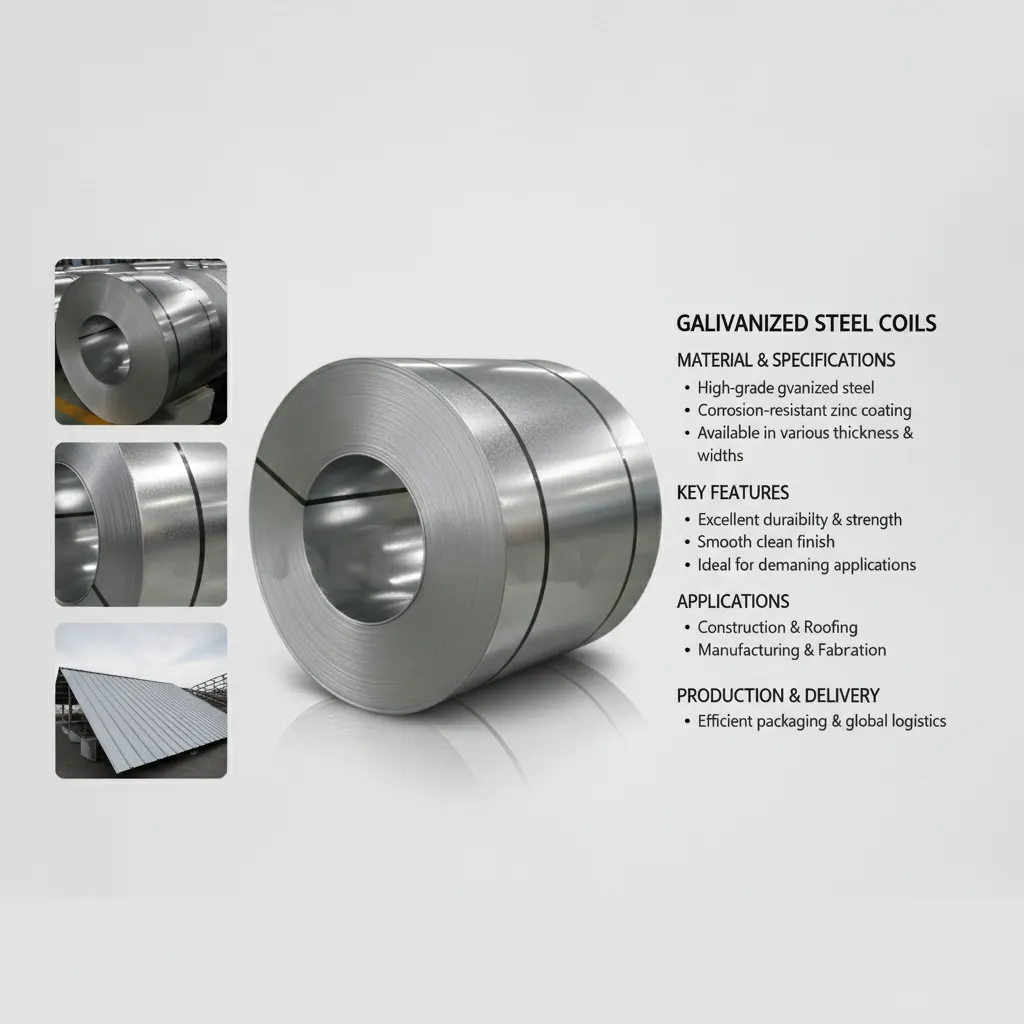

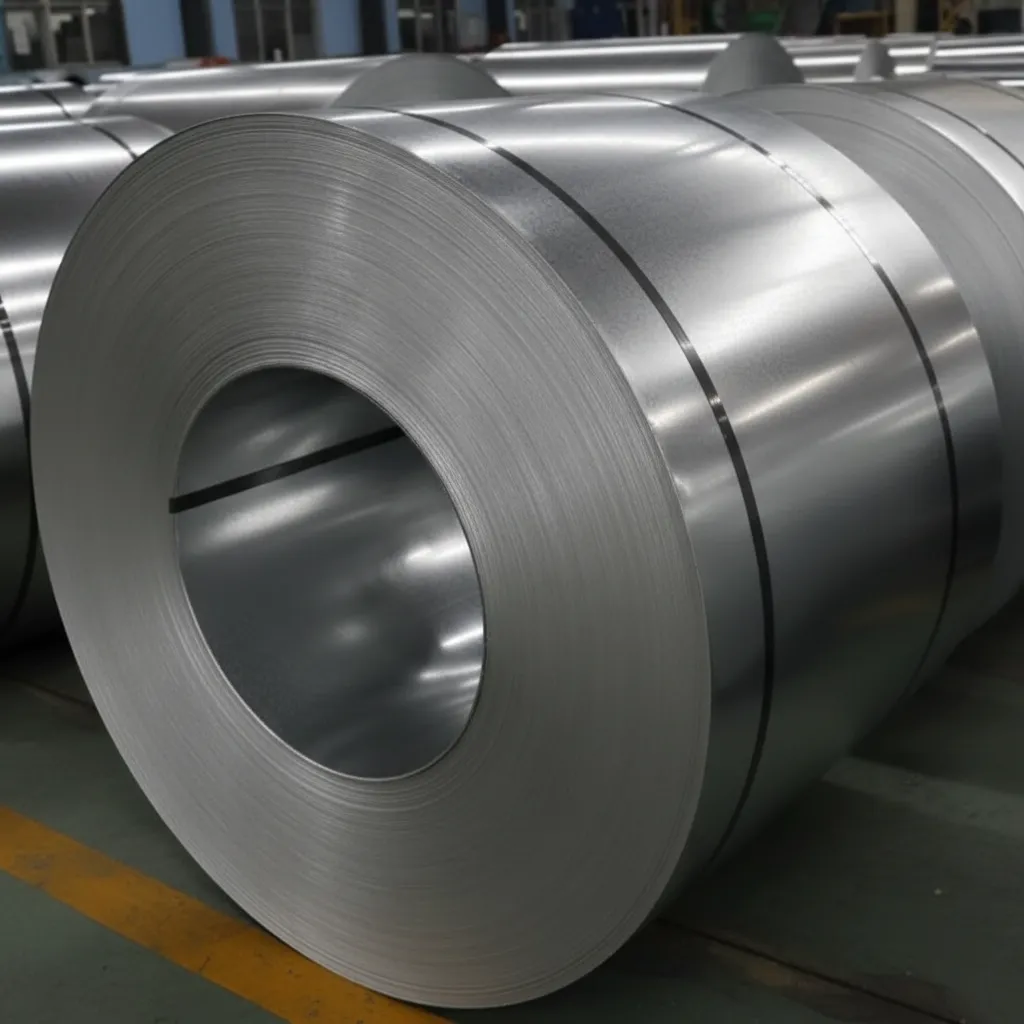

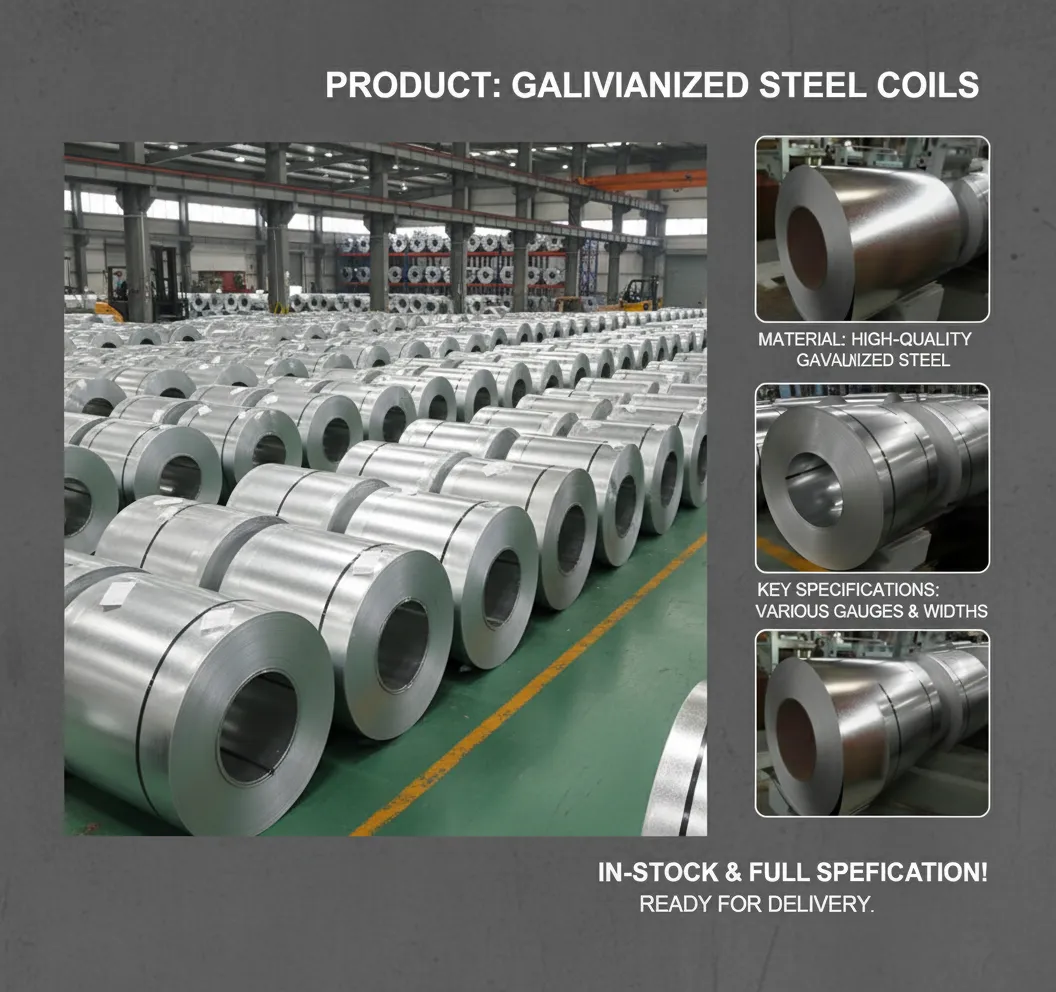

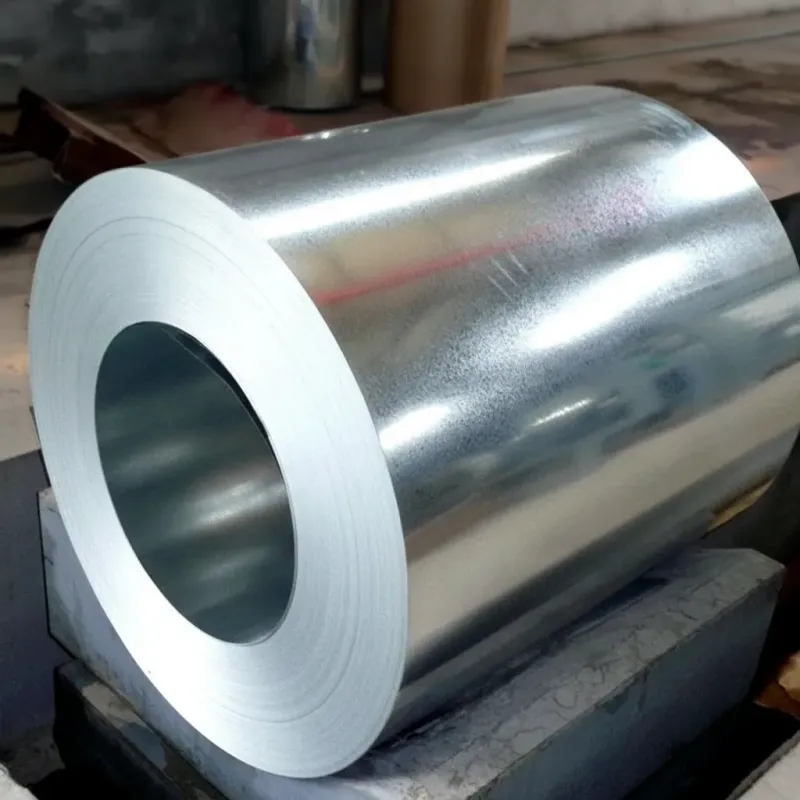

Electro Galvanized Steel Coil for Construction - High-Strength Corrosion-Resistant

Technical Specifications of Electro Galvanized Steel Coil for Construction

Electro Galvanized Steel Coil for Construction - High-Strength Corrosion-Resistant

Electro galvanized steel coil for construction represents a premium-grade steel product specifically engineered for structural applications requiring superior corrosion protection and mechanical strength. This factory-direct material serves critical roles in residential, commercial, and industrial building projects where durability and cost-effectiveness are paramount. Manufactured through advanced electroplating processes, these coils deliver consistent zinc coating thickness ranging from 40-120 g/m² per ASTM A653/A653M standards, making them the preferred choice for contractors, fabricators, and construction professionals seeking reliable performance in diverse environmental conditions.

What is Electro Galvanized Steel Coil for Construction?

Electro galvanized steel coil for construction is cold-rolled steel substrate coated with zinc through electrochemical deposition, providing a uniform protective layer with coating weights typically between 40-120 g/m² (total both sides). This manufacturing process ensures exceptional surface smoothness with Ra values below 1.0 μm, superior paint adhesion properties, and precise dimensional tolerances of ±0.02mm for thickness control, meeting requirements outlined in ASTM A653 Type B and EN 10346 standards for construction-grade applications.

Electro Galvanized Steel Coil for Construction Technical Specifications

These coils are manufactured from commercial quality (CQ), drawing quality (DQ), or structural quality (SQ) base steel with thickness ranges of 0.15-3.0mm and widths up to 1,500mm. The zinc coating exhibits excellent uniformity with adhesion strength exceeding 200 g/25mm per ASTM D3359 testing protocols, while the substrate maintains yield strength values between 140-550 MPa depending on grade selection, ensuring robust structural integrity for framing, roofing, and cladding applications in accordance with international building codes.

Why Choose Our Electro Galvanized Steel Coil for Construction

Our mill-direct electro galvanized coils undergo rigorous quality control with 100% online coating thickness measurement using X-ray fluorescence technology, guaranteeing consistent protection across entire coil lengths. We provide comprehensive mill test certificates (MTC 3.1) documenting chemical composition per ASTM E415 spectroscopy analysis, mechanical properties verified through ASTM E8 tensile testing, and coating weight confirmation meeting ASTM A90 triple-spot testing requirements, backed by ISO 9001:2015 certified manufacturing processes and technical support from metallurgical engineers with over 15 years of industry experience.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 25 metric tons per specification, though we accommodate smaller quantities of 10-15 tons for trial orders or specialized dimensions. Mixed container loading is available for customers requiring multiple thickness or width combinations, with flexible coil weight options ranging from 3-8 tons per coil to optimize logistics and handling efficiency at your facility.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting complete chemical analysis (C, Mn, Si, P, S content per ASTM E415), mechanical properties (yield strength, tensile strength, elongation per ASTM E8), coating weight verification (ASTM A90 triple-spot method), and surface quality inspection results. Additional third-party certification from SGS, BV, or Intertek is available upon request for critical applications.

What is the typical delivery time?

Standard lead time is 15-20 working days from deposit receipt for stock specifications (0.4-1.2mm thickness, 1,000-1,250mm width). Custom orders requiring specific dimensions or coating weights may extend to 25-30 days depending on production scheduling. We offer expedited processing for urgent projects with 10-12 day turnaround, subject to mill capacity availability and applicable rush order premiums.

Can you cut to custom sizes?

Absolutely. Our slitting lines accommodate width tolerances of ±1.0mm for dimensions between 100-1,500mm, while our cut-to-length equipment handles sheet lengths from 1,000-6,000mm with squareness deviation under 2.0mm per meter. We also provide edge trimming, deburring, and protective film application services to meet specific fabrication requirements, with all custom processing documented in detailed packing lists and dimension reports.

Get a Competitive Quote for Electro Galvanized Steel Coil for Construction

Contact our technical sales team today to receive factory-competitive pricing tailored to your project specifications. We provide detailed quotations within 24 hours, including material costs, processing fees, packaging options, and FOB/CIF shipping terms. Our experts are ready to discuss coating weight selection, substrate grade recommendations, and volume discount structures to optimize your construction material budget while ensuring compliance with local building codes and project timeline requirements.
