Galvanized ZAM Steel Coil - Zinc-Aluminum-Magnesium Coated Cold Rolled Steel Coil

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

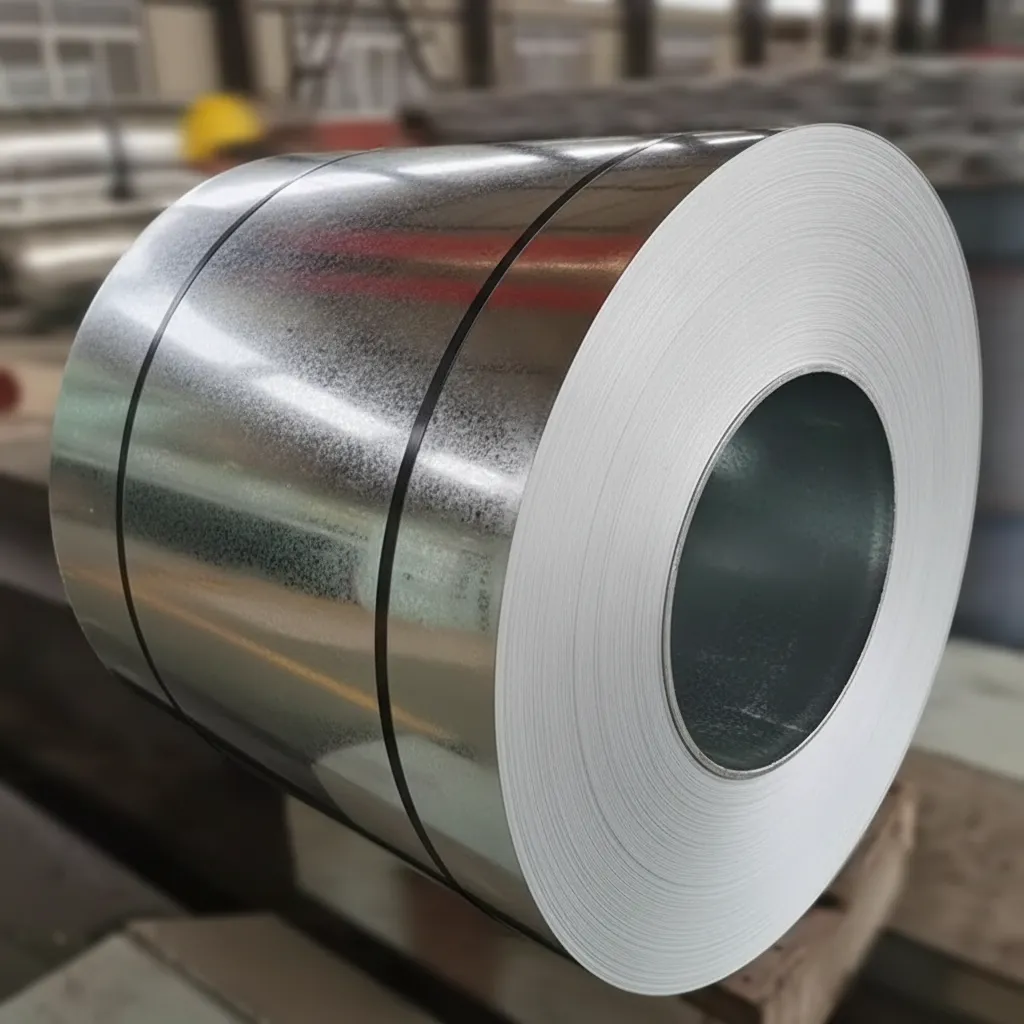

Galvanized zam steel coil image thumbnail

Technical Specifications of Galvanized ZAM Steel Coil

Property	Parameter	Description
Product Name	Galvanized ZAM Steel Coil	Zinc-Aluminum-Magnesium alloy coated steel with superior corrosion resistance
Coating Type	ZAM (Zn-Al-Mg Alloy)	Zinc 90% + Aluminum 6% + Magnesium 3% + Silicon 1%
Coating Weight	60-275 g/m²	Single side or double side coating options
Base Material	Cold Rolled Steel / Hot Rolled Steel	High-quality carbon steel substrate
Standard Compliance	JIS G3321, ASTM A792M, EN 10346	Meets international ZAM coating standards
Thickness Range	0.12 - 3.0 mm	Available thickness options for various applications
Width Range	600 - 1500 mm	Standard and custom widths available
Tensile Strength	270-550 MPa	Depends on base material grade
Yield Strength	≥140-420 MPa	Varies by steel grade specification
Elongation	≥20%	Ductility in standard gauge length
Corrosion Resistance	10-20x vs GI	Superior to traditional galvanized steel
Surface Treatment	Chromate-free, Oiled, Dry	Environmentally friendly surface options
Spangle Type	Regular Spangle / Minimized Spangle / Zero Spangle	Multiple surface finish options
Coil ID	508mm / 610mm	Standard inner diameter options
Application	Roofing, Automotive, HVAC, Construction	Suitable for outdoor and high-corrosion environments
Certification	ISO 9001, EN 10204 3.1, SGS	Quality certifications provided
Packaging	Waterproof paper + steel strapping + wooden pallet	Standard export seaworthy packaging
MOQ	25 tons	Minimum order quantity per specification

Galvanized ZAM Steel Coil - Zinc-Aluminum-Magnesium Coated Cold Rolled Steel Coil

Galvanized ZAM steel coil represents a breakthrough in corrosion-resistant steel technology, combining zinc, aluminum, and magnesium alloy coating on cold-rolled substrate. This advanced metallic-coated steel product delivers exceptional durability in harsh environments, making it the preferred choice for construction, automotive, and industrial applications requiring superior anti-corrosion properties. Engineered for manufacturers seeking cost-effective alternatives to traditional hot-dip galvanized materials, ZAM coil offers extended service life with reduced maintenance requirements.

What is Galvanized ZAM Steel Coil?

Galvanized ZAM steel coil is a cold-rolled steel product featuring a triple-layer metallic coating composed of zinc (Zn), aluminum (Al), and magnesium (Mg). The typical coating composition contains 6% aluminum, 3% magnesium, with the balance being zinc, applied through continuous hot-dip galvanizing process. This innovative coating system provides 10-20 times greater corrosion resistance compared to conventional galvanized steel, particularly in coastal and industrial atmospheres.

Galvanized zam steel coil supplier

Galvanized ZAM Steel Coil Technical Specifications

Standard ZAM coil specifications include substrate thickness ranging from 0.30mm to 3.00mm, coating mass between 90-275 g/m² per side, and coil width up to 1,500mm. The base material conforms to JIS G3302 or equivalent standards, with tensile strength of 270-550 MPa depending on grade. Coating adhesion meets minimum requirements of 180-degree bend test without flaking, while surface treatment options include chromate-free passivation and oil coating for enhanced formability.

Galvanized zam steel coil manufacturer

Why Choose Our Galvanized ZAM Steel Coil

Our manufacturing facility operates continuous galvanizing lines with precise coating weight control within ±10 g/m² tolerance. We maintain ISO 9001:2015 certification and provide full material traceability with mill test certificates per EN 10204 3.1. Our ZAM coil inventory includes various coating designations (Z90, Z120, Z180, Z275) with lead times of 15-25 days for standard specifications. Technical support includes forming simulation and corrosion testing services to optimize your application performance.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for galvanized ZAM steel coil is 25 metric tons per specification. For trial orders or prototype development, we accommodate reduced quantities of 5-10 tons with adjusted pricing. Mixed container loading is available for customers requiring multiple thickness or width combinations, subject to minimum 3-ton quantity per item.

Galvanized zam steel coil China

Do you provide material test certificates?

Yes, we supply comprehensive mill test certificates (MTC) complying with EN 10204 Type 3.1 for every shipment. Documentation includes chemical composition analysis, mechanical properties verification, coating weight measurement, and surface quality inspection results. Additional third-party testing through SGS or TÜV can be arranged upon request with 5-7 days additional processing time.

What is the typical delivery time?

Standard delivery schedule for galvanized ZAM steel coil ranges from 20-30 days after order confirmation for stock specifications. Custom coating weights or non-standard widths require 35-45 days production lead time. Express processing is available for urgent requirements with 15-day delivery for surcharge of 8-12% depending on order volume and destination port.

Can you cut to custom sizes?

Our processing center offers precision slitting services to custom widths with ±0.5mm tolerance and cut-to-length processing for sheets ranging from 1,000mm to 6,000mm length. Blanking and shearing services accommodate complex geometries with CNC cutting equipment. Custom processing adds 7-10 days to standard delivery time, with minimum processing quantity of 3 tons per specification to optimize equipment setup efficiency.

Get a Competitive Quote for Galvanized ZAM Steel Coil

Contact our technical sales team today to receive mill-direct pricing for galvanized ZAM steel coil tailored to your project requirements. We provide detailed quotations including coating specification recommendations, packaging options, and logistics solutions within 24 hours. Request your free sample kit with corrosion test data and forming guidelines to evaluate ZAM coil performance for your specific application environment.
