Building Material ZAM Coil - Galvanized Aluminum Magnesium Steel Coil for Construction

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

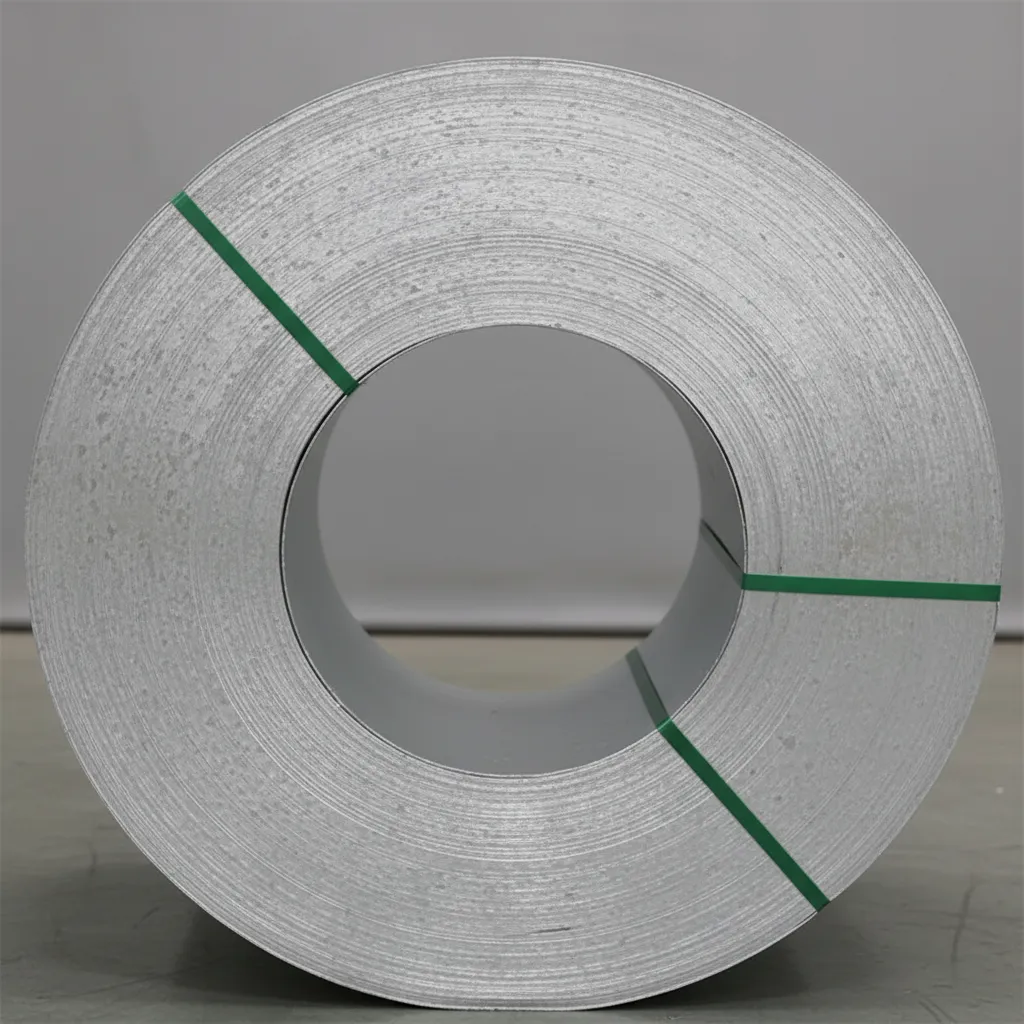

Building material zam coil image thumbnail

Technical Specifications of Building Material ZAM Coil

Property	Parameter	Description
Product Name	Building Material ZAM Coil	Zinc-Aluminum-Magnesium coated steel coil for construction
Coating Type	ZAM (Zn-Al-Mg Alloy)	Superior corrosion protection coating
Coating Composition	Zn: 88-94%, Al: 4-10%, Mg: 2-4%	Optimized alloy ratio for durability
Base Material	Cold Rolled Steel / Hot-Dip Galvanized Steel	High-quality steel substrate
Coating Weight	60-275 g/m² (both sides)	Available in various coating thickness options
Thickness Range	0.12 - 3.0 mm	Standard and custom thickness available
Width Range	600 - 1500 mm	Common widths for building applications
Coil ID	508 mm / 610 mm	Standard inner diameter options
Coil Weight	3 - 10 tons	Per coil weight range
Tensile Strength	≥270 MPa	Minimum tensile strength per standard
Yield Strength	≥140 MPa	Minimum yield strength
Elongation	≥20%	Ductility performance
Corrosion Resistance	15-20 times better than GI	Exceptional long-term protection
Surface Treatment	Chromate-free, Oiled, Dry	Environmentally friendly options
Color Options	Natural silver-gray or custom RAL colors	Pre-painted ZAM available
Application	Roofing, wall panels, structural components	Building and construction industry
Standard Compliance	JIS G3321, EN 10346, ASTM A792	Meets international coating standards
Certification	ISO 9001, SGS, EN 10204 3.1	Quality certifications provided
Packaging	Waterproof paper, steel strapping, wooden pallet	Export-standard packaging
MOQ	25 tons	Minimum order quantity

Building Material ZAM Coil - Galvanized Aluminum Magnesium Steel Coil for Construction

Building material zam coil represents a revolutionary advancement in corrosion-resistant steel technology, specifically engineered for demanding construction applications. This zinc-aluminum-magnesium alloy-coated steel coil delivers exceptional durability in harsh environmental conditions, making it the preferred choice for roofing systems, structural components, and exterior cladding projects. Manufactured through continuous hot-dip coating processes, ZAM coils provide superior protection compared to conventional galvanized materials, serving contractors, fabricators, and construction companies seeking long-term performance with reduced maintenance requirements.

What is Building Material ZAM Coil?

Building material ZAM coil is a hot-dip coated steel product featuring a proprietary zinc-aluminum-magnesium (Zn-6%Al-3%Mg) alloy layer applied to high-quality carbon steel substrate. This advanced coating system combines the sacrificial protection of zinc with the barrier properties of aluminum and the self-healing characteristics of magnesium, delivering corrosion resistance 10-20 times greater than traditional galvanized steel according to ASTM B117 salt spray testing protocols.

Building Material ZAM Coil Technical Specifications

Standard ZAM coils are manufactured with base metal thickness ranging from 0.30mm to 3.00mm, coating mass from Z90 to Z275 (90-275 g/m² per side), and coil widths between 600mm and 1,500mm per JIS G3321 specifications. The substrate typically conforms to ASTM A653 structural steel grade with minimum yield strength of 280 MPa and tensile strength of 380 MPa, while the tri-metallic coating maintains uniform thickness tolerance within ±10% across the entire coil width.

Why Choose Our Building Material ZAM Coil

Our mill-direct ZAM coil production facility operates continuous coating lines equipped with advanced alloy bath composition control systems, ensuring consistent 6% aluminum and 3% magnesium content throughout each production run. We maintain comprehensive quality certifications including ISO 9001:2015, EN 10346 compliance documentation, and provide full material traceability with chemical composition analysis per ASTM E1086 for every coil shipment, backed by our technical support team's 15+ years of experience in corrosion-resistant building materials.

Building material zam coil supplier

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for building material ZAM coil is 25 metric tons per specification, though we accommodate smaller trial orders of 10 tons for new customers evaluating material performance. Mixed container loads combining different thicknesses or widths may be arranged with 5-ton minimum per individual specification to optimize shipping efficiency.

Do you provide material test certificates?

Yes, every ZAM coil shipment includes EN 10204 Type 3.1 mill test certificates documenting chemical composition analysis, mechanical properties testing, coating weight verification, and bend test results. We also supply coating adhesion test reports per ASTM D3359 and salt spray exposure data upon request for quality assurance documentation.

What is the typical delivery time?

Standard production lead time for building material ZAM coil ranges from 25 to 35 working days after order confirmation and deposit receipt, depending on current production schedule and coating specification requirements. Express processing is available for urgent projects with 15-20 day delivery windows, subject to raw material availability and production capacity allocation.

Building material zam coil wholesale

Can you cut to custom sizes?

Our processing facility offers precision slitting services to custom widths with ±1.0mm tolerance and cut-to-length processing for sheets ranging from 1,000mm to 6,000mm in length. We also provide edge trimming, deburring, and protective film application services to meet specific fabrication requirements, with minimum processing quantities of 5 tons per custom specification.

Get a Competitive Quote for Building Material ZAM Coil

Contact our technical sales team today to receive factory-direct pricing for building material ZAM coil tailored to your project specifications. We provide detailed quotations including material costs, processing fees, packaging options, and FOB/CIF delivery terms within 24 hours. Our application engineers are available to discuss coating weight selection, substrate grade recommendations, and performance comparisons to help optimize your material procurement decisions for superior construction outcomes.

Building material zam coil China

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

David Thompson

Canada

verified purchases

2025-09-09

Superior Corrosion Protection for Cold Climate Use
This is our third order - 30 tons of building material ZAM coil (0.65mm base metal, Z220 coating mass, 1300mm width) for agricultural building applications across Manitoba. The zinc-aluminum-magnesium alloy coating has proven exceptional resistance to freeze-thaw cycling and road salt exposure. Material consistently meets ASTM A653 Grade 280 specifications with full mill test certificates. Their cut-to-length service provided 3000mm sheets with clean edges and protective film application. Lead time was 28 days. Excellent long-term partner for Canadian construction market demanding superior durability.

Wei Chen

Singapore

verified purchases

2025-09-27

Acceptable Quality with Initial Communication Issues
Ordered 15 tons trial quantity of ZAM coil (0.40mm thickness, 900mm width, Z90 coating) for container housing project. Material quality was acceptable with coating weight averaging 94 g/m² per side. Initial confusion about MOQ requirements and payment terms delayed our order by one week. However, their team resolved documentation issues promptly and provided additional bend test reports. Delivery took 32 days once production started. Product performance has been satisfactory for 2 months. May consider larger orders if communication improves.

Carlos Silva

Brazil

verified purchases

2025-10-14

Reliable ZAM Coil for South American Market
Purchased 25 tons of ZAM coil (0.55mm substrate, Z150 coating, 1100mm width) for warehouse roofing systems in São Paulo region. Material certificates showed tensile strength of 392 MPa meeting our structural requirements. The self-healing magnesium properties are beneficial for our humid climate. Delivery was 34 days, slightly longer than quoted 30 days. Packaging was adequate though edge protection could be improved. Overall good quality-to-price ratio compared to three other suppliers we evaluated.

Ahmed Al-Hassan

United Arab Emirates

verified purchases

2025-11-01

Perfect Solution for Harsh Desert Climate Applications
Ordered 40 tons of building material ZAM coil (0.80mm thickness, 1500mm width, Z250 coating) for exterior cladding in Dubai high-rise project. Material performed exceptionally in our accelerated corrosion testing at 55°C ambient temperature. The zinc-aluminum-magnesium coating provided 15x better protection than standard galvanized in ASTM B117 comparison tests. Delivered in 26 days with complete traceability documentation. Their application engineers helped optimize coating weight selection for our extreme environment. Outstanding product for Middle East conditions.

Hans Mueller

Germany

verified purchases

2025-11-19

Premium ZAM Coils for European Construction Standards
We procured 35 tons of ZAM coil (0.60mm base metal, Z200 coating mass, 1400mm width) for structural component manufacturing. Full EN 10346 compliance documentation was provided with chemical composition analysis per ASTM E1086. The tri-metallic coating showed consistent 272 g/m² average weight with excellent surface finish. Their slitting service delivered ±0.8mm tolerance on custom 850mm width. Processing time was 29 days. This is our second order in 6 months. Highly recommended for demanding European projects.

Michael Torres

United States

verified purchases

2025-12-08

Good Value ZAM Material with Competitive Pricing
Ordered 20 tons of ZAM coil (0.45mm thickness, 1000mm width, Z120 coating) for industrial roofing applications in Texas. Material quality met ASTM A653 structural grade requirements with 295 MPa yield strength. Pricing was 12% lower than domestic suppliers we compared. Delivery took 33 days which was acceptable. Only minor issue was packaging had slight moisture exposure on 2 coils but protective film prevented any surface damage. Would order again for price-sensitive projects.

James Wilson

United Kingdom

verified purchases

2025-12-23

Outstanding Technical Support and Material Quality
Purchased 32 tons of building material ZAM coil (0.70mm substrate, Z275 coating, 1200mm width) for agricultural building cladding systems. Their technical team provided detailed bend test results and coating adhesion reports per ASTM D3359 before shipment. The material exhibited excellent formability with no coating flaking during our roll-forming operations. Lead time was 31 days as promised. The corrosion resistance in our UK coastal environment has been impressive after 4 months of installation.

Robert Chen

Australia

verified purchases

2026-01-07

Excellent ZAM Coil Performance for Coastal Warehouse
Ordered 28 tons of ZAM coil (0.50mm thickness, 1250mm width, Z180 coating) for our coastal warehouse roofing project in Brisbane. Material certificates confirmed 6.2% Al and 3.1% Mg content per JIS G3321 specifications. The coating uniformity was exceptional with only ±7% variation across the width. Delivered in 27 days with full EN 10204 Type 3.1 documentation. Salt spray test data showed superior performance compared to our previous galvanized supplier. Already planning our next order for expansion phase.
