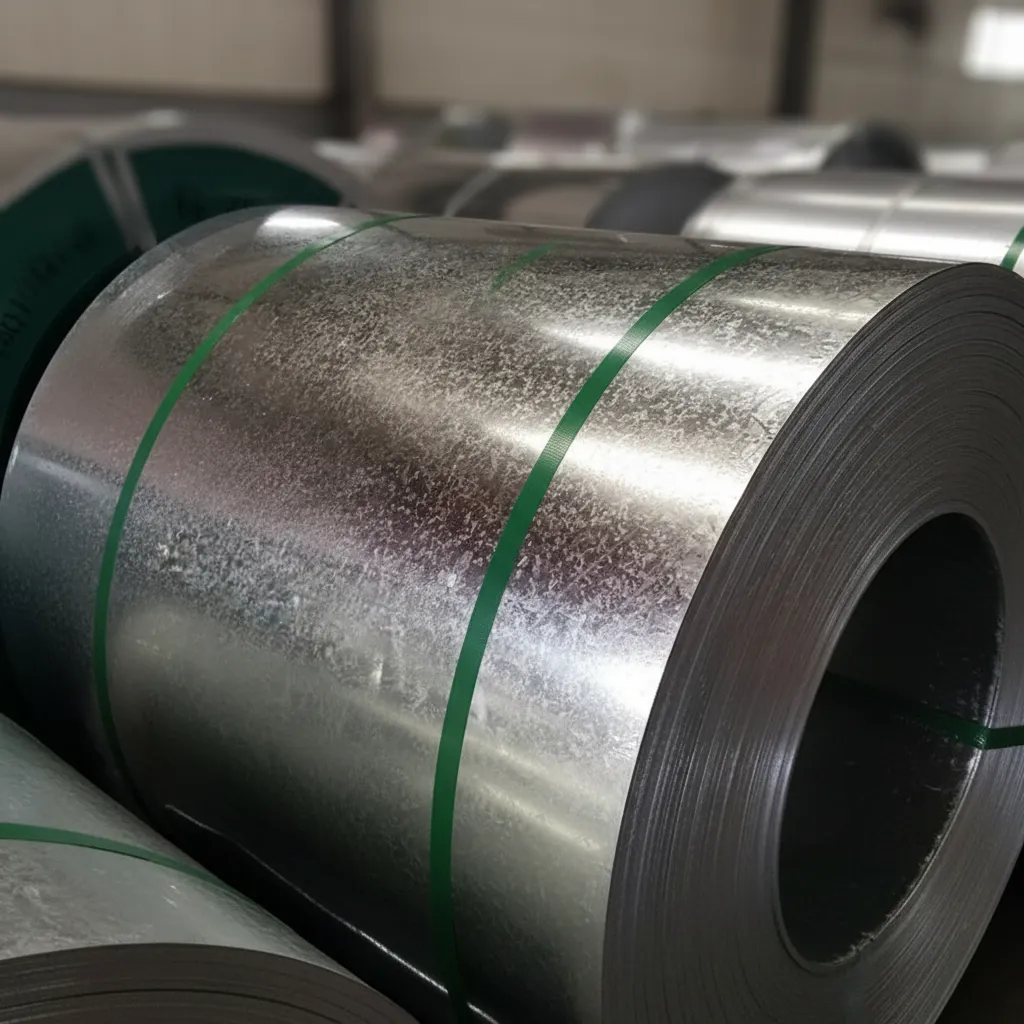

Cold Rolled ZAM Steel Coil - Galvanized Aluminum Magnesium Alloy

Technical Specifications of Cold Rolled ZAM Steel Coil

Cold Rolled ZAM Steel Coil - Galvanized Aluminum Magnesium Alloy

Cold rolled ZAM steel coil represents a breakthrough in corrosion-resistant steel technology, combining zinc, aluminum, and magnesium in a triple-layer coating system. This premium-grade coated steel product delivers exceptional anti-corrosion properties that surpass conventional galvanized materials by 3-10 times, making it the preferred choice for construction, automotive components, and outdoor applications requiring long-term durability in harsh environments.

What is Cold Rolled ZAM Steel Coil?

Cold rolled ZAM steel coil is a high-performance coated steel product featuring a unique alloy layer composed of zinc (Zn), aluminum (Al), and magnesium (Mg) applied through continuous hot-dip coating processes. The typical coating composition contains 6% aluminum, 3% magnesium, with the balance being zinc, creating a microstructure that provides superior barrier protection and sacrificial corrosion resistance compared to traditional galvanized steel.

Cold Rolled ZAM Steel Coil Technical Specifications

Our cold rolled ZAM steel coil complies with JIS G3323 standards, with coating weights ranging from Z08 (80 g/m²) to Z27 (270 g/m²) per side. The base steel substrate exhibits tensile strength of 270-550 MPa depending on grade selection, with thickness availability from 0.4mm to 3.2mm and coil widths up to 1,500mm. The tri-metallic coating demonstrates a melting point of approximately 382°C and maintains structural integrity at service temperatures up to 315°C.

Superior Corrosion Protection Performance

The ZAM coating system achieves outstanding resistance to corrosive environments through a synergistic protection mechanism. Aluminum forms a dense oxide layer providing barrier protection, while magnesium enhances the sacrificial protection at cut edges and scratches. Independent salt spray testing per ASTM B117 demonstrates red rust resistance exceeding 2,000 hours for Z12 coating weight, significantly outperforming conventional galvanized steel which typically shows red rust formation within 500-700 hours under identical test conditions.

Key Applications and Industries

Cold rolled ZAM steel coil finds extensive application in roofing and wall cladding systems, where its exceptional weathering resistance extends service life beyond 25 years in moderate coastal environments. The automotive sector employs this material for underbody components, exhaust system parts, and structural reinforcements requiring superior corrosion protection. Agricultural equipment manufacturers, solar panel mounting structures, and HVAC ductwork fabricators increasingly specify ZAM coated steel for its cost-effective durability and reduced maintenance requirements.

Processing and Fabrication Characteristics

This coated steel product exhibits excellent forming characteristics suitable for roll forming, press braking, and stamping operations. The coating maintains adhesion during severe deformation, with typical minimum bend radius of 0T to 1T depending on coating weight and substrate thickness. The material demonstrates optimal weld performance using standard resistance welding techniques, though post-weld coating repair may be necessary for critical applications. Surface preparation for painting requires only light degreasing, as the coating provides excellent paint adhesion without extensive pre-treatment.

Frequently Asked Questions

What is the minimum order quantity for cold rolled ZAM steel coil?

Our standard minimum order quantity is 25 metric tons per specification, though we accommodate smaller trial orders of 10 tons for new customers evaluating material performance. Mixed container loads combining different coating weights or widths can be arranged to meet project-specific requirements while maintaining economic order sizes.

Do you provide material test certificates for ZAM coated steel?

Yes, every shipment includes comprehensive mill test certificates documenting chemical composition per JIS G3323, coating weight measurements, mechanical properties of the base steel, and coating adhesion test results per JIS H8504. Third-party inspection arrangements through SGS, BV, or Intertek can be coordinated at customer request.

What is the typical delivery time for cold rolled ZAM steel coil orders?

Standard specifications maintain ready inventory for shipment within 7-10 working days from order confirmation. Custom width slitting or specific coating weight requirements typically extend lead time to 20-25 days from mill production scheduling. Express production slots can be arranged for urgent project requirements with applicable expediting fees.

Can you provide custom width slitting for cold rolled ZAM steel coil?

Our precision slitting capabilities accommodate widths from 100mm to 1,500mm with tolerance of ±2mm. Slitting services include edge conditioning to prevent handling damage and protective interleaving for coils requiring enhanced surface protection during transportation. Minimum slitting quantity is 5 tons per width specification to maintain processing efficiency.

Get a Competitive Quote for Cold Rolled ZAM Steel Coil

Contact our technical sales team today to receive factory-direct pricing for your cold rolled ZAM steel coil requirements. Our metallurgical specialists provide application-specific recommendations matching coating weights and substrate grades to your performance requirements and budget parameters. Request samples, technical data sheets, and project-based volume pricing through our online inquiry system or direct consultation with our export department.
