Zinc Aluminum Magnesium Steel Coil - Corrosion-Resistant ZAM Coated Steel

Zinc aluminum magnesium steel coil represents a revolutionary advancement in metallic-coated steel technology, offering superior corrosion resistance compared to traditional galvanized products. This innovative coating system combines zinc (Zn), aluminum (Al), and magnesium (Mg) in a precisely engineered alloy, typically consisting of 6% aluminum, 3% magnesium, and 91% zinc by weight. The synergistic effect of these three elements creates a protective barrier that extends service life by 3-5 times over conventional hot-dip galvanized steel in aggressive environments. Manufactured through continuous hot-dip coating processes according to ASTM A792/A792M and JIS G3321 standards, ZAM steel coils serve critical applications in coastal construction, automotive manufacturing, solar panel mounting systems, and agricultural infrastructure where enhanced durability against atmospheric corrosion is paramount.

What is Zinc Aluminum Magnesium Steel Coil?

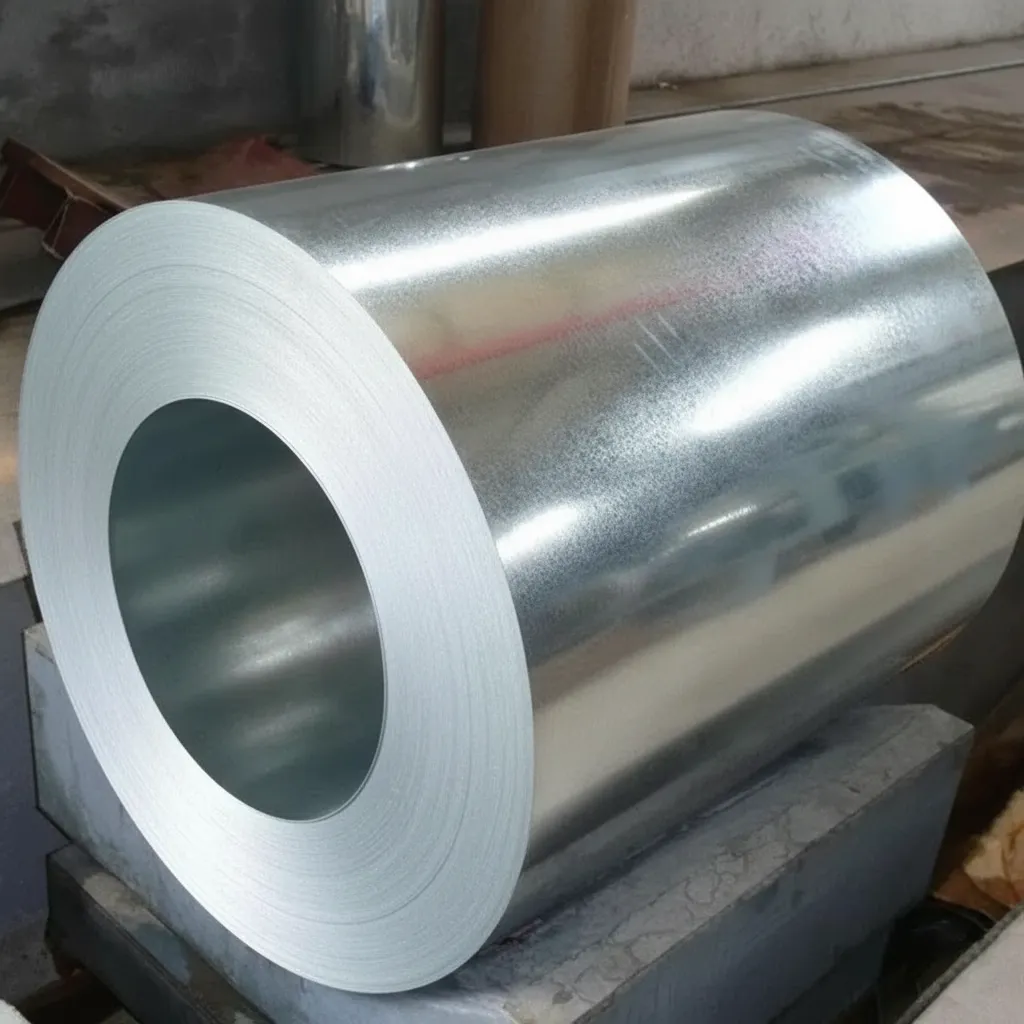

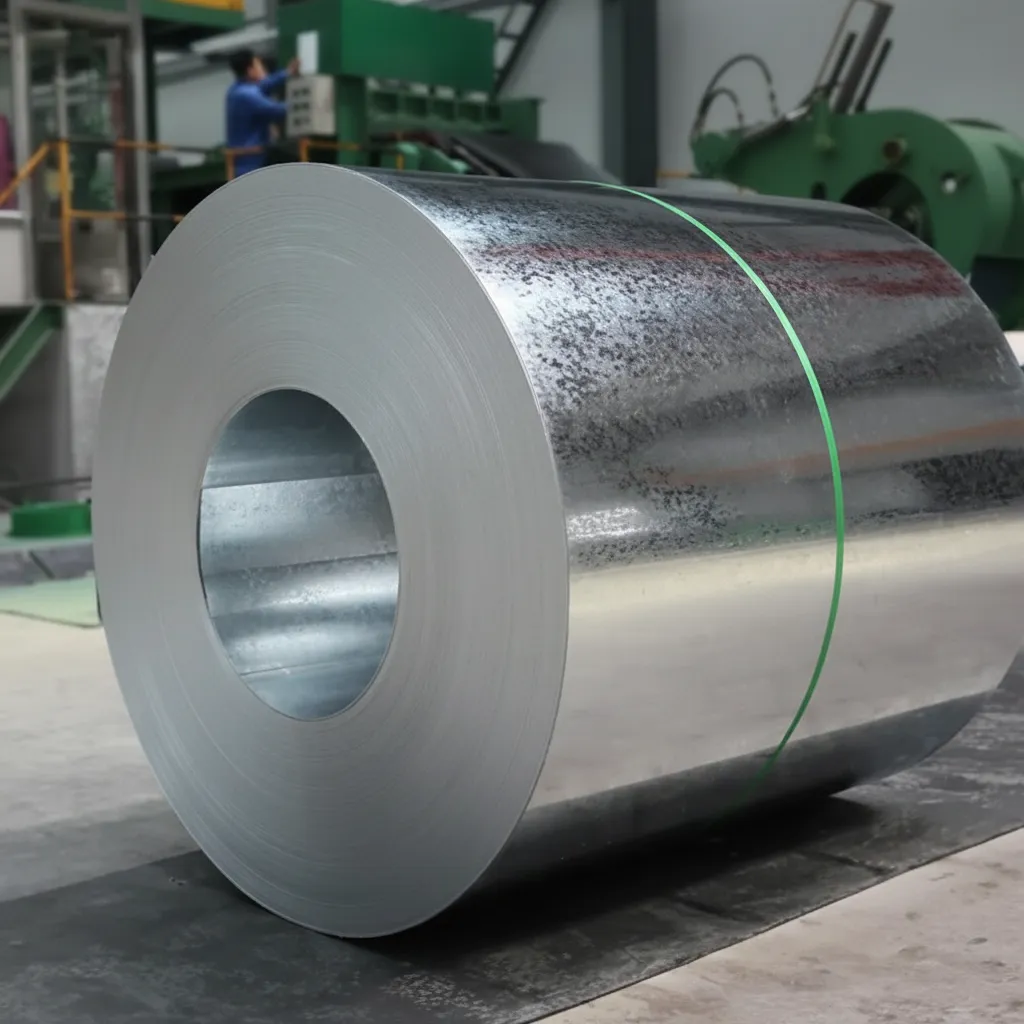

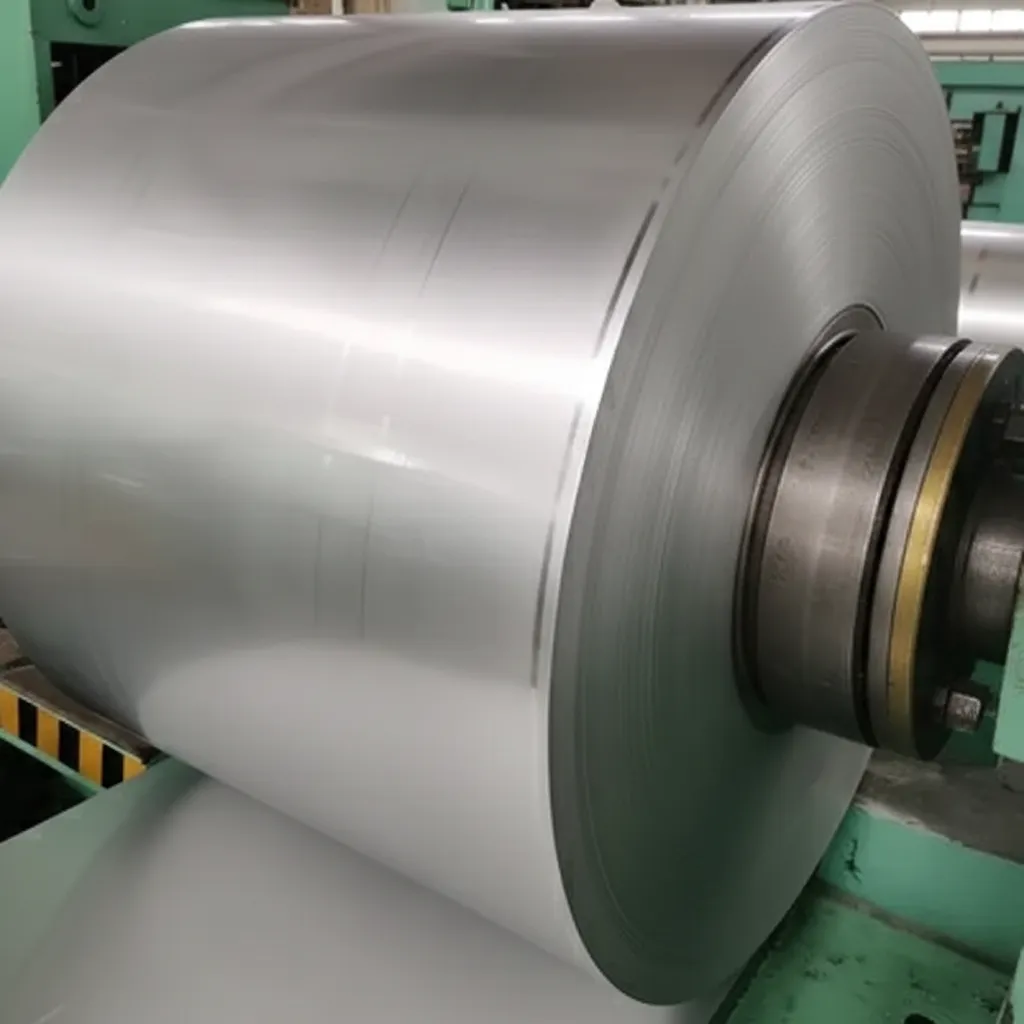

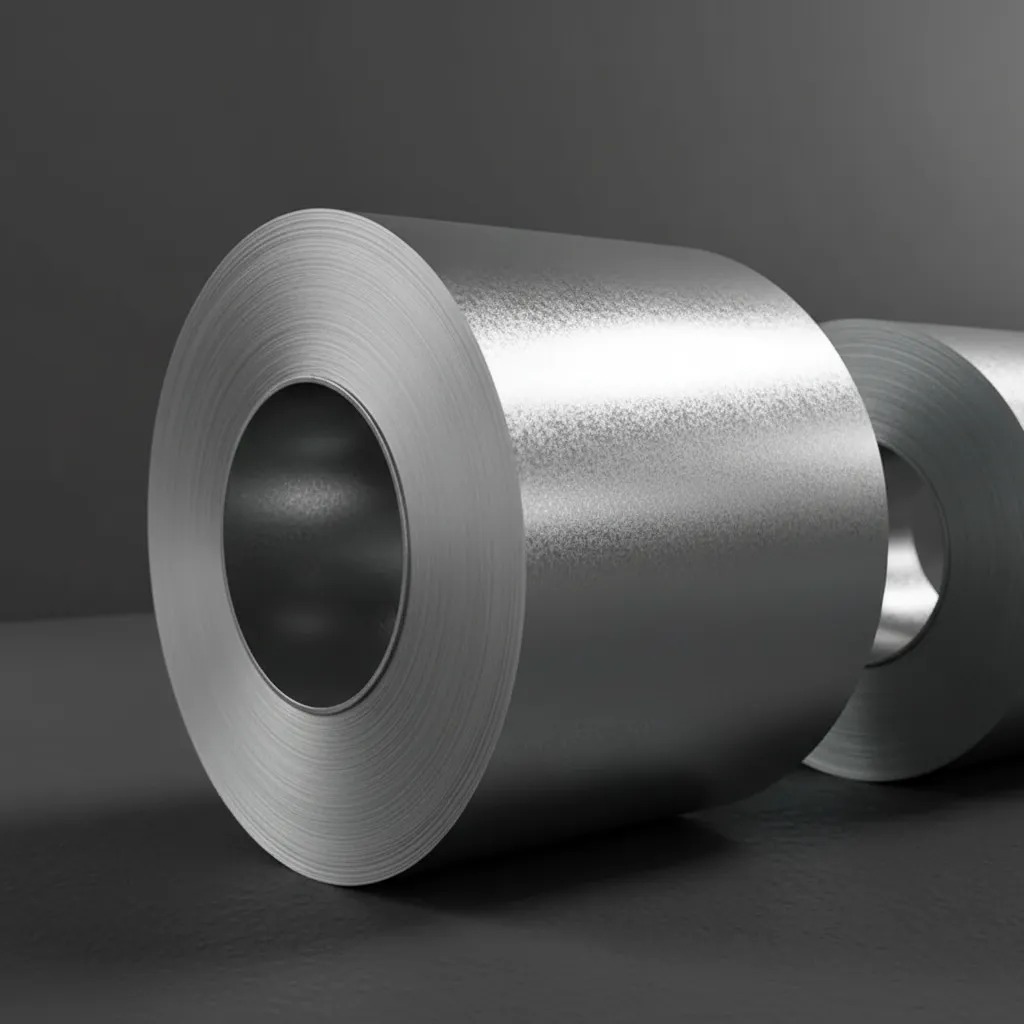

Zinc aluminum magnesium steel coil is a cold-rolled or hot-rolled steel substrate coated with a ternary alloy containing approximately 6% aluminum, 3% magnesium, and 91% zinc through a continuous hot-dip galvanizing process. The coating weight typically ranges from 60 to 275 g/m² per surface, providing a metallurgically bonded protective layer that demonstrates exceptional resistance to red rust formation. The magnesium component enables self-healing properties through preferential sacrificial corrosion, while the aluminum content forms a stable oxide layer that inhibits further degradation in chloride-rich and industrial atmospheres.

Zinc Aluminum Magnesium Steel Coil Technical Specifications

Standard ZAM coil specifications comply with ASTM A792/A792M-17 Grade 50 Class 1 requirements, featuring base metal tensile strength of 270-500 MPa depending on substrate grade selection. Coating thickness ranges from Z08 (80 g/m² total both sides) to Z27 (275 g/m² total both sides) per ASTM designation. Coil widths span 600-1,500 mm with thickness options from 0.16 mm to 2.0 mm. The coating demonstrates a melting point of approximately 382°C, lower than pure zinc's 419°C, requiring adjusted processing parameters during welding operations. Chemical composition maintains magnesium content at 2.5-3.5%, aluminum at 5.5-6.5%, with the balance being zinc and trace elements below 0.1% total.

Superior Corrosion Protection Mechanisms

The tri-metallic coating system provides multi-layered defense through three distinct mechanisms. The zinc component offers galvanic protection as the primary sacrificial anode, while aluminum forms a dense Al₂O₃ passive film that reduces corrosion current density by 40-60% compared to conventional galvanized coatings. Magnesium enhances the protective film's stability through the formation of simonkolleite (Zn₅(OH)₈Cl₂·H₂O) and hydrotalcite-like compounds that seal micro-defects. Salt spray testing per ASTM B117 demonstrates red rust resistance exceeding 2,000 hours at Z18 coating weight, versus 720 hours for equivalent GI coating. This performance translates to projected service life of 25-30 years in C3 corrosivity environments per ISO 9223 classification.

Manufacturing Process and Quality Control

ZAM steel coil production employs continuous hot-dip coating lines operating at bath temperatures between 400-420°C, precisely controlled within ±3°C tolerance. The molten alloy bath composition is maintained through continuous analysis using X-ray fluorescence spectroscopy, ensuring magnesium content stability despite its high vapor pressure. Air knife pressure adjustment controls coating weight uniformity to ±7% deviation across coil width. Post-coating treatment includes chromate-free passivation per RoHS compliance, applying trivalent chromium conversion coatings at 10-30 mg/m² dry film weight. Each production coil undergoes automated surface inspection using high-resolution cameras detecting defects >0.3 mm², with coating weight verified through electromagnetic induction gauges calibrated to ISO 17025 standards.

Application-Specific Advantages

In coastal construction projects within 500 meters of shoreline, ZAM coated steel demonstrates 4-6 times longer service life than hot-dip galvanized alternatives due to superior chloride resistance. Automotive applications benefit from excellent formability characteristics, achieving 180-degree bend tests around 1T radius without coating delamination for 0.8 mm thickness substrates. Solar mounting structures utilize ZAM coils for 25-year warranty compliance, as the coating maintains >90% initial thickness after 10 years in outdoor exposure per accelerated weathering tests. Agricultural buildings in high-ammonia environments show reduced white rust formation, with magnesium hydroxide layers providing alkaline resistance. The material's weldability supports spot welding at 6-8 kA current with 150-200 kg electrode force, producing nugget diameters meeting AWS D8.1M specifications.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for zinc aluminum magnesium steel coil is 25 metric tons per specification, equivalent to approximately one full container load. For trial orders or specialized coating weights, we accommodate reduced quantities of 10 tons with adjusted pricing. Mixed container loading is available for customers requiring multiple thickness or width combinations, provided total tonnage meets the 25-ton threshold.

Do you provide material test certificates?

Yes, we supply comprehensive Mill Test Certificates per EN 10204 Type 3.1 with every shipment, documenting chemical composition analysis, mechanical properties testing results, coating weight measurements, and surface quality inspection reports. Certificates include heat number traceability, production date, and compliance statements for ASTM A792/A792M and JIS G3321 standards. Third-party inspection arrangements through SGS, BV, or TÜV are available upon request at customer's account.

What is the typical delivery time?

Standard lead time for zinc aluminum magnesium steel coil production ranges from 25-35 days from deposit receipt for stock thickness specifications (0.4-1.2 mm). Non-standard thickness or special coating weight requirements extend delivery to 35-45 days due to production scheduling. Expedited processing is available for urgent orders, reducing lead time to 18-22 days with applicable rush charges. Sea freight transit adds 15-40 days depending on destination port.

Can you cut to custom sizes?

We offer precision slitting services to customer-specified widths with tolerance of ±2 mm for widths above 200 mm, and ±1 mm for narrower strips. Sheet cutting to length is available through our automated flying shear lines, maintaining length tolerance of ±3 mm for dimensions up to 6,000 mm. Edge conditioning options include deburred, rounded (R≤0.5 mm), or mill edge finishes. Custom blanking and stamping services are provided through our affiliated processing centers for volume requirements exceeding 5 tons per SKU.

Get a Competitive Quote for Zinc Aluminum Magnesium Steel Coil

Request your detailed quotation today for mill-direct ZAM coated steel coil pricing. Our technical sales team provides comprehensive material selection guidance, coating weight recommendations based on your corrosivity environment classification, and forming process optimization support. Contact us with your specifications including substrate grade, coating designation, dimensions, and annual volume requirements to receive a competitive proposal within 24 hours. We offer flexible payment terms, quality assurance programs, and logistics coordination for seamless supply chain integration.
