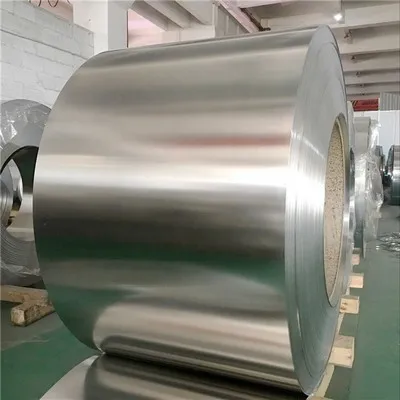

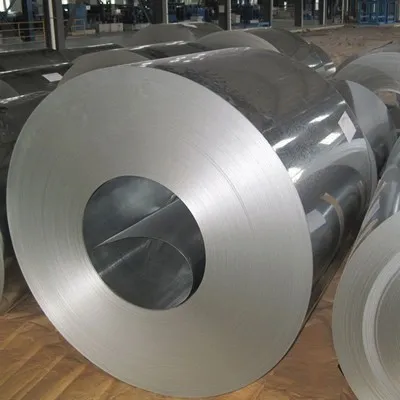

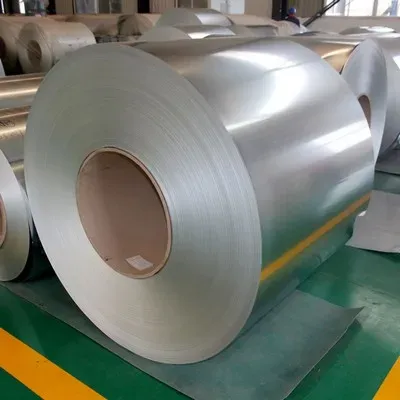

409 stainless steel coil
China
Supplier's customization ability
- Drawing-based customization
- Sample-based customization
- Full customization
Minimum order quantity: 1 ton
Shipping total: To be negotiated
- Lead time:
- confirmed with the quotation
- Packaging:
- standard export packing
- Samples:
- available on request
Product details
409 Stainless Steel Coil Product Attributes
| Attribute | Parameter | Description |
|---|---|---|
| Product Name | 409 Stainless Steel Coil | Ferritic stainless steel coil stabilized with titanium, offering moderate corrosion resistance and excellent oxidation resistance up to 675°C. |
| Material Grade | ASTM A240 UNS S40900, JIS SUS409, EN X6CrTi12, DIN 1.4512 | Common standards ensuring quality and performance consistency worldwide. |
| Chemical Composition | C ≤ 0.08%, Cr 10.5-11.75%, Mn ≤ 1.0%, Si ≤ 1.0%, P ≤ 0.045%, S ≤ 0.03%, Ti 0.17-0.75% | Titanium stabilization reduces carbide precipitation, improving weldability and high-temperature corrosion resistance. |
| Thickness Range | 0.3 mm – 16 mm | Wide thickness range suitable for automotive, industrial, and heat-resistant applications. |
| Width Range | 600 mm – 2000 mm | Customizable widths to meet different manufacturing and design needs. |
| Surface Finish | 2B, No.1, No.2D, No.4, BA, Mirror | Multiple finish options for corrosion resistance and aesthetic requirements. |
| Mechanical Properties | Tensile Strength 380-560 MPa, Yield Strength ≥ 205 MPa, Elongation 20-25%, Hardness ≤ 207 HB | Good strength, hardness, and moderate ductility providing durability and wear resistance. |
| Corrosion Resistance | Moderate corrosion resistance, good high-temperature oxidation resistance | Suitable for exhaust systems and industrial heat-resistant parts, performs better than carbon steel. |
| Heat Resistance | Continuous operation up to 675°C, intermittent up to 815°C | Maintains structural integrity and oxidation resistance under high temperature environments. |
| Welding & Fabrication | Good weldability with proper procedures, titanium reduces intergranular carbide precipitation | Suitable for forming and welding in automotive and industrial applications. |
| Applications | Automotive exhausts, heat exchangers, industrial equipment, ovens, furnace parts | Widely used in applications demanding heat resistance, corrosion resistance, and moderate mechanical strength. |
| Packaging | Protective wrapping, wooden crates | Ensures product integrity during transportation and storage. |
409 Stainless Steel Coil Product Introduction
Applications of 409 Stainless Steel Coil
409 stainless steel coil is widely used in automotive exhaust systems, furnace parts, and heat exchangers due to its excellent heat and oxidation resistance. It is also found in industrial machinery and kitchen appliances where moderate corrosion resistance is required. The coil’s durability at high temperatures and resistance to scaling make it ideal for components exposed to continuous heat and corrosive environments.
Specifications and Key Properties
Typical 409 stainless steel coils have thicknesses ranging from 0.3mm to 100mm and widths between 1000mm to 2000mm. The material contains 10.5-11.75% chromium and is stabilized with titanium to improve weldability and reduce carbide precipitation. Mechanical properties include a tensile strength of 380-560 MPa, yield strength of 205 MPa or higher, and elongation of 20-25%. Common finishes are 2B, BA, No.1, and No.4, suitable for different surface requirements.
Performance Advantages and Suitable Industries
The titanium stabilization in 409 stainless steel coils enhances resistance to grain boundary corrosion and improves performance in welded applications. Their moderate corrosion resistance surpasses that of carbon steel, making them a cost-effective choice in automotive, industrial, and architectural applications. Their good machinability and strength ensure wide usage in manufacturing exhaust components, heat exchangers, and heat-resistant equipment.
