409 Stainless Steel Coil - ASTM A240 Grade 409 Cold Rolled SS Strip

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

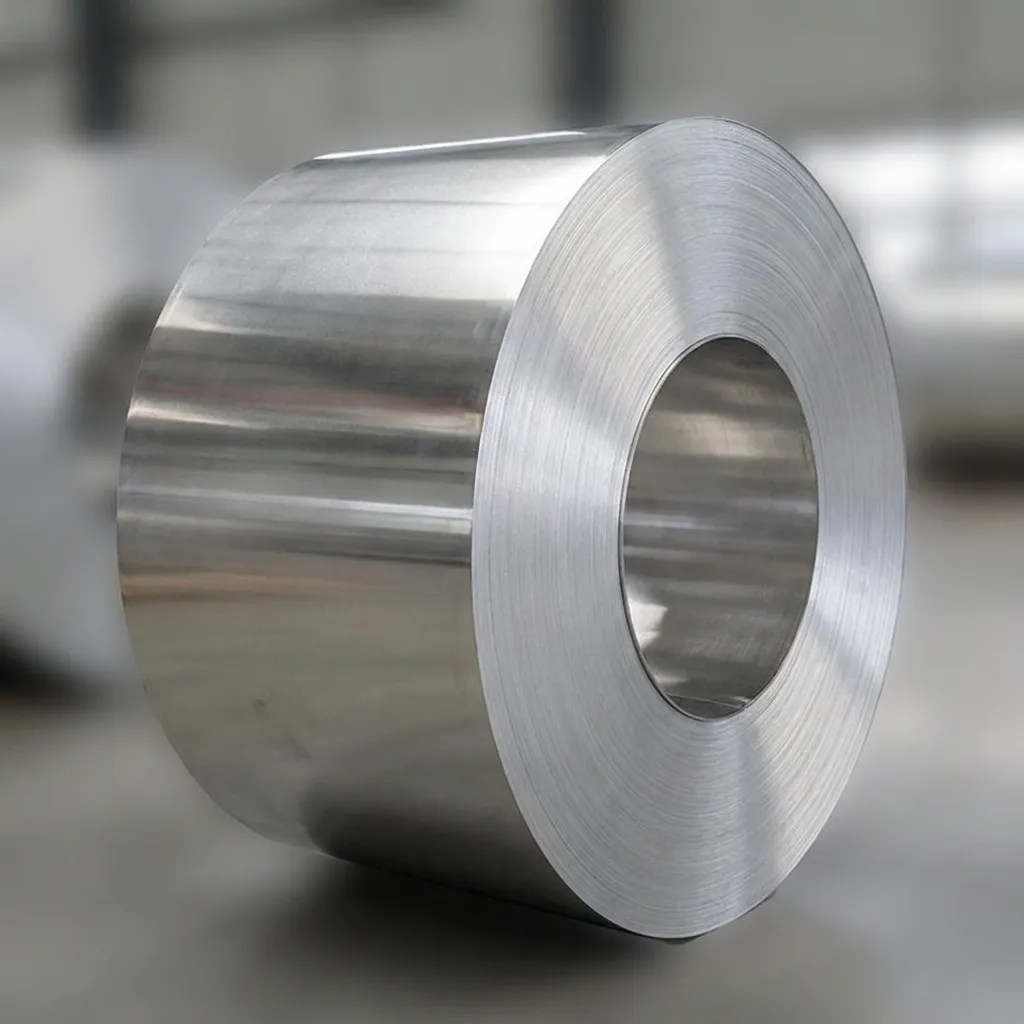

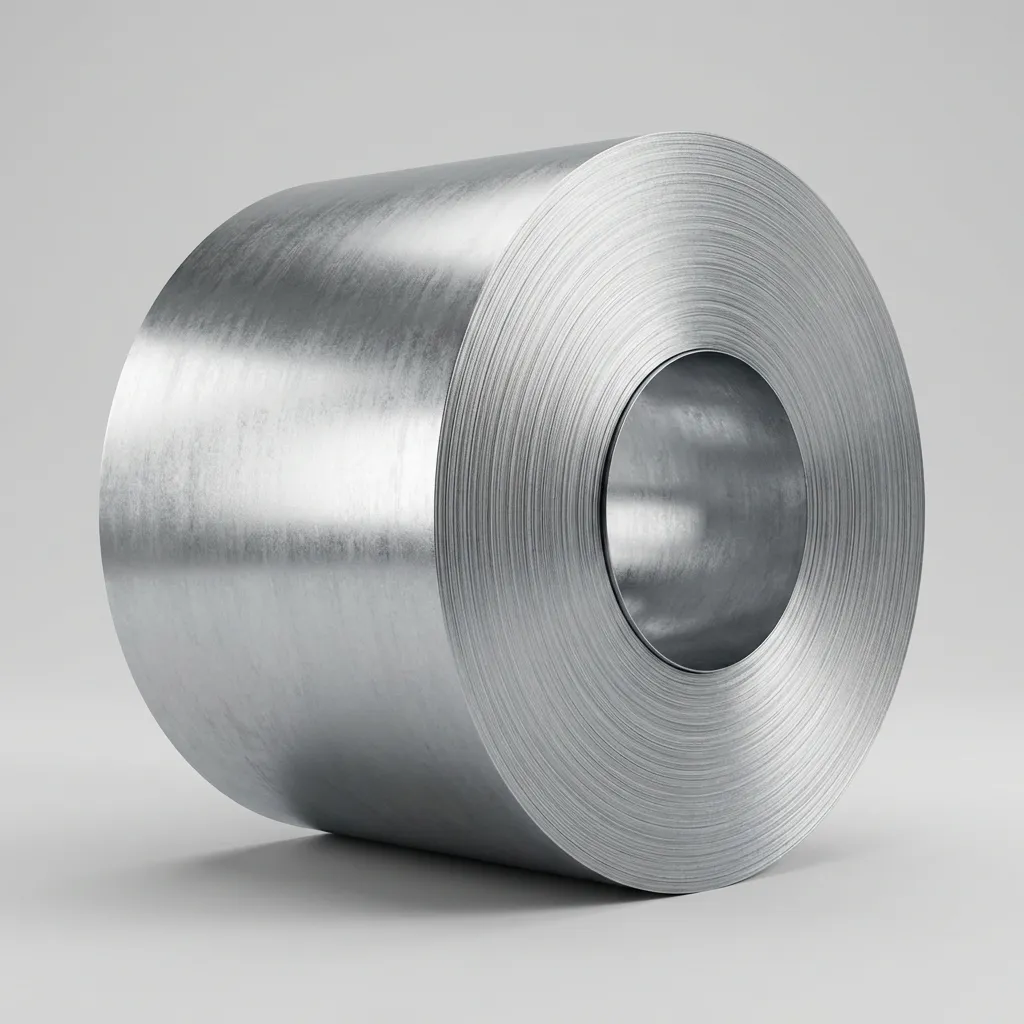

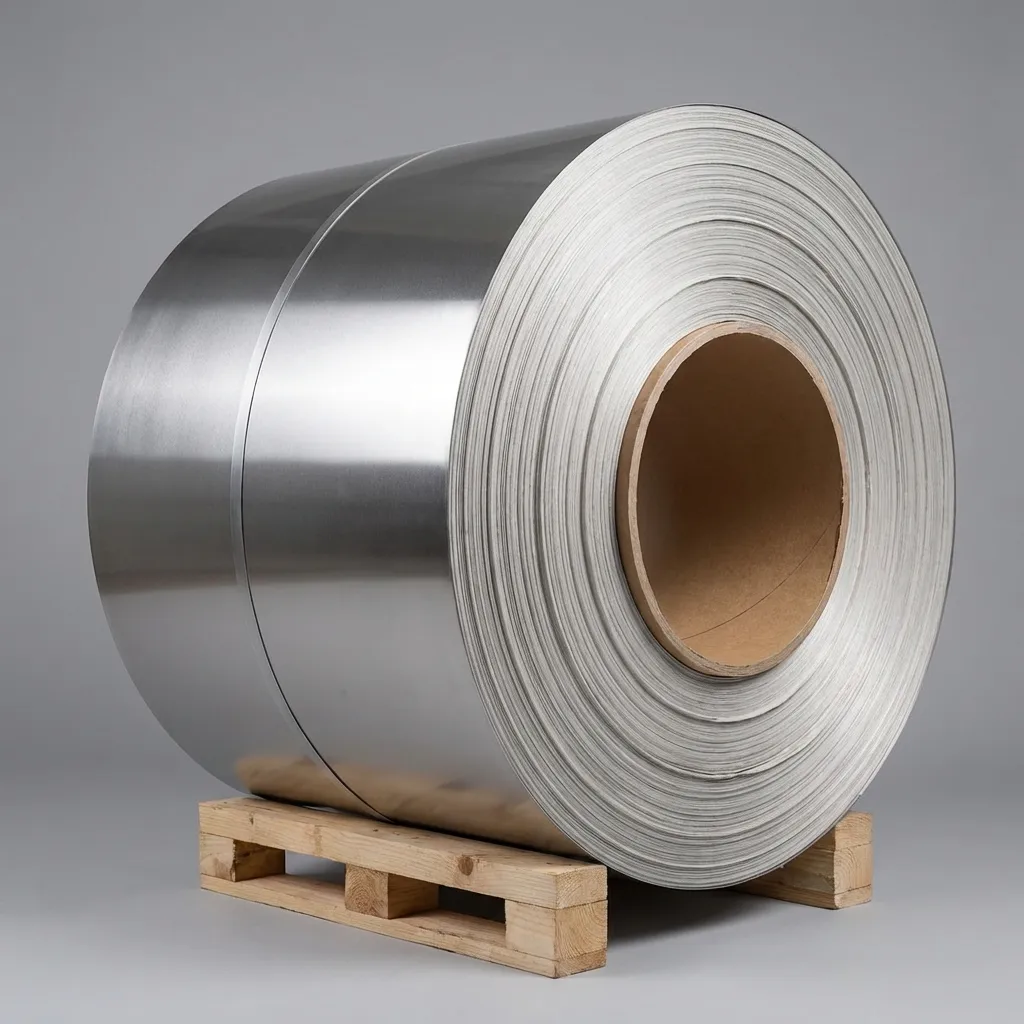

409 stainless steel coil image thumbnail

Technical Specifications of 409 Stainless Steel Coil

Property	Parameter	Description
Product Name	409 Stainless Steel Coil	Ferritic stainless steel for automotive and exhaust applications
Material Grade	AISI 409 / EN 1.4512 / UNS S40900	International grade equivalents
Standard Compliance	ASTM A240, EN 10088-2, JIS G4305	Meets major international standards
Carbon (C)	≤0.08%	Carbon content for formability
Chromium (Cr)	10.5-11.75%	Provides basic corrosion resistance
Manganese (Mn)	≤1.0%	Improves strength and workability
Silicon (Si)	≤1.0%	Deoxidizer and strengthener
Titanium (Ti)	6×(C+N) min - 0.75% max	Stabilizes carbon to prevent sensitization
Tensile Strength	≥380 MPa	Minimum tensile strength per ASTM A240
Yield Strength	≥205 MPa	Minimum yield strength
Elongation	≥20%	Ductility in 50mm gauge length
Hardness	≤183 HBW	Brinell hardness maximum
Thickness Range	0.3 - 6.0 mm	Available coil thickness options
Width Range	600 - 1500 mm	Standard coil widths
Surface Finish	2B, BA, No.4	Multiple surface treatment options
Coil Weight	3 - 8 tons	Standard coil weight range
Application	Automotive exhaust systems, mufflers, catalytic converters	Typical application industries
Heat Resistance	Up to 815°C	Maximum continuous service temperature
Certification	EN 10204 3.1, ISO 9001, IATF 16949	Quality certifications provided
MOQ	5 tons	Minimum order quantity

409 Stainless Steel Coil - ASTM A240 Grade 409 Cold Rolled SS Strip

409 stainless steel coil represents a ferritic chromium-based alloy specifically engineered for high-temperature applications requiring cost-effective corrosion resistance. This titanium-stabilized grade finds extensive application in automotive exhaust systems, heat exchangers, and industrial furnace components where oxidation resistance up to 815°C is critical. Manufactured to ASTM A240 standards, our cold-rolled 409 SS strip delivers consistent mechanical properties and superior formability for demanding fabrication processes.

What is 409 Stainless Steel Coil?

Grade 409 stainless steel coil is a ferritic chromium alloy containing 10.5-11.75% chromium with titanium stabilization (6×C% minimum) to prevent intergranular corrosion during welding. Unlike austenitic grades, this material maintains a body-centered cubic crystal structure at all temperatures, providing excellent thermal conductivity of 25.8 W/m·K at 100°C and a lower coefficient of thermal expansion of 10.8 μm/m·K. The absence of nickel makes 409 coil a value-driven alternative to 304 stainless steel for applications not requiring cryogenic performance or extreme corrosion resistance.

409 Stainless Steel Coil Technical Specifications

Our ASTM A240 Grade 409 cold-rolled coil complies with chemical composition limits defined in Section 6 of the standard: carbon content maximum 0.08%, manganese 1.00% max, phosphorus 0.045% max, sulfur 0.030% max, and silicon 1.00% max. Mechanical properties per ASTM A240 Table 2 include minimum tensile strength of 380 MPa, yield strength of 205 MPa at 0.2% offset, and elongation of 20% in 50mm gauge length. Available thicknesses range from 0.3mm to 3.0mm with width options from 1000mm to 1500mm, supplied in coil weights up to 25 metric tons with inside diameter of 508mm or 610mm.

Key Advantages of 409 SS Coil for Industrial Applications

The titanium-stabilized structure of 409 stainless steel coil provides exceptional resistance to intergranular corrosion after exposure to temperatures between 425-815°C, making it the preferred choice for automotive exhaust manifolds and catalytic converter housings. Superior welding characteristics allow fabrication using GTAW, GMAW, and resistance welding processes without preheat requirements for thicknesses below 5mm. Cost-effectiveness stems from chromium-only composition eliminating expensive nickel additions while maintaining adequate atmospheric corrosion resistance in rural and urban environments.

Oxidation Resistance Performance

Grade 409 demonstrates outstanding resistance to high-temperature oxidation with maximum continuous service temperature of 815°C in air atmospheres. The protective chromium oxide layer forms rapidly at elevated temperatures, providing scale resistance superior to carbon steel while maintaining dimensional stability during thermal cycling. This performance characteristic makes 409 coil ideal for furnace components, industrial oven linings, and heat treatment fixtures requiring prolonged exposure to oxidizing environments.

409 stainless steel coil supplier

Formability and Fabrication Characteristics

Cold-rolled 409 stainless steel strip exhibits excellent deep-drawing properties with limiting drawing ratio (LDR) of 2.1-2.3 for annealed condition, enabling complex stamping operations for automotive exhaust components. The material maintains consistent springback behavior with bend radius of 1.5T for 90-degree bends in thicknesses up to 2.0mm. Annealed hardness ranges from 150-180 HV, providing optimal balance between formability and post-forming strength for structural applications.

Weldability and Joint Performance

Titanium stabilization in 409 grade prevents chromium carbide precipitation during welding, eliminating the need for post-weld heat treatment in most applications. Weld joints achieve 85-95% of base metal strength using ER409 or ER430 filler metals with argon shielding gas. The ferritic structure resists hot cracking and maintains corrosion resistance in heat-affected zones, making this grade particularly suitable for automated tube mill operations producing exhaust system components.

Common Applications Across Industries

Automotive sector applications dominate 409 stainless steel coil consumption, accounting for approximately 60% of global demand in exhaust system manufacturing including mufflers, tailpipes, catalytic converter shells, and resonator assemblies. Industrial applications include heat exchanger tubes for air preheaters, furnace conveyor belts operating below 815°C, and architectural trim in mildly corrosive environments. The HVAC industry employs 409 strip for ductwork fabrication, furnace heat exchangers, and chimney liners where cost-effective oxidation resistance is required.

Material Comparison: 409 vs Alternative Grades

Compared to austenitic 304 stainless steel, Grade 409 offers 40-50% cost reduction while sacrificing cryogenic performance and resistance to chloride-induced corrosion. Against carbon steel, 409 provides superior high-temperature oxidation resistance and eliminates coating requirements for exhaust applications, offsetting the 3-4× material cost premium through extended service life. When evaluated against 430 ferritic grade, 409 demonstrates improved weldability due to titanium stabilization, though 430 offers slightly better corrosion resistance in atmospheric exposure.

409 stainless steel coil wholesale

Quality Certifications and Compliance

Our 409 stainless steel coil production maintains certification to ASTM A240/A240M-20a with full material traceability per EN 10204 3.1 mill test certificates. Manufacturing processes comply with ISO 9001:2015 quality management standards, ensuring consistent chemical composition verification via optical emission spectroscopy and mechanical property validation through standardized tensile testing per ASTM E8. Each coil shipment includes dimensional inspection reports confirming thickness tolerance of ±0.05mm for gauges below 1.0mm and ±0.08mm for heavier gauges.

Surface Finish Options

Cold-rolled 409 coil is available in multiple surface finishes including 2B (bright annealed and cold-rolled), 2D (dull finish after cold rolling and annealing), and BA (bright annealed with reflective surface). The 2B finish provides surface roughness Ra of 0.4-0.8 μm, suitable for most automotive applications, while BA finish achieves Ra below 0.2 μm for decorative or visible components requiring enhanced appearance.

Edge Conditioning and Slitting Capabilities

Precision slitting services deliver slit coil widths from 20mm to 1500mm with edge quality options including mill edge, slit edge, or deburred edge per customer specifications. Slitting tolerance maintains ±0.5mm for widths below 200mm and ±1.0mm for wider strips, with edge burr height controlled below 0.05mm for critical forming operations. Oscillate winding or ribbon winding configurations accommodate various decoiling equipment requirements.

Frequently Asked Questions

What is the minimum order quantity for 409 stainless steel coil?

Our standard minimum order quantity for ASTM A240 Grade 409 cold-rolled coil is 5 metric tons per specification, though we accommodate smaller quantities of 2-3 tons for multiple thickness or width combinations within a single order. Custom slitting services require minimum 1 ton per slit width to ensure economical processing.

Do you provide material test certificates for 409 SS coil?

Yes, every shipment includes EN 10204 3.1 mill test certificates documenting heat-specific chemical analysis, mechanical property test results, and dimensional inspection data. Certificates reference ASTM A240 specification requirements and include unique heat numbers for complete traceability. Additional third-party inspection certificates per EN 10204 3.2 are available upon request.

What is the typical delivery time for 409 stainless steel coil orders?

Standard mill-finish 409 coil in common thicknesses (0.5-2.0mm) ships within 4-6 weeks from order confirmation for quantities up to 50 tons. Custom slitting or special surface finish requirements extend lead time to 6-8 weeks. Expedited production scheduling is available for urgent projects with minimum order quantities of 10 tons.

Can you process 409 coil to custom slit widths and lengths?

Our precision slitting lines accommodate custom widths from 20mm to 1500mm with tolerance of ±0.5mm, while cut-to-length processing delivers sheets from 1000mm to 6000mm in length with squareness tolerance of 2mm per meter. Blanking services provide custom-sized pieces with dimensional accuracy of ±1.0mm for optimized material utilization in stamping operations.

Get a Competitive Quote for 409 Stainless Steel Coil

Request mill-direct pricing for ASTM A240 Grade 409 cold-rolled coil with guaranteed chemical composition compliance and mechanical property certification. Our technical sales team provides application-specific recommendations for thickness selection, surface finish optimization, and slitting configurations to minimize material waste in your manufacturing process. Volume discounts apply for quarterly contracts exceeding 100 tons with flexible delivery scheduling.

409 stainless steel coil China

24/7 technical support for material selection and processing guidance
Free sample coils available for tooling trials and quality evaluation
Mill-direct pricing for bulk orders with volume tier discounts
Professional metallurgical consultation for welding procedure development
Flexible payment terms for established accounts and repeat customers

Contact our stainless steel specialists today to receive your detailed quotation within 24 hours, including freight cost analysis and delivery timeline confirmation!
