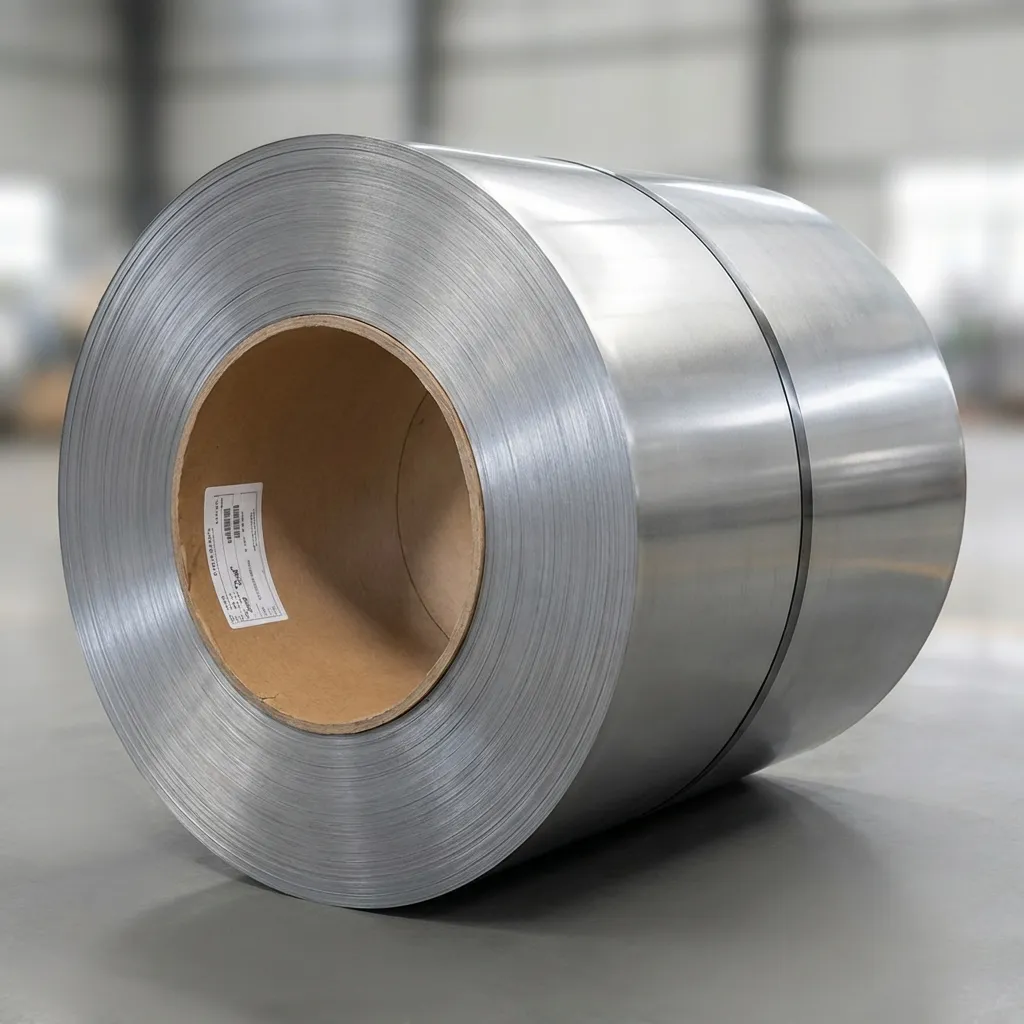

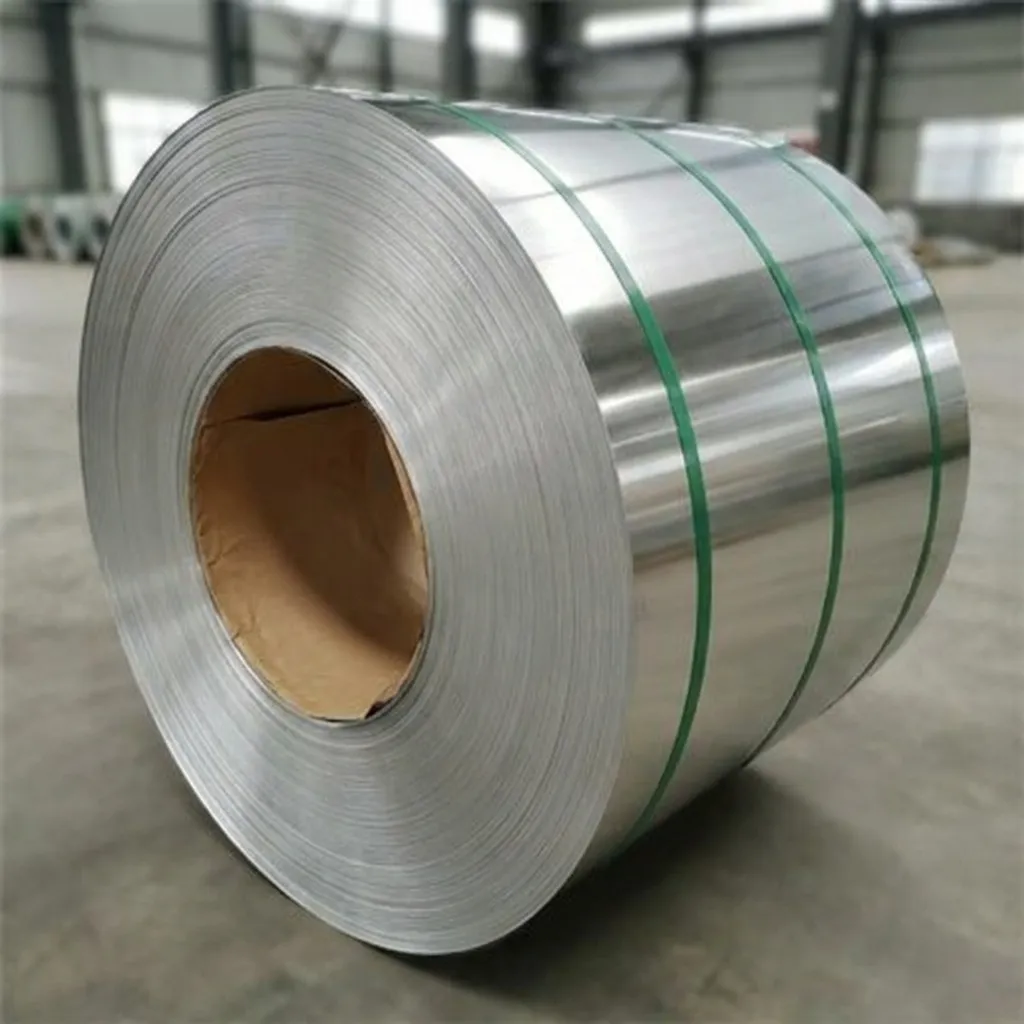

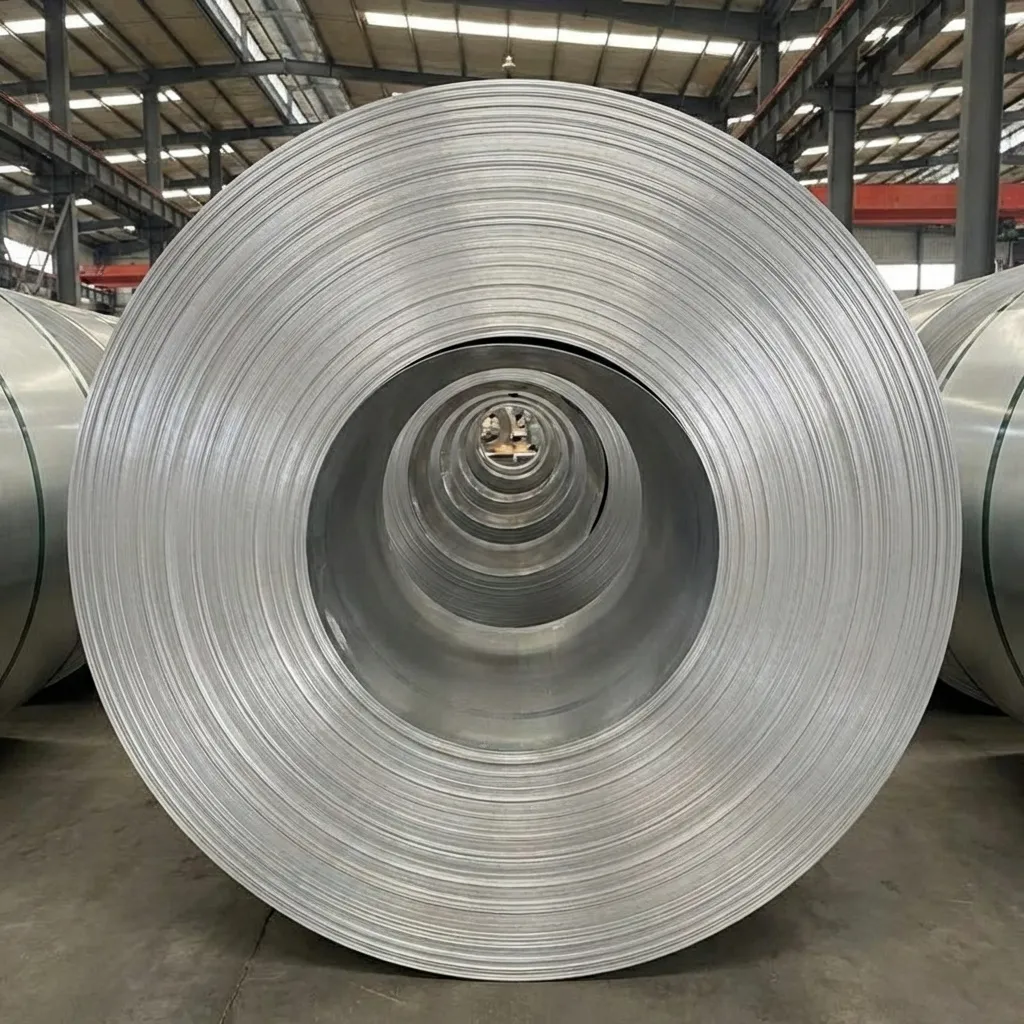

mirror stainless steel coils image thumbnail

Technical Specifications of Mirror Stainless Steel Coils

Property	Parameter	Description
Product Name	Mirror Stainless Steel Coils	High-reflectivity stainless steel coil with polished surface
Material Grade	304 / 316L / 430 / EN 1.4301 / 1.4404	International grade equivalents for mirror finish
Standard Compliance	ASTM A240, EN 10088-2, JIS G4305	Meets major international standards
Surface Finish	Mirror 8K / BA (Bright Annealed)	Reflectivity ≥95%, Ra ≤0.1μm
Thickness Range	0.3 - 3.0 mm	Standard thickness for coil products
Width Range	1000 - 2000 mm	Common widths: 1219mm, 1500mm, 1800mm
Coil Weight	3 - 10 tons	Standard coil weight per roll
Tensile Strength	≥515 MPa (304/316L)	Minimum tensile strength per ASTM A240
Yield Strength	≥205 MPa	Minimum yield strength for austenitic grades
Elongation	≥40%	Ductility in 50mm gauge length
Hardness	≤200 HV	Vickers hardness for mirror finish
Reflectivity	≥95%	Mirror surface reflectivity standard
Surface Roughness	Ra ≤0.1 μm	Ultra-smooth surface for 8K mirror finish
Application	Elevator panels, architectural decoration, kitchenware	High-end decorative and functional applications
Protective Film	PVC/PE film both sides	Scratch-resistant protective layer
Certification	EN 10204 3.1, ISO 9001, SGS	Quality certifications provided
Packaging	Waterproof paper + steel pallet + steel straps	Export-standard seaworthy packaging
MOQ	1 ton	Minimum order quantity

Mirror Stainless Steel Coils - 304/316 Grade, BA/2B Finish, Custom Width & Thickness

Mirror stainless steel coils represent a premium category of cold-rolled stainless steel products characterized by highly reflective surface finishes achieved through precision polishing processes. These coils serve critical roles in architectural decoration, elevator interiors, automotive trim, and high-end appliance manufacturing where aesthetic appeal combines with corrosion resistance. Manufactured from austenitic grades such as 304 and 316, mirror finish coils deliver exceptional surface quality with reflectivity ratings reaching 95% or higher, making them the preferred choice for applications demanding both visual impact and long-term durability.

What is Mirror Stainless Steel Coils?

Mirror stainless steel coils are continuous strips of stainless steel subjected to specialized mechanical polishing or electropolishing treatments to achieve a highly reflective, mirror-like surface finish. The most common finish designation is No. 8 mirror finish per ASTM A480 standards, characterized by a reflective surface obtained through successive stages of grinding with progressively finer abrasives followed by buffing with rouge or similar compounds. These coils typically range from 0.3mm to 3.0mm in thickness and 600mm to 1500mm in width, supplied in coil form with weights between 3 to 8 metric tons depending on dimensional specifications and customer requirements.

mirror stainless steel coils supplier

Mirror Stainless Steel Coils Technical Specifications

Mirror finish stainless steel coils are manufactured in accordance with international standards including ASTM A240, EN 10088-2, and JIS G4305. For 304 grade material, chemical composition includes chromium content of 18.0-20.0%, nickel content of 8.0-10.5%, and carbon limited to 0.08% maximum per ASTM A240 Section 5. The 316 grade incorporates molybdenum at 2.0-3.0% for enhanced corrosion resistance in chloride environments. Surface finish quality is measured using Ra values, with mirror finish typically achieving Ra ≤ 0.2 μm. Mechanical properties for 304 grade include minimum tensile strength of 515 MPa and minimum yield strength of 205 MPa at room temperature according to ASTM A240 Table 2.

Surface Finish Options and Applications

What are the standard mirror finish grades available?

Mirror stainless steel coils are produced in multiple finish grades to meet varying application requirements. The No. 8 mirror finish represents the highest reflectivity standard, achieved through mechanical polishing with progressively finer grits from 120 to 600, followed by buffing compounds. BA (Bright Annealed) finish offers a reflective surface produced during the final annealing process in a controlled atmosphere, resulting in a smooth, moderately reflective appearance without additional polishing. The 2B finish provides a smooth, moderately reflective surface created by cold rolling on polished rolls, serving as an economical alternative for applications not requiring maximum reflectivity.

Which industries commonly utilize mirror finish coils?

Architectural and construction sectors extensively employ mirror stainless steel coils for elevator door panels, wall cladding systems, column covers, and decorative ceiling panels where aesthetic appeal is paramount. The automotive industry incorporates these materials in exterior trim components, door handles, and decorative accent pieces. Kitchen equipment manufacturers utilize mirror finish coils for commercial refrigeration units, food preparation surfaces, and high-end residential appliances. Additionally, the electronics sector employs these materials for device housings and decorative components requiring both visual appeal and fingerprint resistance.

Material Grade Selection Guide

How does 304 grade compare to 316 grade for mirror applications?

Type 304 stainless steel coils offer excellent corrosion resistance in atmospheric conditions and mild chemical environments, making them cost-effective for interior architectural applications and general decorative purposes. The material exhibits outstanding formability with minimum bend radius of 1T for material thickness up to 1.5mm. Type 316 grade incorporates 2.0-3.0% molybdenum per ASTM A240, providing superior resistance to pitting corrosion in chloride-containing environments with critical pitting temperature approximately 15-20°C higher than 304 grade. This enhanced corrosion resistance justifies the premium pricing for coastal architectural projects, marine equipment, and chemical processing facility applications.

What thickness ranges are optimal for different fabrication methods?

For stamping and deep drawing operations, mirror finish coils in the 0.4mm to 0.8mm thickness range provide optimal formability while maintaining surface finish integrity during forming processes. Moderate forming applications including bending and roll forming perform best with material thickness between 0.8mm to 1.5mm, offering balanced strength and workability. Structural applications requiring higher load-bearing capacity utilize thickness ranges from 1.5mm to 3.0mm, though forming operations must be carefully controlled to prevent surface finish damage during fabrication.

Quality Control and Surface Protection

What protective measures prevent surface damage during transit?

Mirror finish stainless steel coils receive specialized protective treatments to maintain surface quality throughout the supply chain. A polyethylene (PE) protective film with thickness ranging from 30 to 80 microns is applied to the finished surface, providing scratch resistance during handling and fabrication operations. This film incorporates controlled adhesion properties, ensuring clean removal without residue while preventing surface contamination. Coils are wrapped in moisture-resistant kraft paper and secured with steel banding, then loaded in enclosed containers or covered trucks to prevent environmental exposure during transportation.

How is surface quality verified before shipment?

Quality assurance protocols include comprehensive surface inspection using calibrated glossmeters to verify reflectivity values meet specification requirements of 85% minimum for standard mirror finish. Surface roughness measurements are conducted using contact or optical profilometers to confirm Ra values remain within specified tolerances of 0.2 μm or less. Visual inspection under controlled lighting conditions identifies any surface defects including scratches, dents, roll marks, or contamination. Mill test certificates documenting chemical composition, mechanical properties, and surface finish measurements accompany each shipment in accordance with EN 10204 Type 3.1 certification requirements.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Standard minimum order quantity for mirror stainless steel coils is 5 metric tons per specification, allowing economical production setup and competitive pricing. For specialized dimensions or finish requirements, MOQ may be adjusted to 8-10 metric tons depending on processing complexity. Sample quantities of 100-200 kilograms are available for quality evaluation and fabrication trials prior to full production orders.

Do you provide material test certificates?

Comprehensive mill test certificates are supplied with every shipment, conforming to EN 10204 Type 3.1 certification standards. These certificates document chemical composition analysis performed via optical emission spectroscopy, mechanical property testing results including tensile strength and yield strength values, and surface finish quality measurements. Third-party inspection services can be arranged through SGS, Bureau Veritas, or other internationally recognized agencies upon customer request.

What is the typical delivery time?

Standard production lead time for mirror stainless steel coils ranges from 25 to 35 days from order confirmation, depending on specification complexity and current production scheduling. This timeframe includes raw material procurement, cold rolling operations, annealing treatment, polishing processes, protective film application, and quality inspection procedures. Expedited production schedules can be accommodated for urgent requirements with 15-20 day delivery possible for commonly stocked specifications, subject to availability and production capacity.

Can you cut to custom sizes?

Comprehensive slitting and cut-to-length services are available to provide mirror finish coils in customer-specified widths and lengths. Slitting operations maintain edge quality with burr-free cutting and can accommodate width tolerances of ±0.5mm for precision applications. Cut-to-length processing delivers flat sheets with length tolerances of ±2mm per meter, with protective film maintained on finished surfaces throughout processing operations. Custom blanking and laser cutting services are also available for complex geometric requirements.

mirror stainless steel coils wholesale

Get a Competitive Quote for Mirror Stainless Steel Coils

Our mill-direct sourcing capabilities and streamlined supply chain enable us to offer factory-competitive pricing on mirror finish stainless steel coils while maintaining the highest quality standards. With over 15 years of experience serving the architectural, automotive, and appliance manufacturing sectors, we understand the critical importance of consistent surface quality and reliable delivery schedules. Our technical team provides comprehensive support throughout the specification selection, fabrication planning, and quality assurance processes to ensure your project requirements are met precisely.

24/7 customer support available via phone, email, and online chat
Free samples for quality evaluation with detailed mill test certificates
Competitive pricing for bulk orders with flexible payment terms
Professional technical consultation on material selection and fabrication methods
Comprehensive logistics support including container loading supervision and documentation
After-sales technical assistance for fabrication troubleshooting and quality concerns

Contact us today to get your free quote within 24 hours! Our experienced sales engineers will work with you to optimize material specifications and delivery schedules to meet your project timeline and budget requirements.
