316 Stainless Steel Coil - ASTM A240 Grade 316 SS Cold Rolled Coils

Technical Specifications of 316 Stainless Steel Coil

316 Stainless Steel Coil - ASTM A240 Grade 316 SS Cold Rolled Coils

316 stainless steel coil represents a premium-grade austenitic chromium-nickel alloy featuring molybdenum addition for enhanced corrosion resistance in chloride environments. This cold-rolled material serves critical roles in marine applications, chemical processing equipment, pharmaceutical manufacturing, and food production facilities where superior resistance to pitting and crevice corrosion is essential. Manufactured to strict dimensional tolerances and surface finish requirements, our 316 SS coils deliver consistent mechanical properties and exceptional formability for demanding industrial applications requiring long-term durability in corrosive service conditions.

What is 316 Stainless Steel Coil?

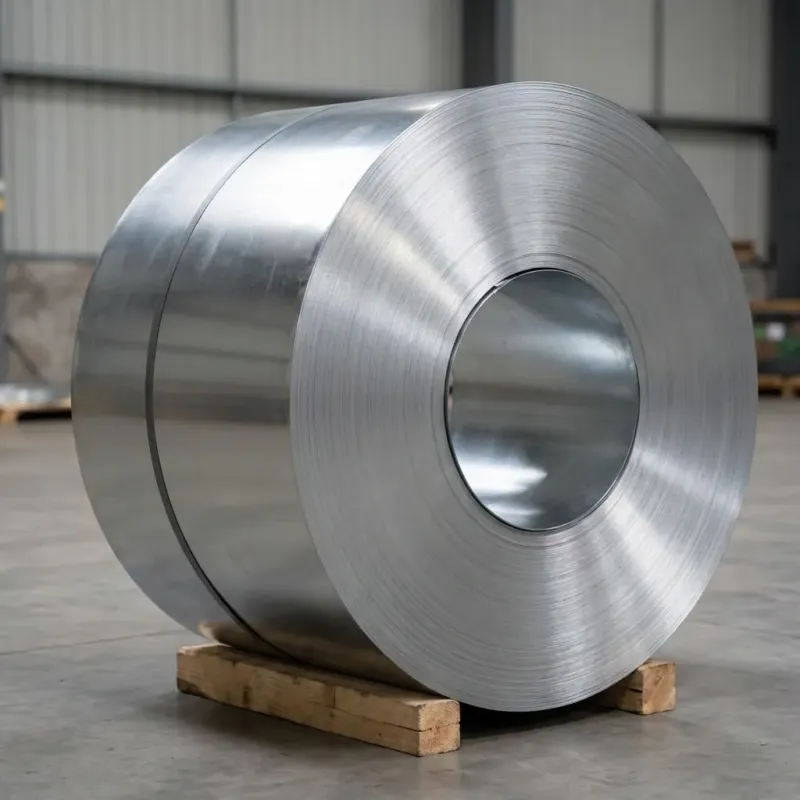

316 stainless steel coil is an austenitic chromium-nickel-molybdenum alloy supplied in cold-rolled form with typical dimensions ranging from 0.3mm to 6.0mm thickness and widths up to 2000mm. The material contains 16-18% chromium, 10-14% nickel, and 2-3% molybdenum, providing outstanding resistance to chloride-induced corrosion per ASTM A240/A240M-20a specifications. The cold rolling process delivers precise thickness control, superior surface finish (2B, BA, or No.4), and enhanced mechanical properties compared to hot-rolled alternatives, making it the preferred choice for applications demanding tight tolerances and aesthetic appearance.

316 Stainless Steel Coil Technical Specifications

Grade 316 stainless steel coil exhibits a density of 8.00 g/cm³ at 20°C and demonstrates minimum tensile strength of 515 MPa with yield strength exceeding 205 MPa according to ASTM A240 Section 6.2. The chemical composition limits carbon content to 0.08% maximum, ensuring excellent welding characteristics without carbide precipitation concerns. The material maintains austenitic microstructure across service temperatures from -196°C to 925°C, delivering thermal conductivity of 16.3 W/m·K at 100°C. Magnetic permeability remains below 1.02 in annealed condition, confirming fully austenitic structure essential for non-magnetic applications in medical devices and electronic equipment housings.

Corrosion Resistance Properties of 316 SS Coils

The molybdenum content in 316 stainless steel coil provides exceptional resistance to pitting and crevice corrosion in chloride-containing environments, outperforming standard 304 grade by significant margins. This material demonstrates superior performance in seawater applications with pitting resistance equivalent number (PREN) of approximately 24-26, calculated per EN 10088-2:2014 standards. The alloy resists sulfuric acid attack at concentrations below 10% and temperatures under 60°C, while maintaining structural integrity in phosphoric acid processing environments. Applications in coastal atmospheric exposure show minimal corrosion rates of 0.1-0.5 micrometers per year, ensuring decades of maintenance-free service in architectural and marine infrastructure projects.

Manufacturing Standards and Certifications

Our 316 stainless steel coil production adheres to multiple international standards including ASTM A240/A240M-20a for pressure vessel applications, EN 10088-2:2014 for European markets, and JIS G4305 for Asian specifications. Each coil undergoes rigorous quality control testing including spectroscopic chemical analysis, mechanical property verification through tensile testing per ASTM E8, and intergranular corrosion resistance evaluation following ASTM A262 Practice E. Mill test certificates (MTC 3.1 per EN 10204) accompany every shipment, documenting heat-specific chemical composition, mechanical properties, and surface finish measurements. Third-party inspection services from SGS, TÜV, or Lloyd's Register are readily available to verify compliance with customer-specific requirements.

Surface Finish Options and Applications

Cold-rolled 316 stainless steel coil is available in several surface finishes optimized for specific end-use requirements. The 2B finish delivers a smooth, moderately reflective surface through cold rolling followed by annealing and descaling, ideal for general fabrication and architectural trim applications. Bright annealed (BA) finish provides mirror-like reflectivity with Ra values below 0.2 micrometers, extensively employed for decorative panels, kitchen equipment, and sanitary applications in pharmaceutical facilities. No.4 brushed finish offers directional grain pattern with Ra values of 0.4-0.6 micrometers, commonly specified for elevator panels, food processing equipment, and commercial kitchen surfaces where aesthetic appearance combines with easy cleaning characteristics.

Fabrication and Forming Characteristics

Grade 316 stainless steel coil exhibits excellent cold forming properties with minimum bend radius of 1.5 times material thickness for 90-degree bends without cracking. Deep drawing operations achieve draw ratios up to 2.2:1 in single-stage forming, while progressive die stamping maintains dimensional accuracy within ±0.1mm tolerances. The material demonstrates superior weldability using TIG, MIG, and resistance welding processes without requiring post-weld heat treatment for thicknesses below 6mm. Laser cutting produces clean edges with minimal heat-affected zones, while plasma cutting serves thicker gauges efficiently. Work hardening rate remains moderate compared to 304 grade, permitting complex forming sequences without intermediate annealing steps in most applications.

Frequently Asked Questions

What is the minimum order quantity for 316 stainless steel coil?

Our standard minimum order quantity is 5 metric tons per specification, though we accommodate smaller quantities of 1-2 tons for stock sizes with 2B finish in common thicknesses (0.5mm to 3.0mm) and widths (1000mm to 1500mm). Custom slit widths and special finishes typically require 10-ton minimums to justify processing setup costs.

Do you provide material test certificates with 316 SS coil shipments?

Yes, we supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting heat-specific chemical composition, mechanical properties, and manufacturing traceability. Certificates include spectroscopic analysis results, tensile test data per ASTM E8, and intergranular corrosion test results per ASTM A262 when specified. Third-party witness testing and additional destructive testing reports are available upon request.

What is the typical delivery time for 316 stainless steel coil orders?

Stock items in standard 2B finish ship within 7-10 business days from our regional warehouses. Custom slit widths from master coils require 15-20 days processing time, while special finishes (BA or No.4) and non-standard thicknesses involve 35-45 days lead time including production scheduling and quality verification. Expedited processing is available for urgent requirements with appropriate surcharges.

Can you provide custom slitting services for specific width requirements?

Our precision slitting capabilities handle widths from 10mm to 1500mm with tolerance of ±0.5mm on edges. We maintain minimum slit width of 10mm for gauges below 1.0mm thickness and 20mm for heavier materials. Edge conditioning options include deburred, rounded, or square edges depending on subsequent forming operations. Custom slitting typically adds 3-5 days to standard delivery schedules for quantities above minimum processing lots.

Get a Competitive Quote for 316 Stainless Steel Coil

As a mill-direct supplier with over 15 years of experience in stainless steel distribution, we offer factory-competitive pricing on 316 stainless steel coil with transparent cost structures and no hidden fees. Our technical sales team provides professional consultation on material selection, surface finish optimization, and fabrication recommendations to ensure your project specifications are met efficiently. We maintain substantial inventory in regional warehouses across North America, Europe, and Asia, enabling rapid response to both scheduled production requirements and emergency supply needs.

• 24/7 customer support available through dedicated account managers
• Free samples for quality evaluation with mill test certificates included
• Competitive pricing for bulk orders with volume discount programs
• Professional technical consultation on material specifications and fabrication methods
• Flexible payment terms and logistics coordination for international shipments
• Complete traceability documentation and compliance certification support

Contact us today to get your free quote within 24 hours and discover how our 316 stainless steel coil solutions can enhance your manufacturing efficiency!
