Non-Standard Steel Tube - Custom Dimensions and Grades for Industrial Applications

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

Technical Specifications of Non-Standard Steel Tube

Property	Parameter	Description
Product Name	Non-Standard Steel Tube	Custom-sized steel tubing beyond standard dimensions
Material Grade	ASTM A106 Gr.B / A53 Gr.B / A500 / SS304 / SS316L	Multiple material options per project requirements
Manufacturing Process	Seamless, ERW, Cold Drawn, Hot Rolled	Process selected based on size and tolerance needs
Standard Reference	ASTM, EN, JIS, GB (custom dimensions outside standard ranges)	Manufactured to customer-specified tolerances
Carbon (C) - Carbon Steel	≤0.30%	Typical value for A106 Gr.B base material
Manganese (Mn) - Carbon Steel	0.29–1.06%	Enhances strength and hardenability
Chromium (Cr) - Stainless Steel	16.0–18.0%	Applicable for 304/316L stainless options
Tensile Strength	≥415 MPa (carbon steel) / ≥515 MPa (stainless steel)	Minimum values per applicable material standard
Yield Strength	≥240 MPa (carbon steel) / ≥205 MPa (stainless steel)	Minimum yield per material grade
Elongation	≥30% (carbon steel) / ≥40% (stainless steel)	Ductility in 50mm gauge length
OD Range	5mm – 1200mm (non-standard sizes available)	Custom outer diameters beyond standard schedules
Wall Thickness	0.5mm – 150mm	Non-standard wall thicknesses per drawing
Length	1m – 18m or custom cut	Special lengths available on request

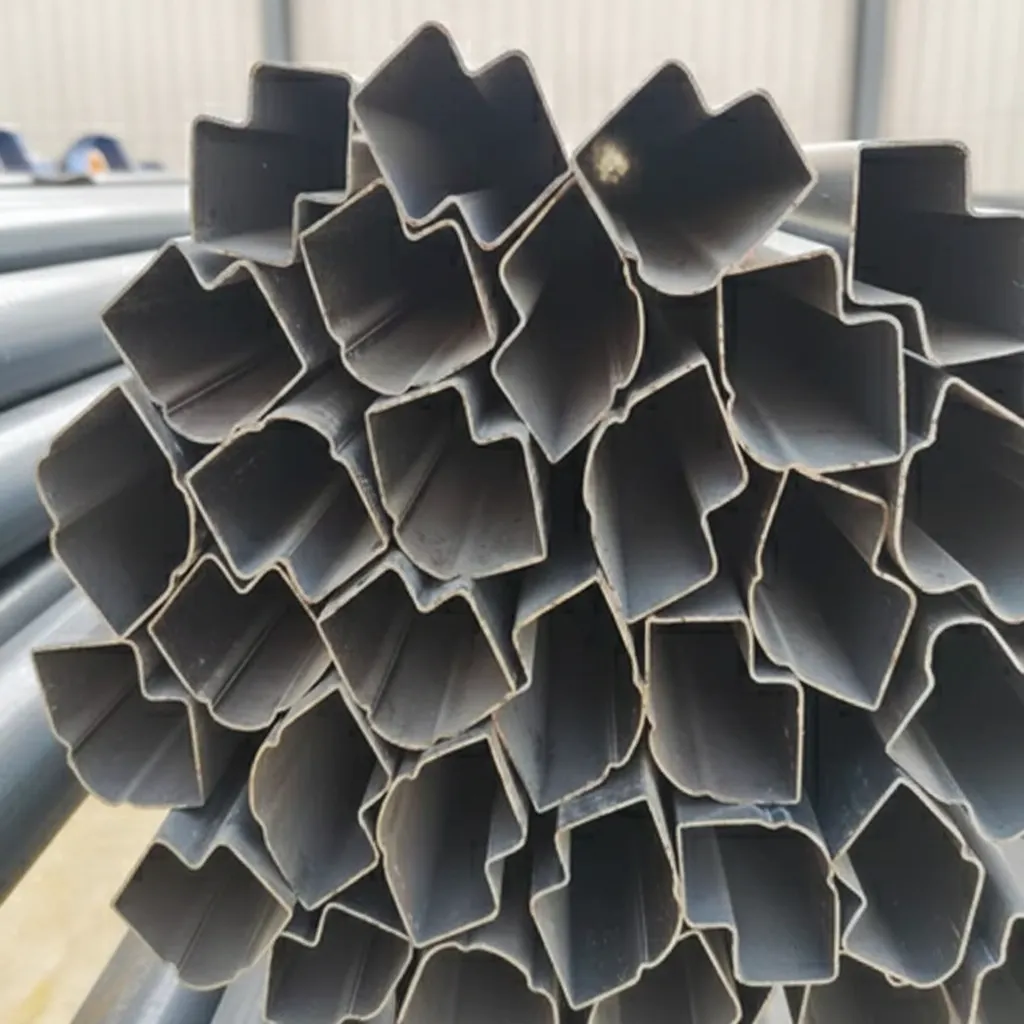

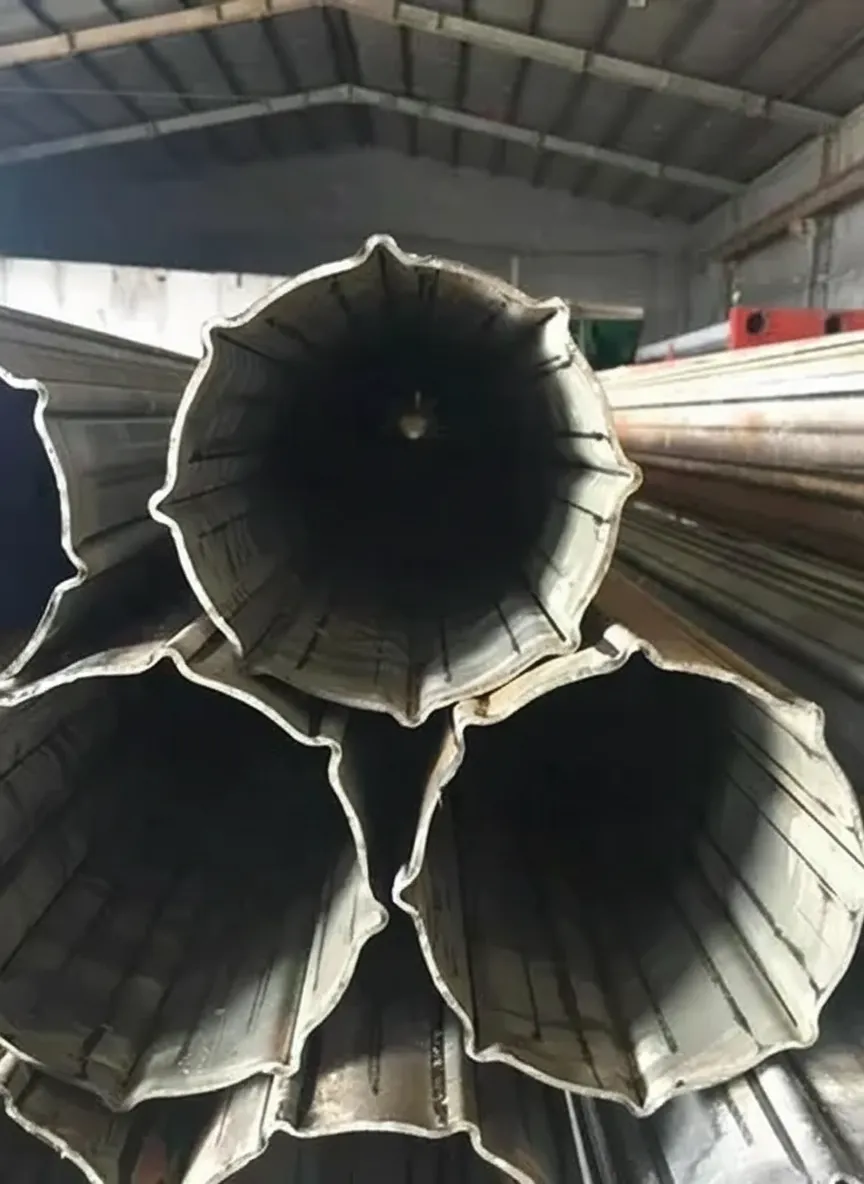

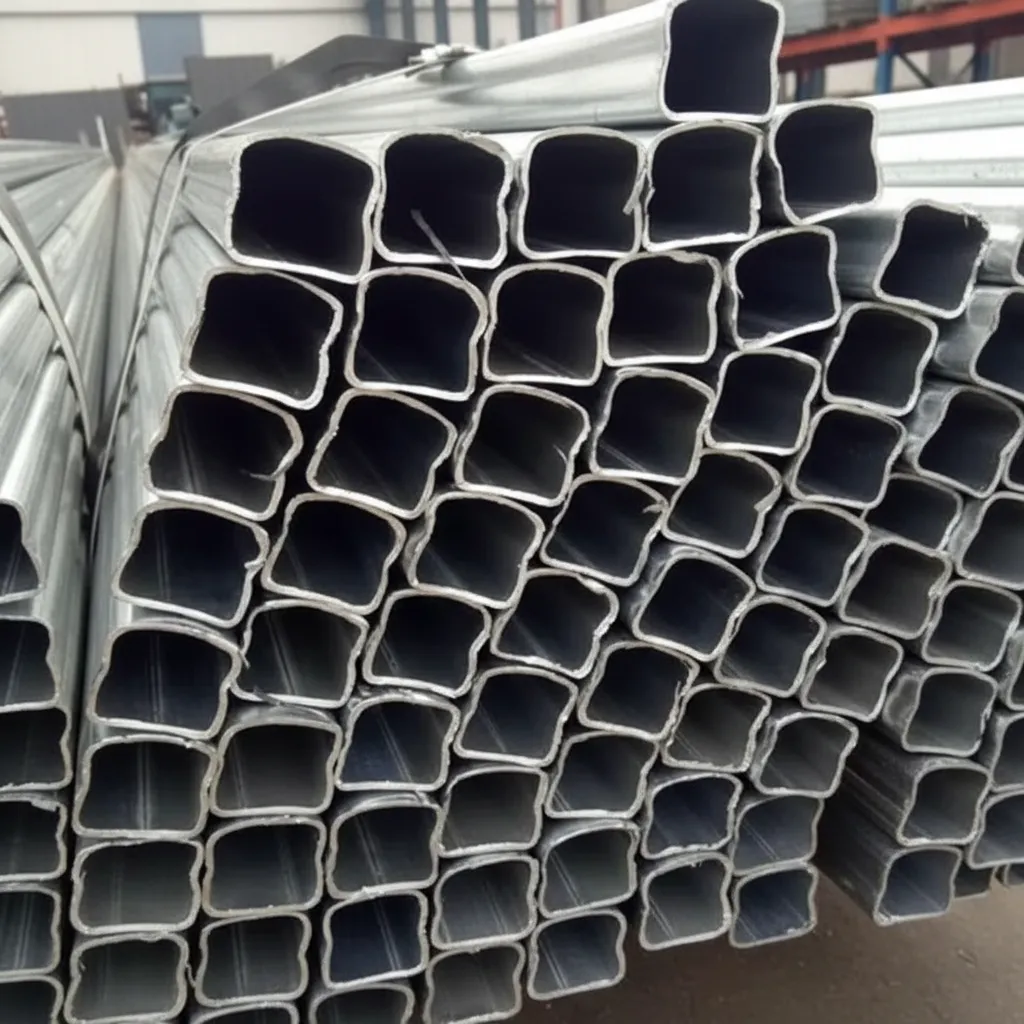

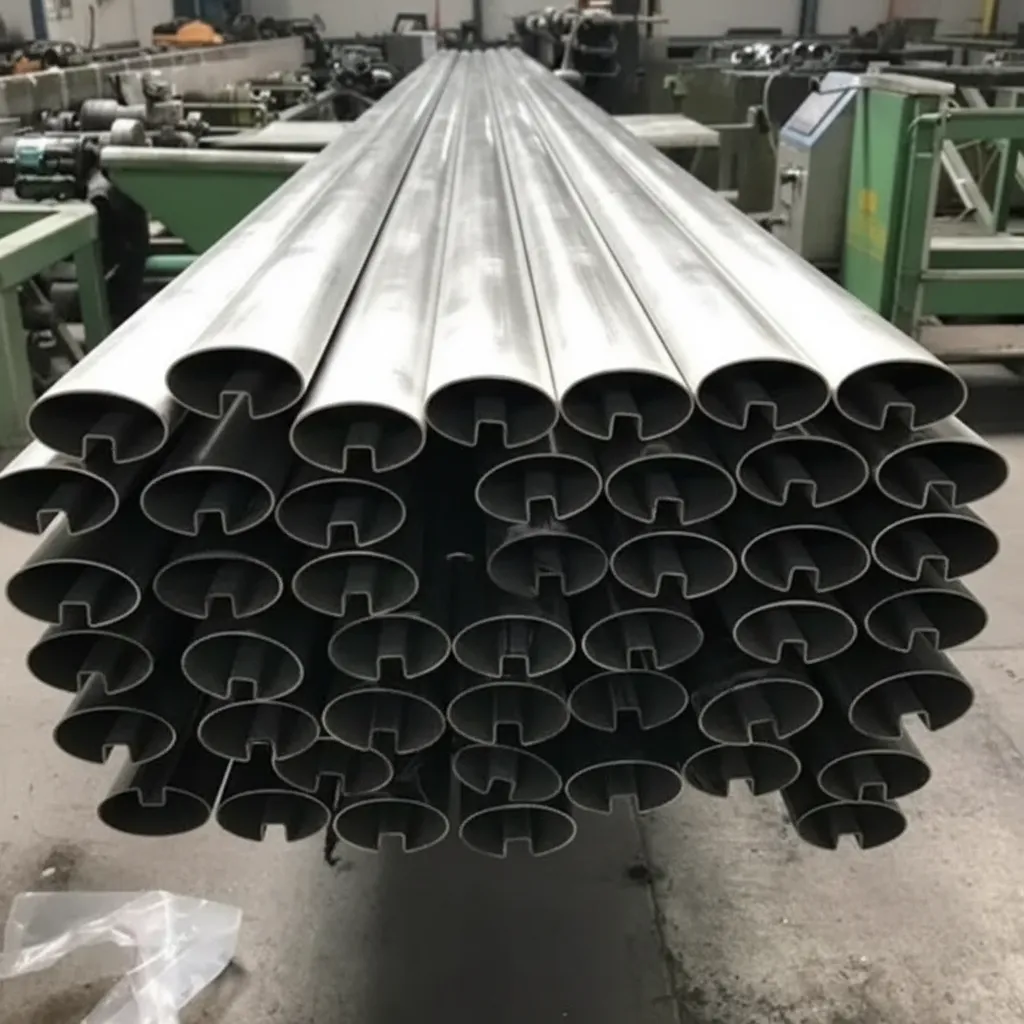

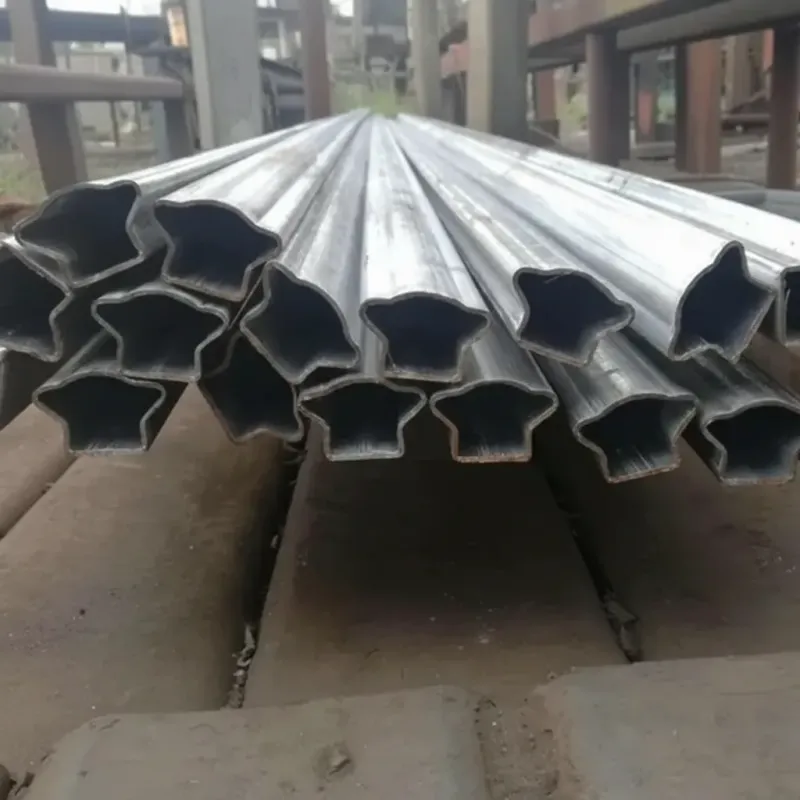

Shape Options	Round, Square, Rectangular, Oval, Hexagonal, Irregular	Non-standard cross-sections per customer design
Surface Finish	Bare, Galvanized, Painted, Polished, Pickled	Multiple surface treatment options
Tolerance	OD ±0.1mm, WT ±5% or per customer specification	Tighter tolerances achievable for cold-drawn tubes
Application	Machinery, Automotive, Construction, Hydraulic, Furniture	Suitable for specialized engineering applications
Certification	EN 10204 3.1, ISO 9001, SGS, BV	Third-party inspection and mill certificates provided
Packaging	Bundled with steel strips, plastic caps, wooden crates	Standard seaworthy export packaging
MOQ	1 ton (negotiable for special specifications)	Minimum order quantity for custom production

Non-Standard Steel Tube - Custom Dimensions and Grades for Industrial Applications

Non-standard steel tube serves as a critical solution for engineering projects where conventional off-the-shelf tubing fails to meet precise dimensional or material requirements. Unlike standard-sized products governed by fixed catalogs, these custom-manufactured tubes are produced to exact outside diameters, wall thicknesses, lengths, and steel grades specified by the buyer. They find extensive application in specialized machinery, heavy equipment fabrication, petrochemical processing, and structural engineering where unique cross-sections or tight tolerances are essential. As a dedicated steel tube manufacturer and exporter, we deliver non-standard steel tube solutions tailored to your project's exact specifications.

Non-standard steel tube supplier

What Is Non-Standard Steel Tube?

A non-standard steel tube refers to any tubular steel product manufactured outside the dimensions or tolerances defined by conventional standards such as ASTM A500, EN 10210, or GB/T 8162. This includes irregular outer diameters (e.g., 73.5 mm, 139.2 mm), non-typical wall thicknesses (e.g., 4.3 mm, 11.7 mm), unusual lengths, or special-shaped profiles like elliptical, hexagonal, or D-shaped cross-sections. These tubes are produced through seamless rolling, ERW welding, or cold-drawing processes, depending on the required grade and dimensional precision.

Non-Standard Steel Tube Technical Specifications

Our custom tube production covers a broad range of parameters to accommodate diverse industrial demands:

Non-standard steel tube wholesale

Parameter	Available Range
Outside Diameter (OD)	10 mm – 920 mm (any non-standard value)
Wall Thickness (WT)	0.5 mm – 80 mm
Length	Up to 18,000 mm, cut-to-length available
Steel Grades	20#, 45#, Q345B, 16Mn, ASTM A106 Gr.B, ASTM A53, ST52, 10CrMo9-10, 304/316L stainless
Tolerances	OD ±0.1 mm (cold-drawn), WT ±5% (hot-rolled)
Surface Finish	Black painted, oiled, galvanized, or polished per request
Production Method	Seamless (hot-rolled/cold-drawn), ERW, LSAW

All products are manufactured according to specific reference standards including ASTM A519-06, EN 10297-1:2003, or DIN 2391-2 for precision cold-drawn tubes, with chemical composition and mechanical properties verified per heat.

Key Applications of Custom-Dimension Steel Tubing

Hydraulic and pneumatic cylinders: Precision-bored non-standard steel tube with ID tolerances of ±0.02 mm for H8/H9 honed cylinders
Specialized structural fabrication: Odd-sized hollow sections for architectural steelwork, bridge components, and offshore platforms
Mechanical parts and bushings: Custom OD/ID combinations for bearing sleeves, roller shafts, and coupling housings
Petrochemical and boiler systems: Non-standard alloy tubes in grades such as 10CrMo9-10 or ASTM A335 P11 for high-temperature service up to 600°C
Automotive and equipment manufacturing: Tailored tubing for chassis frames, axle housings, and exhaust components requiring precise fitment

Frequently Asked Questions

What is the minimum order quantity (MOQ) for non-standard steel tube?

MOQ varies by specification. For common carbon steel grades with minor dimensional deviations, we accept orders starting from 2 metric tons. Highly specialized sizes or alloy grades typically require a minimum of 5 metric tons per production run.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 Mill Test Certificates covering chemical analysis, mechanical properties (tensile strength, yield strength, elongation), and dimensional inspection results traceable to the specific heat number.

Non-standard steel tube China

What is the typical delivery time for custom-sized tubes?

Standard carbon steel non-standard tubes are typically delivered within 15–25 working days after order confirmation. Alloy steel or stainless steel grades with special dimensions may require 25–40 working days depending on raw material availability and production scheduling.

Can you produce special-shaped or profiled steel tubes?

Absolutely. Our cold-forming and roll-forming lines accommodate elliptical, triangular, hexagonal, D-shaped, and other irregular profiles. We require a detailed drawing with cross-section geometry, dimensional tolerances, and material grade to provide an accurate quotation.

Get a Competitive Quote for Non-Standard Steel Tube

Whether your project demands an unusual diameter, a non-typical wall thickness, or a specialized steel grade, our engineering team is prepared to develop a cost-effective manufacturing plan for your non-standard steel tube requirements. Submit your drawings or specifications today, and receive a detailed quotation with mill-direct pricing within 24 hours. For applications requiring complementary products, explore our seamless steel pipe and cold-drawn steel tube options.
