Prepainted Steel Coil Factory - High-Quality Galvanized & Aluzinc Coated Coils

Technical Specifications of Prepainted Steel Coil from Factory

Prepainted Steel Coil Factory - High-Quality Galvanized & Aluzinc Coated Coils

Prepainted steel coil factory operations represent a critical segment of the modern steel processing industry, delivering color-coated metal solutions that combine structural integrity with aesthetic versatility. These specialized manufacturing facilities transform galvanized or aluzinc-coated substrates into premium-grade prepainted coils through continuous coil coating lines, serving construction, appliance manufacturing, and automotive sectors worldwide. Our factory-direct prepainted steel coils offer superior corrosion resistance, consistent color retention per ASTM D2244 standards, and cost-effective pricing structures that eliminate intermediary markups for commercial and industrial buyers.

What is Prepainted Steel Coil Factory?

A prepainted steel coil factory is an integrated production facility that applies organic coatings to cold-rolled, hot-dip galvanized, or aluminum-zinc alloy coated steel substrates through automated coil coating processes. The manufacturing sequence includes chemical pretreatment, primer application, topcoat finishing, and thermal curing at temperatures ranging from 200°C to 250°C, producing continuous coils with thickness tolerances of ±0.02mm per EN 10169 specifications.

Prepainted Steel Coil Factory Technical Specifications

Our factory produces prepainted steel coils with substrate thickness ranging from 0.13mm to 1.5mm, coating mass of Z60-Z275 g/m² for galvanized base, and AZ50-AZ150 g/m² for aluzinc substrates. Standard coil widths span 600mm to 1,250mm with maximum coil weight of 8 metric tons. Topcoat film thickness measures 15-25 microns, while primer layers range from 5-10 microns, achieving pencil hardness ratings of 2H minimum and T-bend flexibility of 0T-2T according to ASTM D522 testing protocols.

Manufacturing Process & Quality Control

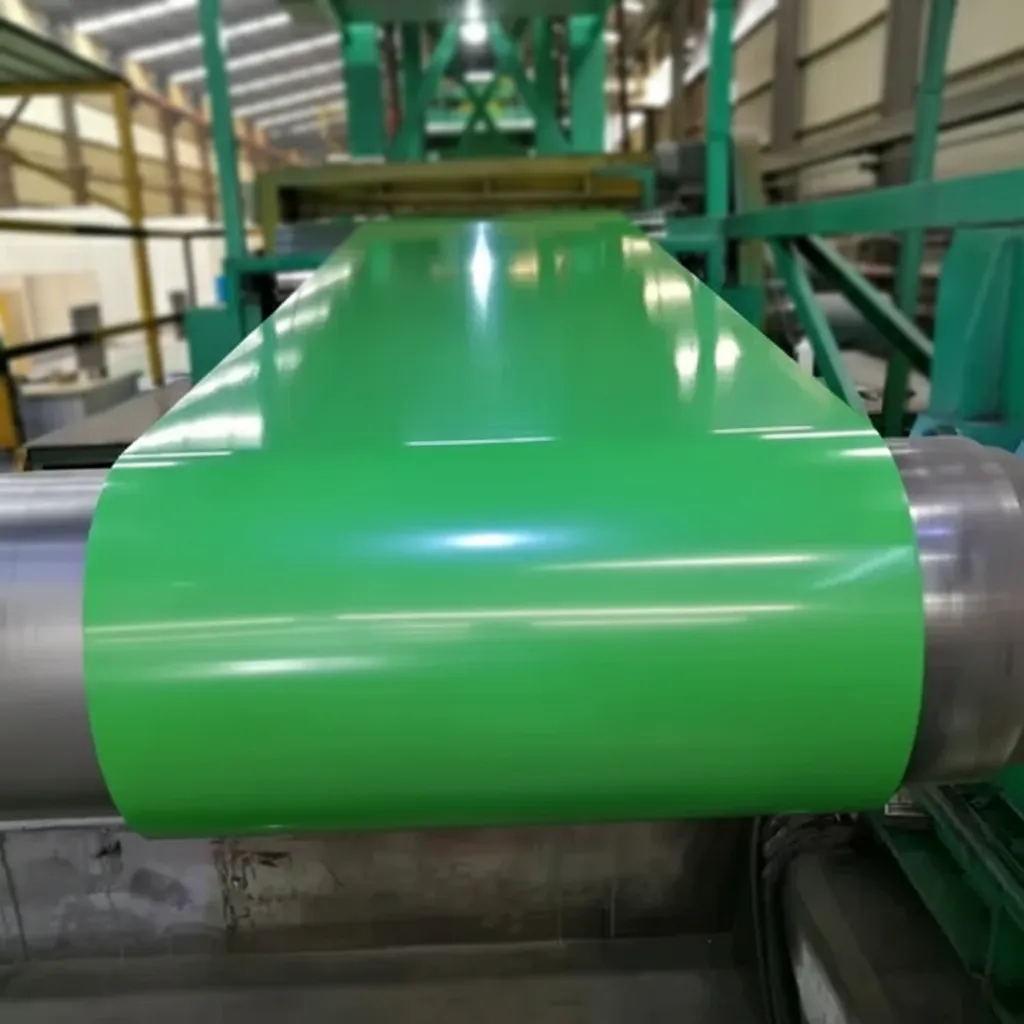

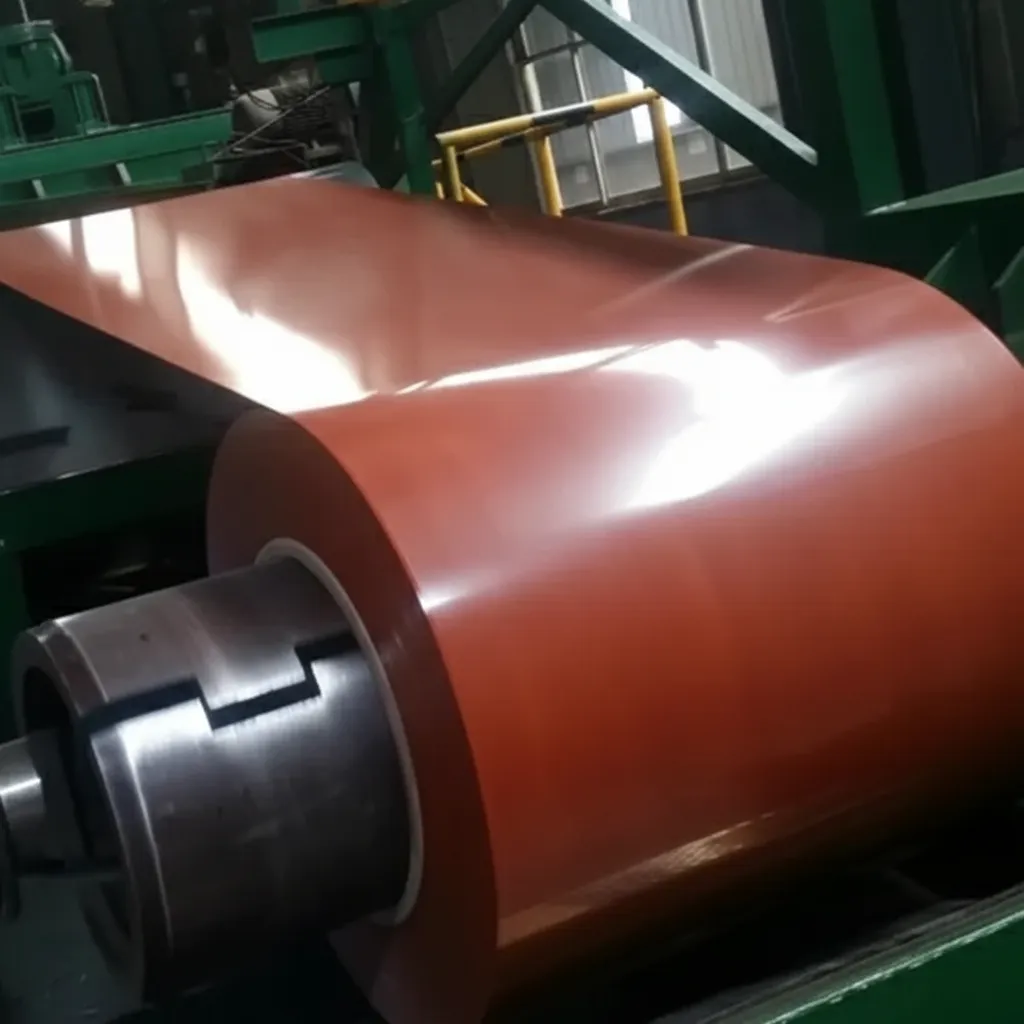

The prepainted steel coil factory employs a continuous five-stage process: entry section uncoiling, chemical surface treatment with chromate or chrome-free conversion coatings, roller coating application using polyester, silicon-modified polyester (SMP), or polyvinylidene fluoride (PVDF) resins, peak metal temperature (PMT) curing, and precision tension-controlled recoiling. Real-time quality monitoring systems verify color consistency within ΔE≤1.0 per ASTM D2244, coating adhesion exceeding 5B classification per ASTM D3359, and salt spray resistance surpassing 1,000 hours for marine-grade applications.

Why Choose Our Prepainted Steel Coil Factory

Our manufacturing facility operates three independent coil coating lines with combined annual capacity of 450,000 metric tons, maintaining ISO 9001:2015 quality management certification and ISO 14001 environmental compliance. We stock over 200 RAL and custom color formulations with lead times of 15-20 days for standard specifications. Factory-direct pricing eliminates distributor margins while providing material test certificates, coating performance warranties, and technical support for specification optimization across diverse application requirements.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Standard MOQ is 25 metric tons per color and specification combination. For stock colors including RAL 9002, RAL 3009, and RAL 5015, we accommodate reduced quantities of 10 tons with adjusted pricing. Custom color development requires 30-ton minimum commitment with color approval sample provision within 7 working days.

Do you provide material test certificates?

Yes, each shipment includes EN 10204 Type 3.1 mill test certificates documenting substrate chemical composition per ASTM A755/A755M standards, coating thickness measurements, mechanical properties including yield strength and tensile strength, and surface treatment verification. Additional testing reports for salt spray resistance, humidity aging, and UV weathering are available upon request.

What is the typical delivery time?

Standard prepainted steel coil orders require 18-22 days from purchase order confirmation, including 3 days for production scheduling, 12-15 days for coating line processing, and 3-4 days for quality inspection and packaging. Express production is available for stock colors with 10-12 day delivery windows. International shipping timelines vary by destination port, with typical transit of 25-35 days for major markets.

Can you cut to custom sizes?

Our factory offers precision slitting services with width tolerances of ±2mm for coils 600mm and wider, and ±1mm for narrower widths. Sheet cutting capabilities accommodate lengths from 1,000mm to 6,000mm with squareness deviation under 2mm per meter. Custom blanking and profiling services are available through our partner fabrication facilities for complex geometries requiring laser cutting or CNC punching operations.

Get a Competitive Quote for Prepainted Steel Coil Factory Products

Request factory-direct pricing for your prepainted steel coil requirements by providing substrate specification, coating system preference, color selection, quantity, and delivery destination. Our technical sales team responds within 8 business hours with detailed quotations including material specifications, coating performance data, packaging options, and delivered cost analysis. Contact us today to discuss volume pricing structures, quality assurance protocols, and supply chain solutions tailored to your manufacturing operations.
