NM450 Steel Plate – High-Strength Abrasion-Resistant Wear Plate for Mining & Construction

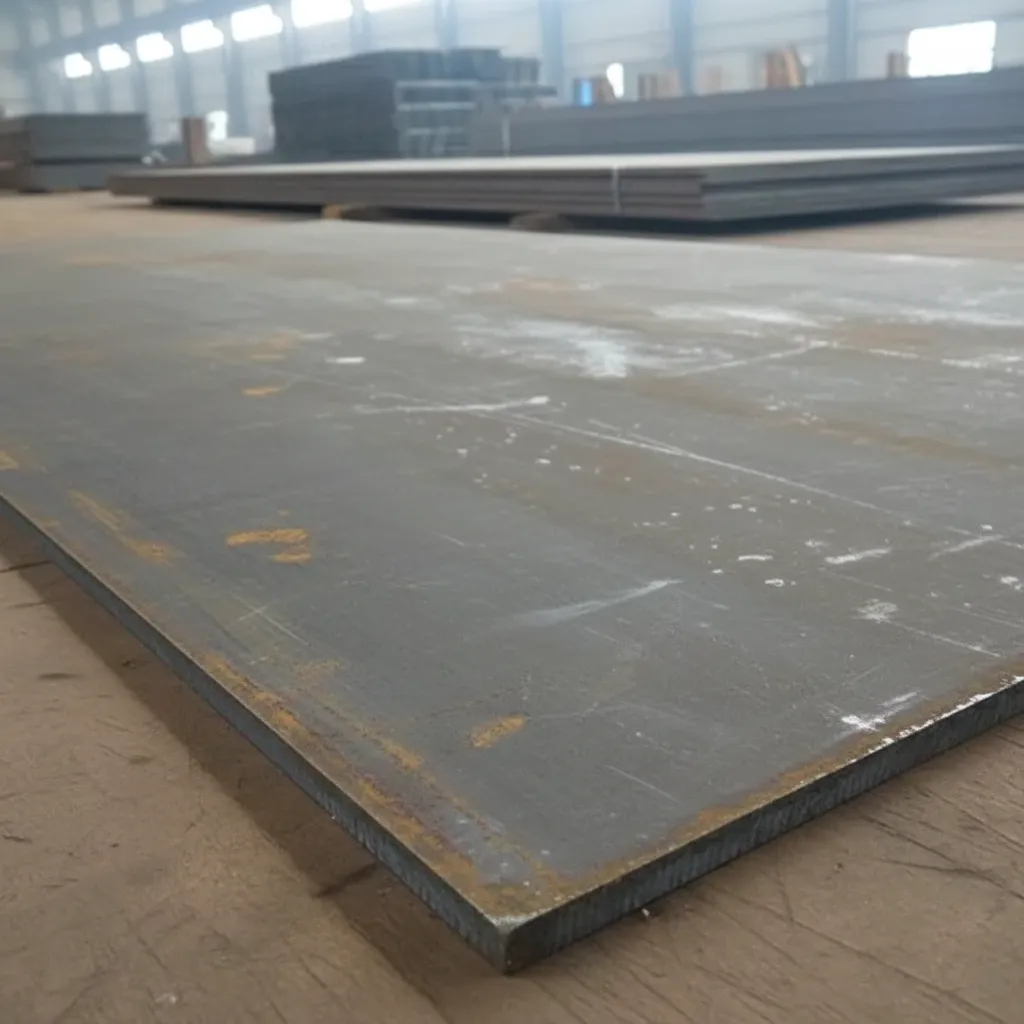

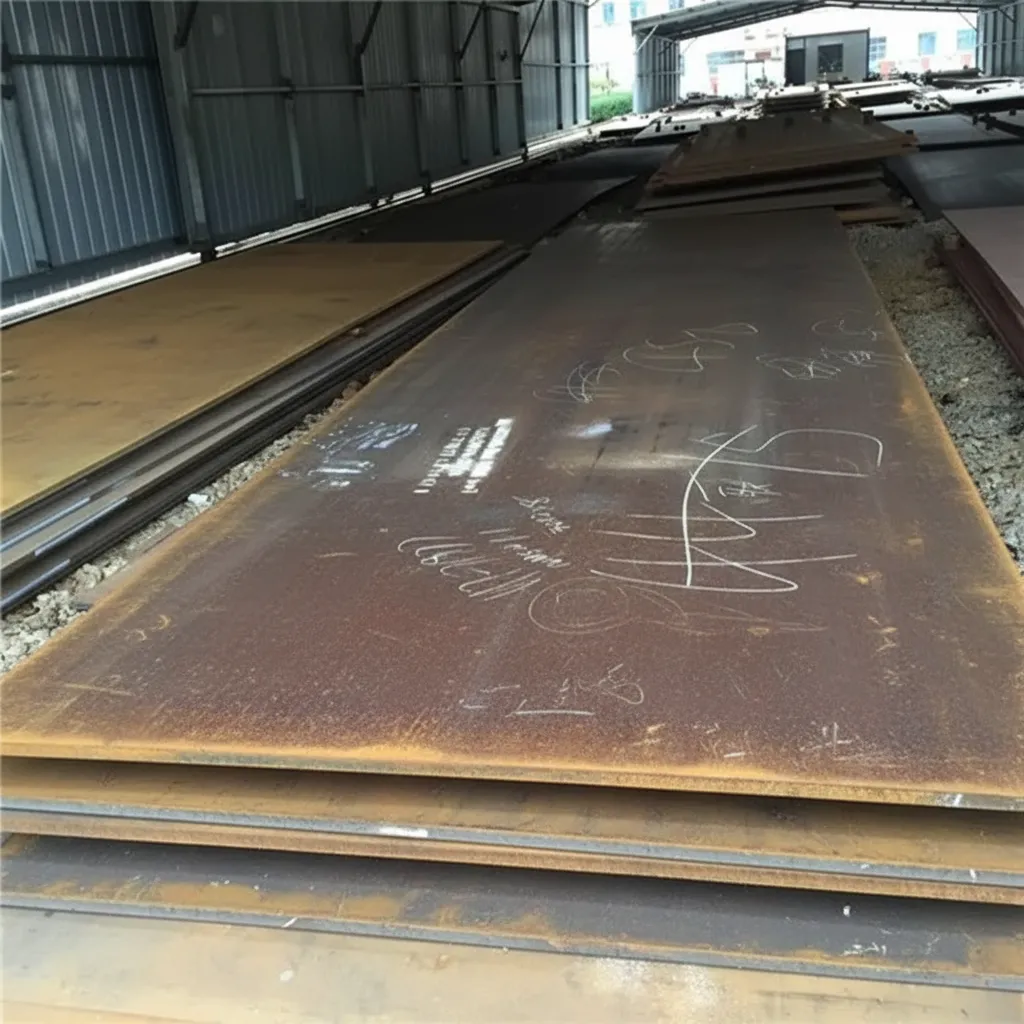

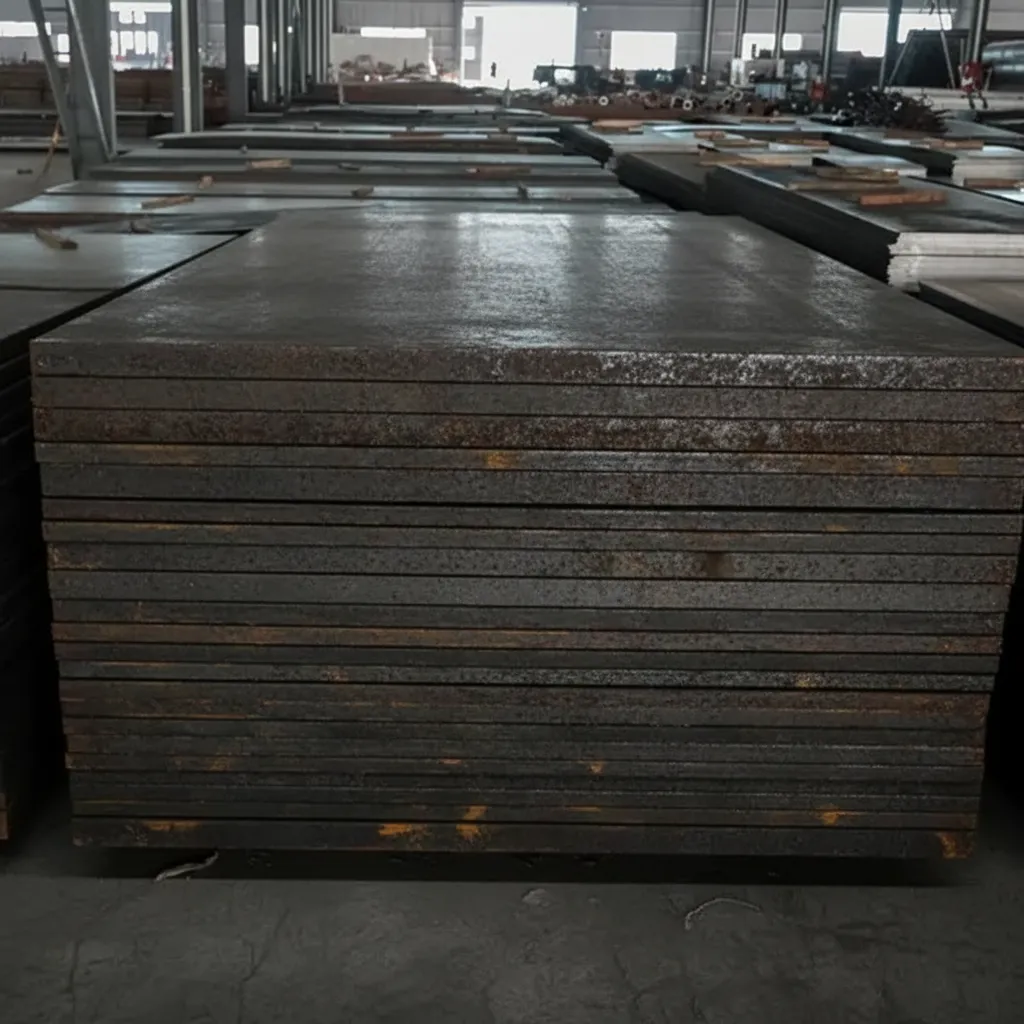

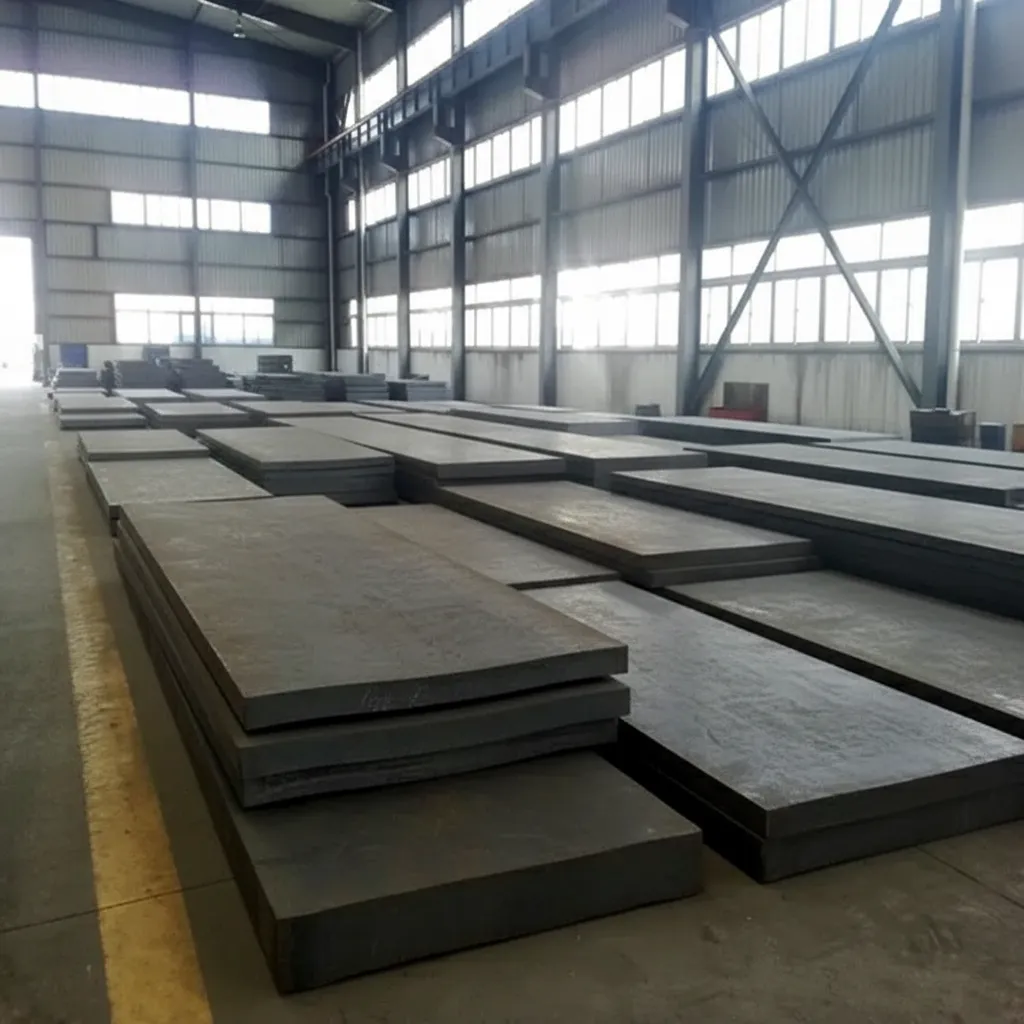

NM450 steel plate is a premium-grade abrasion-resistant steel specifically engineered for demanding applications where exceptional wear resistance and structural integrity are critical. With a nominal hardness of 450 HBW and superior impact toughness, this high-strength wear plate serves as the preferred material choice for heavy machinery components, mining equipment, and construction applications subjected to extreme abrasive conditions. Manufactured to meet stringent international standards, NM450 delivers extended service life and reduced maintenance costs for industrial operations worldwide.

What is NM450 Steel Plate?

NM450 steel plate is a low-alloy structural steel characterized by its exceptional surface hardness of 425-475 HBW (Brinell Hardness) and optimized chemical composition for superior abrasion resistance. The designation "NM" stands for "abrasion-resistant" while "450" indicates the typical Brinell hardness value. This quenched and tempered steel plate combines high hardness with adequate toughness, making it suitable for applications requiring resistance to sliding abrasion, gouging, and impact wear.

NM450 Steel Plate Technical Specifications

The material exhibits a tensile strength of 1400 MPa minimum with yield strength exceeding 1200 MPa per EN 10029 standards. Carbon content is maintained at 0.24-0.32% for optimal hardenability, while manganese (1.60% maximum) and chromium (0.50% maximum) enhance wear resistance. The plate is supplied in thicknesses ranging from 6mm to 100mm with a density of 7.85 g/cm³ at room temperature, ensuring consistent performance across various fabrication requirements.

Key Advantages of NM450 Abrasion-Resistant Steel

This high-performance wear plate demonstrates outstanding resistance to abrasive wear, extending component lifespan by 3-5 times compared to conventional structural steels. The material offers excellent welding characteristics when proper preheating procedures are followed, allowing for complex fabrication without compromising hardness in non-heat-affected zones. Its superior impact resistance at temperatures down to -20°C makes it reliable for outdoor applications in diverse climatic conditions.

Common Applications and Industries

NM450 steel plate finds extensive application in mining equipment including crusher liners, chute liners, and hopper components where material handling generates severe abrasive wear. Construction machinery manufacturers utilize this material for excavator buckets, bulldozer blades, and loader cutting edges. The cement industry employs NM450 for rotary kiln components, while recycling facilities depend on it for shredder hammers and screening equipment subjected to continuous impact and abrasion.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for NM450 steel plate is 5 metric tons per specification. However, we accommodate smaller quantities for trial orders or specialized projects, with pricing adjusted based on volume. Mixed-thickness orders meeting the total tonnage requirement are acceptable to optimize your inventory management.

Do you provide material test certificates?

Yes, every shipment includes comprehensive mill test certificates (MTC 3.1 per EN 10204) documenting chemical composition analysis, mechanical properties testing, and hardness verification. Certificates specify heat number traceability, dimensional tolerances, and compliance with relevant international standards including EN 10029 and customer-specified requirements.

What is the typical delivery time?

Standard delivery timeframes range from 15-25 working days for stock thicknesses (6mm-40mm) and 30-45 days for special thickness requirements or custom cutting services. Express processing is available for urgent projects with 10-15 day lead times, subject to current production schedules and material availability confirmation.

Can you cut to custom sizes?

Our advanced fabrication facilities provide precision cutting services including plasma cutting, laser cutting, and waterjet cutting to your exact specifications. We accommodate tolerances of ±2mm for plasma cutting and ±0.5mm for laser cutting operations. Additional services include edge beveling, hole drilling, and surface grinding to meet your specific assembly requirements.

Get a Competitive Quote for NM450 Steel Plate

Contact our technical sales team today to receive factory-direct pricing for NM450 abrasion-resistant steel plate tailored to your project specifications. Our metallurgical experts provide comprehensive material selection guidance, welding recommendations, and application engineering support to ensure optimal performance in your specific operating conditions. Request your detailed quotation with complete technical documentation and delivery schedule confirmation.
