Special Profile Steel Tube - Custom Shapes for Industrial Applications

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

Technical Specifications of Special Profile Steel Tube

Property	Parameter	Description
Product Name	Special Profile Steel Tube	Non-standard shaped hollow steel sections
Material Grade	Q235B / Q345B / S235JR / S355J2 / ASTM A500	Multiple carbon steel grade options
Standard Compliance	EN 10219, EN 10210, ASTM A500, GB/T 6728	Meets major international standards
Manufacturing Process	Cold Formed / Hot Finished / Welded	Process selected based on profile complexity
Carbon (C)	≤0.20% (Q235B) / ≤0.22% (S355J2)	Carbon content varies by grade
Manganese (Mn)	≤1.40% (Q235B) / ≤1.60% (S355J2)	Improves strength and hardenability
Silicon (Si)	≤0.35%	Deoxidizer for steel quality
Tensile Strength	370-630 MPa	Varies by material grade selected
Yield Strength	235-355 MPa	Minimum yield per applicable standard
Elongation	≥20%	Ductility in 50mm gauge length

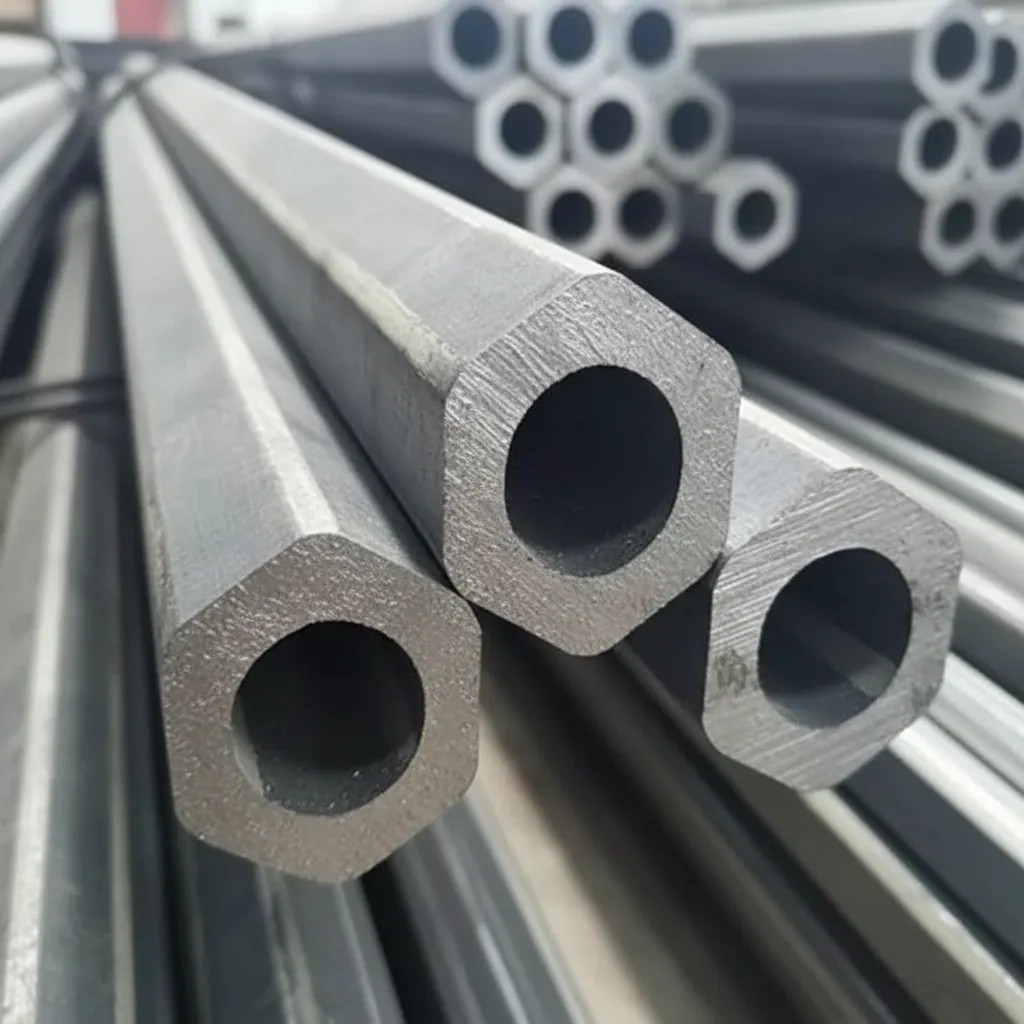

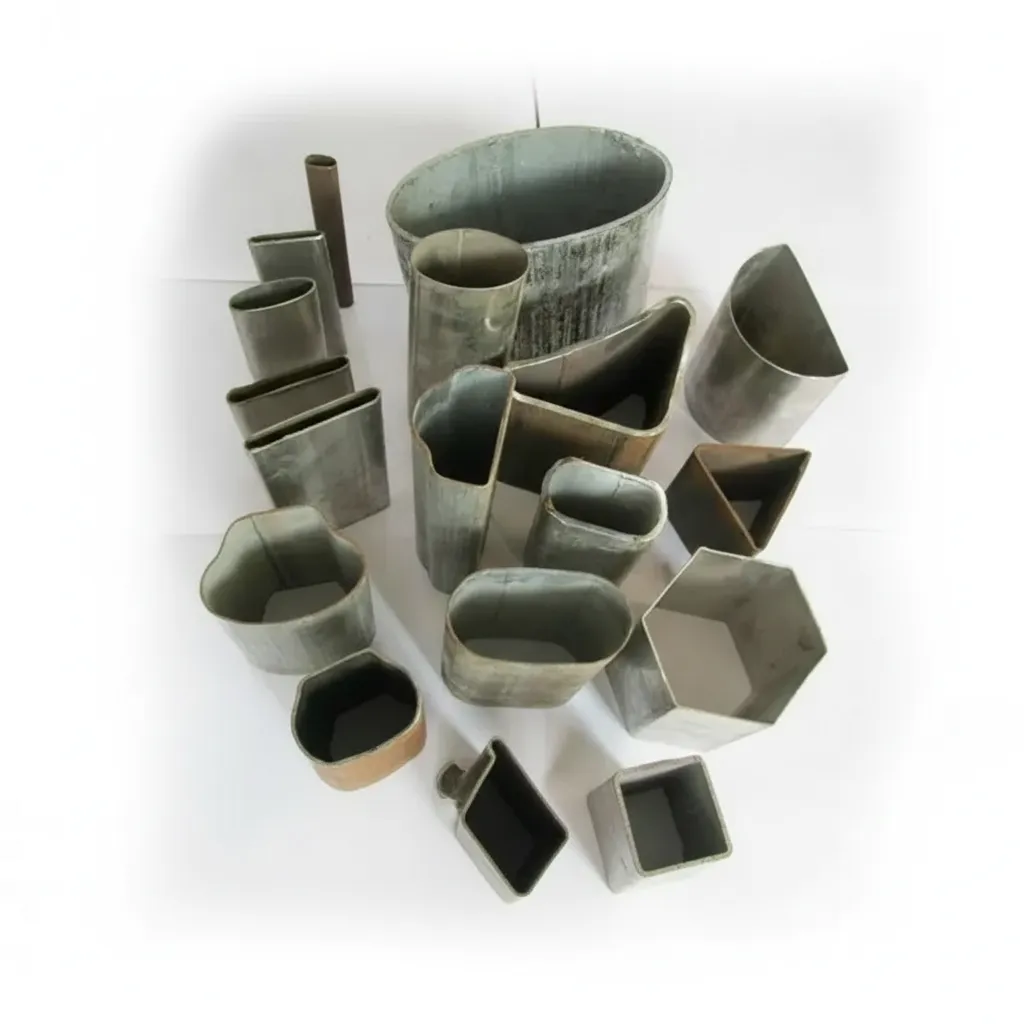

Profile Shapes	D-shape, Oval, Hexagonal, Triangular, Semi-circular, Flat-sided oval	Custom irregular cross-section profiles available
Dimension Range	20mm - 500mm (max cross-section)	Outer dimension range per profile type
Wall Thickness	1.0mm - 20mm	Standard and custom wall thickness
Length	5.8m - 12m or custom	Standard and cut-to-length options
Surface Finish	Black, Galvanized, Painted, Powder Coated	Multiple surface treatment options
Application	Architecture, Automotive, Machinery, Furniture, Railing	Structural and decorative applications
Certification	EN 10204 3.1, ISO 9001, CE Marking	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps on ends	Standard export packaging
MOQ	5 tons	Minimum order quantity

Special Profile Steel Tube - Custom Shapes for Industrial Applications

Special profile steel tube refers to hollow steel sections manufactured in non-standard geometric shapes beyond conventional round, square, or rectangular forms. These custom-shaped tubes serve critical roles in architectural frameworks, automotive chassis components, machinery structural parts, and conveyor systems where standard profiles cannot meet precise design or load-bearing requirements. As a mill-direct supplier with over 15 years of fabrication experience, we deliver special profile steel tubes engineered to exact dimensional tolerances for demanding industrial projects worldwide.

What Is Special Profile Steel Tube?

A special profile steel tube is a hollow structural section produced in irregular or non-standard cross-sectional geometries—including elliptical, D-shaped, triangular, hexagonal, semi-circular, flat-oval, and other custom configurations. Unlike conventional tubular products, these profiles are formed through dedicated roll-forming dies or cold-drawing processes to achieve precise, application-specific shapes that optimize material distribution and structural efficiency.

Special Profile Steel Tube Technical Specifications

Our special profile steel tubes are manufactured according to EN 10219-1:2006 for cold-formed welded sections and ASTM A500/A500M-21 for structural tubing. Key parameters include:

Parameter	Range
Material Grades	Q235B, Q345B, S235JRH, S355J2H, ASTM A500 Grade B/C
Wall Thickness	1.0 mm – 25.0 mm (±0.15 mm tolerance)
Outer Dimension	20 mm – 500 mm (varies by profile geometry)
Length	1,000 mm – 12,000 mm, or cut-to-length
Yield Strength	235 MPa – 460 MPa depending on grade
Surface Finish	Black, galvanized (per ASTM A123), painted, or oiled

Key Advantages of Custom Profile Steel Tubes

Optimized Load Distribution: Non-standard cross-sections allow engineers to align material precisely with directional stress paths, reducing overall weight by up to 20% compared to standard sections.
Enhanced Aesthetic Integration: Elliptical and D-shaped profiles deliver sleek visual lines for architectural facades and exposed structural elements.
Improved Assembly Efficiency: Purpose-designed profiles eliminate secondary machining, enabling direct bolt-on or weld-on connections in modular frames.
Versatile Material Options: Available in carbon steel, low-alloy high-strength steel, and weathering steel (Corten A/B per EN 10025-5:2004) to match environmental demands.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for special profile steel tubes?

Our standard MOQ starts at 5 metric tons per profile shape. For new die development on unique geometries, we require a minimum commitment of 10 tons to offset tooling costs.

Special profile steel tube supplier

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 mill test certificates documenting chemical composition, mechanical properties, and dimensional inspection results traceable to the production heat.

What is the typical delivery time for custom shaped tubes?

Standard profiles in stock ship within 7–10 business days. Fully custom special profile steel tube orders with new tooling typically require 25–35 days from design approval to dispatch.

Can you produce profiles based on our own CAD drawings?

Absolutely. Our engineering team accepts DXF, DWG, and STEP files. We evaluate feasibility, recommend optimal wall thickness and grade selection, and manufacture trial samples before full production runs.

Get a Competitive Quote for Special Profile Steel Tube

Whether you need elliptical tubes for architectural curtain walls, D-shaped sections for conveyor rail systems, or entirely custom geometries for specialized machinery, our factory-competitive pricing and dedicated technical support ensure your project specifications are met with precision. Contact our sales team today with your drawings or dimensional requirements to receive a detailed quotation within 24 hours.

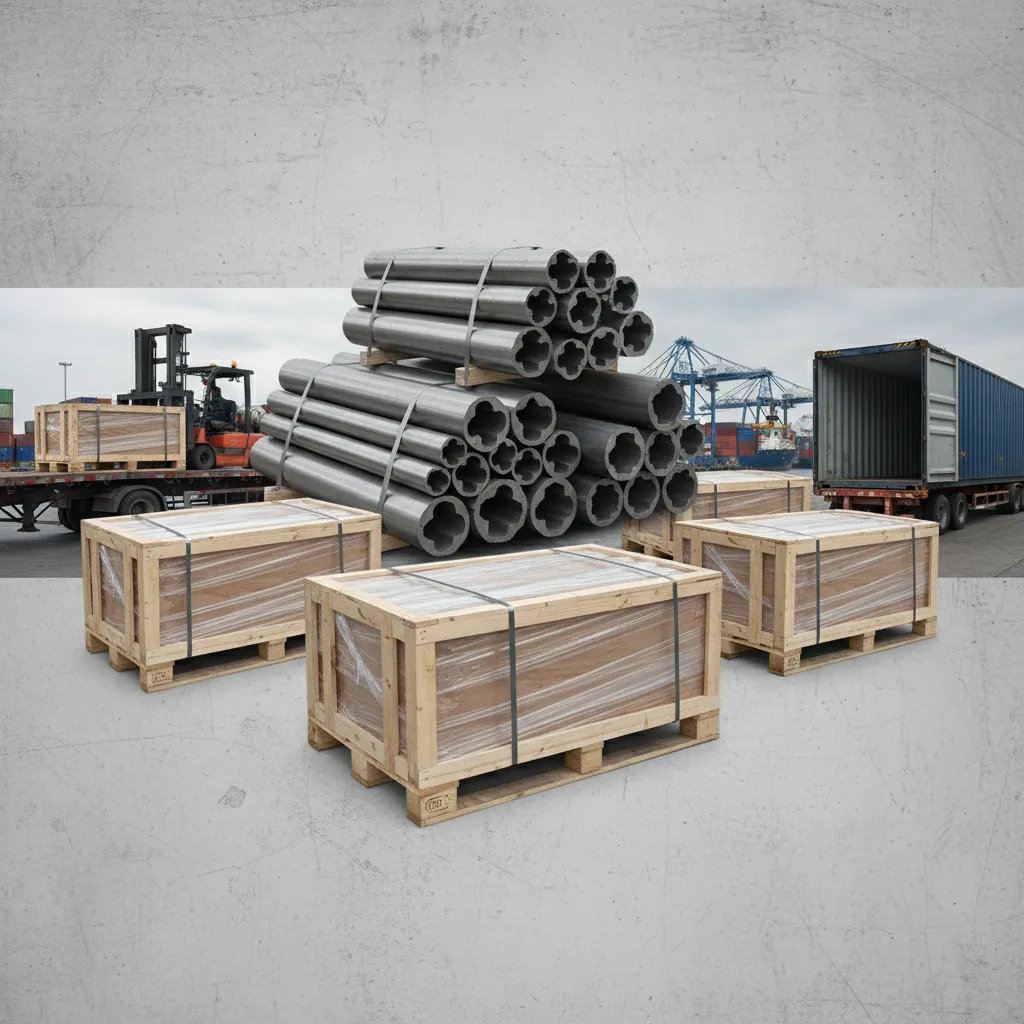

Special profile steel tube wholesale

Special profile steel tube China
