| Property | Parameter | Description |
|---|---|---|
| Product Name | Galvanized Steel Pipe | Hot-dip or pre-galvanized carbon steel pipe |
| Base Material | Q235B / ASTM A53 / SS400 | Carbon steel substrate for galvanizing |
| Standard Compliance | ASTM A53, BS 1387, EN 10255, GB/T 3091 | Meets major international standards |
| Galvanizing Process | Hot-Dip Galvanized / Pre-Galvanized | Zinc coating method for corrosion protection |
| Zinc Coating Thickness | 60 - 550 g/m² | Per ASTM A123 / ISO 1461 requirements |
| Carbon (C) | ≤0.25% | Carbon content per ASTM A53 Grade B |
| Manganese (Mn) | ≤1.35% | Improves strength and hardenability |
| Phosphorus (P) | ≤0.035% | Controlled for ductility |
| Sulfur (S) | ≤0.035% | Low sulfur for improved weldability |
| Tensile Strength | ≥330 MPa | Minimum tensile strength per ASTM A53 |
| Yield Strength | ≥205 MPa | Minimum yield strength |
| Elongation | ≥23% | Ductility in 50mm gauge length |
| OD Range | 21.3mm - 508mm (1/2'' - 20'') | Available outer diameter options |
| Wall Thickness | 1.0mm - 16mm | Standard and custom thickness available |
| Length | 5.8m, 6m, 12m or custom | Standard and custom lengths |
| Surface Finish | Bright silver, smooth zinc coating | Uniform galvanized surface |
| Application | Water supply, scaffolding, fencing, construction | Typical application industries |
| Certification | ISO 9001, EN 10204 3.1, SGS, BV | Quality certifications provided |

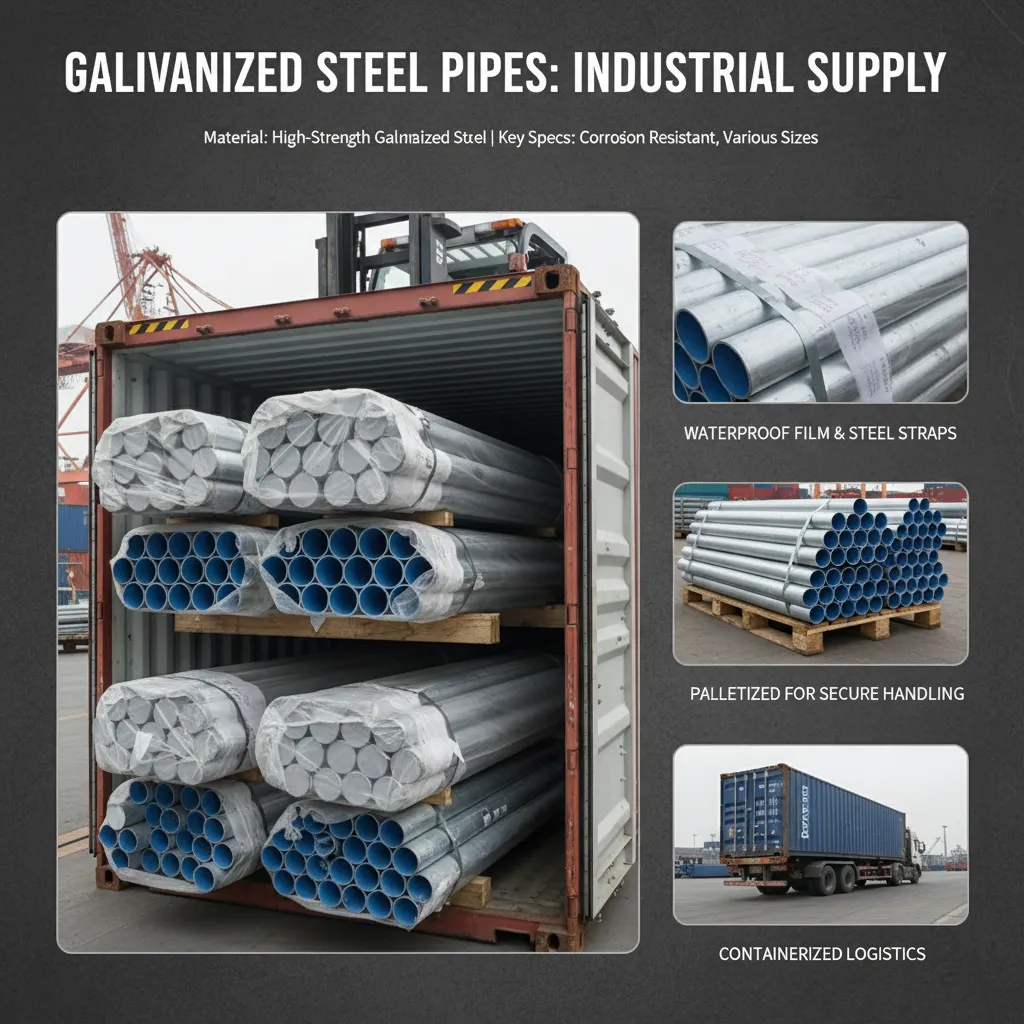

| Packaging | Bundled with steel strips, plastic caps on ends | Standard export packaging |
| MOQ | 5 tons | Minimum order quantity |
Acceptable Galvanized Pipe Quality — Delivery Delay Resolved
Ordered 10 tons of galvanized steel pipe, 76.1mm OD, 4mm wall thickness, BS 1387 medium class, for a fencing and perimeter structure project in Alberta. Product quality itself was acceptable — zinc coating at 305 g/m² and mechanical properties within BS 1387 limits. However, the initial delivery estimate was 10 business days and actual delivery took 17 business days due to a production scheduling issue the supplier cited. The team did notify us of the delay on day 8 and offered expedited shipping on the remaining tonnage, which partially offset the impact on our installation timeline. Mill certificates were complete and accurate. For time-sensitive projects, I would recommend building buffer into the schedule. Quality is adequate; communication during the delay could have been more proactive from the start.
Ordered 10 tons of galvanized steel pipe, 76.1mm OD, 4mm wall thickness, BS 1387 medium class, for a fencing and perimeter structure project in Alberta. Product quality itself was acceptable — zinc coating at 305 g/m² and mechanical properties within BS 1387 limits. However, the initial delivery estimate was 10 business days and actual delivery took 17 business days due to a production scheduling issue the supplier cited. The team did notify us of the delay on day 8 and offered expedited shipping on the remaining tonnage, which partially offset the impact on our installation timeline. Mill certificates were complete and accurate. For time-sensitive projects, I would recommend building buffer into the schedule. Quality is adequate; communication during the delay could have been more proactive from the start.
