Custom Shape Steel Tube - Precision Fabricated Structural Tubing

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

Technical Specifications of Custom Shape Steel Tube

Property	Parameter	Description
Product Name	Custom Shape Steel Tube	Non-standard profile steel tubing in special cross-sections
Material Grade	Q235B / Q345B / ASTM A500 / S235JR / S355JR	Carbon and structural steel grade options
Standard Compliance	ASTM A500, EN 10219, EN 10210, GB/T 6728	Meets major international structural tube standards
Manufacturing Process	Cold Formed / Hot Rolled / Welded (ERW/HFW)	Process selected based on shape complexity
Carbon (C)	≤0.22% (Q345B) / ≤0.26% (A500 Gr.B)	Carbon content for formability and strength
Manganese (Mn)	≤1.60%	Enhances strength and hardenability
Phosphorus (P)	≤0.035%	Controlled for improved ductility
Sulfur (S)	≤0.035%	Low sulfur for better weldability
Silicon (Si)	≤0.35%	Deoxidizer for structural integrity
Tensile Strength	≥400 - 510 MPa	Varies by material grade selected
Yield Strength	≥235 - 345 MPa	Minimum yield per applicable standard
Elongation	≥21%	Ductility in 50mm gauge length

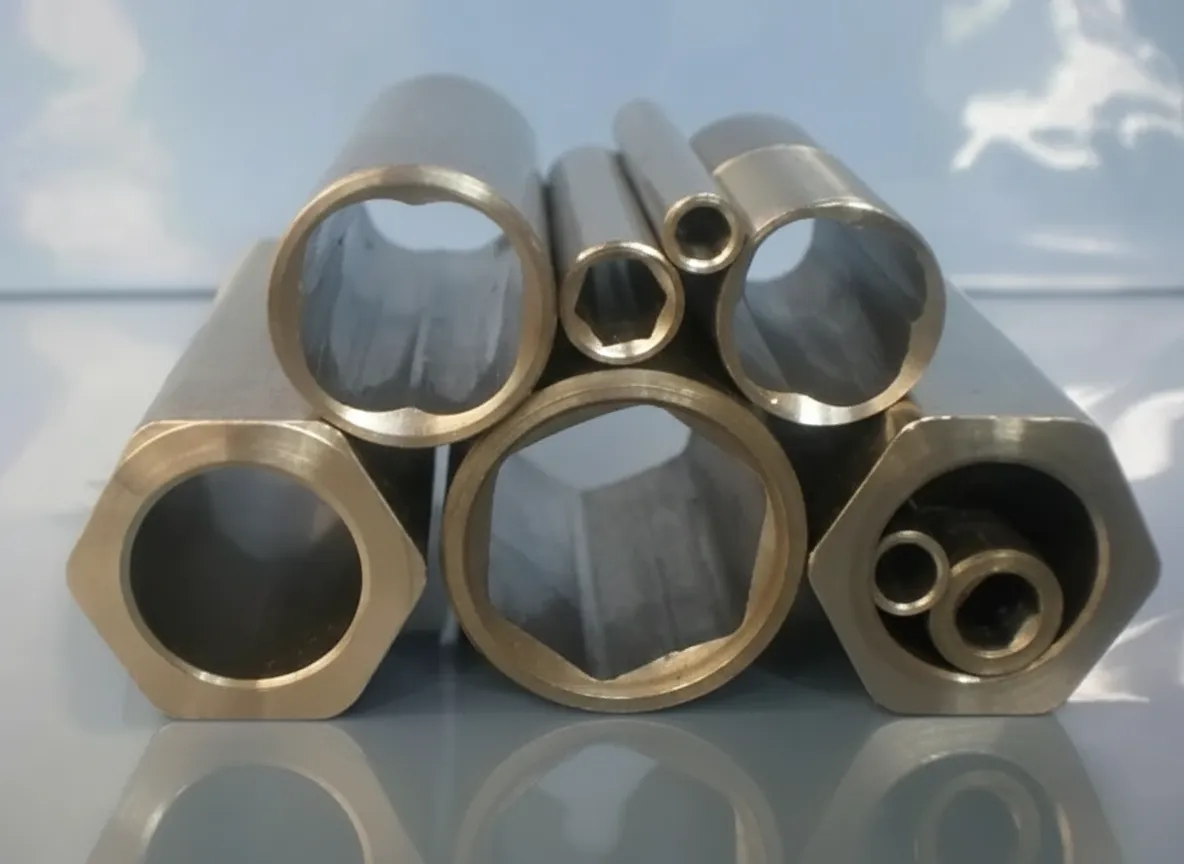

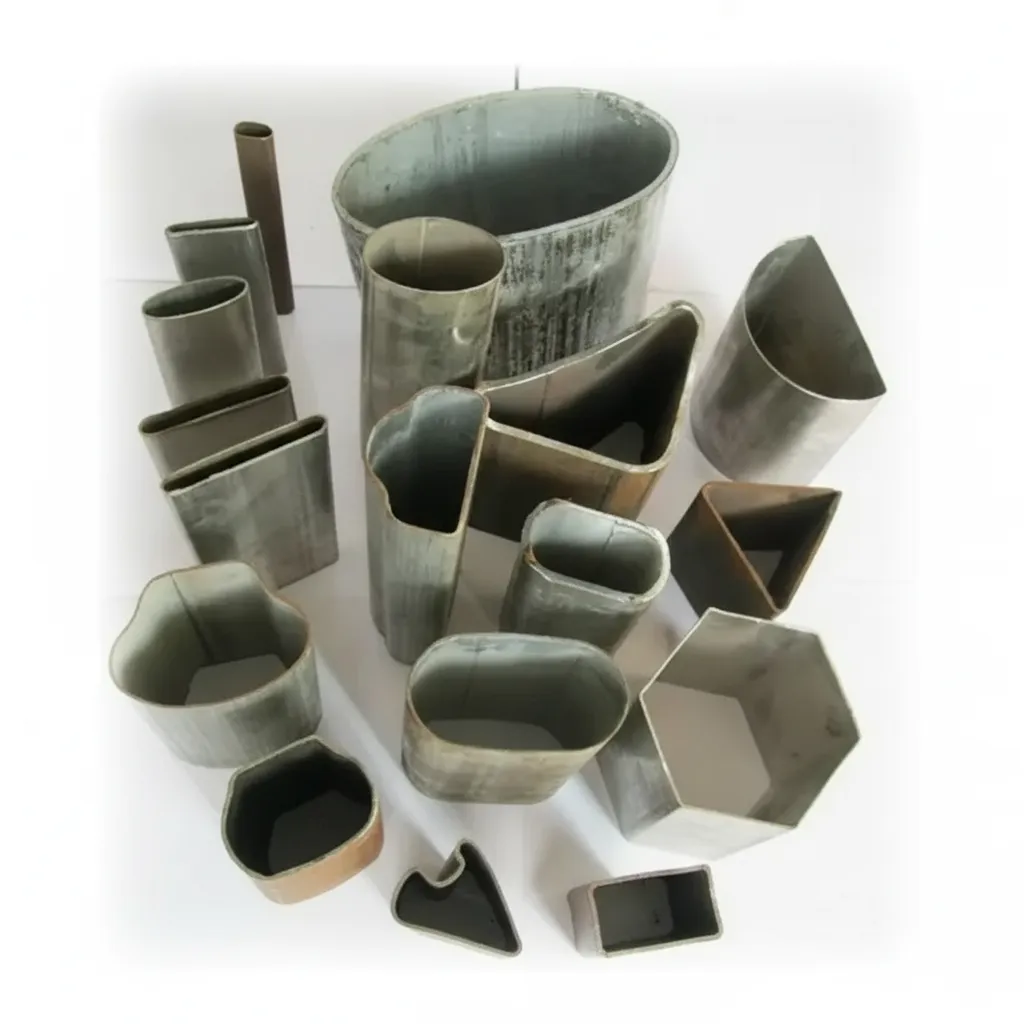

Available Shapes	D-shape, Oval, Triangular, Hexagonal, Flat-sided, Semicircular, Custom profiles	Fully customizable cross-section geometry
Wall Thickness	1.0mm - 25mm	Standard and custom thickness available
Length	5.8m - 12m or custom cut	Standard and custom lengths supported
Surface Finish	Black, Galvanized, Painted, Powder Coated, Polished	Multiple surface treatment options
Application	Architecture, Furniture, Automotive, Machinery, Handrails, Fencing	Typical application industries
Certification	EN 10204 3.1, ISO 9001, SGS, BV	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps, waterproof wrapping	Standard seaworthy export packaging
MOQ	5 tons	Minimum order quantity for custom profiles

Custom Shape Steel Tube - Precision Fabricated Structural Tubing

Custom shape steel tube delivers tailored cross-sectional profiles engineered to meet precise dimensional and structural demands across diverse industrial sectors. Unlike standard round or square tubing, these precision-fabricated sections are produced to unique geometric configurations—including elliptical, triangular, D-shaped, trapezoidal, and other non-standard profiles. Architects, equipment manufacturers, and structural engineers rely on custom shape steel tube to optimize load distribution, reduce material waste, and achieve design flexibility that off-the-shelf sections simply cannot provide.

What Is Custom Shape Steel Tube?

Custom shape steel tube refers to hollow structural sections manufactured with non-standard cross-sectional geometries tailored to specific project requirements. These profiles are formed through cold-drawing, roll-forming, or welded fabrication processes, enabling virtually unlimited shape possibilities while maintaining tight dimensional tolerances typically within ±0.25 mm per ASTM A500/A500M-21.

Custom Shape Steel Tube Technical Specifications

Precision-fabricated custom tubing is produced in a broad range of material grades and dimensional parameters to satisfy demanding engineering applications:

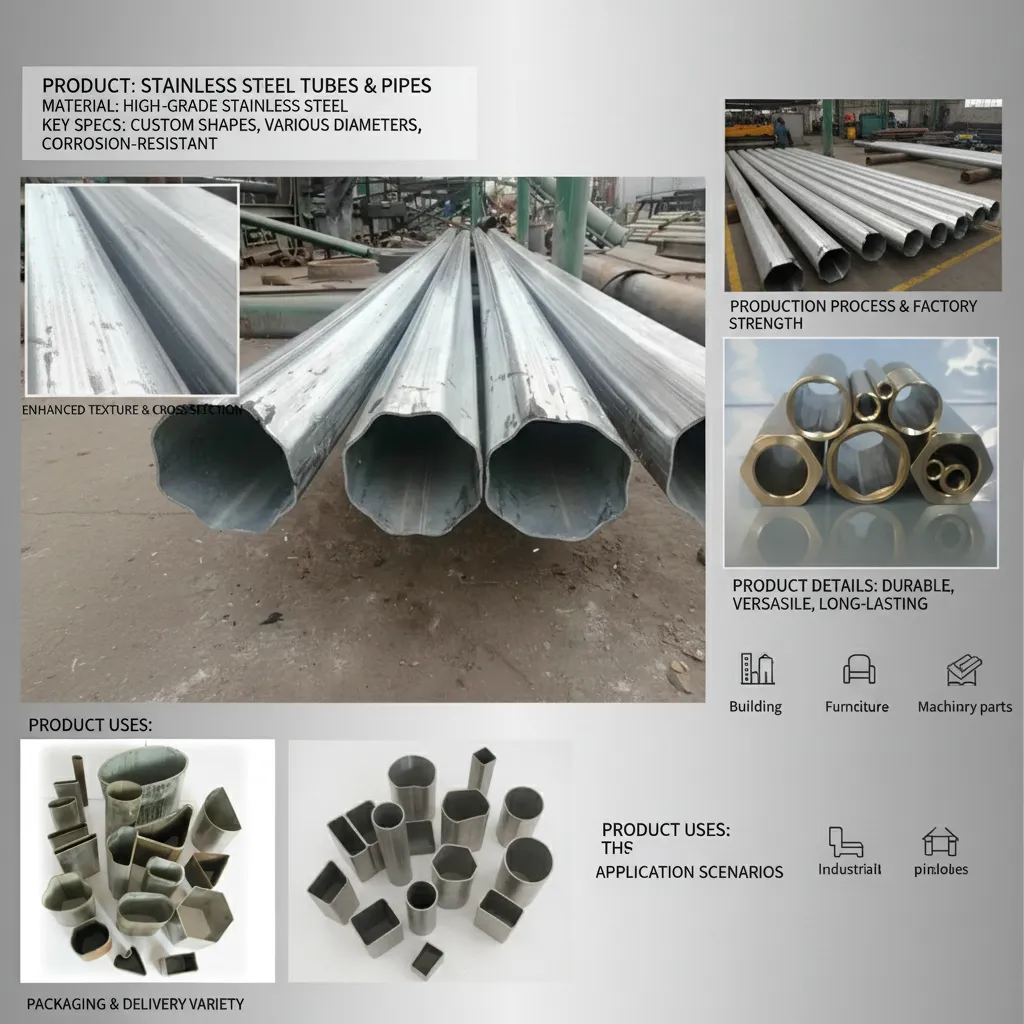

Custom shape steel tube supplier

Parameter	Typical Range
Material Grades	ASTM A500 Gr. B/C, A513, EN 10210 S355J2H, Q345B
Wall Thickness	1.0 mm – 25.0 mm
Outer Dimension	20 mm – 600 mm (profile-dependent)
Yield Strength	290 MPa – 460 MPa minimum per applicable standard
Tensile Strength	400 MPa – 560 MPa minimum
Surface Finish	Hot-rolled black, pickled & oiled, galvanized, powder-coated
Length	Up to 12,000 mm or cut-to-length

All products comply with ASTM A500/A500M-21, EN 10219-1:2006, or GB/T 6728-2017 depending on the target market and end-use application.

Key Applications for Custom Shaped Tubing

Architectural facades & handrails: Elliptical and flat-oval profiles deliver aesthetic appeal with superior structural integrity for curtain wall systems and decorative railings.
Automotive & machinery frames: D-shaped and asymmetric sections serve critical roles in chassis components, reducing weight by up to 15% compared to conventional rectangular tubing.
Agricultural equipment: Triangular and half-round tubes find extensive application in conveyor frames, implement arms, and grain-handling systems.
Furniture & fitness equipment: Ergonomic profiles enable streamlined designs while maintaining load-bearing capacity exceeding 250 kg per joint.

Why Choose Our Custom Shape Steel Tube

With over 15 years of specialized tube fabrication experience, our facility operates advanced cold-draw benches and high-frequency welded (HFW) production lines capable of producing more than 200 unique profile geometries. Every batch ships with EN 10204 Type 3.1 mill test certificates, and our quality management system holds ISO 9001:2015 certification. We maintain factory-competitive pricing through direct mill production, eliminating intermediary markups on custom shaped steel tubing orders.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for custom shape steel tube?

Standard MOQ starts at 5 metric tons per profile. For prototype or trial orders, we accommodate quantities as low as 1 ton with a small-batch processing surcharge.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 mill test certificates covering chemical composition, mechanical properties, and dimensional inspection results.

What is the typical delivery time?

Production lead time ranges from 15 to 30 working days depending on profile complexity and order volume. Expedited scheduling is available for urgent requirements upon confirmation.

Custom shape steel tube wholesale

Can you produce tubing from stainless steel or alloy grades?

Absolutely. Beyond carbon steel, we fabricate custom profiles in 304/316L stainless steel, ASTM A519 4130 alloy, and duplex 2205 grades to suit corrosive or high-temperature service environments.

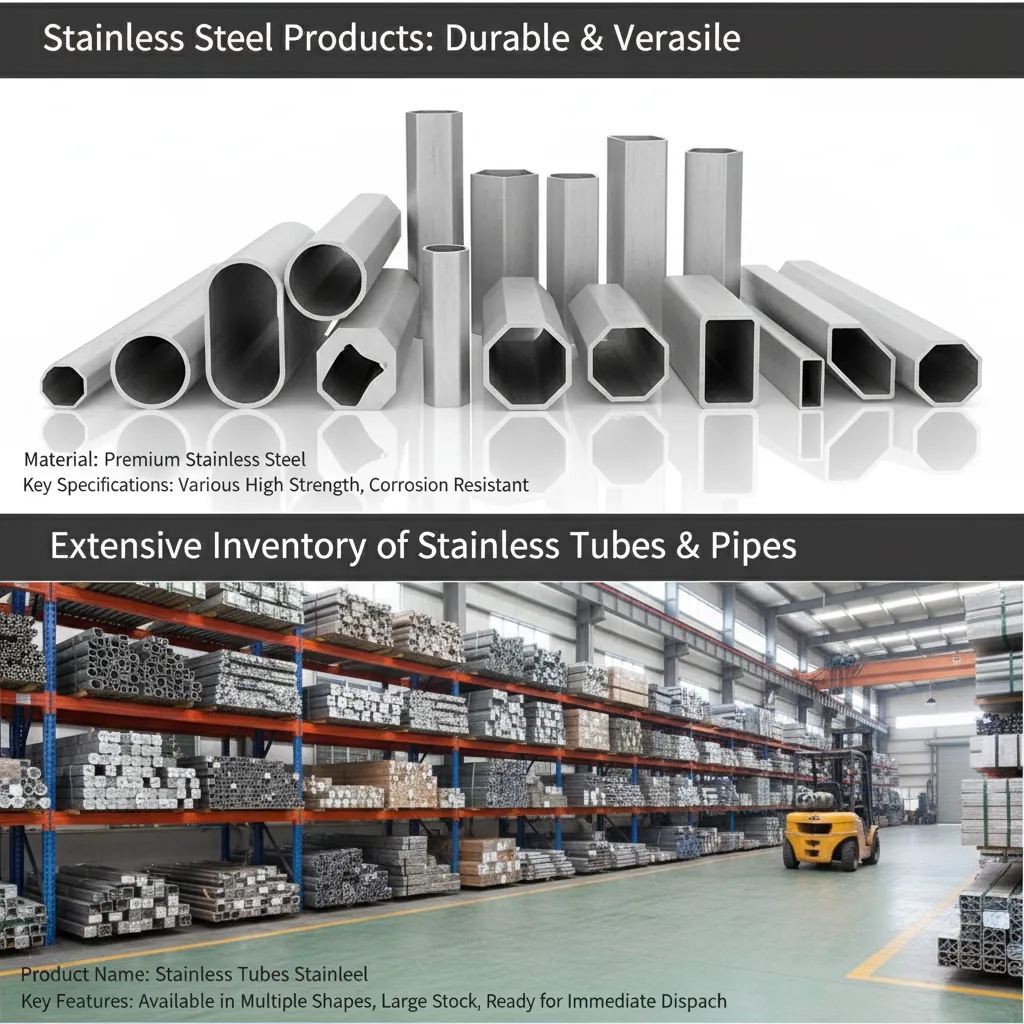

Custom shape steel tube China

Get a Competitive Quote for Custom Shape Steel Tube

Share your profile drawing (DXF/DWG preferred), required material grade, wall thickness, and annual volume. Our engineering team will review your specifications and return a detailed quotation with tooling cost breakdown within 24 hours. Contact us today to start your custom tubing project.
