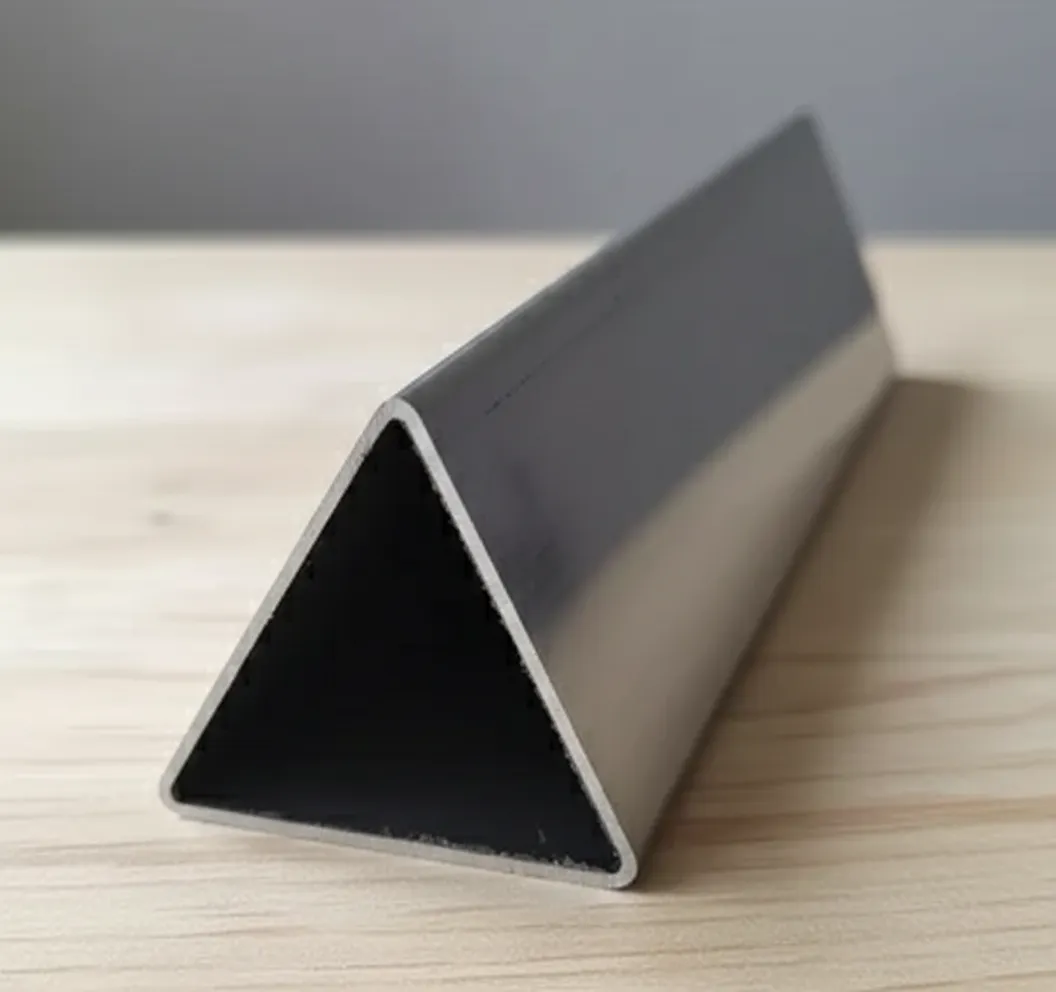

Special shape steel tube image thumbnail

Technical Specifications of Special Shape Steel Tube

Property	Parameter	Description
Product Name	Special Shape Steel Tube	Non-standard cross-section steel tubing for structural and industrial use
Material Grade	Q235B / Q345B / ASTM A500 / S235JRH / S355J2H	Multiple carbon and low-alloy steel grades available
Standard Compliance	ASTM A500, EN 10219, EN 10210, GB/T 6728, JIS G3466	Meets major international hollow section standards
Manufacturing Process	Cold Formed / Hot Formed / Welded (ERW)	Process selected based on shape complexity and wall thickness
Carbon (C)	≤0.26%	Carbon content per ASTM A500 Grade B
Manganese (Mn)	≤1.60%	Enhances strength and hardenability
Phosphorus (P)	≤0.035%	Controlled for improved ductility
Sulfur (S)	≤0.035%	Low sulfur for better weldability
Tensile Strength	≥400 - 580 MPa	Varies by material grade and standard
Yield Strength	≥235 - 355 MPa	Minimum yield strength depending on grade
Elongation	≥20%	Ductility in 50mm gauge length
Available Shapes	Elliptical, D-shape, Hexagonal, Triangular, Trapezoidal, Half-round, Flat-sided Oval	Custom profiles manufactured per drawing
Dimension Range	20mm - 500mm (max cross-section)	Outer dimension varies by profile type
Wall Thickness	0.5mm - 20mm	Standard and custom wall thickness options
Length	5.8m - 12m or custom	Standard and custom cut lengths available
Surface Finish	Black, Galvanized, Painted, Powder Coated, Polished	Multiple surface treatment options for corrosion protection
Application	Architecture, Furniture, Automotive, Machinery, Handrails, Greenhouse	Wide range of structural and decorative applications
Certification	EN 10204 3.1, ISO 9001, SGS, BV	Quality certifications and third-party inspection available
Packaging	Bundled with steel strips, plastic caps, waterproof wrapping	Standard seaworthy export packaging
MOQ	5 tons	Minimum order quantity, smaller qty negotiable for custom shapes

Special Shape Steel Tube - Custom Profiles for Industrial Applications

Special shape steel tube refers to non-standard hollow steel sections manufactured with irregular or customized cross-sectional geometries beyond conventional round, square, and rectangular profiles. These engineered profiles — including elliptical, triangular, hexagonal, D-shaped, flat-sided oval, and other bespoke configurations — serve critical roles in architectural facades, automotive chassis components, machinery frames, and specialized structural assemblies where standard tube profiles cannot meet precise design or functional requirements. With carbon content typically ranging from 0.08% to 0.25% depending on grade selection, these tubes deliver a unique combination of structural efficiency and design flexibility for industrial buyers and project engineers worldwide.

Special shape steel tube supplier

What Is Special Shape Steel Tube?

A special shape steel tube is a hollow steel section produced with a non-standard cross-sectional profile through cold drawing, cold rolling, or custom die forming processes. Unlike conventional round or rectangular tubes manufactured to uniform dimensional series, these profiles are engineered to match specific load-bearing, space-constraint, or aesthetic requirements defined by the end application.

Special Shape Steel Tube Technical Specifications

Custom profile steel tubes are typically manufactured according to EN 10219-1:2006 for cold-formed welded sections or ASTM A500/A500M-21 for carbon steel structural tubing. Common base materials include Q235B, Q345B, S235JRH, S355J2H, and ASTM A500 Grade B/C. Wall thickness ranges from 0.5 mm to 20 mm, with outer dimension tolerances held within ±0.5 mm for precision cold-drawn profiles. Tensile strength varies by grade — for example, ASTM A500 Grade C provides a minimum yield strength of 345 MPa and minimum tensile strength of 427 MPa.

Special shape steel tube wholesale

Parameter	Range / Value
Available Profiles	Elliptical, D-shape, hexagonal, triangular, flat oval, semi-round, custom
Wall Thickness	0.5 mm – 20 mm
Length	1,000 mm – 12,000 mm (custom lengths available)
Surface Finish	Black, galvanized, painted, polished
Material Grades	Q235B, Q345B, S355J2H, ASTM A500 Gr.B/C, SS304/316
Dimensional Tolerance	±0.5 mm (cold-drawn), ±1.0 mm (welded)

Key Advantages of Custom Profile Steel Tubes

Optimized structural efficiency: Tailored cross-sections distribute loads more effectively, reducing overall material weight by up to 15–30% compared to standard sections in equivalent applications.
Design integration: Non-standard geometries allow seamless integration into architectural cladding systems, furniture frames, and vehicle body structures without secondary machining.
Consistent dimensional accuracy: Precision cold-drawing processes ensure repeatable tolerances within ±0.5 mm across full production runs.
Broad material compatibility: Available in carbon steel, stainless steel (304, 316L), and alloy steel to match corrosive, high-temperature, or hygienic environments.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for special shape steel tubes?

MOQ typically starts at 2 metric tons for standard profile shapes. For fully custom die-formed sections, a minimum of 5 metric tons per profile is generally required to offset tooling costs.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 mill test certificates documenting chemical composition, mechanical properties, and dimensional inspection results traceable to the production heat number.

Special shape steel tube China

What is the typical delivery time?

Standard stocked profiles ship within 7–10 business days. Custom-designed special shape steel tube orders require 25–35 days, including die fabrication, production, and quality inspection.

Can you produce fully custom cross-sectional profiles?

Absolutely. Our engineering team develops custom dies based on client-supplied drawings or CAD files. Prototype samples are available for dimensional and fit verification before full-scale manufacturing begins.

Get a Competitive Quote for Special Shape Steel Tube

Whether your project demands elliptical tubes for architectural features or D-shaped profiles for machinery guards, our mill-direct supply chain delivers factory-competitive pricing with reliable lead times. Contact our technical sales team today with your drawings, required material grade, and target quantities to receive a detailed quotation within 24 hours.
