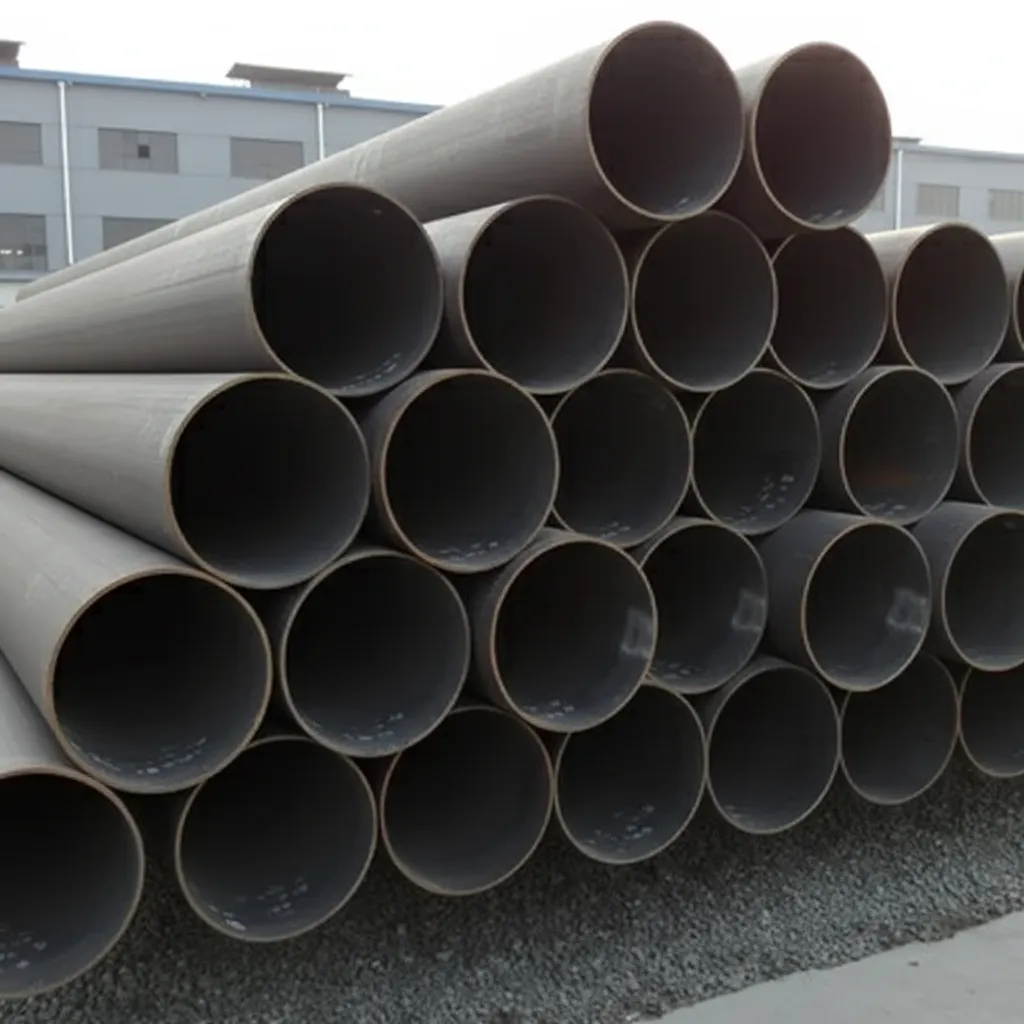

High Pressure Carbon Steel Pipe - Durable Industrial Grade

Kuaima Steel Co., Ltd.

Verified Custom manufacturer · 7 yrs ·

China

Customizable Rock-bottom price

$950 1-49 ton Base price

$905 50-99 ton 4.7% off

$885 ≥100 ton 6.8% off

Price validity: subject to market conditions

Supplier's customization ability

Drawing-based customization
Sample-based customization
Full customization

Quantity

Minimum order quantity: 1 ton

Shipping total: To be negotiated

Subtotal of goods US$ 950.00

Start order request

Payment and delivery

Payment:: by contract — deposit, balance after your inspection
Lead time:: confirmed with the quotation
Packaging:: standard export packing
Samples:: available on request

Product details

Technical Specifications of High Pressure Carbon Steel Pipe

Property	Parameter	Description
Product Name	High Pressure Carbon Steel Pipe	Seamless carbon steel pipe for high pressure service
Material Grade	ASTM A106 Grade B / ASTM A53 Grade B / API 5L Grade B	International grade equivalents for high pressure applications
Standard Compliance	ASTM A106, ASME SA106, API 5L, ASTM A53	Meets major international high pressure piping standards
Manufacturing Process	Hot Rolled Seamless	Seamless process ensures uniform wall thickness and pressure integrity
Carbon (C)	≤0.30%	Carbon content for high temperature strength
Manganese (Mn)	0.29-1.06%	Improves hardenability and tensile strength
Phosphorus (P)	≤0.035%	Controlled for ductility and toughness
Sulfur (S)	≤0.035%	Low sulfur for improved weldability
Silicon (Si)	≥0.10%	Deoxidizer and strength enhancer
Tensile Strength	≥415 MPa	Minimum tensile strength per ASTM A106 Grade B
Yield Strength	≥240 MPa	Minimum yield strength for high pressure resistance
Elongation	≥30%	Ductility in 50mm gauge length
OD Range	21.3mm - 914mm (1/2'' - 36'')	Available outer diameter options
Wall Thickness	2.11mm - 59.54mm (SCH 40 - SCH XXS)	Standard and extra heavy wall schedules
Length	5.8m - 12m or custom	Single random, double random, or cut-to-length
Pressure Rating	Up to 42 MPa (6000 PSI)	Depending on OD, wall thickness, and temperature
Service Temperature	-29°C to 450°C	Suitable for high temperature and high pressure environments
Application	Oil & gas, power plants, boilers, petrochemical, hydraulic systems	Typical high pressure service industries
Certification	EN 10204 3.1, ISO 9001, API 5L, PED 2014/68/EU	Quality and pressure equipment certifications
MOQ	5 tons	Minimum order quantity

High Pressure Carbon Steel Pipe - Durable Industrial Grade

High pressure carbon steel pipe is an essential piping solution engineered to transport fluids and gases under elevated pressure conditions across demanding industrial environments. Manufactured from carbon steel grades with controlled chemical compositions, these pipes deliver exceptional mechanical strength, thermal stability, and long service life. They serve critical roles in power generation, petrochemical processing, oil and gas transmission, and boiler systems where reliable performance under sustained pressure is non-negotiable. Our mill-direct supply ensures factory-competitive pricing with full traceability on every shipment.

What Is High Pressure Carbon Steel Pipe?

High pressure carbon steel pipe refers to seamless or welded steel tubing specifically designed to withstand internal pressures exceeding 1,600 psi (11 MPa). These pipes are produced from carbon steel with a carbon content typically ranging from 0.10% to 0.30%, combined with manganese and silicon for enhanced tensile properties. They are manufactured according to ASTM A106/A106M, ASTM A53 Grade B, and API 5L PSL2 specifications to ensure consistent wall thickness, dimensional accuracy, and pressure-bearing capacity.

High Pressure Carbon Steel Pipe Technical Specifications

Our carbon steel pipes for high pressure service conform to the following technical parameters:

Property	Specification
Standards	ASTM A106 Grade B/C, ASTM A53 Grade B, API 5L X42–X70, EN 10216-2
Outer Diameter	21.3 mm – 610 mm (1/2" – 24")
Wall Thickness	SCH 40, SCH 80, SCH 120, SCH 160, XXS
Tensile Strength	≥ 415 MPa (Grade B) / ≥ 485 MPa (Grade C) per ASTM A106
Yield Strength	≥ 240 MPa (Grade B) / ≥ 275 MPa (Grade C)
Operating Temperature	-29°C to 425°C continuous service
Manufacturing Process	Hot-rolled seamless (primary), ERW for select sizes
Surface Treatment	Black paint, varnish, oil coating, or galvanized per request

Key Applications of High Pressure Carbon Steel Pipe

Power Plants & Boiler Systems: Superheater tubes and steam transfer lines operating at pressures up to 4,000 psi and temperatures reaching 425°C
Oil & Gas Transmission: Upstream gathering lines and downstream refinery piping compliant with API 5L PSL2 requirements
Petrochemical Processing: Reactor feed lines, heat exchanger connections, and process piping handling hydrocarbons under sustained pressure
Hydraulic Systems: Precision-bore tubing for industrial hydraulic circuits demanding burst resistance and dimensional consistency

Why Choose Our High Pressure Carbon Steel Pipe

Every pipe undergoes hydrostatic testing at 1.5× the rated working pressure per ASTM A530 Section 11, along with non-destructive examination including ultrasonic testing (UT) to ASTM E213. We maintain ISO 9001:2015 certified production with full material traceability from billet to finished product. For applications requiring different corrosion performance, consider our stainless steel seamless pipe or alloy steel pipe options.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 1 metric ton for common sizes (2"–12", SCH 80). For non-standard dimensions or heavier wall thicknesses, we accept orders starting from 2 metric tons.

High pressure carbon steel pipe supplier

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 Mill Test Certificates documenting chemical composition, mechanical properties, hydrostatic test results, and NDE reports.

High pressure carbon steel pipe wholesale

What is the typical delivery time?

Stock items in standard sizes ship within 7–10 business days. Custom orders including special wall thicknesses or non-standard lengths require 25–35 days from order confirmation.

Can you cut to custom sizes?

Absolutely. We offer precision cutting to specified lengths with tolerances of ±1 mm, along with beveling, threading, and groove preparation for field welding per ASME B16.25.

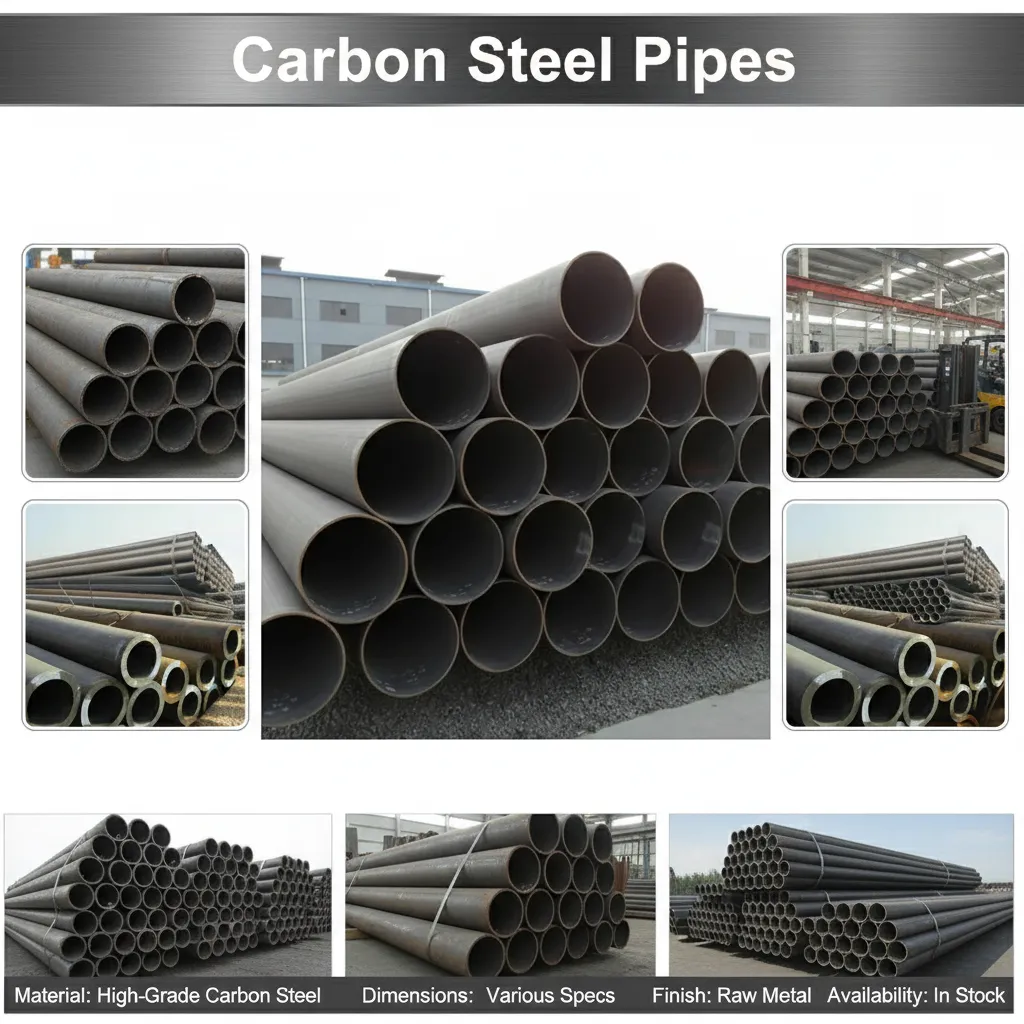

High pressure carbon steel pipe China

Get a Competitive Quote for High Pressure Carbon Steel Pipe

Ready to source premium-grade high pressure carbon steel pipe at mill-direct rates? Contact our technical sales team with your specifications—including pipe size, schedule, grade, quantity, and required certifications—and receive a detailed quotation within 24 hours. We support FOB, CIF, and CFR shipping terms to ports worldwide.

Ratings & Reviews

4.5

Based on 8 reviews

5 5

4 2

3 1

2 0

1 0

Wei Chen

Singapore

2025-09-01

Acceptable Quality Carbon Steel Pipe — Documentation Issue Resolved

Ordered 5 tons of API 5L X42 seamless pipe, 2-inch OD, SCH 80, for a downstream distribution project in Southeast Asia. Pipe dimensions and mechanical properties were within specification — yield strength confirmed at 312 MPa against the 290 MPa minimum. However, the initial shipment documentation was missing the NDE summary report, which caused a two-day delay in our client's incoming inspection process. After contacting the technical team, the complete ASTM E213 UT records were emailed within four hours and the issue was closed. Delivery itself arrived in 10 business days as quoted for stock items. Pricing was fair compared to three other Singapore-based trading quotes. The documentation gap was a concern for a first order, but the responsive handling gives us confidence to trial a second order with a clear upfront checklist.

Chris Martin

Canada

2025-09-15

Excellent High-Pressure Seamless Pipe for Cold-Climate Power Generation

Sourced 20 tons of ASTM A106 Grade B seamless pipe, 6-inch OD, SCH 80, for a combined heat and power plant in Alberta operating in temperatures as low as -25°C ambient. The confirmed lower service temperature rating of -29°C continuous gave our engineering team the design margin required. Tensile strength reported on the 3.1 mill certificates averaged 447 MPa across three heats — consistently above the 415 MPa minimum. Hydrostatic test documentation and ultrasonic NDE reports were complete and audit-ready, which our project owner's inspector reviewed and accepted without comment. Black paint coating was uniform and well-adhered, appropriate for our insulated piping system. Stock items shipped within 8 business days on CFR terms to Vancouver. This is our fourth order with this supplier over 18 months — quality and documentation consistency have been maintained throughout.

Carlos Silva

Brazil

2025-10-04

Reliable A53 Grade B Pipe for Refinery Piping Upgrade

We purchased 10 tons of ASTM A53 Grade B ERW pipe, 1.5-inch to 4-inch mixed sizes, SCH 80, for a refinery piping replacement project in São Paulo state. Pricing was competitive versus domestic Brazilian mill supply, and the CIF Santos shipping terms simplified our import logistics. EN 10204 3.1 certificates were provided for each heat and covered chemical composition and mechanical properties as required by our project specification. All pipes passed our incoming inspection for straightness and end squareness. Delivery came in at 34 days — just within the 25–35 day quoted window, though we had hoped for slightly faster turnaround. Overall a dependable supplier for standard refinery piping grades. We are evaluating a follow-on order for the Phase 2 heat exchanger piping scope.
