Stainless Steel Flat Bar - Durable Metal Strips for Industrial Use

Stainless steel flat bar represents a versatile metal product characterized by its rectangular cross-section and uniform thickness, extensively employed across manufacturing, construction, and engineering sectors. This premium-grade material delivers exceptional corrosion resistance, superior mechanical strength, and outstanding formability, making it the preferred choice for applications demanding long-term durability and structural integrity. Fabricators, contractors, and industrial manufacturers rely on these metal strips for projects ranging from architectural frameworks to precision machinery components, where reliability and performance are non-negotiable requirements.

What is Stainless Steel Flat Bar?

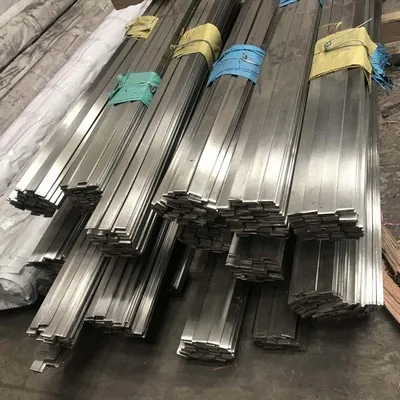

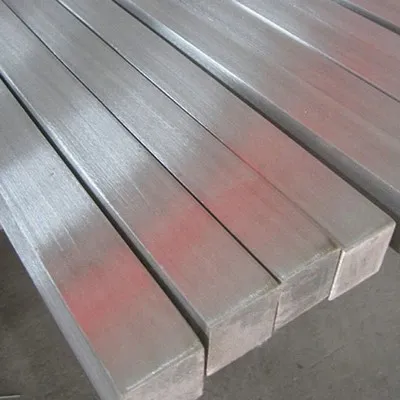

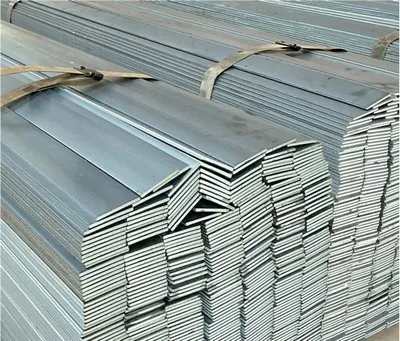

A stainless steel flat bar is a solid metal product with a flat rectangular profile, manufactured through hot rolling or cold drawing processes to achieve precise dimensional tolerances. These bars feature uniform thickness ranging from 3mm to 100mm and widths extending from 10mm to 300mm, with lengths customizable to project specifications. The material composition includes chromium content of 10.5% minimum, which forms a passive oxide layer providing inherent corrosion protection. Common grades such as 304, 316L, and 430 offer varying levels of chemical resistance, temperature stability, and mechanical properties, allowing engineers to select optimal specifications for specific environmental conditions and load-bearing requirements.

Stainless Steel Flat Bar Technical Specifications

Premium stainless steel flat bars comply with ASTM A276/A276M-17 standards for dimensional accuracy and material composition. Grade 304 exhibits tensile strength of 515 MPa minimum with yield strength of 205 MPa, while maintaining elongation of 40% in 50mm gauge length per ASTM A240 Section 6. The material density measures 7.93 g/cm³ at 20°C, with thermal conductivity of 16.2 W/m·K. Surface finishes include hot-rolled black scale (mill finish), pickled and passivated (2B finish), or polished grades (BA/mirror finish) depending on application requirements. Carbon content remains limited to 0.08% maximum for standard 304 grade, ensuring optimal welding characteristics without carbide precipitation concerns.

Key Advantages of Stainless Steel Flat Bar

These metal strips deliver outstanding anti-corrosion properties, maintaining structural integrity in marine environments, chemical processing facilities, and outdoor installations where conventional carbon steel would rapidly deteriorate. The material exhibits excellent welding characteristics across TIG, MIG, and resistance welding processes, enabling seamless fabrication without pre-heating or post-weld heat treatment in most applications. Superior formability allows cold bending, shearing, and punching operations without cracking or surface damage, reducing manufacturing costs and production time. The non-magnetic properties of austenitic grades like 304 and 316L make these bars ideal for electronic enclosures and medical equipment where magnetic interference must be eliminated.

Common Applications and Industry Uses

Architectural applications include handrails, balustrades, and decorative trim where aesthetic appeal combines with weather resistance. Manufacturing sectors employ these bars for conveyor frames, machine guards, and equipment brackets requiring sanitary surfaces and chemical resistance. Food processing facilities specify these materials for work tables, shelving systems, and equipment supports complying with FDA and USDA sanitation standards. Marine applications encompass boat fittings, deck hardware, and structural components exposed to saltwater environments. The automotive industry utilizes precision-ground flat bars for suspension components, exhaust systems, and trim elements demanding corrosion protection and dimensional stability.

Material Grades and Selection Guidance

Grade 304 serves as the industry standard for general-purpose applications, offering cost-effective performance in mildly corrosive environments with temperatures up to 870°C intermittent service. For enhanced chemical resistance and superior performance in chloride-rich environments, Grade 316L incorporates 2-3% molybdenum content, providing exceptional resistance to pitting and crevice corrosion per ASTM A240. High-temperature applications requiring oxidation resistance up to 1150°C benefit from Grade 310S, containing 24-26% chromium and 19-22% nickel for furnace components and heat treatment fixtures. Ferritic Grade 430 offers magnetic properties and cost advantages for decorative applications with limited corrosion exposure, maintaining chromium content of 16-18% without nickel additions.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity starts at 500 kilograms per specification, though we accommodate smaller quantities for prototype development and sample evaluation. Volume orders exceeding 5 metric tons qualify for mill-direct pricing with optimized lead times. Custom sizes and specialized grades may require higher MOQ based on production run economics and material availability from our certified mill partners.

Do you provide material test certificates?

Every shipment includes comprehensive Mill Test Certificates (MTC) per EN 10204 3.1 standards, documenting chemical composition analysis, mechanical property test results, and heat number traceability. Certificates verify compliance with specified ASTM, EN, or JIS standards through independent laboratory testing. Third-party inspection services from SGS, Bureau Veritas, or TUV can be arranged for critical applications requiring additional verification protocols.

What is the typical delivery time?

Standard grade materials in common dimensions ship within 7-10 business days from our regional distribution centers maintaining ready stock. Custom sizes requiring mill production typically deliver within 4-6 weeks depending on specification complexity and current production schedules. Expedited processing options are available for urgent project requirements, with premium logistics coordination ensuring on-time delivery to your facility or job site.

Can you cut to custom sizes?

Our precision cutting services accommodate length tolerances of ±1mm using advanced shearing equipment and laser cutting technology for complex profiles. Width modifications, edge beveling, and hole drilling services are available to reduce your secondary processing requirements. Custom length cutting incurs minimal additional cost compared to standard 6-meter stock lengths, with cut-to-length pieces packaged to prevent handling damage during shipment.

Get a Competitive Quote for Stainless Steel Flat Bar

Our technical sales team provides comprehensive support from material selection through delivery logistics, ensuring you receive optimal specifications for your application requirements. We maintain strategic partnerships with ISO 9001:2015 certified mills, guaranteeing consistent quality and competitive factory-direct pricing for both standard and custom orders. Request detailed quotations including material certifications, dimensional tolerances, and surface finish options tailored to your project specifications. Our customer service professionals respond to inquiries with technical recommendations and accurate pricing within one business day.
