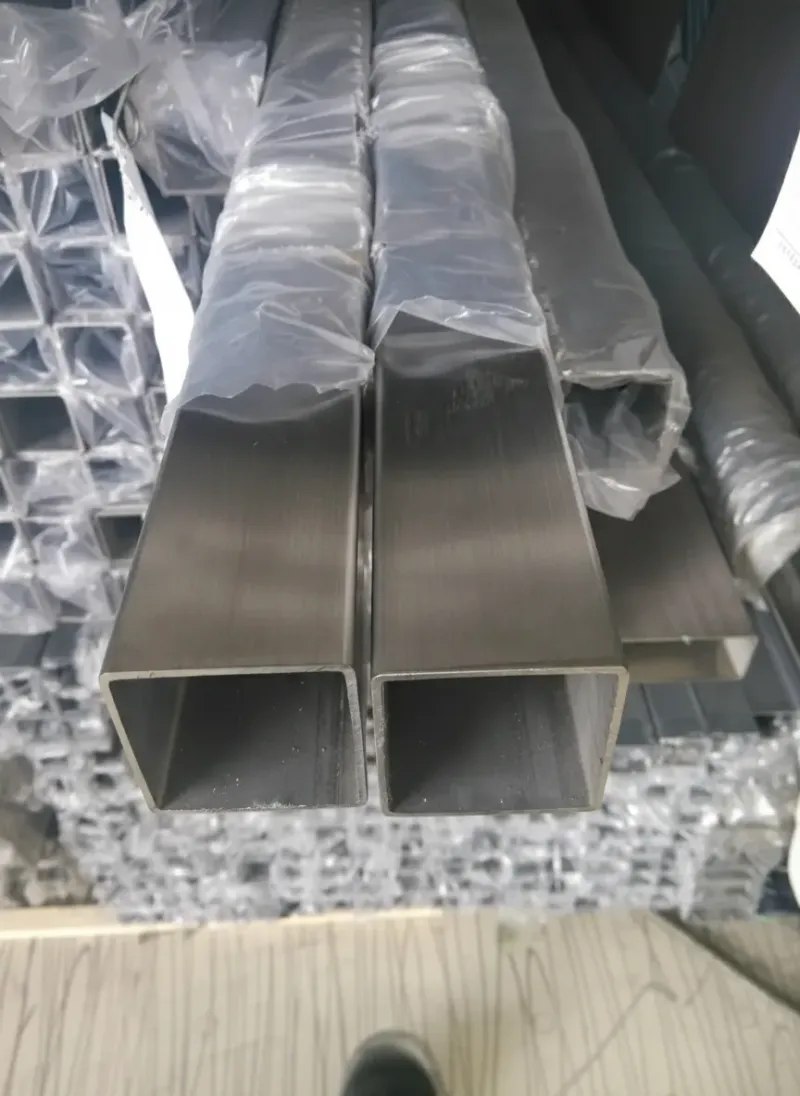

Stainless Steel Square Tube - Precision Welded, ASTM A554, 304/316 Grade

Technical Specifications of Stainless Steel Square Tube

Stainless Steel Square Tube - Precision Welded, ASTM A554, 304/316 Grade

Stainless steel square tube represents a cornerstone structural component in modern industrial and architectural applications, combining superior corrosion resistance with exceptional mechanical strength. Manufactured through precision welding processes and conforming to ASTM A554 specifications, these hollow sections serve critical roles in construction frameworks, decorative installations, and mechanical systems. Available in premium 304 and 316 grades, our mill-direct square tubes deliver cost-effective solutions for engineers, fabricators, and contractors seeking reliable performance in both corrosive and high-stress environments.

What is Stainless Steel Square Tube?

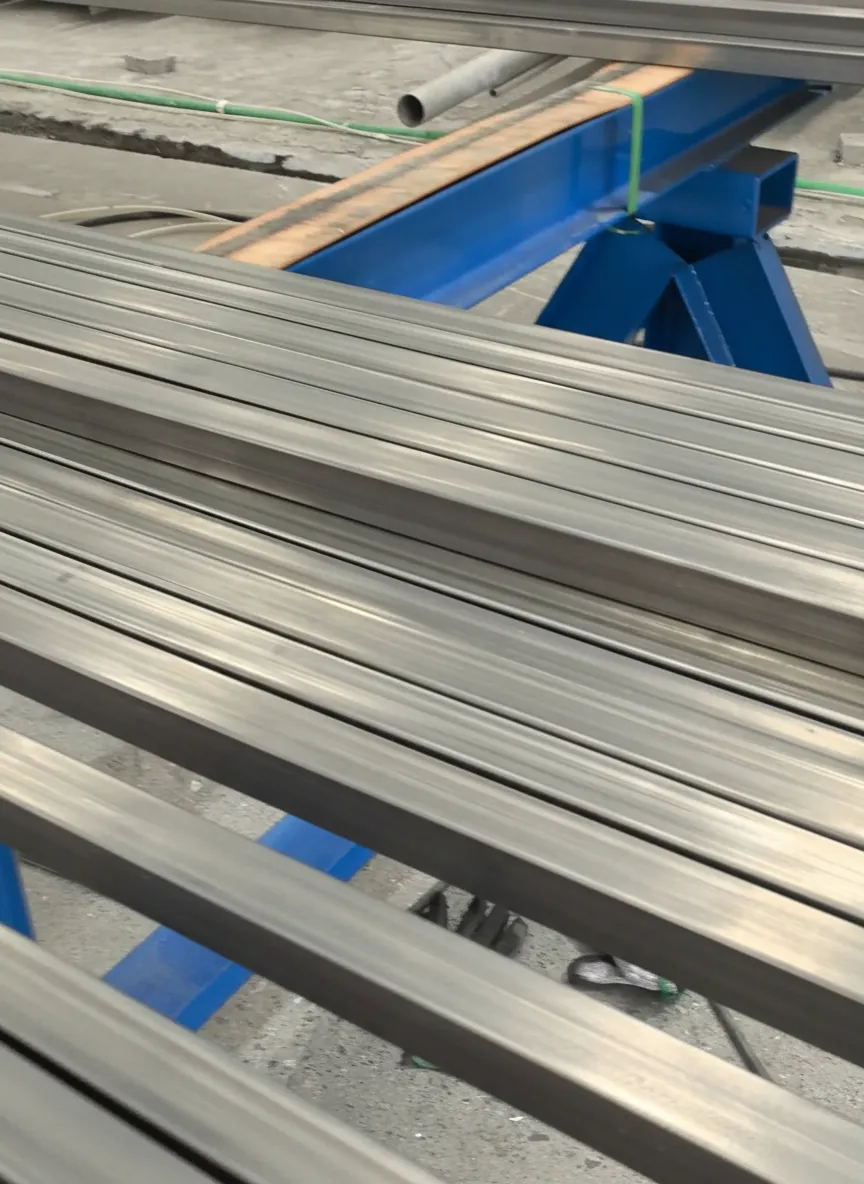

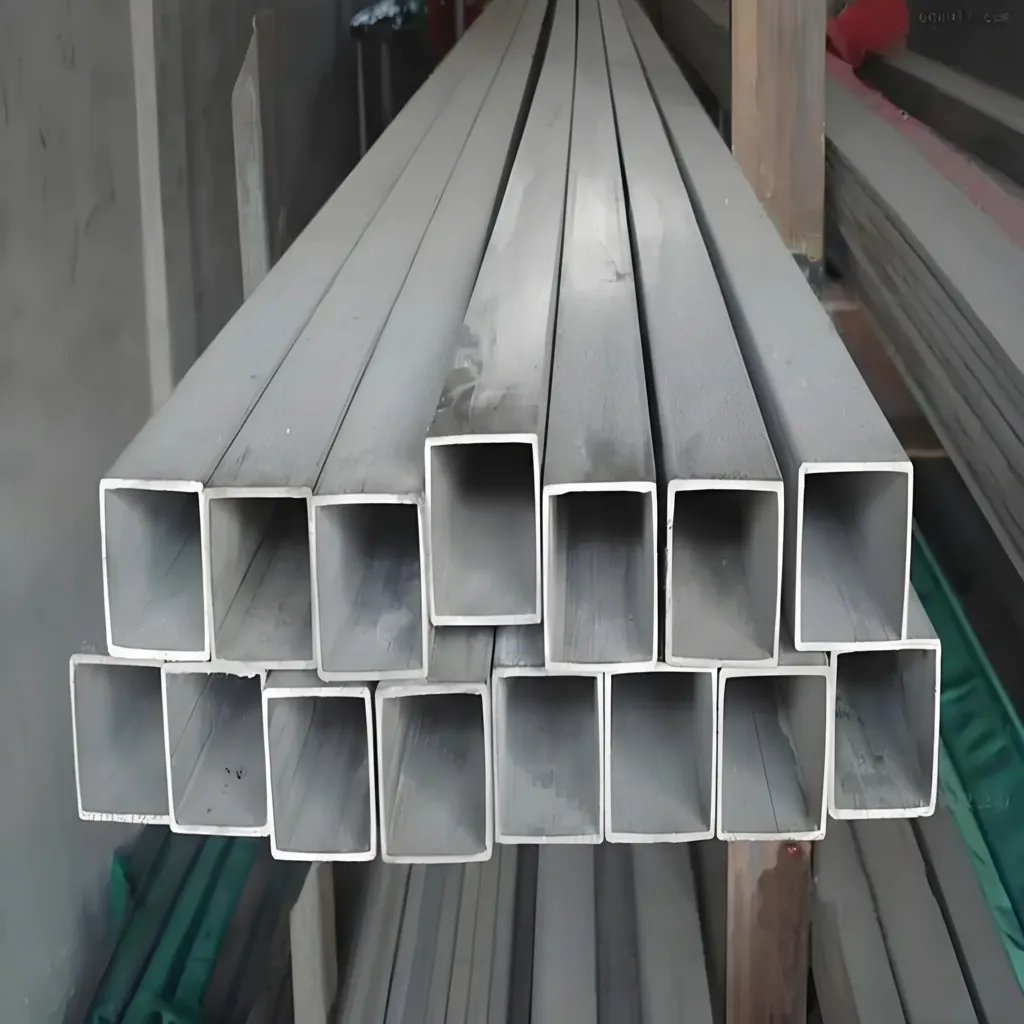

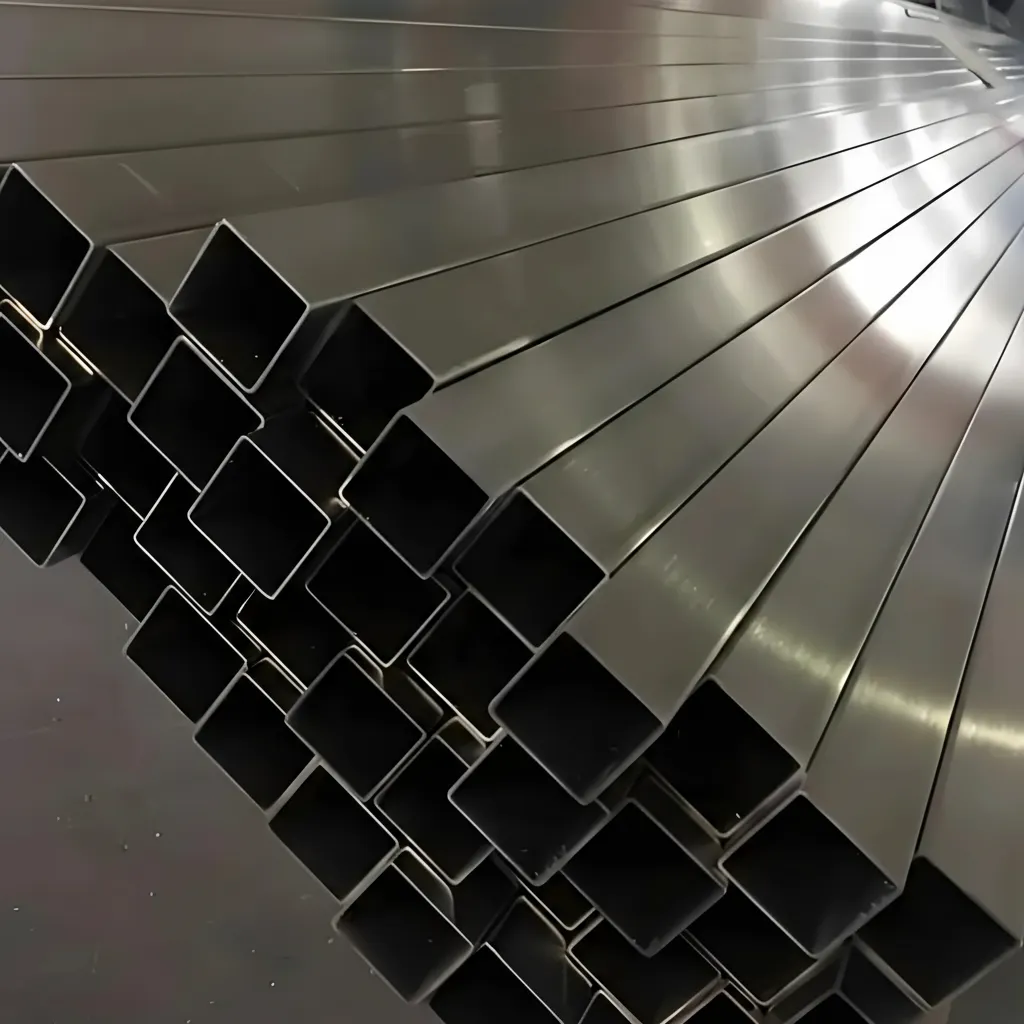

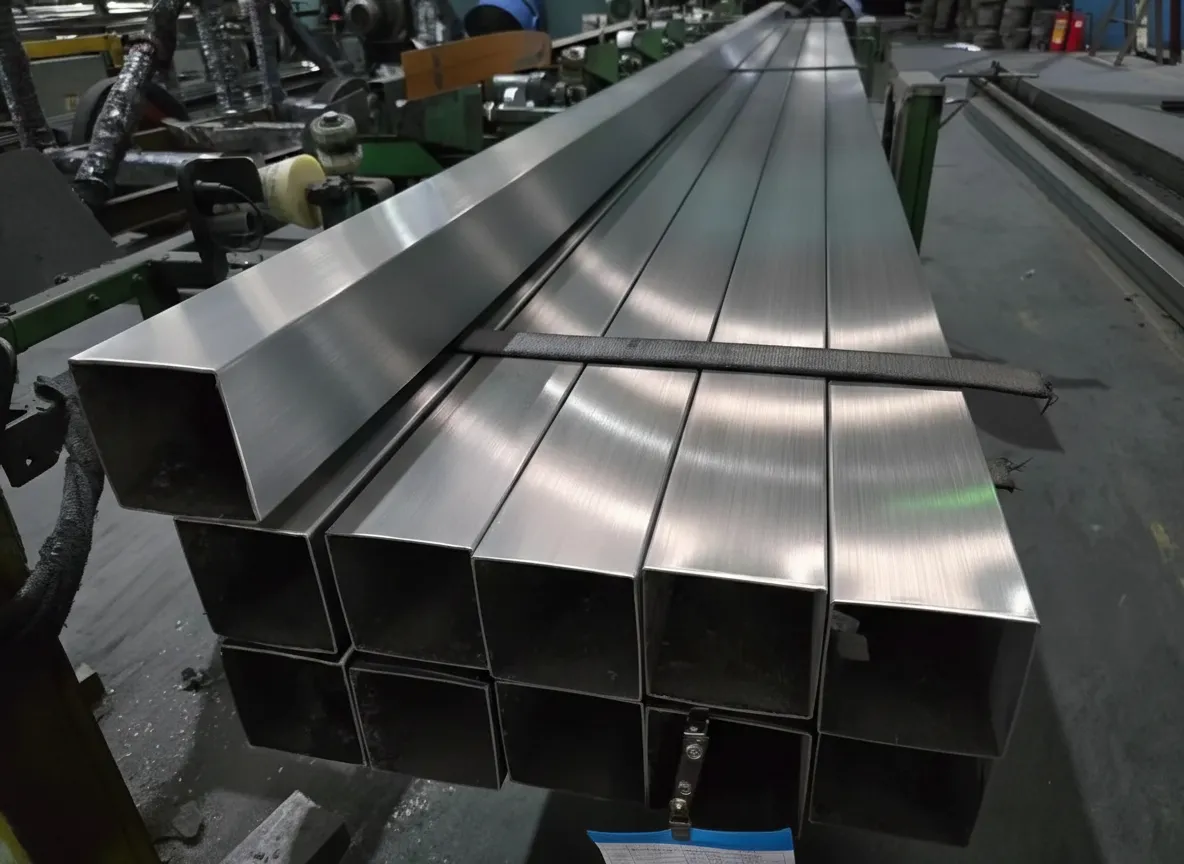

Stainless steel square tube is a hollow structural section with equal-sided square geometry, produced through continuous forming and welding of flat-rolled stainless steel coils. The manufacturing process employs high-frequency induction welding or TIG welding techniques to create seamless longitudinal joints, resulting in uniform wall thickness and precise dimensional tolerances. Defined by ASTM A554 standards, these tubes maintain consistent mechanical properties throughout their length, with wall thicknesses ranging from 0.5mm to 12mm and outer dimensions from 10mm to 400mm per side.

Stainless Steel Square Tube Technical Specifications

Our precision-welded square tubes comply with ASTM A554-17 Section 5 for dimensional tolerances, maintaining ±0.5mm accuracy on outer dimensions and ±10% variance on wall thickness. Grade 304 tubes exhibit tensile strength of 515 MPa minimum per ASTM A240, while 316 variants achieve 515-690 MPa with enhanced molybdenum content of 2.0-3.0% for superior pitting resistance. Surface finishes range from 2B mill finish (Ra 0.5μm) to 180 grit polished (Ra 0.2μm), with optional electropolishing available to achieve Ra 0.1μm for pharmaceutical applications. Standard lengths span 6 meters with custom cutting services accommodating project-specific requirements.

Material Grade Comparison and Selection

Grade 304 Square Tube Characteristics

The 304 austenitic grade finds extensive application in general-purpose structural and decorative installations, offering excellent forming characteristics and weldability at value-driven pricing. With chromium content of 18-20% and nickel at 8-10.5%, this grade demonstrates adequate corrosion resistance in atmospheric conditions and mildly corrosive industrial environments. The carbon content limited to 0.08% maximum ensures optimal welding performance without carbide precipitation during heat exposure.

Grade 316 Enhanced Corrosion Protection

For applications requiring superior resistance to chloride-induced corrosion, 316 grade square tubes incorporate 2-3% molybdenum alongside 16-18% chromium and 10-14% nickel composition. This alloying strategy provides exceptional durability in marine environments, chemical processing facilities, and food production equipment. The material maintains structural integrity in temperatures up to 870°C, making it the preferred choice for thermal cycling applications.

Manufacturing Process and Quality Control

Precision Forming and Welding Technology

Our production facility employs computer-controlled roll forming equipment that progressively shapes flat coils into square profiles through multiple forming stations. High-frequency induction welding operates at 400 kHz frequency, generating localized heating to 1400°C within a 3mm fusion zone, ensuring complete metallurgical bonding without filler material. Post-weld heat treatment at 1050°C followed by rapid cooling eliminates residual stresses and restores corrosion resistance in the weld zone.

Dimensional Accuracy and Surface Treatment

Inline laser measurement systems monitor outer dimensions with ±0.1mm precision during production, automatically adjusting roll gaps to maintain ASTM A554 tolerances. Wall thickness verification employs ultrasonic testing at 5MHz frequency, detecting variations exceeding ±8% for rejection. Surface conditioning through mechanical polishing or passivation treatment per ASTM A967 removes free iron contamination and establishes protective chromium oxide layers.

Applications Across Industries

Architectural and Structural Applications

Stainless steel square tubes serve as primary structural members in curtain wall framing systems, balustrade posts, and canopy supports where aesthetic appeal combines with load-bearing requirements. The material's inherent corrosion resistance eliminates maintenance painting cycles, reducing lifecycle costs by 40-60% compared to carbon steel alternatives in coastal or industrial atmospheres.

Industrial Equipment and Fabrication

Manufacturing sectors employ square tubes extensively in conveyor frames, machine guards, and process equipment construction. The square geometry facilitates simplified connection detailing through bolted or welded joints, while the hollow section provides efficient strength-to-weight ratios. Food processing and pharmaceutical industries specify 316L grade tubes with electropolished finishes to meet FDA 21 CFR 177.2600 contact surface requirements.

Transportation and Infrastructure

Railway platform canopies, pedestrian bridge railings, and highway noise barriers utilize stainless square tubes for their exceptional durability in outdoor exposure. The material withstands thermal expansion cycles from -40°C to +80°C without structural degradation, maintaining dimensional stability throughout seasonal temperature variations.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 500 kilograms per specification, equivalent to approximately 15-20 pieces of 6-meter length 50x50x2mm tubes. For commonly stocked sizes in 304 grade, we accommodate smaller quantities of 100kg minimum. Custom sizes or 316 grade materials require 1000kg minimum due to mill production constraints.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting chemical composition analysis per ASTM E1019 and mechanical properties per ASTM E8. Certificates include heat number traceability, dimensional inspection reports, and surface finish verification. Third-party inspection by SGS, TUV, or equivalent agencies can be arranged at customer request.

What is the typical delivery time?

Stocked items in standard sizes ship within 3-5 business days after order confirmation. Custom dimensions or special surface finishes require 15-20 days production lead time, including material procurement, forming, and quality inspection. International ocean freight typically adds 20-35 days depending on destination port, while express air shipment delivers within 5-7 days for urgent requirements.

Can you cut to custom sizes?

Our fabrication facility offers precision cutting services using automated band saws with ±1mm length tolerance. Miter cutting at angles from 15° to 90° accommodates frame assembly requirements. We also provide end finishing operations including deburring, chamfering, and end cap welding. Custom cutting incurs additional charges of $0.50-$2.00 per cut depending on wall thickness and complexity.

Get a Competitive Quote for Stainless Steel Square Tube

Partner with our experienced team to source premium-grade stainless steel square tubes at factory-competitive pricing. We maintain extensive inventory across 304 and 316 grades in standard architectural sizes, ensuring rapid fulfillment for your project timelines. Our technical consultation services assist with material selection, structural calculations, and fabrication recommendations to optimize performance and cost-efficiency.

• 24/7 customer support available via phone, email, and online chat
• Free samples for quality evaluation - up to 3 pieces per specification
• Competitive pricing for bulk orders with volume discounts up to 15%
• Professional technical consultation by certified welding engineers
• Flexible payment terms including LC, TT, and credit arrangements for qualified buyers

Contact us today to get your free quote within 24 hours!
