Corrugated Galvalume Steel Coil - High-Strength Corrugated Steel for Roofing & Construction

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

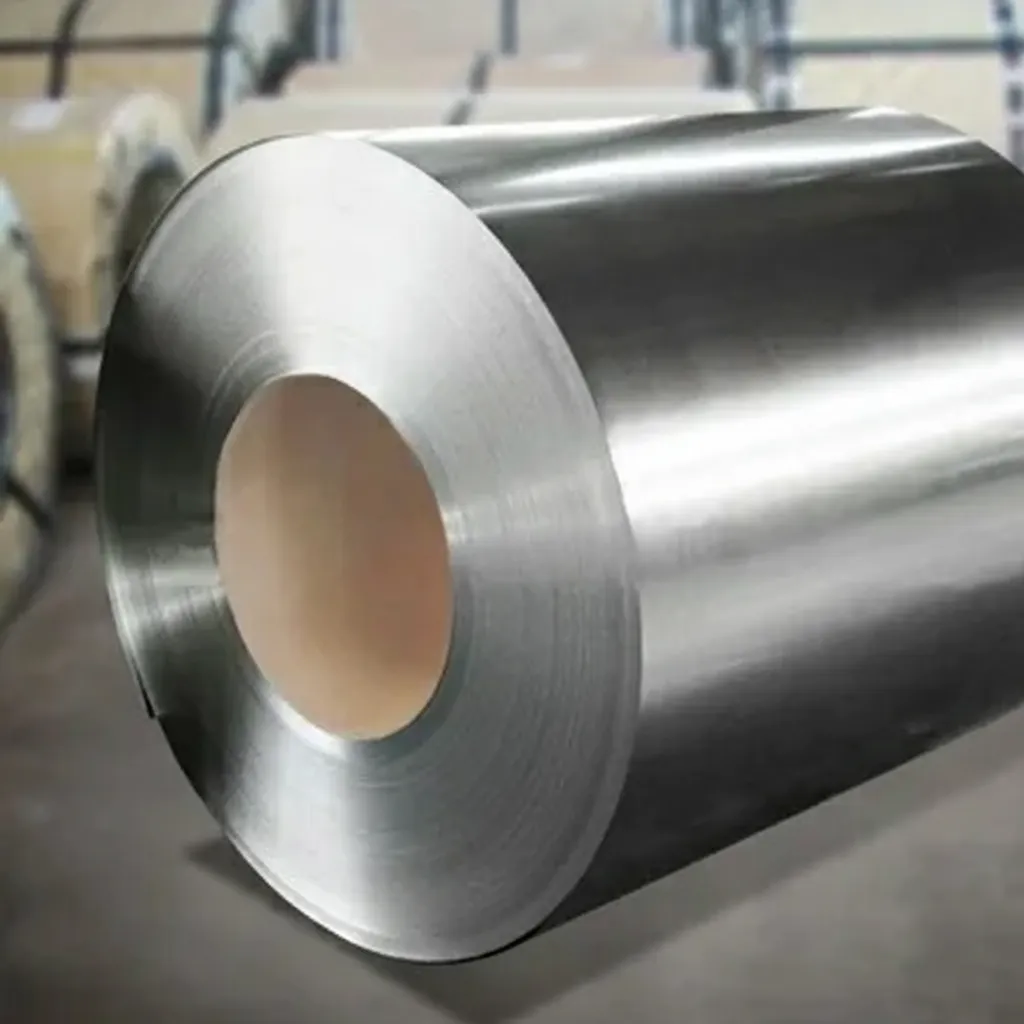

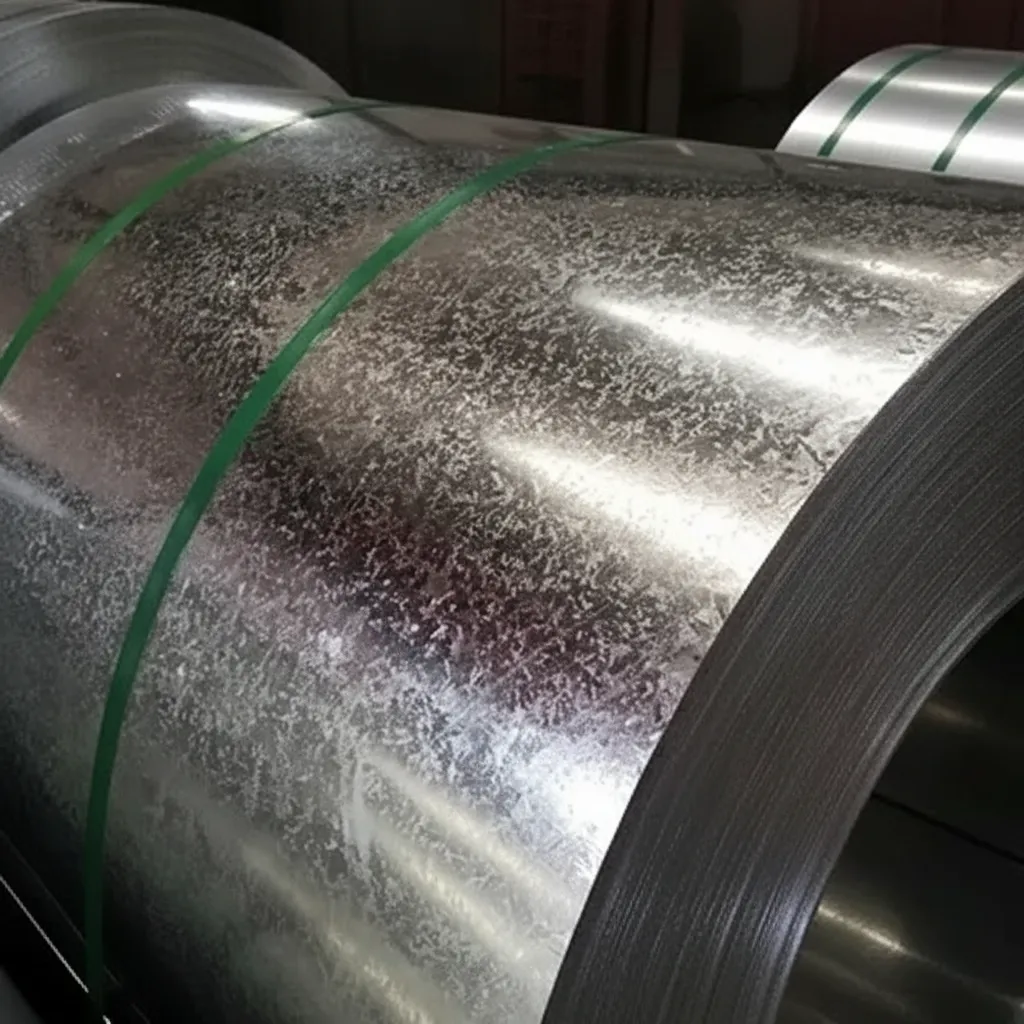

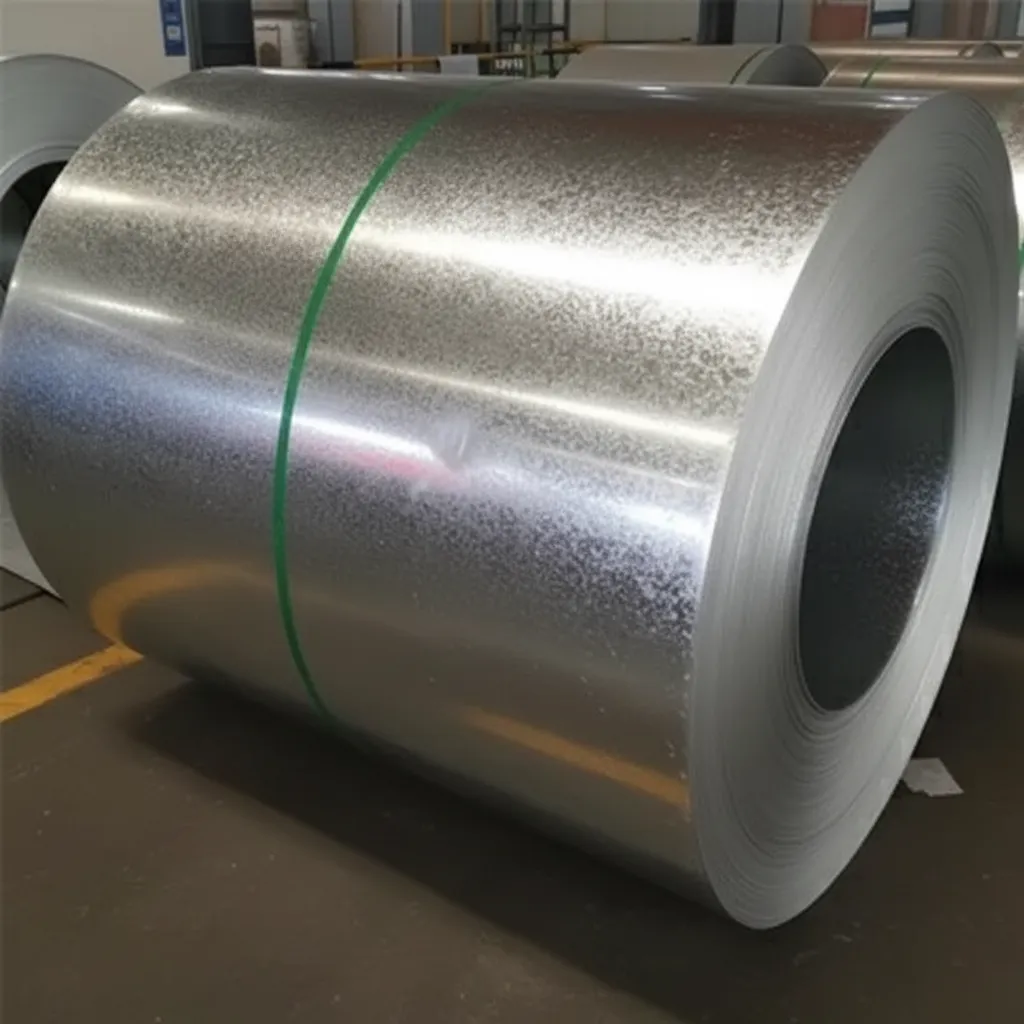

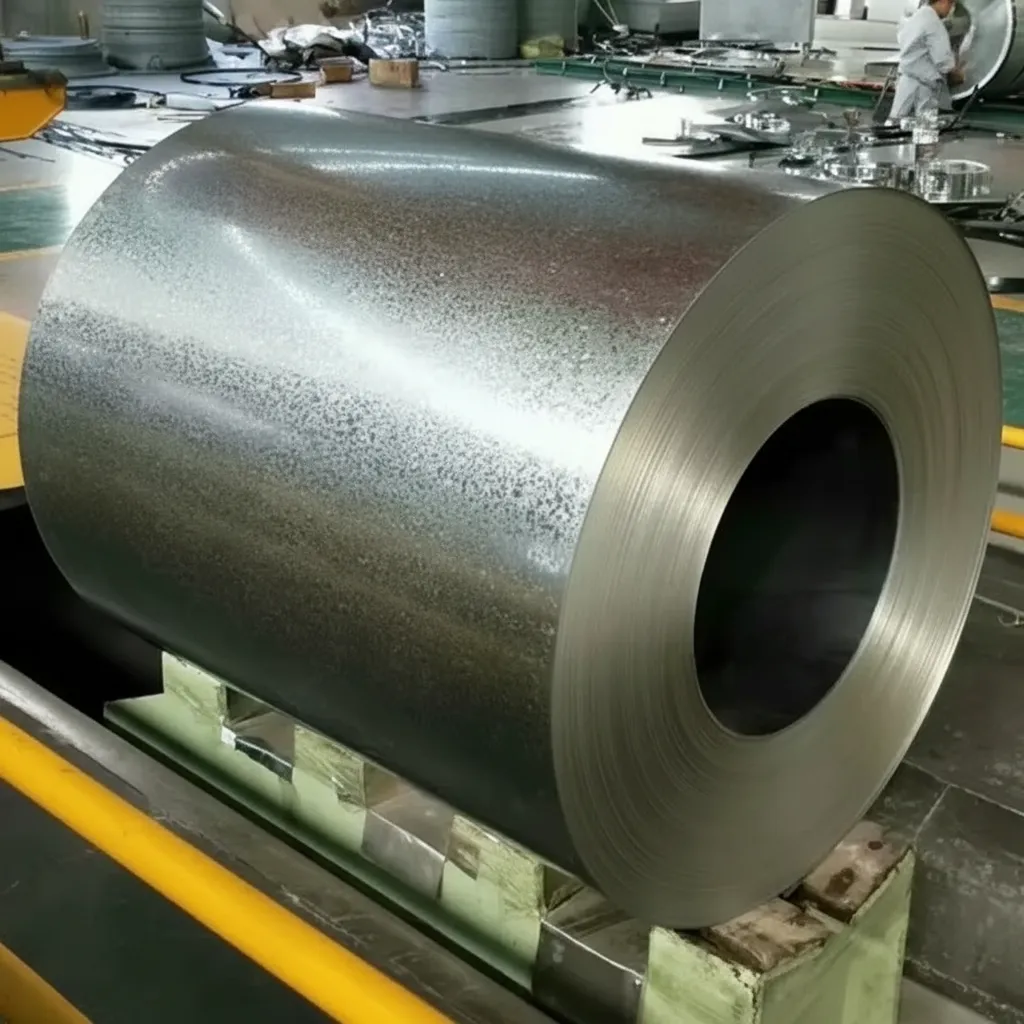

Corrugated galvalume steel coil image thumbnail

Technical Specifications of Corrugated Galvalume Steel Coil

Property	Parameter	Description
Product Name	Corrugated Galvalume Steel Coil	Aluminum-zinc alloy coated corrugated steel coil
Coating Type	55% Aluminum, 43.4% Zinc, 1.6% Silicon	Galvalume (Al-Zn) coating composition
Standard Compliance	ASTM A792, EN 10215, JIS G3321	Meets major international standards
Base Metal	Cold-rolled steel / Hot-dip substrate	High-quality steel substrate
Coating Weight	AZ50-AZ185 (50-185 g/m²)	Both sides total coating mass
Thickness Range	0.13 - 1.5 mm	Available thickness options
Width Range	600 - 1250 mm	Standard and custom widths
Coil Weight	3 - 8 tons	Standard coil weight range
Tensile Strength	≥270 MPa (Grade 37) / ≥550 MPa (Grade 80)	Varies by steel grade
Yield Strength	≥235 MPa (Grade 37) / ≥550 MPa (Grade 80)	Minimum yield strength per grade
Elongation	≥20%	Ductility in standard gauge length
Corrugation Profile	Wave height: 18-76mm, Pitch: 76-200mm	Multiple corrugation patterns available
Surface Finish	Regular spangle, minimized spangle, zero spangle	Various surface appearance options
Color Options	Natural metallic, Pre-painted (RAL colors)	Available in bare or color-coated
Corrosion Resistance	3-6 times better than galvanized steel	Superior corrosion protection
Heat Resistance	Up to 315°C continuous exposure	Excellent high-temperature performance
Application	Roofing, wall cladding, agricultural buildings	Construction and industrial applications
Certification	ISO 9001, EN 10204 3.1, SGS	Quality certifications provided
Packaging	Waterproof paper, steel strapping, wooden pallet	Standard export seaworthy packaging
MOQ	25 tons	Minimum order quantity per specification

Corrugated Galvalume Steel Coil - High-Strength Corrugated Steel for Roofing & Construction

Corrugated galvalume steel coil represents a premium-grade roofing and cladding material engineered for demanding construction applications. This aluminum-zinc alloy-coated corrugated steel product delivers exceptional corrosion resistance, superior structural integrity, and extended service life compared to traditional galvanized alternatives. Manufactured to meet ASTM A792/A792M and EN 10346 specifications, corrugated galvalume steel coil serves as the preferred choice for commercial buildings, agricultural structures, industrial warehouses, and residential roofing projects requiring long-term weather protection and cost-effective performance.

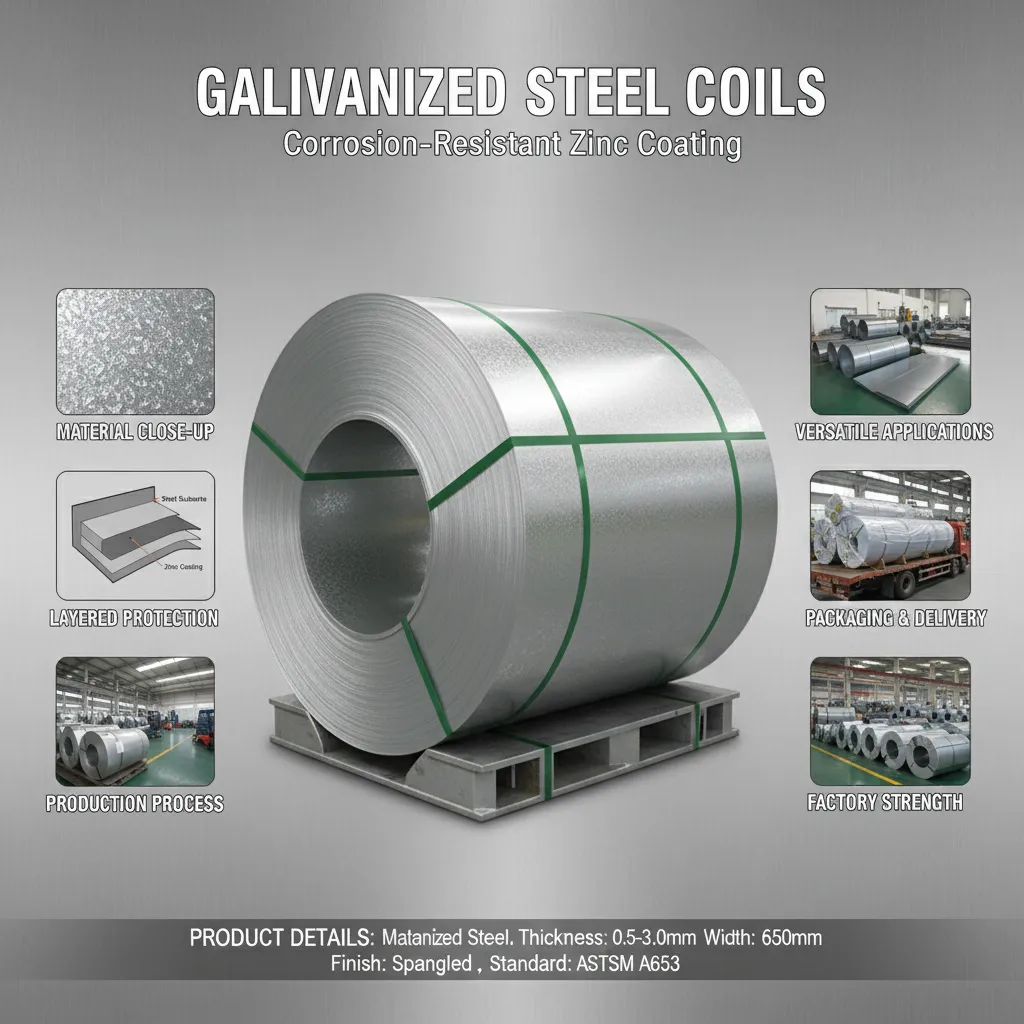

Corrugated galvalume steel coil supplier

What is Corrugated Galvalume Steel Coil?

Corrugated galvalume steel coil is cold-formed steel substrate coated with a 55% aluminum, 43.4% zinc, and 1.6% silicon alloy through continuous hot-dip coating process, subsequently roll-formed into corrugated profiles. The aluminum-zinc coating provides up to four times greater corrosion resistance than conventional galvanized steel, while the corrugated profile enhances structural rigidity and load-bearing capacity without increasing material weight.

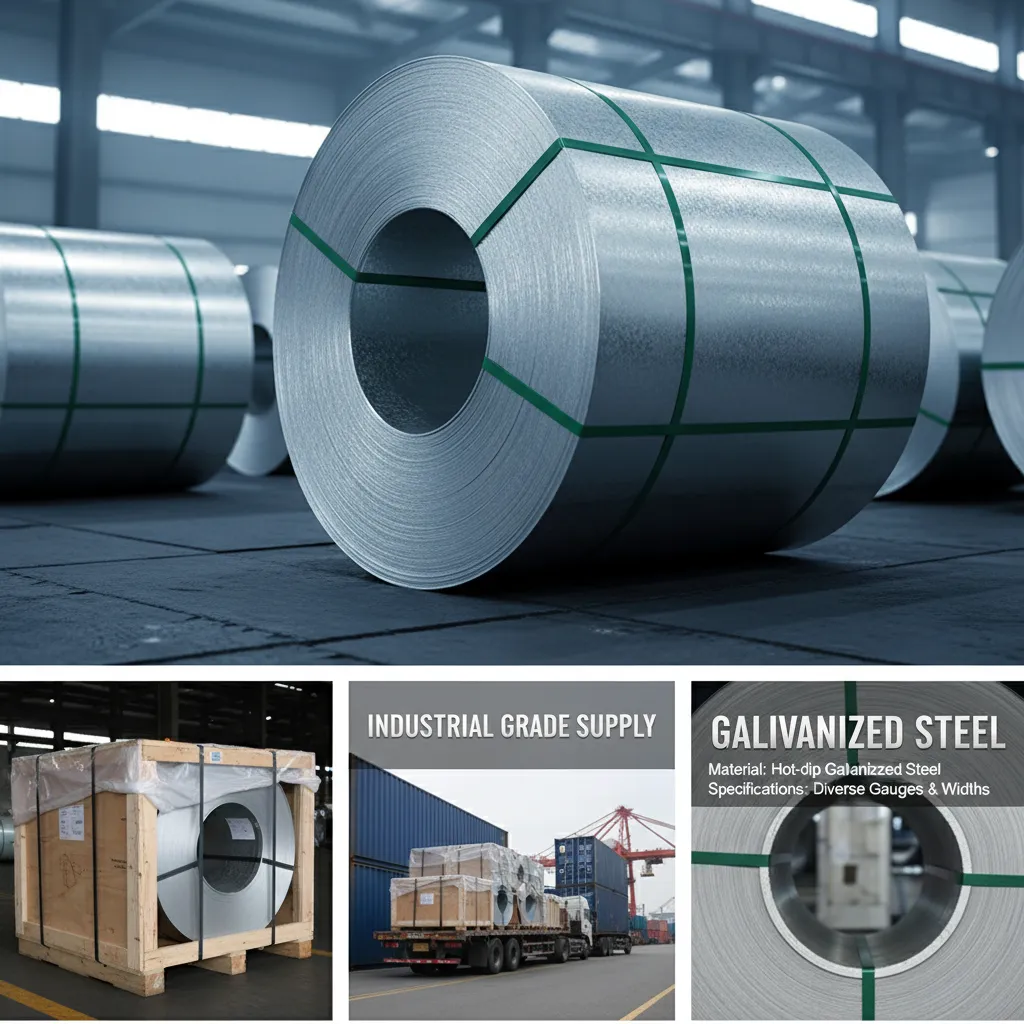

Corrugated galvalume steel coil manufacturer

Corrugated Galvalume Steel Coil Technical Specifications

Standard coating mass ranges from AZ100 to AZ185 (100-185 g/m² total both sides) per ASTM A792. Base metal thickness spans 0.20mm to 1.20mm with tensile strength of 270-550 MPa depending on grade selection. Corrugation profiles include sinusoidal, trapezoidal, and box-rib configurations with pitch dimensions from 18mm to 76mm and depth ranging 6mm to 38mm according to application requirements.

Why Choose Our Corrugated Galvalume Steel Coil

Our mill-direct corrugated galvalume steel coil features consistent coating adhesion meeting ASTM A792 Section 8.4 bend test requirements, ensuring zero coating delamination during field installation. Advanced tension leveling eliminates coil set and edge wave defects, delivering flat corrugated panels with dimensional tolerance within ±1.5mm per meter. All production lots include certified mill test reports documenting chemical composition, mechanical properties, and coating weight verification per ISO 9001:2015 quality management protocols.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for corrugated galvalume steel coil is 25 metric tons per specification. For established customers or consolidated orders combining multiple gauges, we accommodate reduced quantities of 10 tons with adjusted pricing. Mixed-container orders are available for export shipments requiring sample evaluation quantities.

Do you provide material test certificates?

Every shipment includes original mill test certificates (MTC 3.1 per EN 10204) documenting chemical analysis per ASTM E1019, tensile testing per ASTM A370, coating weight verification per ASTM A90, and coating adhesion results per ASTM D3359. Third-party inspection certificates from SGS, Bureau Veritas, or Intertek are available upon request with 72-hour advance notice.

What is the typical delivery time?

Standard corrugated galvalume steel coil specifications ship within 15-20 working days ex-works from order confirmation and deposit receipt. Custom coating colors or non-standard corrugation profiles require 25-30 working days production lead time. Express production scheduling is available for urgent projects with 10% expedite surcharge, reducing delivery to 10-12 working days for in-stock base materials.

Can you cut to custom sizes?

Our precision slitting lines accommodate custom width cutting from 600mm to 1,250mm with ±2mm tolerance. Length cutting services provide corrugated panels from 1,800mm to 12,000mm in 100mm increments. For high-volume projects exceeding 50 tons, we offer profile-specific corrugation tooling to match existing building panels or architectural specifications, with tooling costs amortized across order quantity.

Get a Competitive Quote for Corrugated Galvalume Steel Coil

Request factory-direct pricing for corrugated galvalume steel coil tailored to your project specifications. Our technical sales team provides detailed quotations within 24 hours, including material costs, coating options, freight estimates, and payment terms. Contact us today with your thickness, width, coating grade, and quantity requirements to receive a comprehensive proposal backed by our ISO 9001-certified manufacturing capabilities and on-time delivery guarantee.

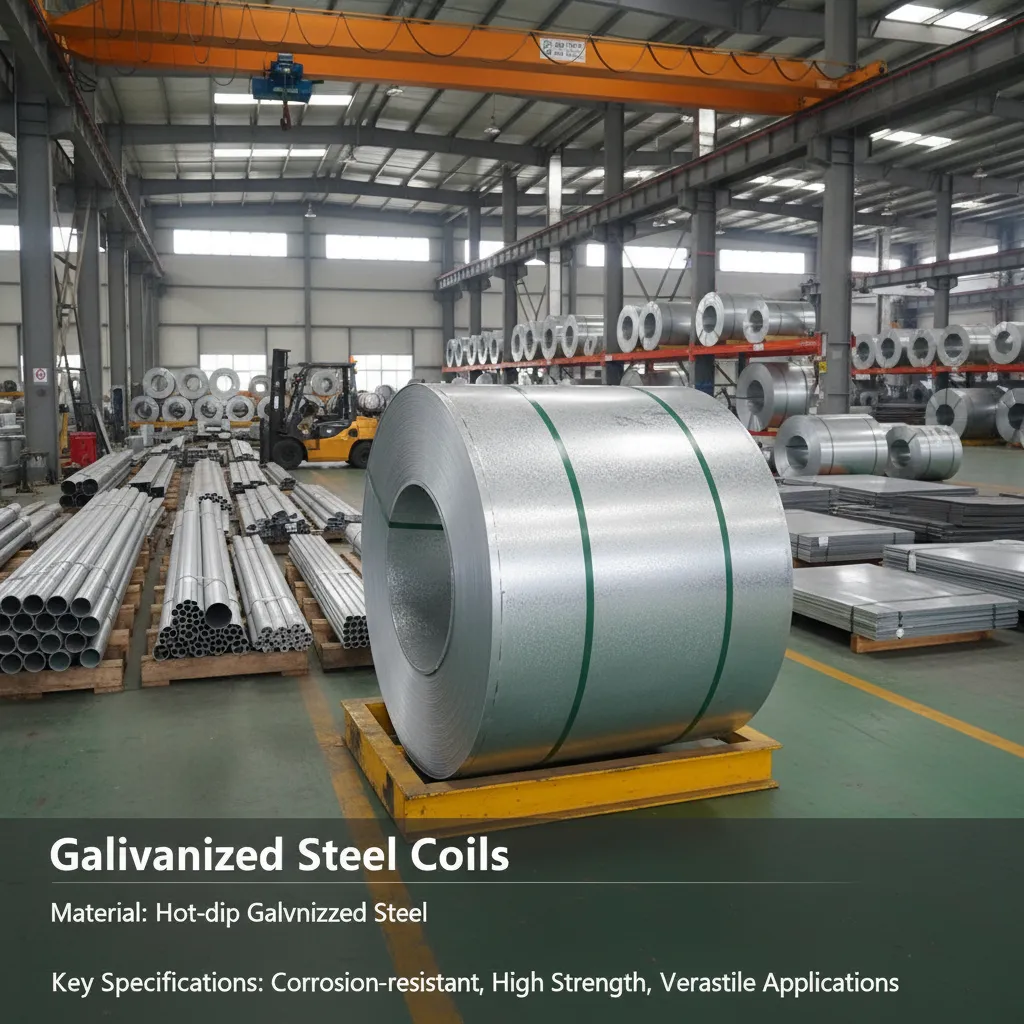

Corrugated galvalume steel coil wholesale

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

Chris Martin

Canada

verified purchases

2025-09-12

Acceptable Quality with Initial Communication Issues
Ordered 15 tons of 0.65mm AZ100 corrugated coil for small warehouse project. Material quality acceptable and met ASTM A792 specifications. Had some initial confusion regarding coating weight measurement standards, but technical team clarified and provided additional documentation. Delivery took 28 days due to custom profile tooling. Product performs adequately for the application. Communication improved significantly after first contact.

Carlos Silva

Brazil

verified purchases

2025-09-30

Excellent Surface Finish and No Defects
Ordered 35 tons of 0.45mm corrugated galvalume coil for agricultural building project. Surface finish was flawless with no scratches or oil stains. The 43.4% zinc content verified in mill test report provides optimal protection. Custom cutting to 2800mm lengths with ±2mm tolerance was perfect. Compared quotes from 6 suppliers - best combination of quality and lead time. Very satisfied with this purchase.

William Taylor

Australia

verified purchases

2025-10-17

Reliable Material for Coastal Environment
Purchased 22 tons for seaside storage facility, 0.55mm thickness with AZ150 coating. Material showing good corrosion resistance after 4 months in salt air environment. Coating adhesion test results documented per ASTM D3359 were satisfactory. Delivery took 21 days, slightly longer than 15-20 day estimate but acceptable. Would order again for marine-exposed structures.

Ahmed Al-Hassan

UAE

verified purchases

2025-11-04

Perfect for High-Temperature Desert Climate
Third order now - 40 tons of 0.80mm AZ185 corrugated galvalume for warehouse roofing in Dubai. The 55% aluminum coating performs exceptionally in our 50°C summer temperatures. No coating degradation observed on previous installations after 18 months. Sinusoidal 18mm pitch profile provides excellent thermal expansion accommodation. Consistent quality across all three shipments. Highly recommended for Middle East applications.

Wei Chen

Singapore

verified purchases

2025-11-21

Outstanding Technical Support and Fast Response
Received quotation within 18 hours for 25 tons of custom 1100mm width corrugated coil. Technical team provided detailed load-bearing calculations for our specific 38mm depth box-rib profile. SGS inspection arranged within 48 hours as requested. Material shipped in 16 days with complete documentation. Their engineering support helped optimize our panel specifications, reducing material waste by 12%.

Hans Mueller

Germany

verified purchases

2025-12-08

Good Quality Material at Competitive Pricing
Ordered 18 tons AZ120 coating, 0.60mm gauge for industrial shed roofing. Material quality meets EN 10346 standards. Coating weight verification showed 122 g/m² which is acceptable. Price was 8% lower than local suppliers. Minor packaging issue with one coil having slight edge damage, but supplier provided immediate replacement. Overall good value for the project budget.

Michael Johnson

United States

verified purchases

2025-12-23

Superior Flatness and Dimensional Accuracy
Purchased 28 tons of 0.70mm corrugated galvalume steel coil for commercial warehouse project. The tension leveling quality was outstanding - zero edge wave issues during installation. Dimensional tolerance measured within 1mm per meter, better than specified. MTC 3.1 certificates documented all mechanical properties per ASTM A370. Installation crew reported 15% faster installation compared to previous supplier material.

James Wilson

United Kingdom

verified purchases

2026-01-07

Excellent Corrosion Resistance for Agricultural Buildings
Ordered 32 tons of AZ150 corrugated galvalume coil, 0.50mm thickness, 1000mm width for our barn roofing project. Material arrived with full ASTM A792 certification showing 56% aluminum content. The 76mm pitch trapezoidal profile provided excellent structural rigidity. Coating adhesion passed bend test without any delamination. Delivered in 18 days as promised. Already planning next order for our warehouse expansion.
