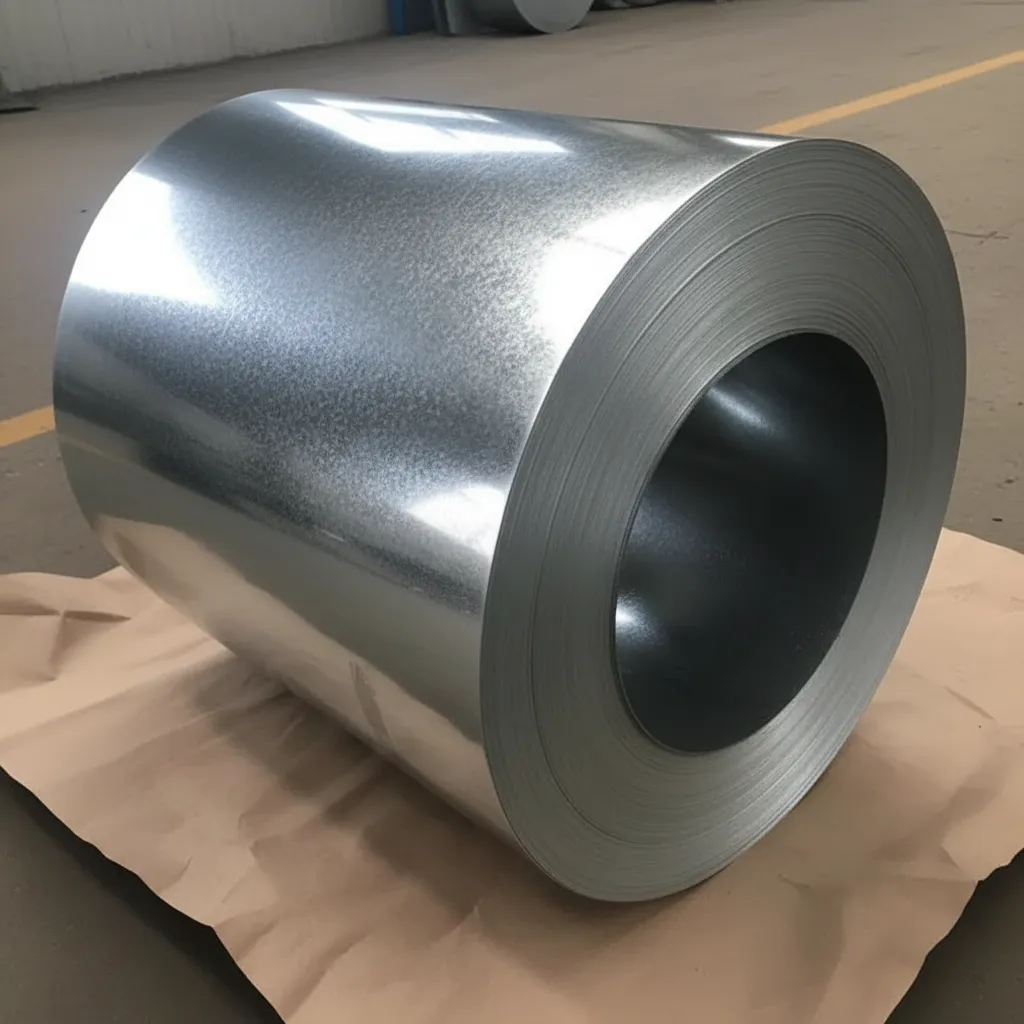

Electro galvanized steel coil manufacturer image thumbnail

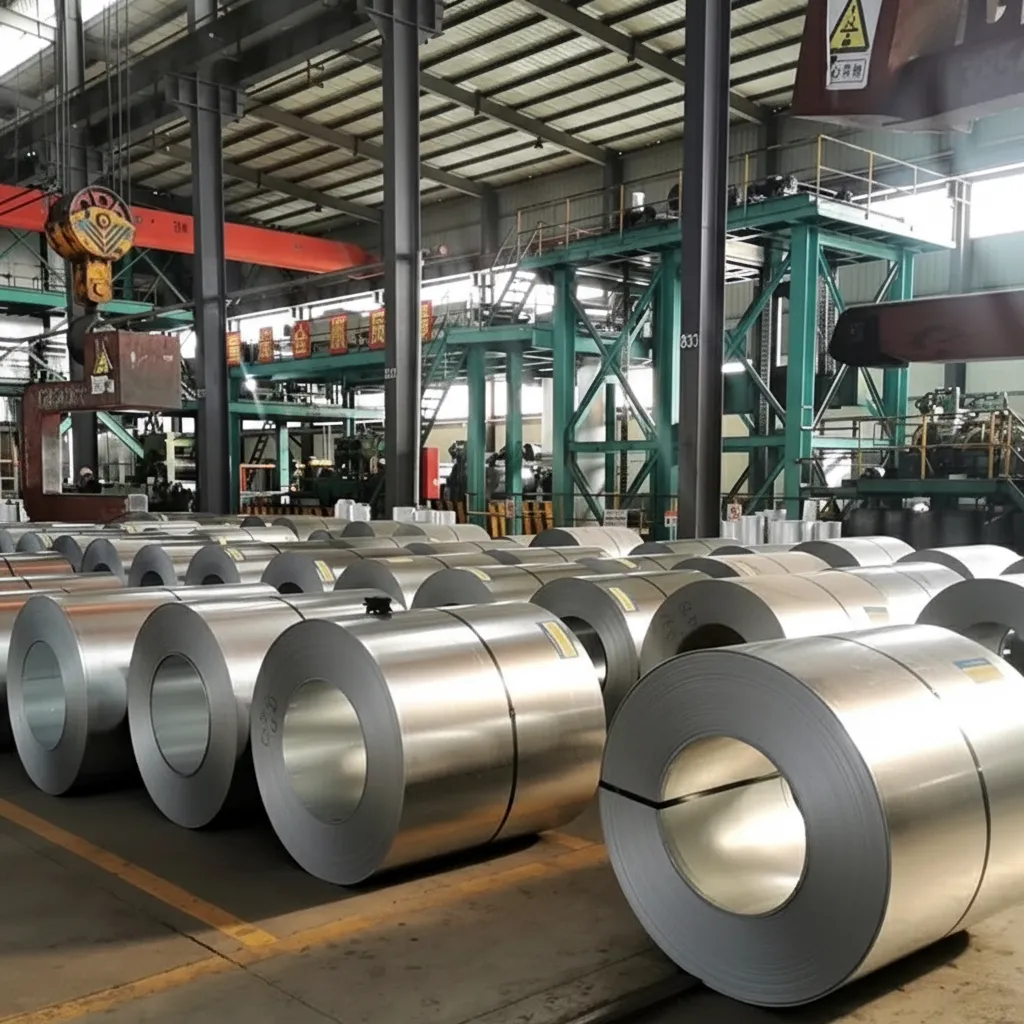

Electro galvanized steel coil manufacturer image

Technical Specifications of Electro Galvanized Steel Coil

Property	Parameter	Description
Product Name	Electro Galvanized Steel Coil	Cold-rolled steel with electrolytic zinc coating
Coating Process	Electro-galvanizing (EG)	Electroplating zinc layer for corrosion protection
Base Material	Cold Rolled Steel / SPCC / DC01	Low carbon steel substrate
Standard Compliance	ASTM A879, JIS G3313, EN 10152	Meets international coating standards
Zinc Coating Weight	20-120 g/m² (both sides)	Typical range: 40/40, 60/60, 80/80 g/m²
Coating Thickness	3-15 μm per side	Uniform electrolytic zinc layer
Thickness Range	0.15-3.0 mm	Available substrate thickness options
Width Range	600-1500 mm	Standard coil widths for processing
Coil ID	508 mm / 610 mm	Inner diameter options
Coil Weight	3-10 tons	Standard coil weight range
Surface Finish	Bright, Matte, Oiled	Multiple surface treatment options
Tensile Strength	270-550 MPa	Depends on base material grade
Yield Strength	≥140-380 MPa	Varies by steel grade specification
Elongation	≥20-38%	Ductility for forming operations
Corrosion Resistance	240-720 hours (NSS test)	Salt spray test performance per ASTM B117
Application	Automotive parts, home appliances, electronics	Suitable for stamping and forming
Certification	ISO 9001, SGS, EN 10204 3.1	Quality certifications provided
Packaging	Waterproof paper, steel strapping, wooden pallet	Standard export seaworthy packaging
MOQ	25 tons	Minimum order quantity per specification

Electro Galvanized Steel Coil Manufacturer - ISO-Certified OEM/ODM Supplier

Electro galvanized steel coil manufacturer operations deliver precision-coated steel products through advanced electroplating technology, serving automotive, construction, and appliance industries worldwide. As a specialized producer, we provide zinc-coated steel coils with coating weights ranging from 20-120 g/m² per side, meeting ASTM A879/A879M and EN 10152 specifications. Our manufacturing facility processes cold-rolled steel substrates with thickness tolerances of ±0.02mm, ensuring consistent surface quality for stamping, roll-forming, and deep-drawing applications across diverse industrial sectors.

What is Electro Galvanized Steel Coil?

Electro galvanized steel coil represents cold-rolled steel substrate electroplated with zinc coating through electrochemical deposition process, producing uniform metallic layer with thickness precision of ±2 micrometers. This manufacturing method deposits pure zinc onto steel surface at controlled current density of 20-60 A/dm², creating corrosion-resistant barrier with superior paint adhesion compared to hot-dip galvanizing alternatives.

Electro Galvanized Steel Coil Technical Specifications

Our electro galvanized steel coil production adheres to ASTM A879/A879M-17 Grade A requirements, featuring zinc coating mass of 50-120 g/m² (Z50-Z120 designation), base metal thickness range of 0.15-3.0mm, and coil width capabilities up to 1,850mm. Material exhibits minimum yield strength of 140-550 MPa depending on substrate grade, with surface roughness maintained below Ra 1.2μm for optimal coating uniformity. Chromate passivation treatment per ASTM B201 provides additional corrosion resistance, achieving 96-hour neutral salt spray test performance according to ASTM B117 standards.

Why Choose Our Electro Galvanized Steel Coil Manufacturing

Our ISO 9001:2015 certified production facility operates six electroplating lines with annual capacity of 800,000 metric tons, maintaining zinc coating uniformity within ±5% across coil width. We utilize inline thickness gauges with 0.1-micron resolution and automated surface inspection systems detecting defects as small as 0.3mm diameter. Mill-direct pricing structure eliminates intermediary markups while maintaining IATF 16949 automotive quality standards, supported by full material traceability and third-party test certification for every production lot.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Standard MOQ stands at 25 metric tons per specification for stock dimensions, with flexibility for 10-ton trial orders on commonly produced grades. Custom width or coating weight specifications require 50-ton minimum to justify slitting line setup and electroplating parameter adjustments.

Do you provide material test certificates?

We supply EN 10204 Type 3.1 mill test certificates with every shipment, documenting chemical composition per ASTM E415 optical emission spectrometry, mechanical properties per ASTM E8 tensile testing, and coating weight verification through ASTM A90 triple-spot test methodology. Additional third-party certification available upon request.

Electro galvanized steel coil manufacturer supplier

What is the typical delivery time?

Stock specifications ship within 7-10 working days ex-works, while custom orders require 25-30 days including substrate procurement, electroplating processing, and quality inspection protocols. Express production available for urgent requirements with 15-day lead time at premium pricing.

Can you cut to custom sizes?

Our precision slitting capabilities accommodate widths from 20mm to 1,850mm with tolerance of ±0.5mm, while cut-to-length processing handles sheets from 500mm to 6,000mm length. Blanking services available for complex shapes using CNC cutting equipment maintaining dimensional accuracy within ±0.3mm across all edges.

Electro galvanized steel coil manufacturer wholesale

Get a Competitive Quote for Electro Galvanized Steel Coil

Request factory-direct pricing on electro galvanized steel coil with detailed specifications including substrate grade, coating weight designation, dimensions, and annual volume requirements. Our technical sales team responds within 12 hours with comprehensive quotations covering material costs, processing fees, packaging options, and FOB/CIF delivery terms. Contact us today to discuss your specific application needs and receive free sample materials for qualification testing in your production environment.
