| Property | Parameter | Description |
|---|---|---|

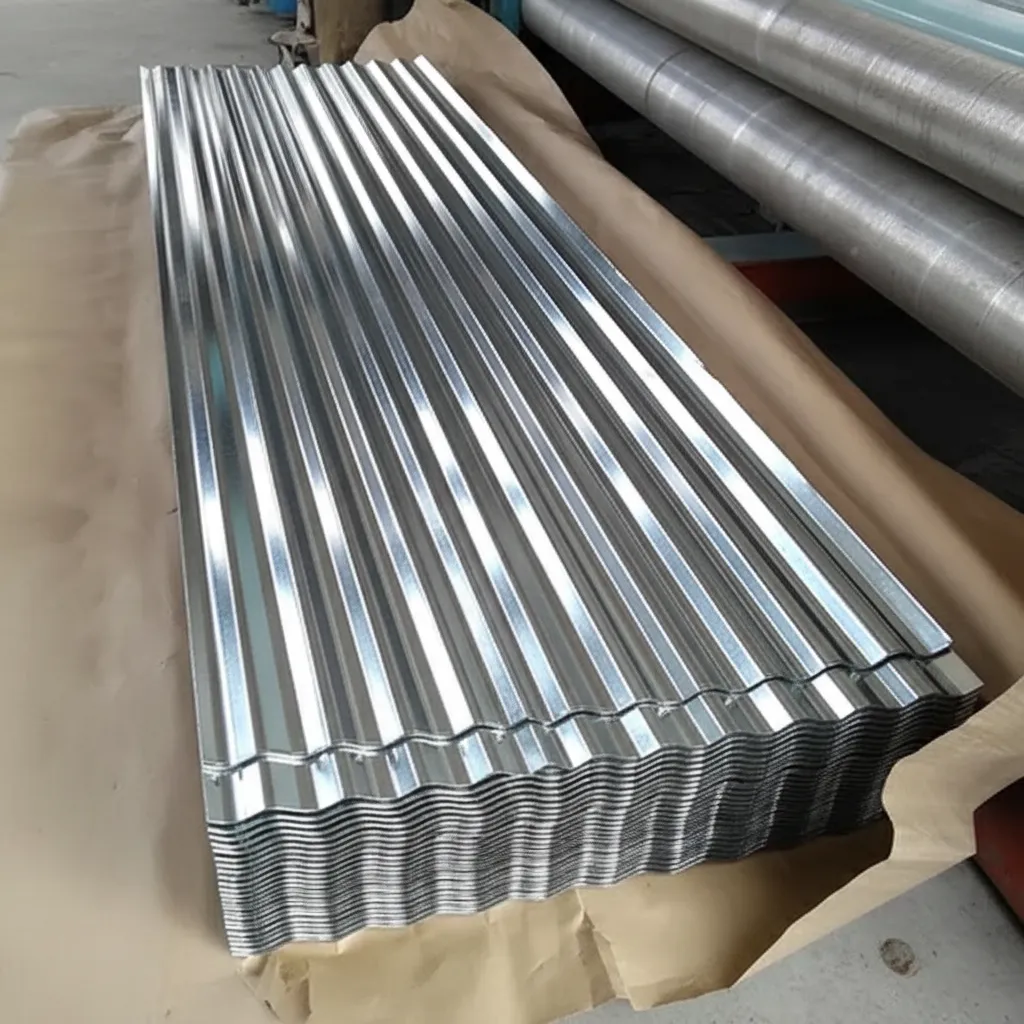

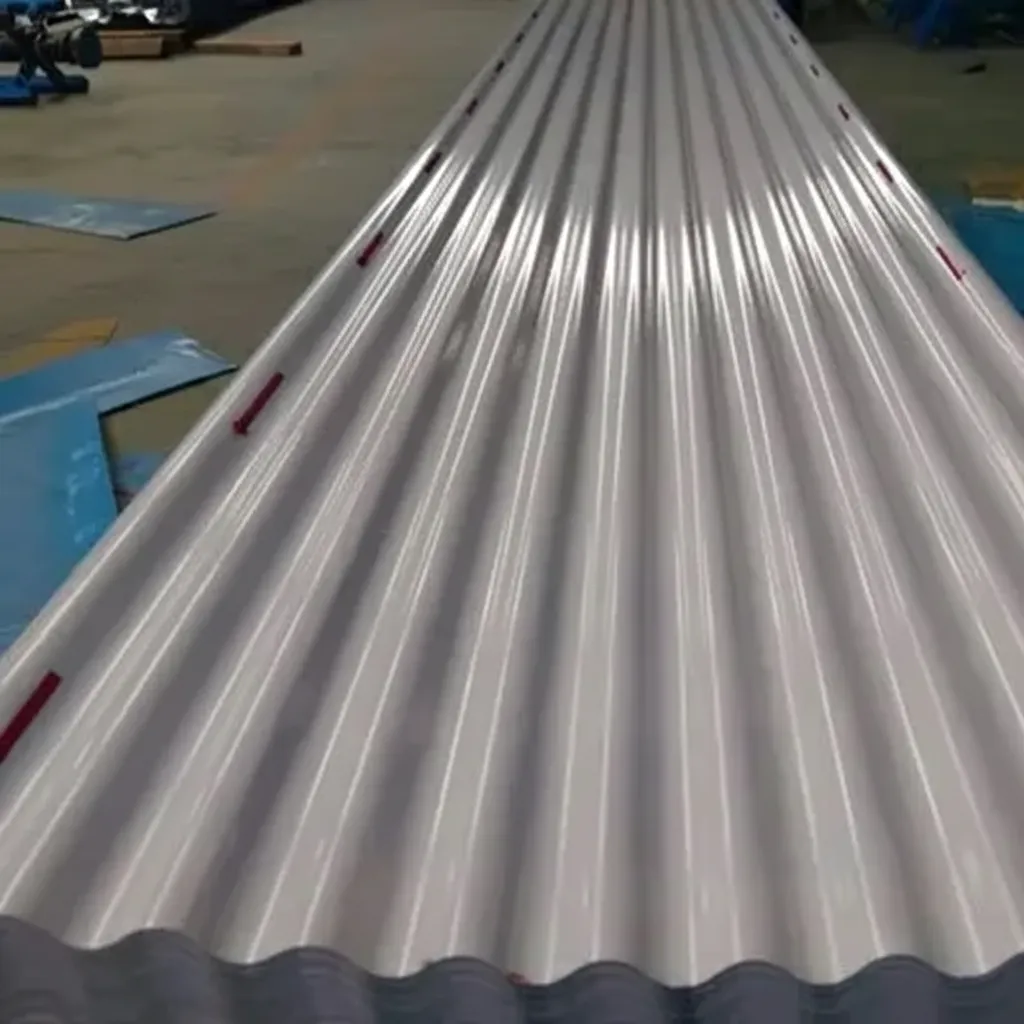

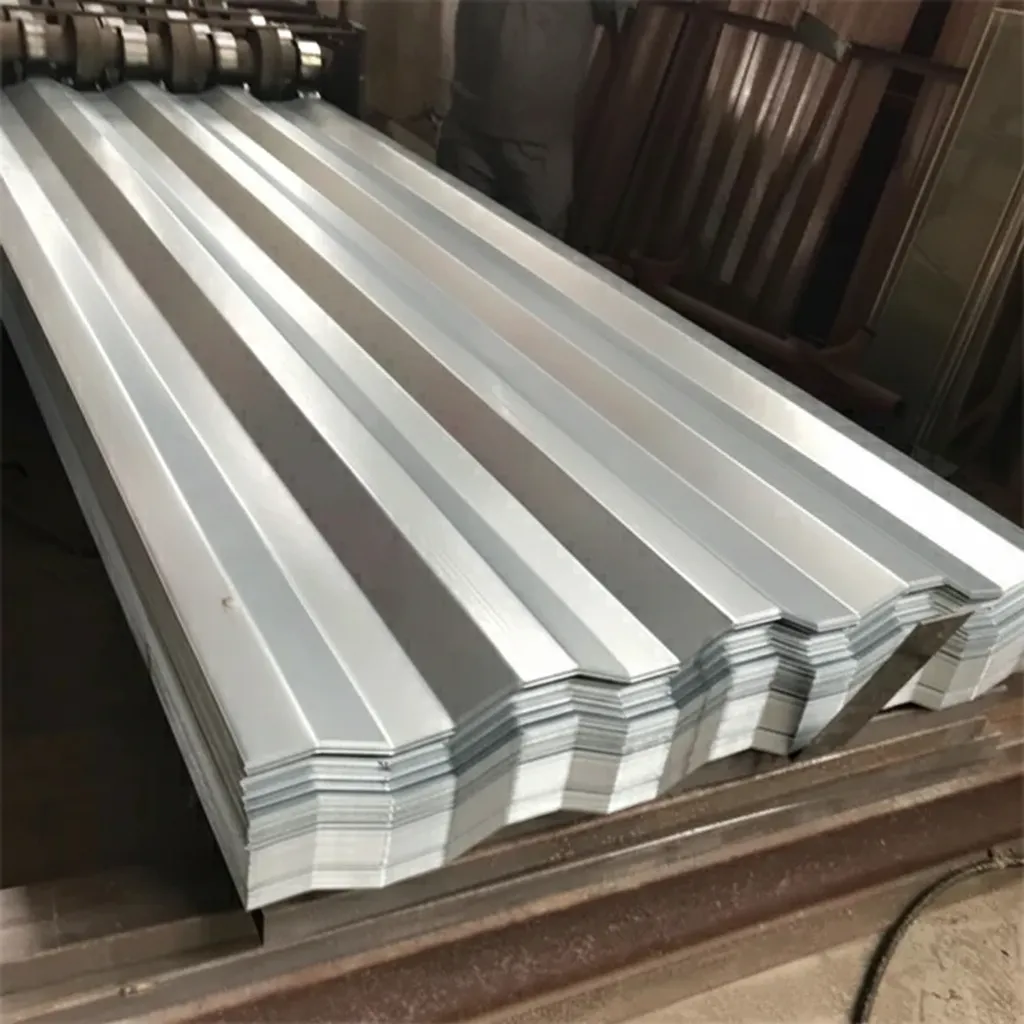

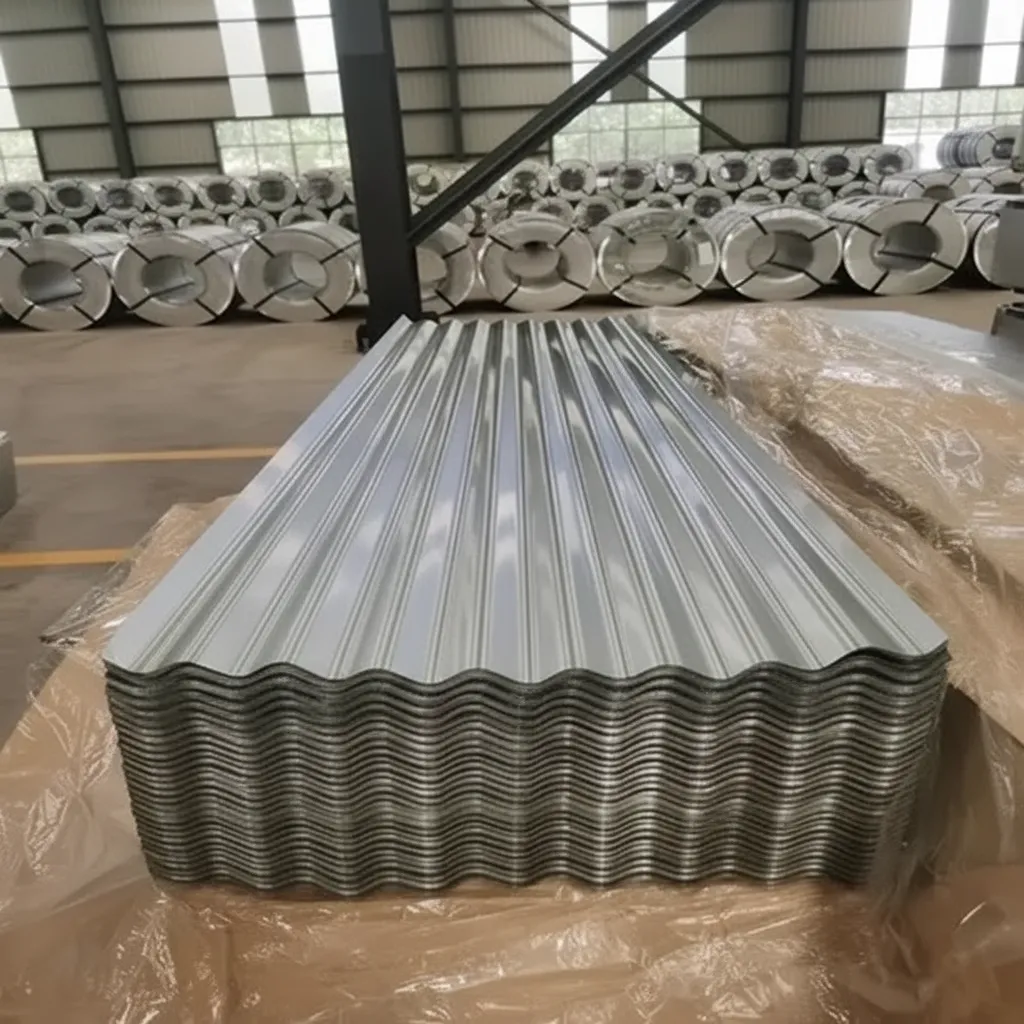

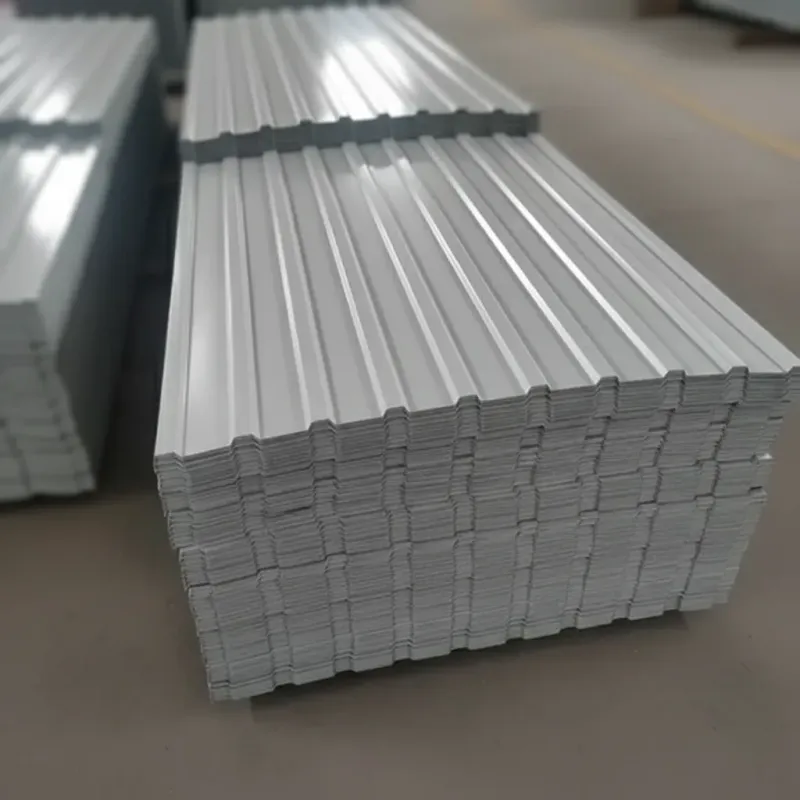

| Product Name | PPGL Roofing Sheet | Pre-Painted Galvalume Steel Roofing Sheet (Color Coated Al-Zn Alloy Coated) |
| Material Grade | AZ150 / AZ120 / AZ100 | Equivalent to JIS G3322 CGLCC, ASTM A755M, EN 10169; Base metal: DC51D+AZ, DX51D+AZ |
| Standard Compliance | ASTM A755M / JIS G3322 / EN 10169 / GB/T 14879 | International standards for pre-painted Galvalume (55% Al-Zn alloy coated) steel sheets |
| Chemical Composition (Base) | C ≤ 0.12%, Mn ≤ 0.60%, P ≤ 0.10%, S ≤ 0.045%, Si ≤ 0.50% | Low-carbon steel substrate optimized for forming and coating adhesion |
| Coating Composition | 55% Al, 43.4% Zn, 1.6% Si | Galvalume (Al-Zn alloy) coating providing superior corrosion and heat resistance |
| Coating Mass | AZ100: 100 g/m², AZ150: 150 g/m², AZ185: 185 g/m² | Both sides combined; per ASTM A755M / JIS G3322 triple-spot test |
| Top Coat (Paint) | PVDF / SMP / HDP / Polyester | PVDF: 25–27 µm; SMP: 20–25 µm; Polyester: 15–20 µm; primer + finish coat system |
| Tensile Strength | ≥ 270 MPa (DX51D+AZ) / ≥ 340 MPa (DX52D+AZ) | Per ASTM A755M / JIS G3322; higher grades available for structural roofing applications |
| Yield Strength | ≥ 140 MPa (DX51D+AZ) / ≥ 220 MPa (DX52D+AZ) | Ensures dimensional stability under roofing load conditions |
| Elongation | ≥ 22% (A80mm, DX51D+AZ) | Good formability for roll-forming and profiling into roofing profiles |
| Thickness Range | 0.12 mm – 1.50 mm (base metal) | Common roofing thickness: 0.30 mm – 0.80 mm; tolerance per EN 10143 / ASTM A924M |
| Width Range | 600 mm – 1,250 mm (coil); cut-to-length available | Standard slit widths: 750 mm, 900 mm, 1,000 mm, 1,200 mm for roofing profiles |
| Surface Finish | Smooth / Embossed / Matte / High Gloss | RAL color system available; 60° gloss: 30–85 GU; pencil hardness ≥ 2H |
| Application | Residential & Commercial Roofing, Wall Cladding, Industrial Buildings | Suitable for corrugated sheets, standing seam roofing, IBR profiles, sandwich panels |
| Certification | ISO 9001, SGS, BV, CE, RoHS | Mill test certificate (MTC) per EN 10204 3.1 provided with each shipment |
| Packaging | Eye-to-sky or eye-to-wall coils; wooden pallet for sheets | Waterproof paper + steel strip strapping; inner diameter 508 mm or 610 mm |
| MOQ | 25 MT per order (coil); 5 MT (cut-to-length sheets) | Mixed colors/thickness accepted above MOQ; OEM color matching available |
Initial coil width variation — issue raised and resolved promptly
Ordered 20 MT of 0.42mm PPGL coils to AS 1397 standard with a slit width of 925mm for corrugated roofing profiles. Upon arrival, we measured two coils slightly outside the agreed width tolerance. I contacted the technical team immediately and they acknowledged the issue, arranged a partial credit, and expedited a replacement consignment within three weeks. The replacement coils were within spec. The response was professional and they clearly take quality feedback seriously. Overall experience improved significantly after the resolution — I'd consider ordering again with this understanding.
