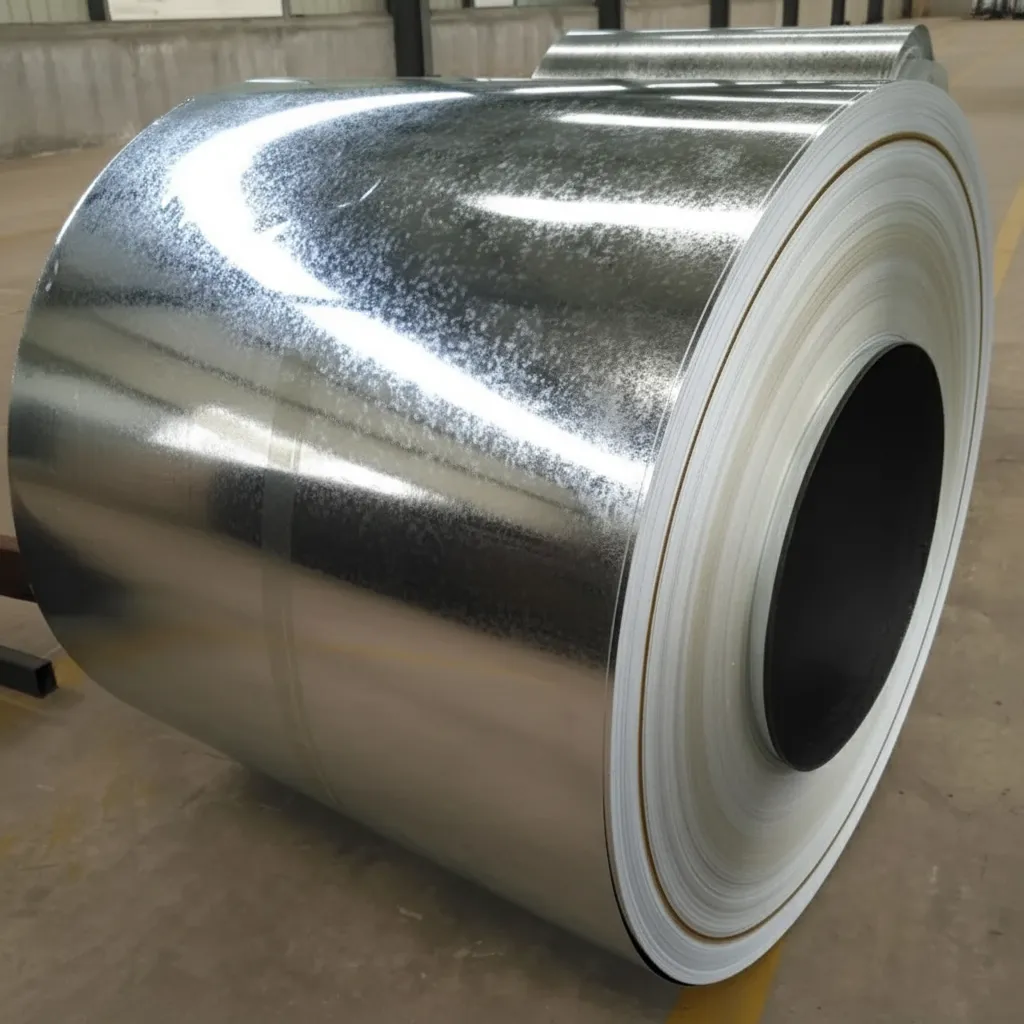

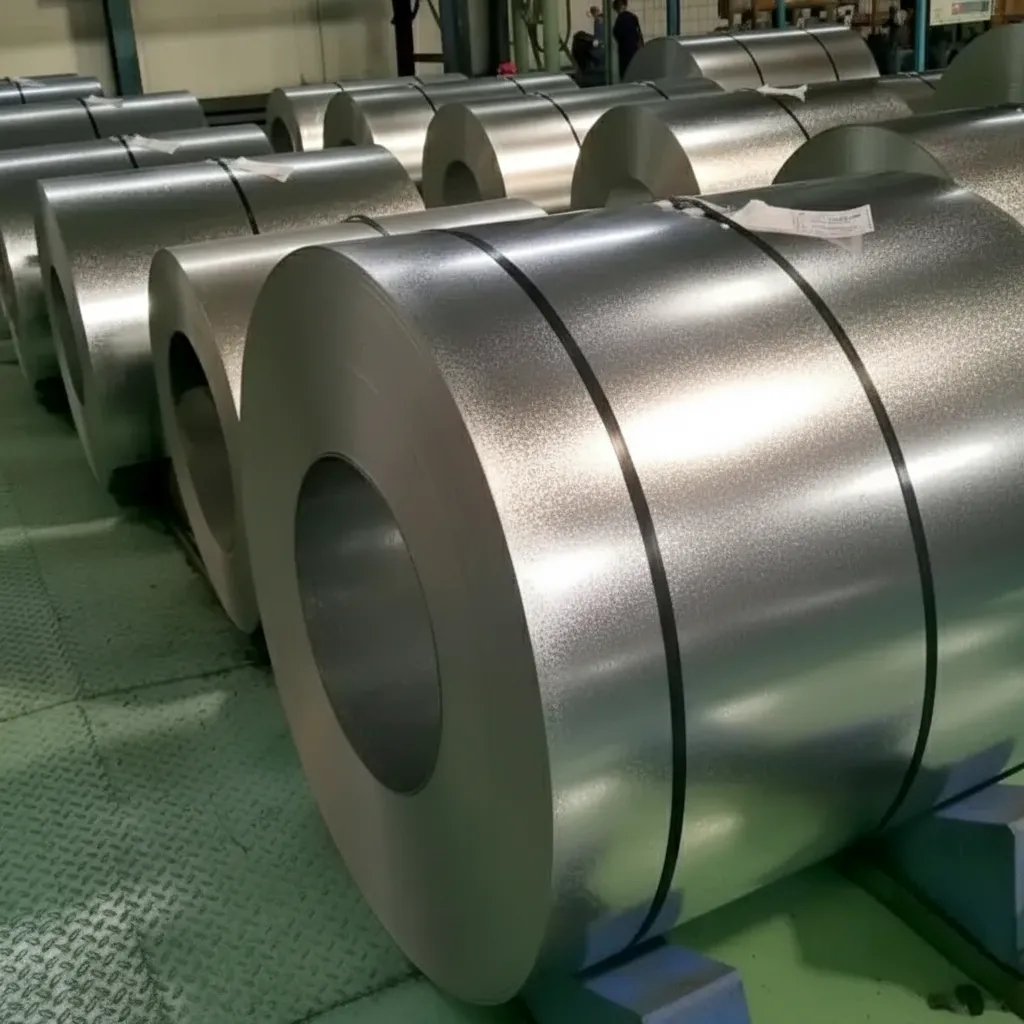

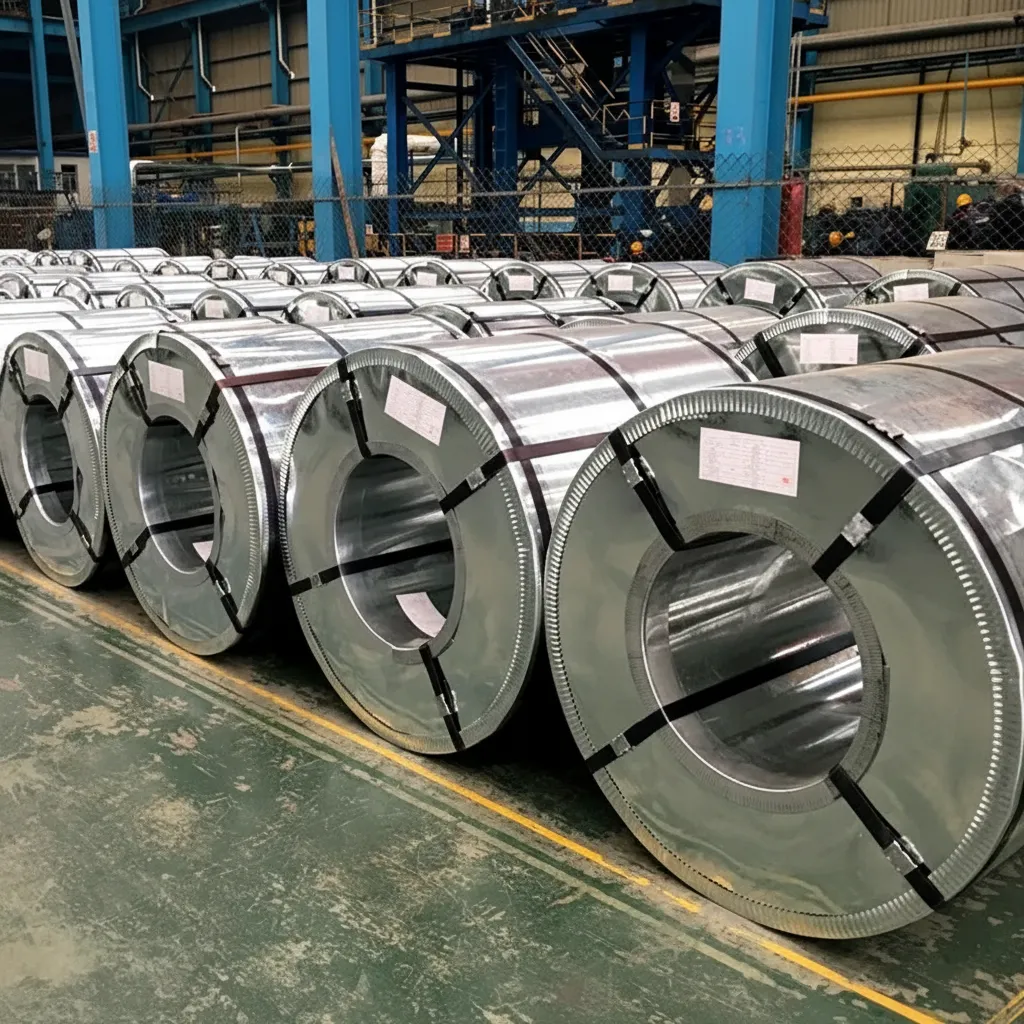

Electro Galvanized Steel Coil - ASTM A653 Grade CS Type B

Technical Specifications of Electro Galvanized Steel Coil

Electro Galvanized Steel Coil - ASTM A653 Grade CS Type B

Electro galvanized steel coil represents a cost-effective solution for applications requiring moderate corrosion protection in controlled environments. Manufactured through an electroplating process that deposits a thin, uniform zinc coating onto cold-rolled steel substrate, this material finds extensive application in automotive components, appliance housings, and light-duty construction products. The electrodeposition method ensures precise coating thickness control ranging from 15 to 60 g/m² per side, delivering consistent surface quality with excellent formability characteristics that meet the demanding requirements of modern manufacturing processes.

What is Electro Galvanized Steel Coil?

Electro galvanized steel coil is cold-rolled steel sheet that has undergone an electrolytic zinc coating process, where the base metal is immersed in an electrolyte solution containing zinc ions. An electrical current drives zinc deposition onto both surfaces, creating a metallurgically bonded protective layer. This process differs fundamentally from hot-dip galvanizing, producing thinner coatings with superior surface smoothness and enhanced paint adhesion properties.

Electro Galvanized Steel Coil Technical Specifications

Our electro galvanized steel coils comply with ASTM A653/A653M-20 Section 6 requirements for Grade CS Type B material. The zinc coating weight ranges from 30 to 90 g/m² total both sides, with coating thickness measuring 2.5 to 7.5 micrometers per surface. Base metal tensile strength reaches 270 MPa minimum, with yield strength of 140 MPa minimum per ASTM specifications. Standard coil widths span 600 to 1,524 mm, while thickness options range from 0.15 to 3.00 mm with tolerance of ±0.02 mm for material under 1.0 mm thick.

Manufacturing Process and Quality Control

The electroplating process begins with cold-rolled steel substrate undergoing alkaline cleaning to remove surface contaminants, followed by acid pickling to eliminate oxide scale. The prepared coil passes through an electrolytic cell containing zinc sulfate solution maintained at pH 2.5 to 4.0 and temperature of 45 to 65°C. Direct current density of 200 to 800 A/m² drives zinc ion reduction onto the steel surface at deposition rates of 0.5 to 2.0 micrometers per minute. Post-plating chromate conversion treatment provides additional corrosion resistance and improves paint adhesion characteristics. In-line coating weight measurement systems utilizing X-ray fluorescence technology ensure coating uniformity within ±10% of target specification.

Key Advantages and Performance Characteristics

Electro galvanized steel coil delivers exceptional surface smoothness with Ra values below 1.0 micrometer, making it the preferred choice for applications requiring premium painted finishes. The thin, uniform coating exhibits superior weldability compared to hot-dip galvanized alternatives, with minimal electrode contamination during resistance spot welding operations. Formability characteristics match those of uncoated cold-rolled steel, supporting complex stamping operations with bend radii down to 1T (one times material thickness) without coating fracture. The material demonstrates neutral salt spray resistance exceeding 96 hours to red rust per ASTM B117 testing protocol when chromate-treated.

Applications Across Industries

Automotive manufacturers extensively employ electro galvanized steel coil for body panels, door inners, and structural reinforcements where paintability and formability prove critical. The appliance industry utilizes this material for refrigerator cabinets, washing machine drums, and HVAC enclosures requiring smooth surfaces and moderate corrosion protection. Electronics manufacturers specify electro galvanized coil for computer chassis, server racks, and telecommunications equipment housings. The construction sector incorporates this product in metal ceiling systems, light-gauge framing members, and architectural panels for interior applications.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for electro galvanized steel coil is 25 metric tons per specification. For trial orders or specialized dimensions, we accommodate reduced quantities of 10 tons with adjusted pricing. Mixed container loading is available for customers requiring multiple thickness or width combinations, subject to minimum 5 tons per individual specification.

Do you provide material test certificates?

We supply comprehensive mill test certificates per EN 10204 Type 3.1 documentation with every shipment, including chemical composition analysis, mechanical property test results, coating weight verification, and dimensional measurements. Third-party inspection services from SGS, BV, or Intertek can be arranged at customer request, with inspection costs added to the order value. All test reports reference specific coil identification numbers for full traceability.

What is the typical delivery time?

Standard delivery time for electro galvanized steel coil ranges from 25 to 35 days after order confirmation and deposit receipt. Production scheduling depends on mill capacity utilization and coating line availability. Expedited production can be arranged with 15 to 20 day lead times for orders exceeding 100 tons, subject to surcharge of 8 to 12% above standard pricing. Sea freight transit adds 18 to 35 days depending on destination port location.

Can you cut to custom sizes?

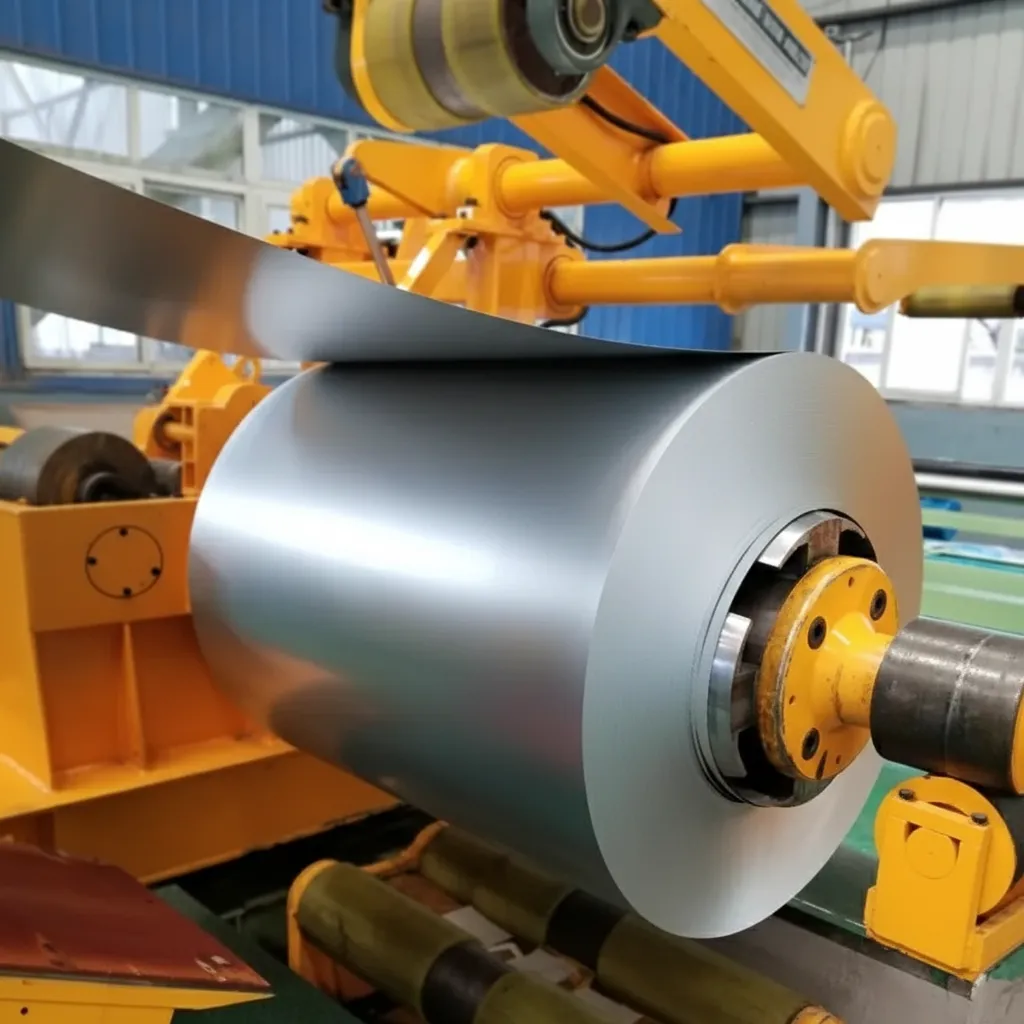

Our processing facility offers slitting services to custom widths from 100 mm to 1,500 mm with tolerance of ±2 mm, and cut-to-length processing for sheets ranging 1,000 to 6,000 mm in length. Blanking operations produce custom shapes and sizes per customer drawings, with tooling costs amortized over order quantities exceeding 5,000 pieces. Edge conditioning options include deburred, rounded, or painted edges for applications requiring enhanced safety or corrosion protection at cut surfaces.

Get a Competitive Quote for Electro Galvanized Steel Coil

Request your customized quotation today by contacting our technical sales team with your specific requirements for coating weight, dimensions, mechanical properties, and delivery schedule. Our mill-direct sourcing relationships enable us to offer factory-competitive pricing with flexible payment terms including L/C, T/T, and O/A options for established customers. Volume discounts apply for annual contract commitments exceeding 500 tons, with pricing locked for 12-month periods to protect against market volatility.
