| Property | Parameter | Description |
|---|---|---|

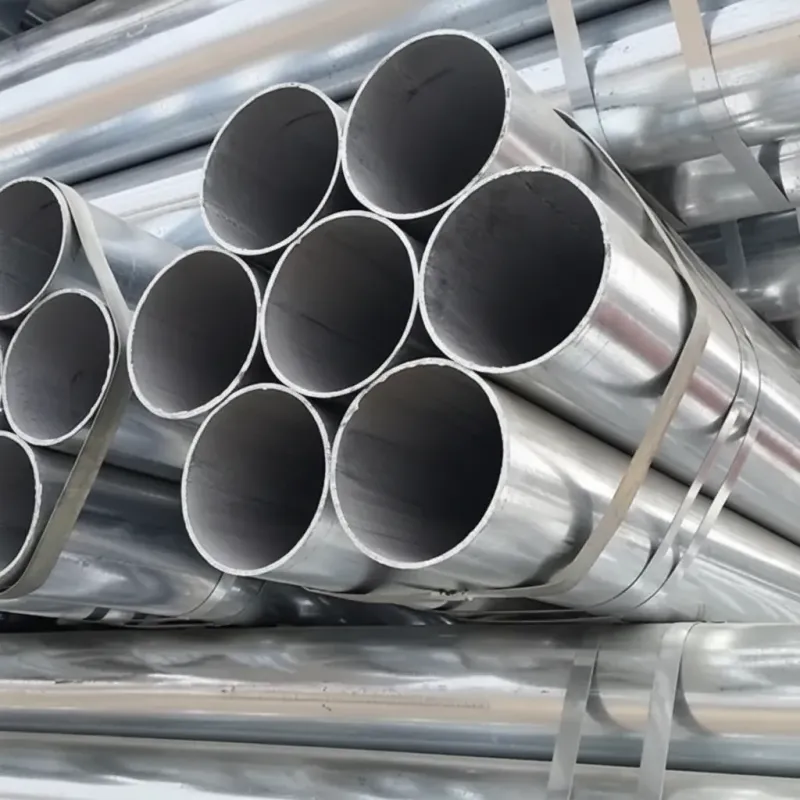

| Product Name | Galvanized Steel | Hot-dip galvanized and electro-galvanized steel products manufactured and exported by Chinese mills |
| Material Grade | DX51D / SGCC / S250GD / S350GD | Equivalent to ASTM A653 CS/FS/SS, EN 10346, JIS G3302 grades; common Chinese GB/T 2518 grades |
| Standard Compliance | GB/T 2518, ASTM A653/A924, EN 10346, JIS G3302 | Products comply with major international standards for hot-dip zinc-coated steel sheet and strip |
| Chemical Composition (C) | ≤ 0.12% | Low carbon content ensures good formability and weldability |
| Chemical Composition (Mn) | ≤ 0.60% | Manganese content controlled for structural integrity |
| Chemical Composition (P / S) | P ≤ 0.045% / S ≤ 0.045% | Phosphorus and sulfur limits per GB/T 2518 and EN 10346 |
| Tensile Strength | 270–560 MPa | Varies by grade; e.g., DX51D ≥ 270 MPa, S350GD ≥ 420 MPa per EN 10346 |
| Yield Strength | 140–420 MPa | S250GD ≥ 250 MPa, S350GD ≥ 350 MPa; structural grades per EN 10346 / ASTM A653 |
| Elongation | ≥ 16–22% | Minimum elongation (A80) depending on grade and thickness; ensures forming performance |
| Zinc Coating Weight | Z60–Z275 (g/m²) / G30–G90 (oz/ft²) | Both sides combined; Z275 (275 g/m²) most common for construction; per EN 10346 / ASTM A653 |
| Thickness Range | 0.12–6.0 mm | Standard commercial thickness; custom gauges available upon request |
| Width Range | 600–1,500 mm | Coil and sheet widths; slit coil widths available from 20 mm |
| Surface Finish | Regular Spangle / Minimized Spangle / Zero Spangle / Skin-passed | Options include chromate passivation, oiled or dry surface treatment for corrosion protection |
| Application | Construction, Automotive, Appliances, Agriculture, HVAC | Roofing, wall cladding, purlins, automotive panels, white goods, pipes, and structural components |
| Certification | ISO 9001, SGS, BV, Mill Test Certificate (MTC) | Third-party inspection available; MTC per EN 10204 3.1 provided with each shipment |
| Packaging | Coil / Sheet / Slit Coil | Inner eye-to-sky or eye-to-wall; waterproof paper + steel strip bundling; export seaworthy packaging |
| MOQ | 25 MT per order | Minimum order quantity for standard grades; mixed grades accepted for full container load (FCL) |
Initial surface finish issue — resolved professionally
Our first shipment of 50 MT of 0.45 mm G60 skin-passed coil had visible oil streaking on approximately 8% of coils, which was flagged by our customer. I raised the issue immediately and the supplier responded within 24 hours, arranged a third-party inspection, confirmed the cause was an oiling-system calibration issue, and issued a partial credit plus replacement coils within 18 days. Second shipment was perfect — uniform finish, coating weight on spec. The after-sales response was professional and transparent. Upgraded to a regular account since then.
