Carbon steel plate serves as the backbone of modern industrial construction and manufacturing, offering exceptional structural integrity and versatility across diverse applications. As a fundamental material in infrastructure development, this rolled steel product delivers reliable mechanical properties at cost-effective pricing, making it the preferred choice for construction firms, fabricators, and heavy equipment manufacturers worldwide. With compliance to international standards including ASTM A36, A572, and JIS SS400, our carbon steel plate inventory meets the demanding requirements of bridges, buildings, pressure vessels, and machinery components.
What is Carbon Steel Plate?
Carbon steel plate is a flat-rolled steel product characterized by carbon content ranging from 0.05% to 2.0%, manufactured through hot rolling or cold rolling processes. This structural material derives its strength primarily from carbon content rather than alloying elements, distinguishing it from alloy steel and stainless steel variants. The manufacturing process involves heating steel billets to temperatures exceeding 1,700°F (927°C), followed by controlled rolling to achieve precise thickness tolerances between 3/16 inch (4.75mm) and 12 inches (304.8mm). Available in standard widths up to 96 inches (2,438mm) and lengths reaching 480 inches (12,192mm), carbon steel plate finds extensive application in structural frameworks, shipbuilding, storage tanks, and industrial equipment fabrication.
Carbon Steel Plate Technical Specifications
Our carbon steel plate inventory conforms to rigorous international standards ensuring consistent quality and performance. ASTM A36 grade exhibits minimum yield strength of 36,000 psi (250 MPa) and tensile strength of 58,000-80,000 psi (400-550 MPa), suitable for general structural applications. ASTM A572 Grade 50 provides enhanced strength with minimum yield of 50,000 psi (345 MPa), ideal for high-stress construction projects. Chemical composition strictly controls carbon content at 0.26% maximum for A36 and 0.23% maximum for A572-50, with manganese levels between 0.80-1.35% depending on thickness. Surface finish options include mill finish, pickled and oiled, or shot-blasted conditions per customer specifications.
Manufacturing Process and Quality Control
Carbon steel plate production employs either hot rolling or cold rolling techniques, each delivering distinct characteristics for specific applications. Hot rolled plates undergo processing at temperatures above the recrystallization point, resulting in slightly scaled surfaces and relaxed dimensional tolerances suitable for structural work. Cold rolled variants are processed at room temperature, producing superior surface finish with tighter thickness tolerances of ±0.005 inches (0.127mm), preferred for precision manufacturing. Our quality assurance protocol includes ultrasonic testing per ASTM A435 for internal soundness verification, dimensional inspection using calibrated measuring equipment, and chemical analysis via optical emission spectrometry to confirm elemental composition compliance.
Hot Rolled vs Cold Rolled Carbon Steel Plate
Hot rolled carbon steel plate demonstrates cost advantages for large-scale structural projects, offering excellent weldability and formability with typical thickness tolerances of ±0.030 inches (0.76mm). The manufacturing process creates a characteristic mill scale surface requiring removal for painting applications. Cold rolled plate delivers premium surface quality with near-mirror finish, dimensional precision within ±0.003 inches (0.076mm), and enhanced mechanical properties through work hardening, commanding a price premium of 15-25% over hot rolled equivalents for applications demanding tight tolerances.
Standard Grades and Chemical Composition
ASTM A36 composition limits carbon to 0.26% maximum, manganese 0.80-1.20%, phosphorus 0.04% maximum, and sulfur 0.05% maximum, providing balanced strength and weldability. A572 Grade 50 restricts carbon to 0.23% maximum while allowing manganese up to 1.35% for enhanced strength characteristics. JIS SS400 maintains carbon at 0.25% maximum with silicon content of 0.35% maximum, widely specified in Asian markets for general structural applications requiring yield strength of 245 MPa minimum.
Applications and Industry Use Cases
Carbon steel plate demonstrates remarkable versatility across industrial sectors, with construction consuming approximately 52% of global production for structural beams, columns, and reinforcement applications. The shipbuilding industry specifies marine-grade carbon steel plate conforming to ABS, DNV, or Lloyd's Register classifications for hull construction, bulkheads, and deck plating. Pressure vessel manufacturers utilize ASME SA-516 Grade 70 carbon steel plate for boilers, storage tanks, and heat exchangers operating at temperatures up to 650°F (343°C). Heavy equipment producers employ abrasion-resistant AR400 and AR500 carbon steel plate in mining machinery, earthmoving equipment, and material handling systems requiring superior wear resistance.
Structural and Construction Applications
Building construction projects leverage ASTM A36 carbon steel plate for base plates, gusset plates, and connection elements in steel-framed structures. Bridge construction specifies ASTM A709 Grade 50W weathering steel plate for superior atmospheric corrosion resistance, eliminating painting requirements in many environments. Industrial flooring applications employ checkered carbon steel plate with raised diamond or teardrop patterns providing slip resistance in walkways, platforms, and stair treads.
Industrial Equipment and Machinery
Manufacturing equipment fabricators select carbon steel plate for machine bases, frames, and enclosures requiring rigidity and vibration damping properties. Agricultural machinery incorporates medium-carbon steel plate in plow blades, cultivator shanks, and harvester components demanding impact resistance. The energy sector utilizes thick carbon steel plate up to 12 inches (304.8mm) for wind turbine tower sections, supporting structures weighing 200-350 tons with heights exceeding 300 feet (91 meters).
Why Choose Our Carbon Steel Plate
Our carbon steel plate inventory represents the largest stocked selection in the region, featuring over 5,000 tons of readily available material in thicknesses from 3/16 inch to 12 inches. We maintain ISO 9001:2015 certification and operate an in-house testing laboratory equipped with spectrometers, tensile testing machines, and ultrasonic inspection equipment, ensuring every plate meets or exceeds specified standards. Mill test certificates accompany all shipments, documenting chemical analysis, mechanical properties, and heat number traceability per EN 10204 Type 3.1 requirements. Our value-added services include precision plasma cutting with tolerances to ±0.030 inches (0.76mm), beveling for weld preparation, and shot blasting for optimal coating adhesion.
Inventory and Availability

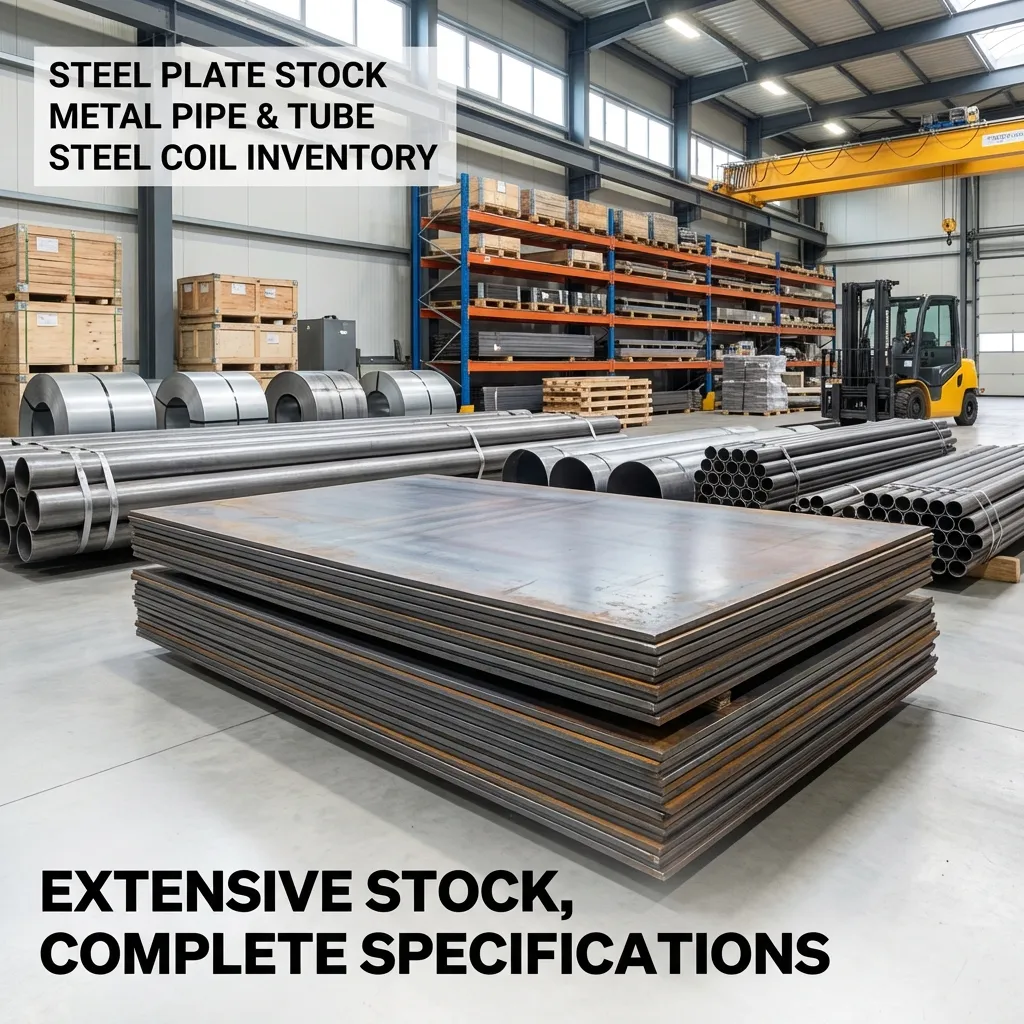

Stocked dimensions include standard 96-inch × 240-inch (2,438mm × 6,096mm) and 120-inch × 240-inch (3,048mm × 6,096mm) plates in thicknesses of 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1-1/4", 1-1/2", 2", 3", 4", and 6 inches. Non-standard sizes are available through our mill-direct procurement program with lead times of 6-8 weeks for domestic production and 10-12 weeks for imported material. Volume discounts apply for orders exceeding 20 tons, with pricing advantages of 8-12% compared to spot market rates.
Processing Capabilities
Our 30,000 square foot processing facility operates CNC plasma cutting tables handling plates up to 12 feet × 40 feet (3.66m × 12.19m), oxy-fuel cutting for thicknesses exceeding 6 inches, and edge beveling equipment preparing single-V, double-V, and J-groove weld preparations. Surface preparation services include abrasive blasting to SSPC-SP 6 commercial blast or SP 10 near-white blast standards, with optional shop primer application providing 2-3 mils dry film thickness for temporary corrosion protection during storage and transportation.
Frequently Asked Questions
What is the minimum order quantity (MOQ)?
Our standard minimum order quantity is 2,000 pounds (907 kg) for stocked sizes and grades, allowing small fabricators and maintenance operations access to mill-certified material without excessive inventory investment. Custom cutting services require a 500-pound minimum per line item, with setup charges waived for orders exceeding 5,000 pounds total weight.
Do you provide material test certificates?
Yes, mill test certificates conforming to EN 10204 Type 3.1 accompany every shipment at no additional charge, documenting chemical composition analysis, mechanical property test results including yield strength and tensile strength, heat number for full traceability, and manufacturer certification. Third-party inspection services through SGS, Bureau Veritas, or TÜV are available upon request with 5-7 business days notice for witness testing and independent verification.
What is the typical delivery time?
Stocked material ships within 24-48 hours of order confirmation for local deliveries within 200 miles, with full truckload shipments departing within 3-5 business days. Custom cutting and processing adds 3-5 business days to standard lead times, depending on complexity and current production schedule. Expedited processing is available for critical projects, with rush orders receiving priority scheduling for completion within 24-72 hours subject to availability and additional expedite fees of 15-20%.
Can you cut to custom sizes?
Our precision cutting services accommodate custom dimensions with CNC plasma cutting accuracy of ±0.030 inches (0.76mm) for plates up to 2 inches thick, and oxy-fuel cutting for thicker material with tolerances of ±0.060 inches (1.52mm). Complex shapes including circles, rectangles with corner radii, and irregular geometries are produced from CAD files in DXF or DWG formats. Beveling services prepare weld edges from 15° to 45° included angles, with land dimensions controlled to customer specifications for optimized weld joint performance.
Get a Competitive Quote for Carbon Steel Plate
Request your customized quotation today and experience the advantages of partnering with a certified carbon steel plate supplier committed to quality, reliability, and customer satisfaction. Our technical sales team provides expert material selection guidance, considering your specific application requirements, budget constraints, and delivery timeline. We offer flexible payment terms including net 30-day accounts for qualified customers, progress billing for large projects, and competitive pricing reflecting current market conditions with price protection available for contracted annual volumes.
- 24/7 customer support available via phone, email, and online chat
- Free samples for quality evaluation up to 12 inches × 12 inches
- Competitive pricing for bulk orders with volume discounts up to 12%
- Professional technical consultation for material selection and application engineering
- Nationwide delivery network with dedicated logistics coordinators
- Just-in-time delivery programs for production scheduling optimization
Contact us today to get your free quote within 24 hours and discover why leading fabricators trust our carbon steel plate solutions for their most demanding projects!
