Ballistic Steel Plate - NIJ Level III IV Armor Steel for Ballistic Protection

Technical Specifications of Ballistic Steel Plate

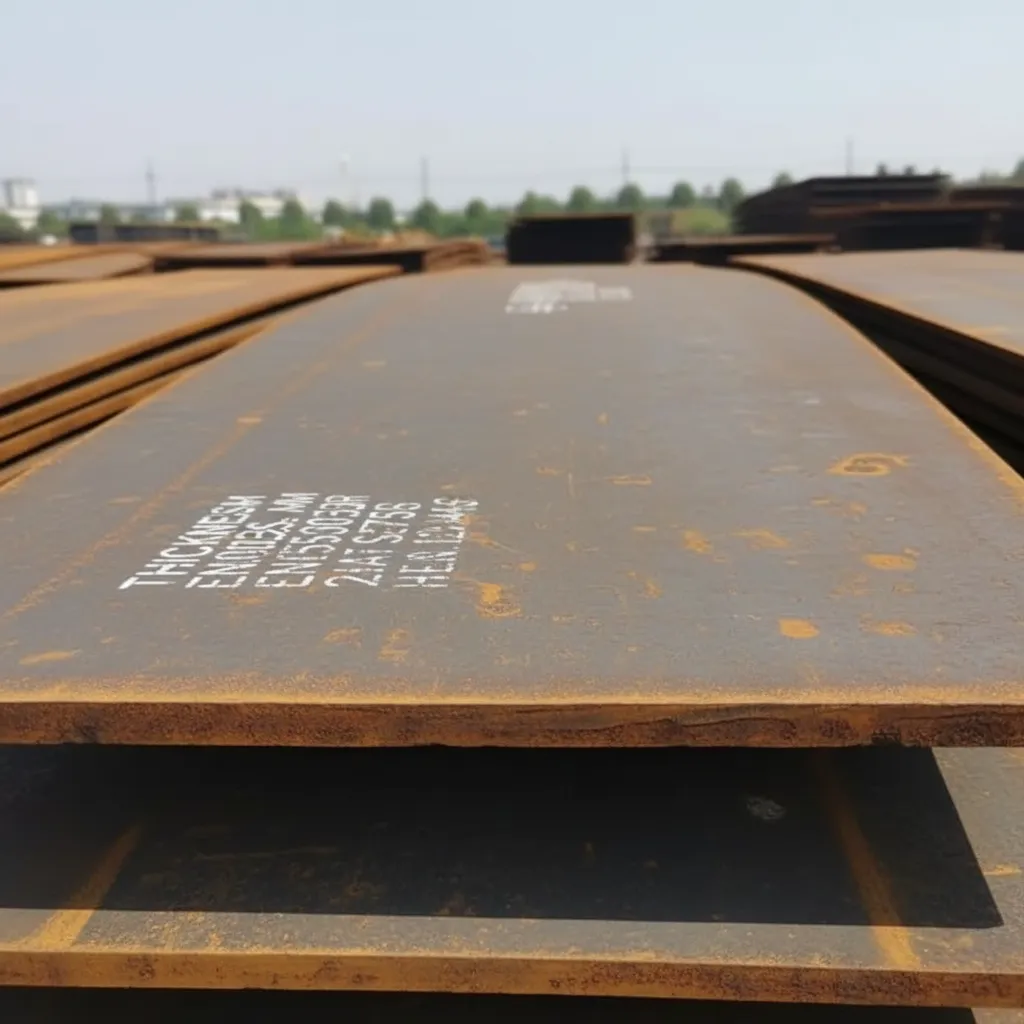

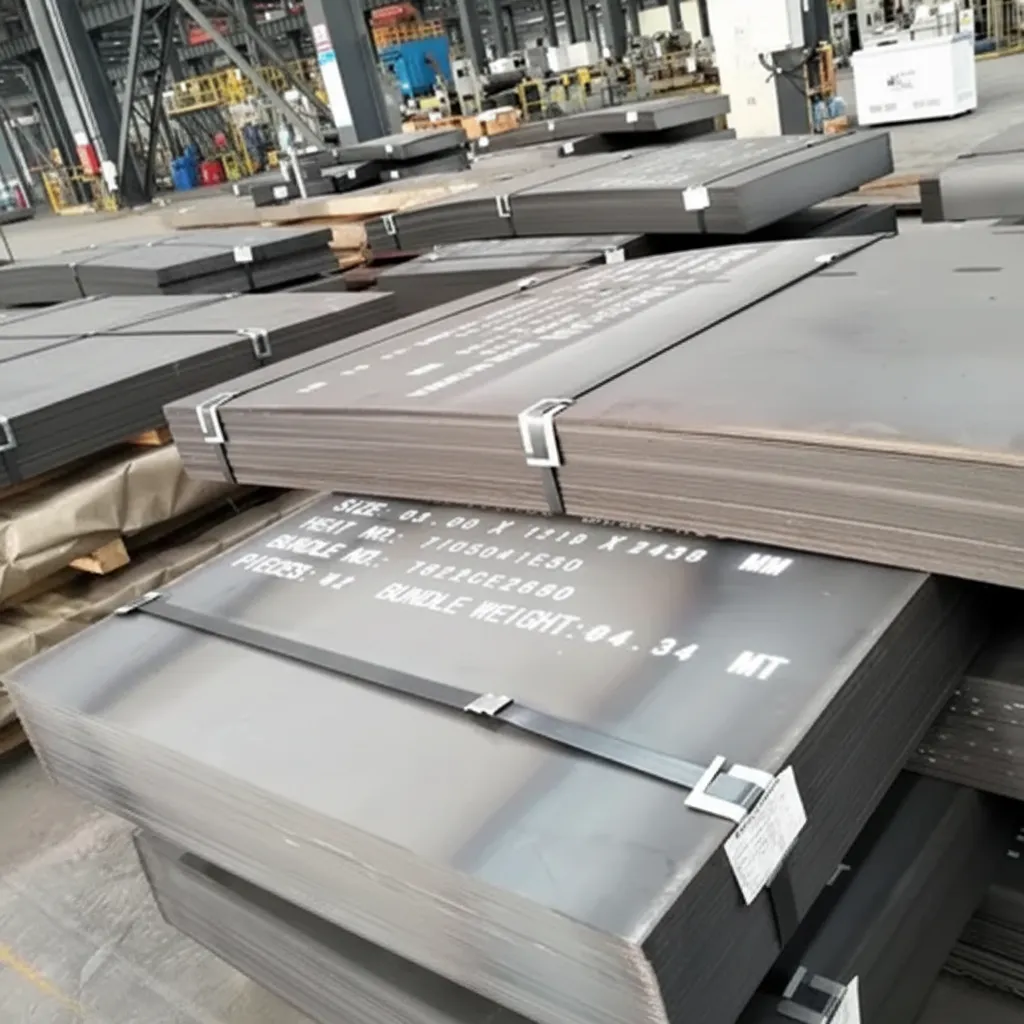

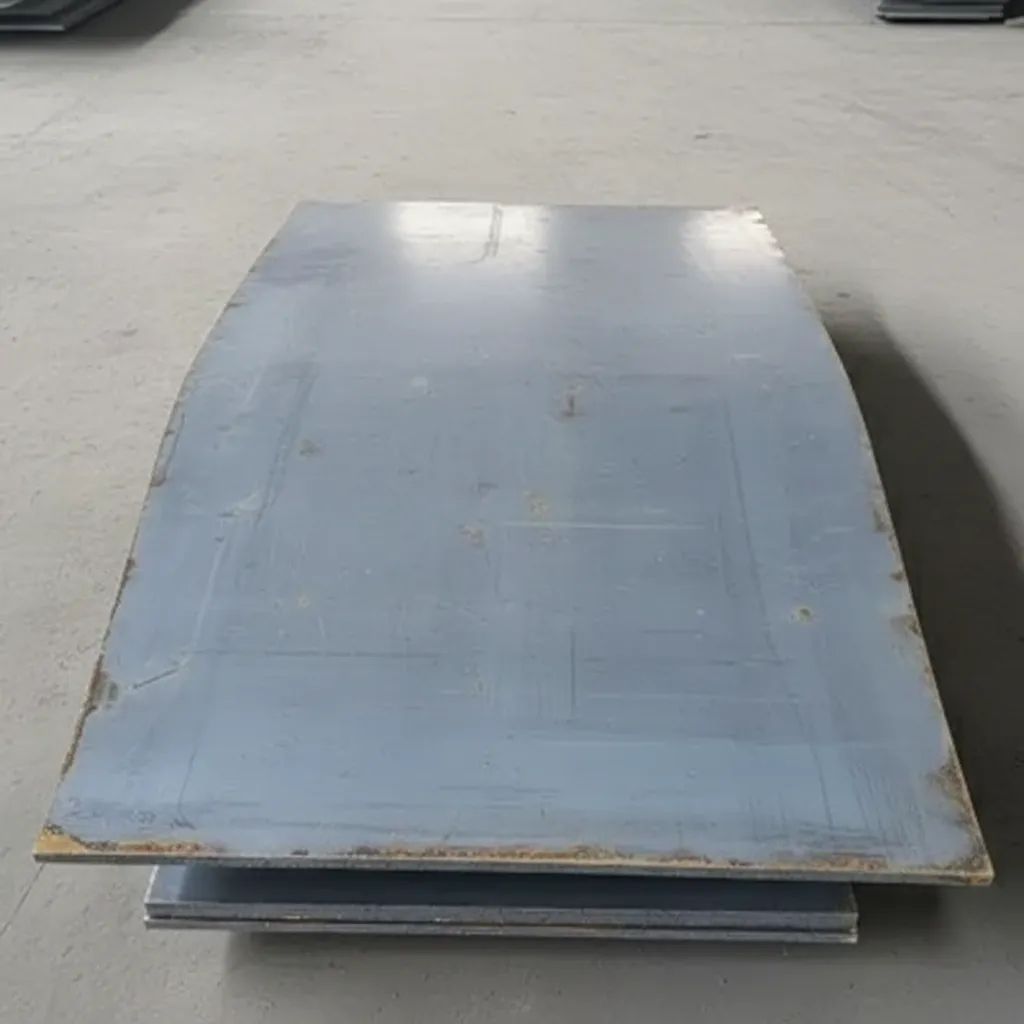

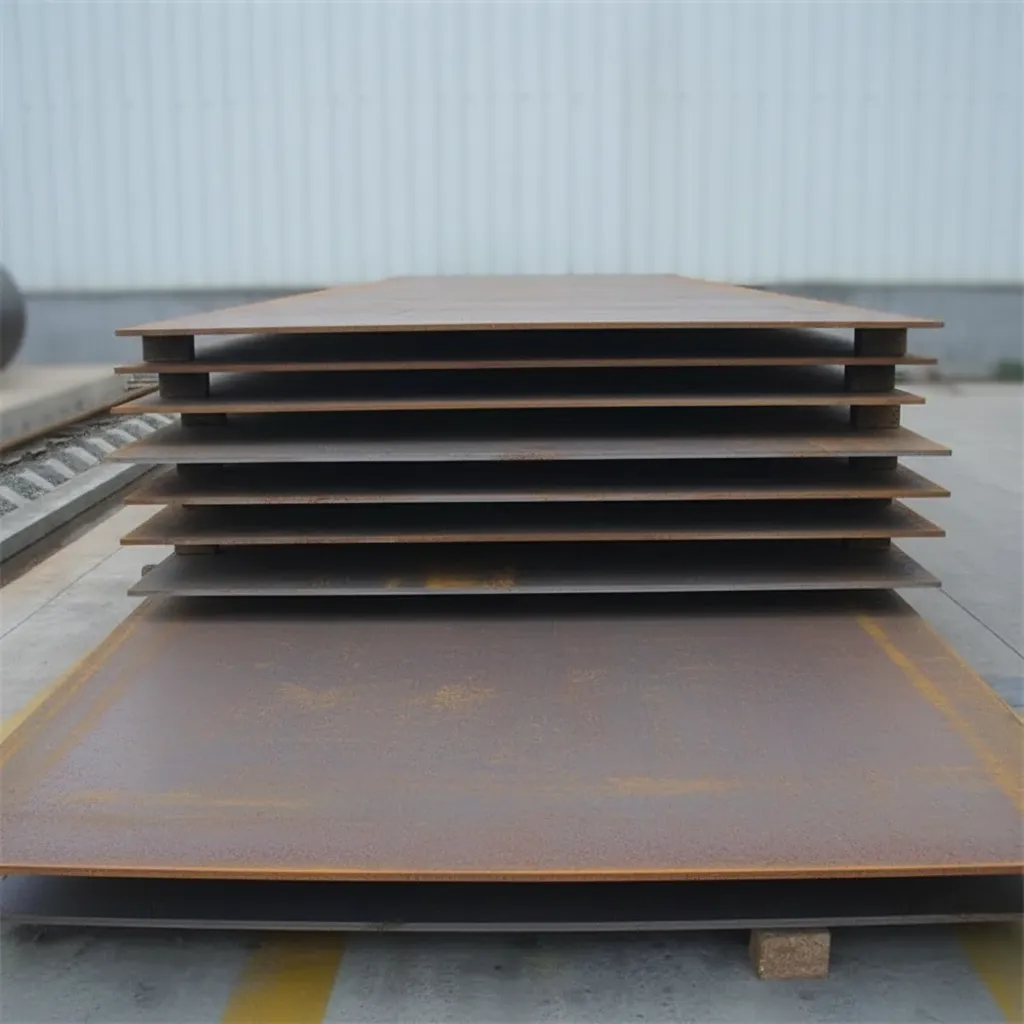

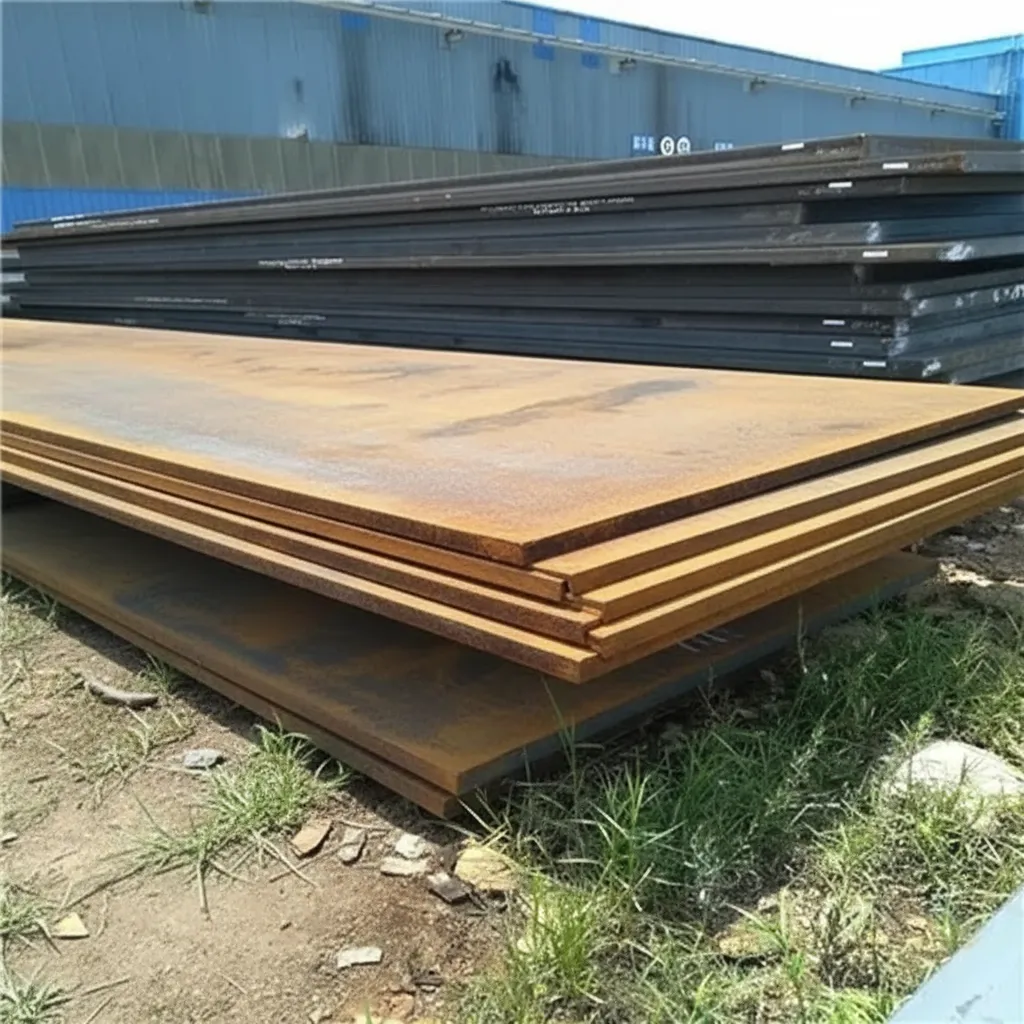

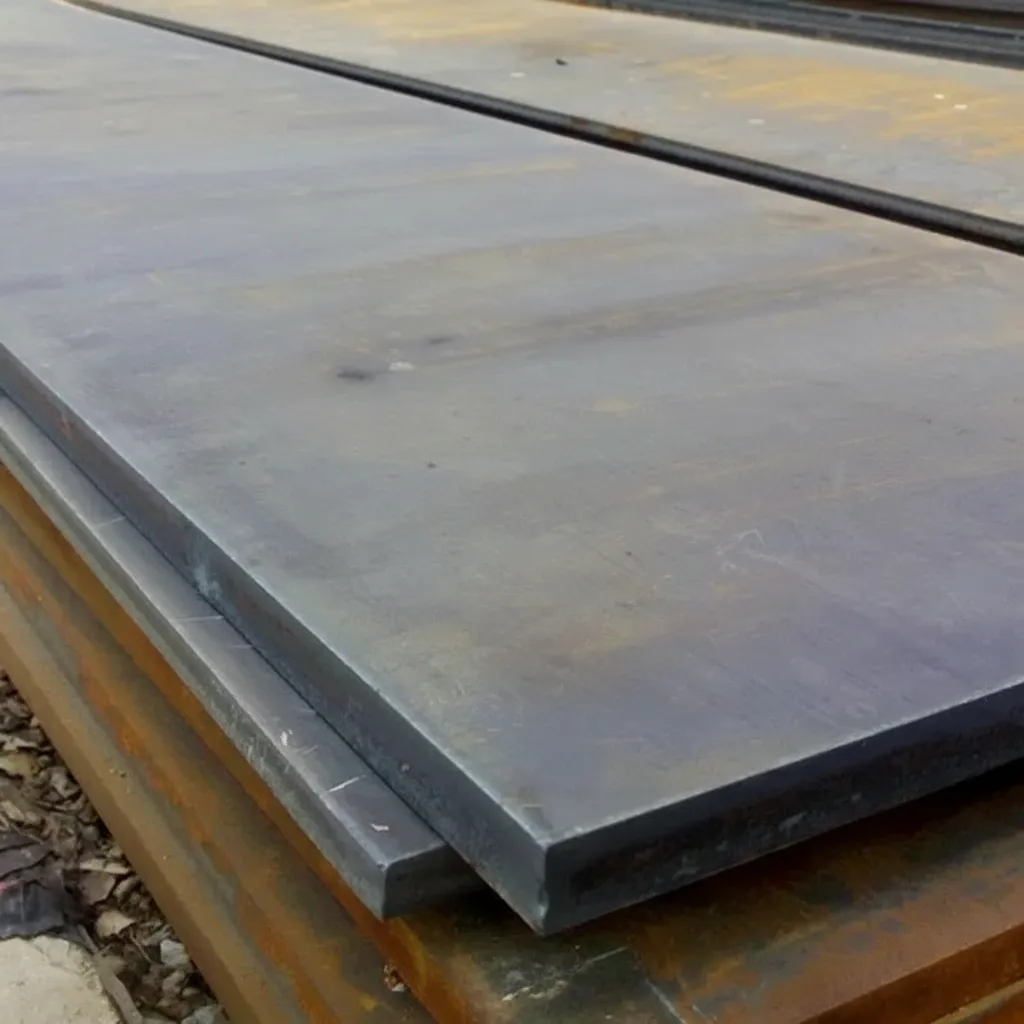

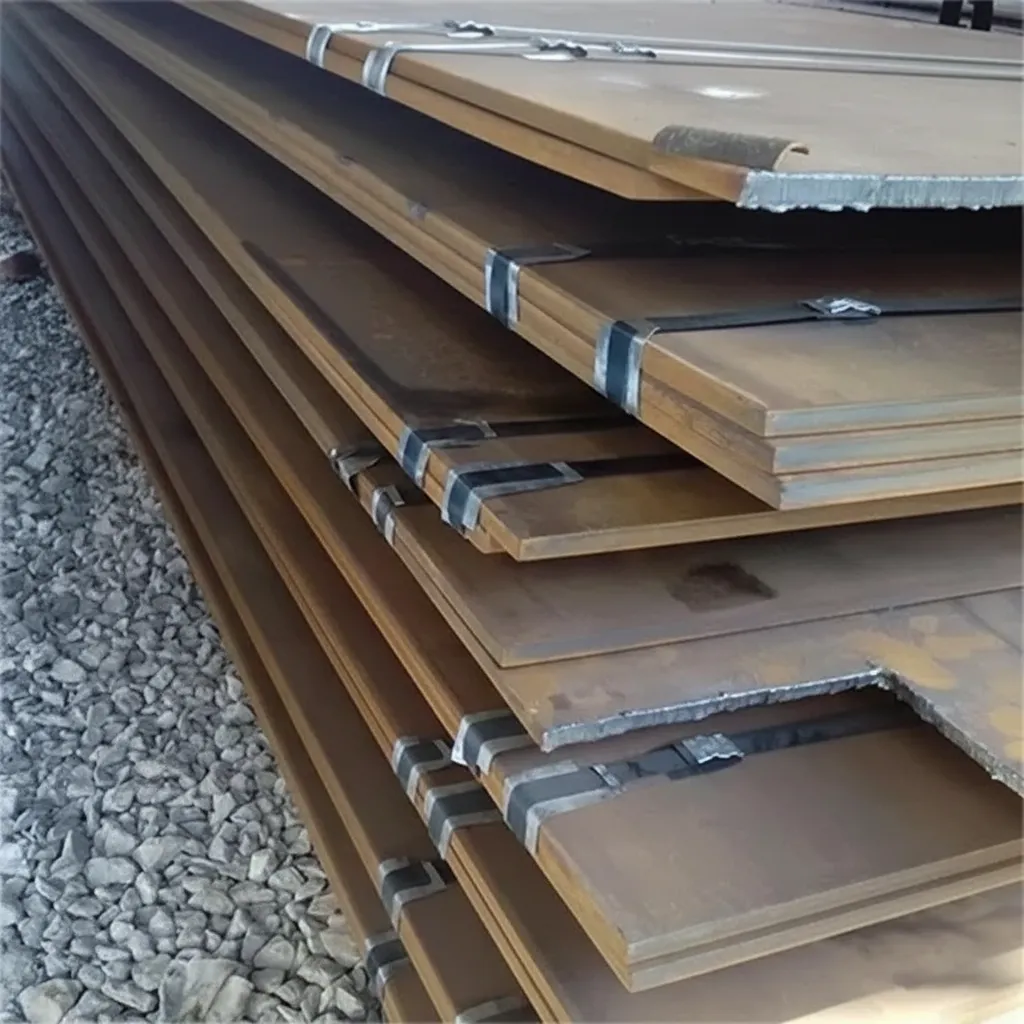

Ballistic Steel Plate - NIJ Level III IV Armor Steel for Ballistic Protection

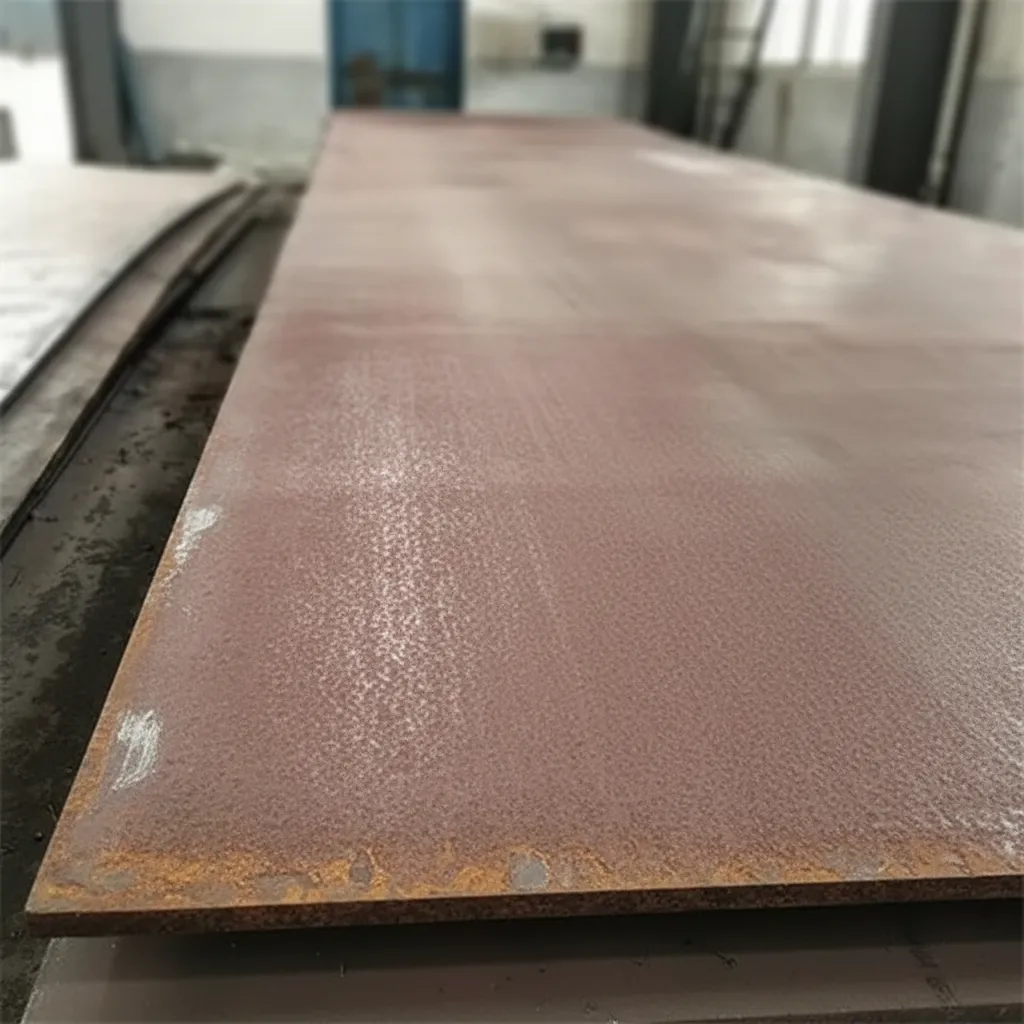

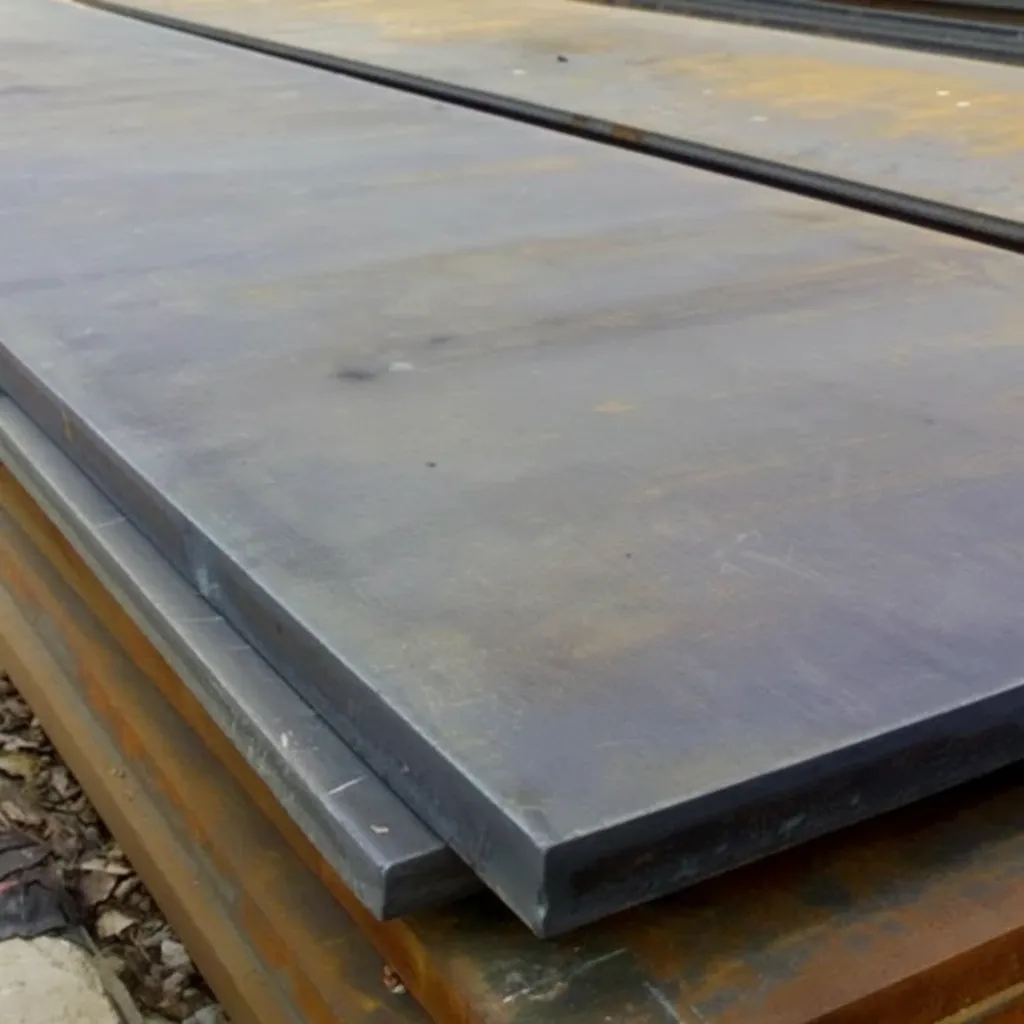

Ballistic steel plate represents a specialized category of high-hardness armor-grade steel engineered specifically for ballistic threat protection in defense, law enforcement, and security applications. Manufactured through controlled heat treatment processes achieving surface hardness values between 477-534 HBW per NIJ Standard-0108.01, these plates provide certified protection against rifle threats including 7.62×51mm NATO rounds. Designed for armored vehicle manufacturers, personal protection equipment producers, and critical infrastructure security projects, ballistic steel plate delivers the optimal balance of penetration resistance, multi-hit capability, and weight efficiency required in contemporary threat environments.

What is Ballistic Steel Plate?

Ballistic steel plate is a through-hardened or surface-hardened alloy steel product specifically engineered to defeat ballistic threats through a combination of exceptional hardness and controlled ductility. Manufactured according to MIL-DTL-46100E specifications, these plates achieve their protective characteristics through precise alloying with elements including carbon (0.28-0.33%), chromium (0.40-0.65%), and molybdenum (0.15-0.25%), followed by quench-and-temper heat treatment cycles that produce martensitic microstructures capable of fragmenting projectiles upon impact.

Ballistic Steel Plate Technical Specifications

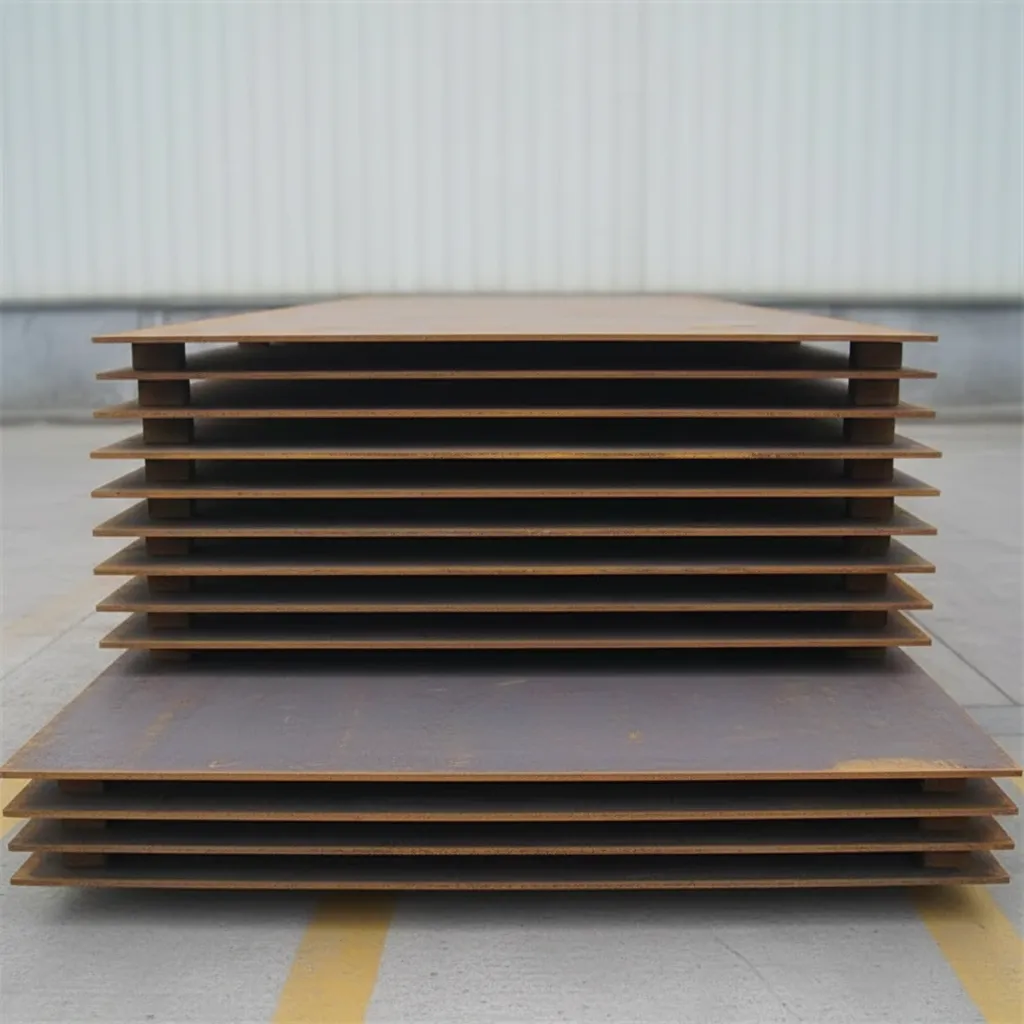

Standard ballistic steel plate is supplied in thicknesses ranging from 4.5mm to 12.7mm with typical dimensions of 1220mm × 2440mm or 1500mm × 3000mm. Surface hardness typically ranges from 477 HBW minimum for Level III applications to 534 HBW for Level IV protection per NIJ Standard-0108.01 Section 5.2.3. Tensile strength values reach 1850-2150 MPa with yield strength exceeding 1450 MPa, while maintaining minimum elongation of 8% in 50mm gauge length per ASTM A370 testing protocols. Density measures 7.85 g/cm³ at 20°C with areal density calculated as 35.4 kg/m² for 4.5mm thickness.

Why Choose Our Ballistic Steel Plate

Our ballistic steel plate is manufactured in ISO 9001:2015 certified facilities utilizing vacuum degassing technology that limits sulfur content below 0.003% and phosphorus below 0.012%, ensuring superior through-thickness properties and weldability characteristics. Each production lot undergoes V50 ballistic testing per MIL-STD-662F using 7.62×51mm M80 ball ammunition at 0° obliquity, with certified test reports documenting performance margins exceeding NIJ requirements by minimum 15%. We maintain continuous inventory of NIJ Level III and IV certified plates in both flat and pre-formed configurations, supported by mill test certificates traceable to heat-specific chemical and mechanical property data.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity for ballistic steel plate is 5 metric tons per specification and thickness. For prototype development or testing programs, we accommodate reduced quantities of 500kg minimum with applicable small-lot surcharges. Volume customers requiring monthly shipments exceeding 50 tons qualify for blanket purchase agreements with flexible release scheduling.

Do you provide material test certificates?

Yes, every shipment includes comprehensive mill test certificates per EN 10204 Type 3.1 documentation standards, containing heat-specific chemical composition analysis via optical emission spectroscopy, mechanical property test results including tensile, hardness, and impact values, and ballistic performance certification referencing NIJ Standard-0108.01 V50 test data. Additional certifications including DFARS compliance statements and conflict minerals declarations are available upon request.

What is the typical delivery time?

Standard ballistic steel plate in commonly specified thicknesses (4.5mm, 6.0mm, 8.0mm) ships within 4-6 weeks from order confirmation for quantities up to 20 tons. Custom thickness requirements or specialized heat treatment specifications extend lead times to 8-10 weeks to accommodate dedicated production runs. Expedited processing is available for urgent defense contracts with 2-3 week delivery achievable for in-stock specifications, subject to capacity availability and premium scheduling fees.

Can you cut to custom sizes?

Our fabrication facility provides precision plasma cutting services with tolerance of ±2mm for complex geometries and curved sections required in vehicle armor applications. Water jet cutting is available for thickness up to 25mm where heat-affected zone concerns require cold-cutting methods. Edge preparation including beveling for welded assemblies is performed per AWS D1.1 specifications. Minimum custom cut dimensions are 200mm × 200mm with nesting optimization to minimize material waste on customer projects.

Get a Competitive Quote for Ballistic Steel Plate

Request your detailed quotation for ballistic steel plate by providing project specifications including required protection level, thickness, dimensions, annual volume requirements, and delivery destination. Our technical sales team responds within 24 hours with mill-direct pricing, material availability confirmation, and application engineering support to optimize your armor system design. Contact us today to discuss your ballistic protection requirements and receive certified test data demonstrating our plate performance against relevant threat matrices.
