Ballistic Protection Steel Plate - Ballistic-Resistant Armor Steel for Military & Security Applications

Technical Specifications of Ballistic Protection Steel Plate

Ballistic Protection Steel Plate - Ballistic-Resistant Armor Steel for Military & Security Applications

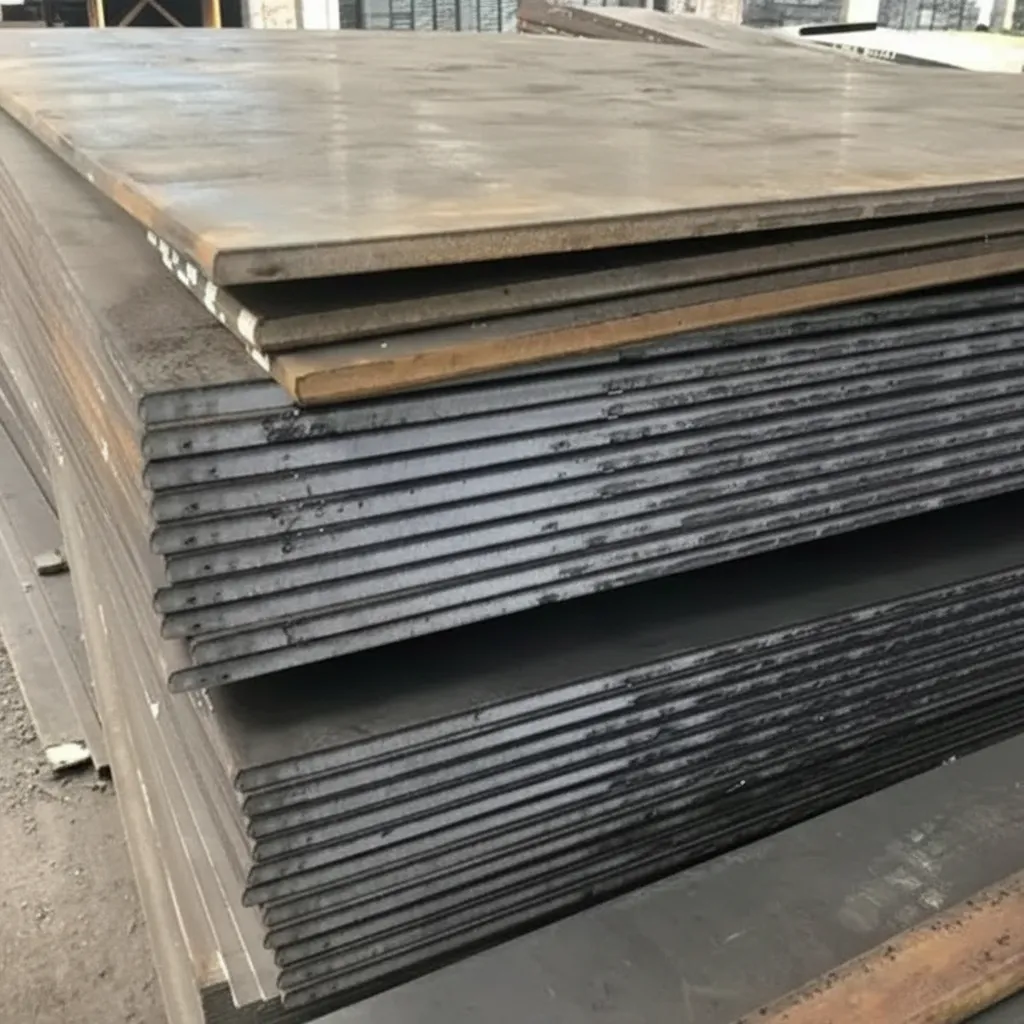

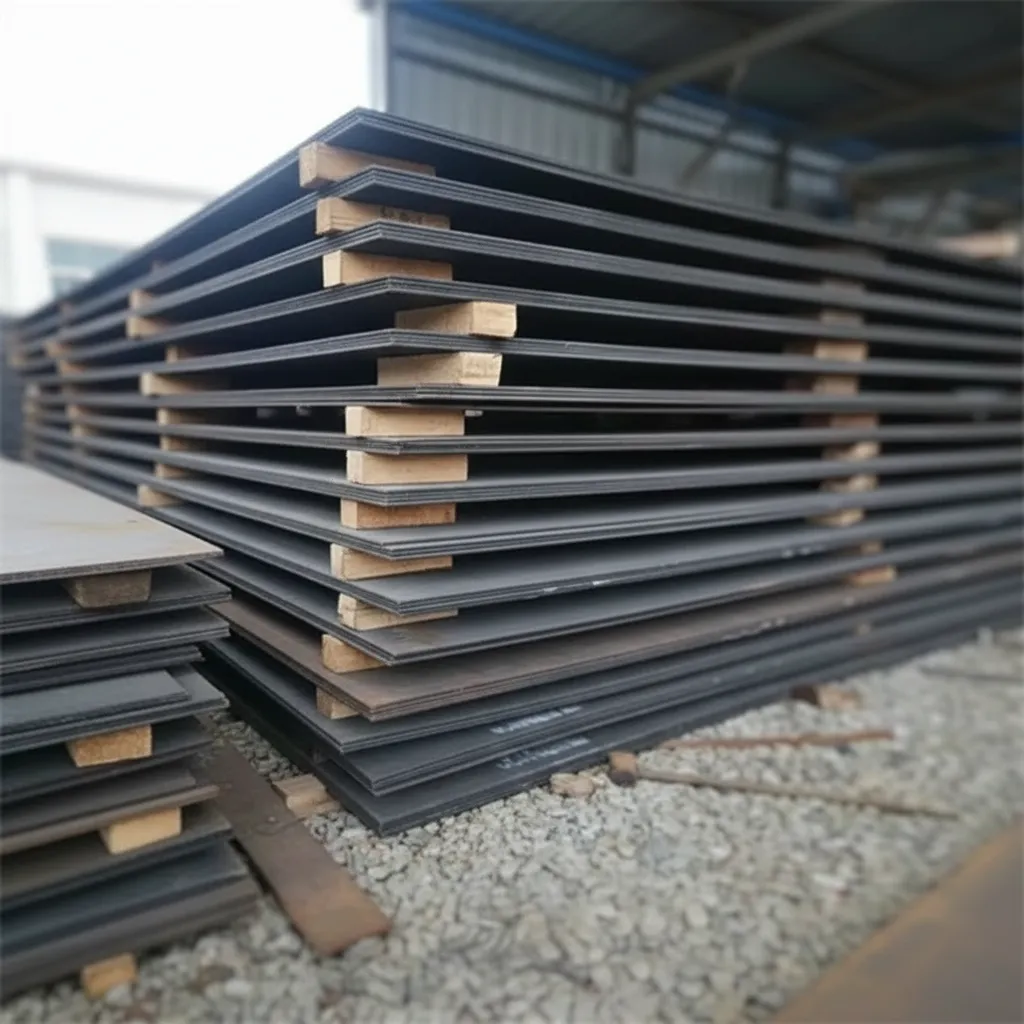

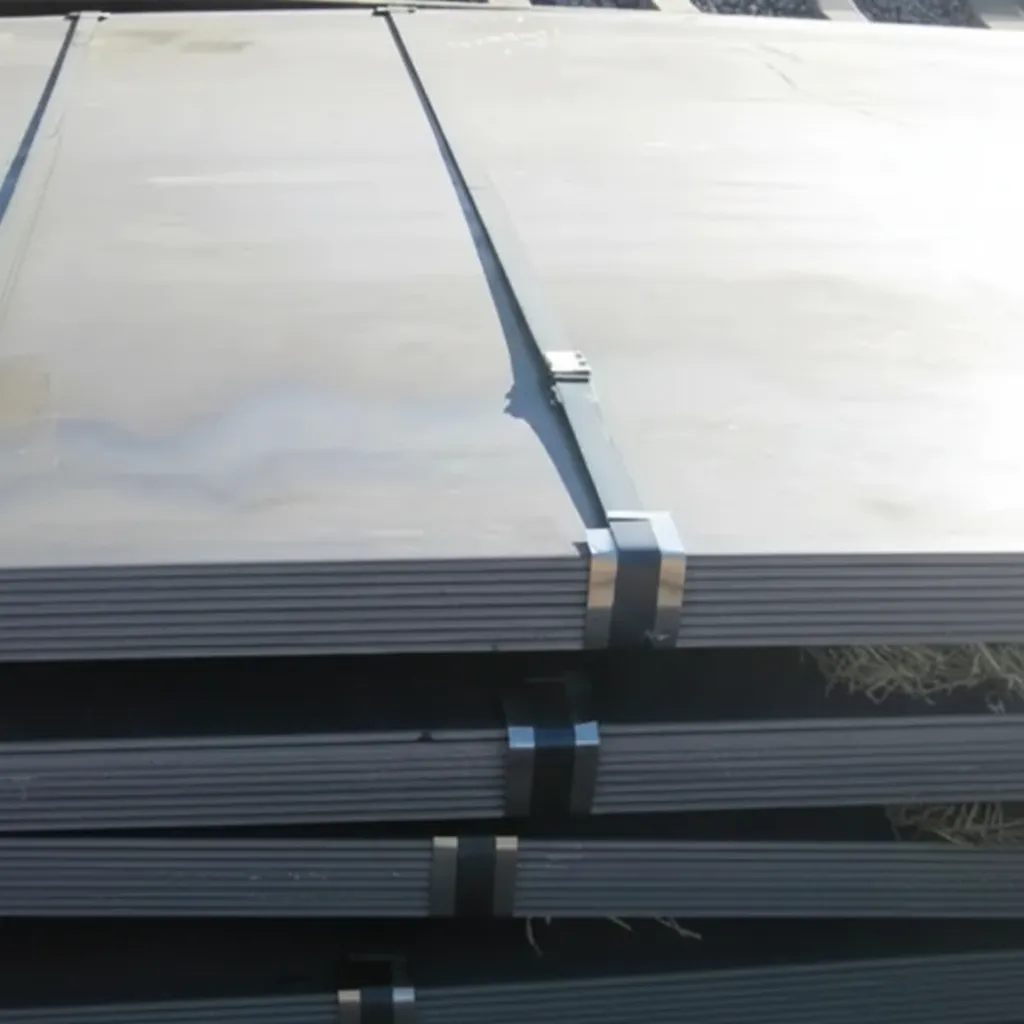

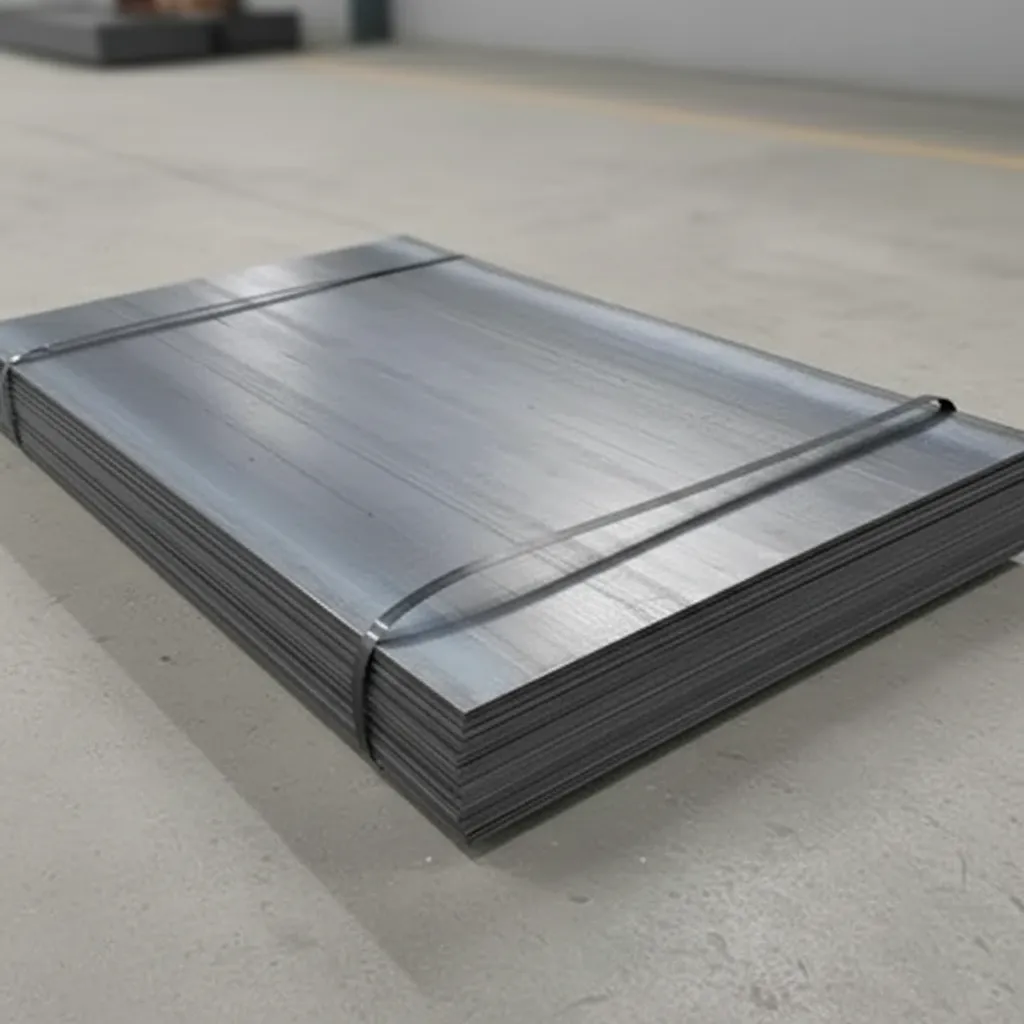

Ballistic protection steel plate represents a specialized category of high-hardness armor steel engineered to withstand ballistic impacts and provide critical protection in defense, security, and armored vehicle applications. Manufactured through advanced quenching and tempering processes, these plates deliver exceptional hardness levels ranging from 500 to 600 HBW while maintaining adequate toughness to prevent catastrophic failure upon impact. Designed for military vehicles, personnel carriers, security installations, and protective barriers, ballistic-resistant armor steel meets stringent international standards including NIJ 0108.01, STANAG 4569, and MIL-DTL-46100E, ensuring reliable performance in life-critical situations.

What is Ballistic Protection Steel Plate?

Ballistic protection steel plate is a heat-treated, high-carbon alloy steel specifically formulated to absorb and dissipate the kinetic energy of projectiles, fragments, and explosive impacts. Through controlled austenitizing at temperatures between 880-920°C followed by oil or water quenching and precise tempering cycles, manufacturers achieve surface hardness values of 500-600 HBW (Brinell Hardness) with core hardness maintained at 450-540 HBW. The typical chemical composition includes 0.28-0.35% carbon, 0.70-1.00% manganese, 0.50-0.80% chromium, 1.20-1.80% nickel, and 0.15-0.30% molybdenum, creating a martensitic microstructure that provides superior ballistic resistance while preventing brittle fracture.

Ballistic Protection Steel Plate Technical Specifications

Premium-grade ballistic armor steel demonstrates tensile strength of 1400-1700 MPa, yield strength exceeding 1200 MPa, and elongation of 8-12% per ASTM A514 requirements. Charpy V-notch impact energy typically reaches 27 joules minimum at -40°C, ensuring ductility in extreme environments. Standard thickness ranges span 4mm to 100mm with thickness tolerance of ±0.3mm for plates under 20mm and ±0.5mm for thicker sections. Flatness specifications require maximum deviation of 5mm per meter length, while surface finish achieves Ra 6.3μm after shot blasting treatment.

Why Choose Our Ballistic-Resistant Armor Steel?

Our manufacturing facility operates ISO 9001:2015 certified production lines equipped with vacuum degassing systems and electromagnetic stirring technology, ensuring homogeneous microstructure and minimal inclusion content below 0.015%. Each plate undergoes ultrasonic testing per ASTM A578 Level C, magnetic particle inspection conforming to ASTM E1444, and dimensional verification using coordinate measuring machines with ±0.02mm accuracy. We provide comprehensive mill test certificates (MTC 3.1 per EN 10204) documenting chemical analysis via optical emission spectrometry, mechanical property validation through universal testing machines calibrated to ASTM E4 standards, and ballistic performance verification against specified threat levels.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for ballistic protection steel plate is 5 metric tons per specification. For prototype development or specialized defense projects requiring unique dimensions, we accommodate reduced quantities of 1-2 tons with adjusted lead times. Volume orders exceeding 50 tons qualify for mill-direct pricing and priority scheduling in our production queue.

Do you provide material test certificates?

Yes, every shipment includes comprehensive MTC 3.1 certificates per EN 10204 standards, detailing heat number traceability, chemical composition analysis (C, Mn, Si, P, S, Cr, Ni, Mo, Cu, V), mechanical properties (tensile strength, yield strength, elongation, impact toughness), hardness mapping across plate surface, and ultrasonic testing results. Ballistic test reports from accredited laboratories are available upon request, documenting V50 values and penetration resistance against specified ammunition types.

What is the typical delivery time?

Standard thickness plates (6-30mm) in stock configurations ship within 15-20 business days after order confirmation. Custom thickness requirements or specialized heat treatment protocols extend lead times to 35-45 days, accounting for raw material procurement, controlled rolling schedules, heat treatment cycles, and quality verification procedures. Expedited processing is available for urgent defense contracts with 10-12 day turnaround for in-stock dimensions.

Can you cut to custom sizes?

Our precision cutting services utilize CNC plasma cutting systems with ±1mm tolerance for dimensions up to 3000mm × 12000mm, and waterjet cutting achieving ±0.5mm accuracy for intricate geometries. We provide edge beveling at 30-45° angles for welding preparation, CNC drilling with positional accuracy of ±0.1mm, and contour cutting following CAD specifications. All cut edges undergo deburring and dimensional inspection prior to shipment, with edge hardness verification to ensure ballistic integrity remains uncompromised.

Get a Competitive Quote for Ballistic Protection Steel Plate

Contact our technical sales team to discuss your armor steel requirements, including thickness specifications, protection level classifications (B4-B7 per EN 1063 or Level III-IV per NIJ standards), quantity requirements, and delivery schedules. We provide detailed quotations within 24 hours, including material certifications, ballistic test data, and logistics coordination for secure transportation. Our engineering support assists with material selection optimization, welding procedure specifications, and integration guidance for armored vehicle manufacturing or security infrastructure projects.
