DX52D Electro Galvanized Steel Coil - Cold Rolled Zn-Coated Sheet Metal for Automotive & Appliance Manufacturing

Tianjin TISCO International Trade Co., Ltd.

Verified Custom manufacturer 5yrs

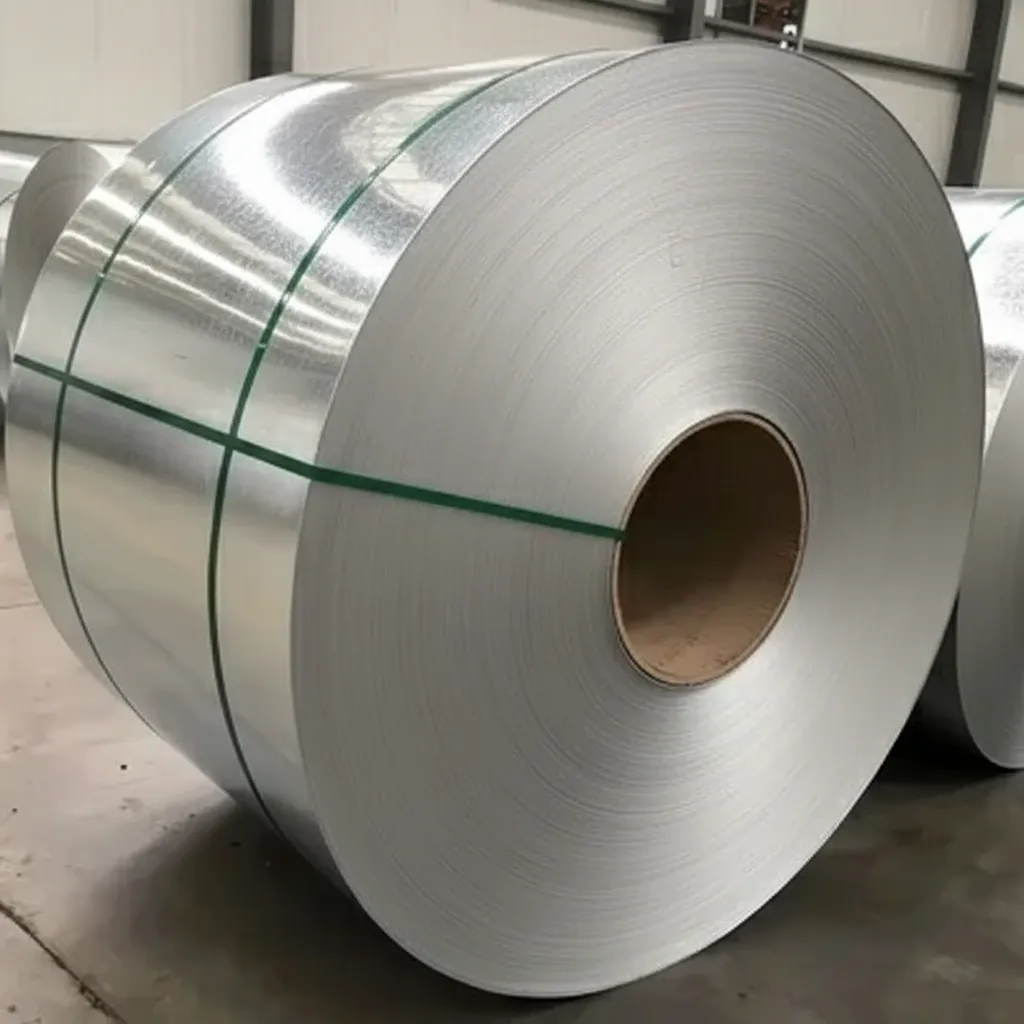

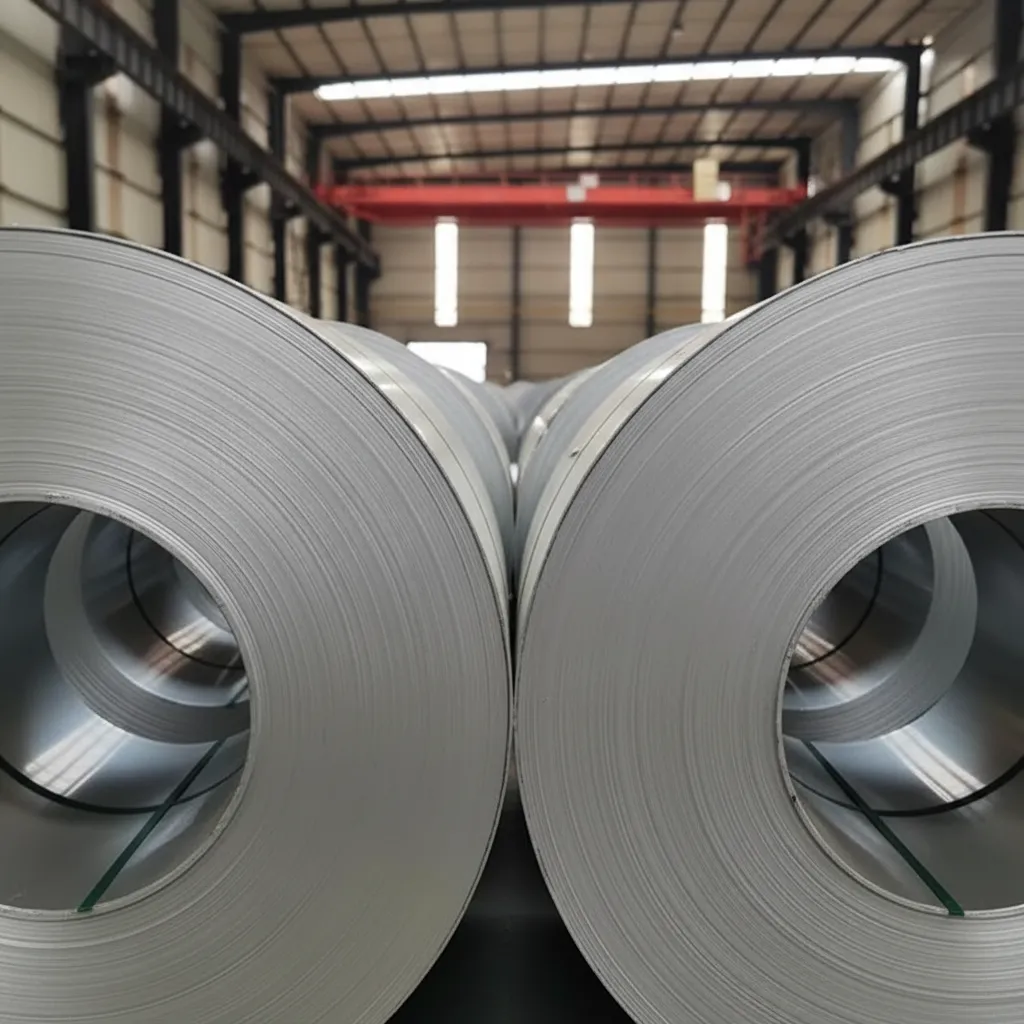

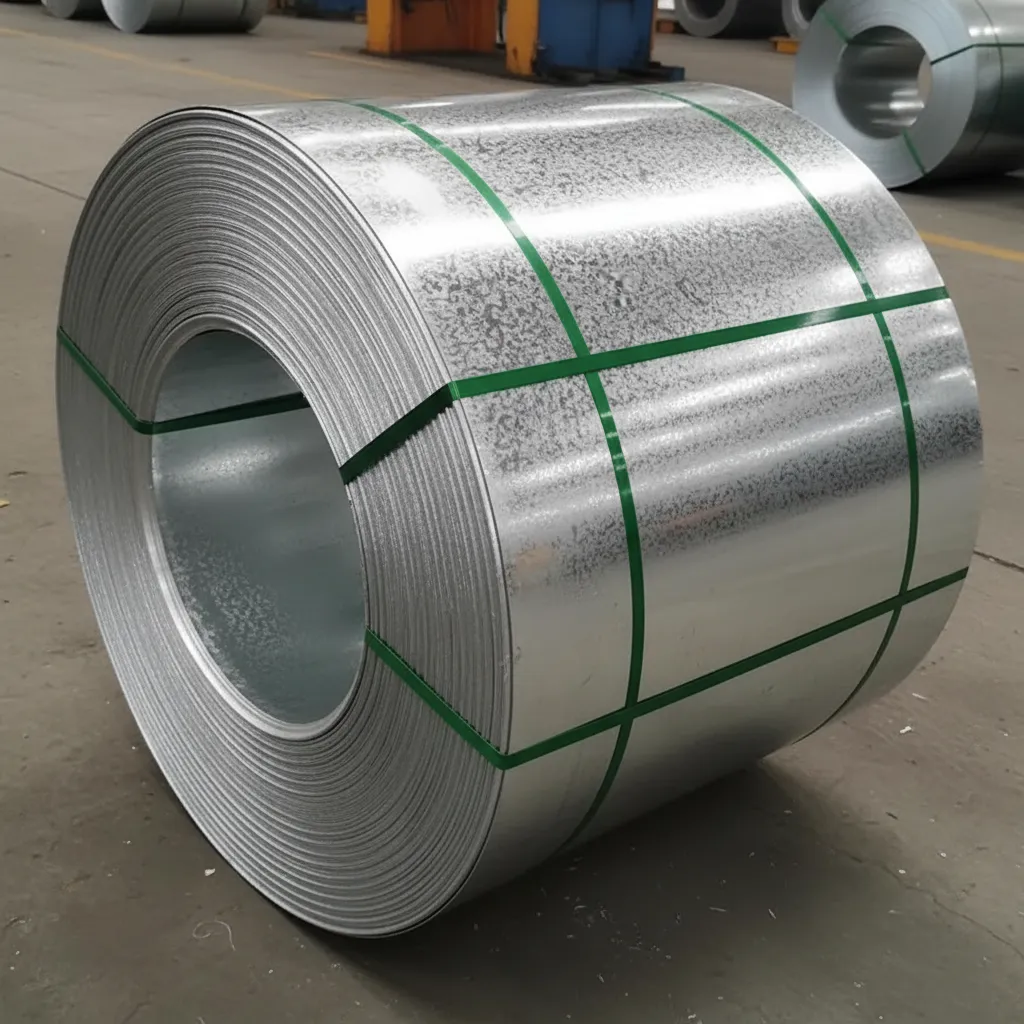

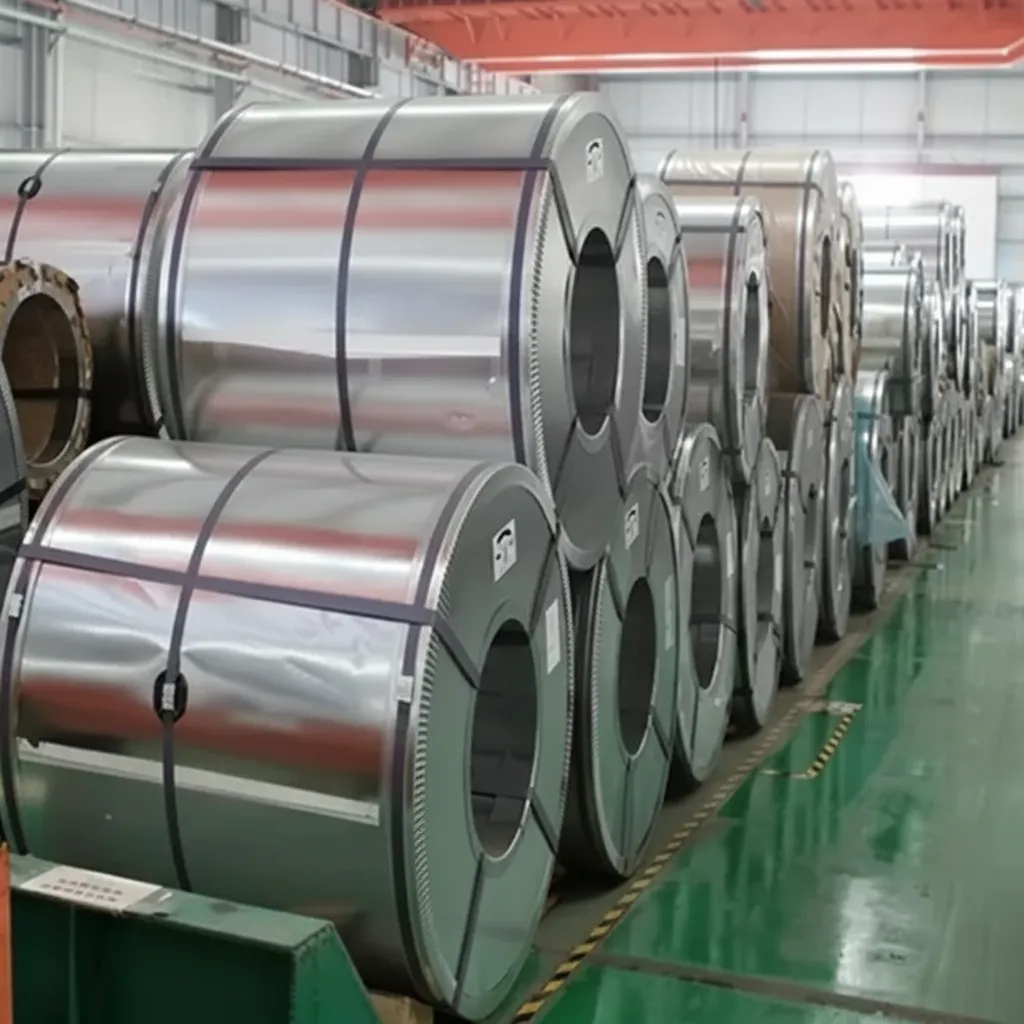

DX52D electro galvanized steel coil image thumbnail

DX52D electro galvanized steel coil image

Technical Specifications of DX52D Electro Galvanized Steel Coil

Property	Parameter	Description
Product Name	DX52D Electro Galvanized Steel Coil	Cold-rolled steel with electrolytic zinc coating
Material Grade	DX52D / EN 10142 / ASTM A653 CS Type B	International grade equivalents for deep drawing
Standard Compliance	EN 10142, EN 10346, ASTM A653	Meets European and American standards
Carbon (C)	≤0.12%	Low carbon for excellent formability
Manganese (Mn)	≤0.60%	Enhances strength and hardenability
Phosphorus (P)	≤0.10%	Controlled for ductility
Sulfur (S)	≤0.045%	Low sulfur for improved weldability
Yield Strength	140-300 MPa	Minimum yield strength per EN 10142
Tensile Strength	270-500 MPa	Tensile strength range for DX52D grade
Elongation	≥28%	Excellent ductility for deep drawing applications
Zinc Coating Weight	40-120 g/m² (both sides)	Electrolytic zinc coating for corrosion protection
Thickness Range	0.15-3.0 mm	Available thickness options
Width Range	600-1500 mm	Standard and custom widths
Coil ID	508 mm / 610 mm	Standard inner diameter options
Surface Treatment	Electro galvanized, skin-passed	Smooth surface finish for painting and coating
Application	Automotive parts, home appliances, construction	Ideal for deep drawing and forming applications
Certification	EN 10204 3.1, ISO 9001, SGS	Quality certifications provided
Packaging	Waterproof paper, steel strapping, wooden pallet	Standard export seaworthy packaging
MOQ	25 tons	Minimum order quantity per specification

DX52D Electro Galvanized Steel Coil - Cold Rolled Zn-Coated Sheet Metal for Automotive & Appliance Manufacturing

DX52D electro galvanized steel coil represents a premium-grade cold-rolled steel substrate with electrolytically applied zinc coating, engineered specifically for demanding automotive body panels, household appliance casings, and precision metal forming applications. This European standard material combines exceptional surface smoothness with superior corrosion protection, delivering optimal paint adhesion characteristics and formability for manufacturers requiring consistent quality in high-volume production environments.

What is DX52D Electro Galvanized Steel Coil?

DX52D electro galvanized steel coil is a low-carbon cold-rolled steel product conforming to EN 10346:2015 standards, featuring a uniform zinc coating deposited through electrolytic galvanizing processes. The designation "DX52D" indicates deep-drawing quality with yield strength of 140-300 MPa, while the electro-galvanizing process applies zinc layers ranging from 20-60 g/m² per side through electrochemical deposition, resulting in exceptionally smooth surfaces ideal for direct painting applications.

DX52D Electro Galvanized Steel Coil Technical Specifications

This material exhibits tensile strength of 270-410 MPa per EN 10346 Section 6.1, with elongation values exceeding 34% in longitudinal direction. The carbon content remains limited to 0.12% maximum, ensuring excellent weldability through resistance spot welding and laser welding techniques. Available thickness ranges from 0.40mm to 3.00mm with width options between 600mm-1,500mm, supplied in coil weights up to 25 metric tons for continuous processing lines.

Why Choose Our DX52D Electro Galvanized Steel Coil?

Our manufacturing facility maintains ISO 9001:2015 and IATF 16949:2016 certifications, guaranteeing consistent coating weight distribution within ±10% tolerance across entire coil lengths. We employ advanced tension leveling equipment achieving flatness values below I-unit 8 per DIN EN 10131, while our proprietary passivation treatment extends corrosion resistance to 480 hours in neutral salt spray testing according to ASTM B117. Mill-direct pricing eliminates intermediary markups, providing cost-effective solutions for automotive tier-1 suppliers and white goods manufacturers.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ stands at 25 metric tons per specification, though we accommodate trial orders of 10 tons for qualified automotive and appliance manufacturers with established production schedules. Mixed-thickness orders are accepted within single coil ID specifications of 508mm or 610mm to optimize logistics efficiency.

DX52D electro galvanized steel coil supplier

Do you provide material test certificates?

Every shipment includes EN 10204 Type 3.1 mill test certificates documenting chemical composition per heat analysis, mechanical properties from tensile testing per EN ISO 6892-1, and coating weight verification through triple-spot XRF measurement. Additional coating adhesion reports per EN ISO 1460 and surface roughness data are available upon request.

What is the typical delivery time?

Standard lead time ranges from 25-30 calendar days from purchase order confirmation for stock thickness ranges of 0.50mm-2.00mm. Custom gauge requirements between 0.40mm-0.49mm or above 2.00mm may extend delivery to 35-40 days depending on production scheduling. Expedited 18-day delivery is available for premium charges on quantities below 50 tons.

Can you cut to custom sizes?

Our precision slitting lines accommodate width tolerances of ±0.5mm for widths 600mm-1,200mm, with edge burr height maintained below 0.02mm through carbide rotary knife systems. Blanking services provide cut-to-length sheets in dimensions up to 1,500mm × 6,000mm with perpendicularity deviation under 1.0mm per meter, suitable for direct stamping operations without secondary edge preparation.

DX52D electro galvanized steel coil manufacturer

Get a Competitive Quote for DX52D Electro Galvanized Steel Coil

Contact our technical sales team for mill-direct pricing on DX52D electro galvanized steel coil tailored to your specific gauge, width, and coating weight requirements. We provide complimentary formability analysis and tooling compatibility assessments for automotive prototype projects, backed by our 25-year expertise in supplying European automotive OEMs and major appliance brands across North American and Asian markets.

DX52D electro galvanized steel coil China

Ratings & Reviews

5.0

Very satisfied

Based on 8 reviews for verified purchases

Supplier service

5.0

On-time shipment

5.0

Supplier service

5.0

John Smith

United States

verified purchases

2025-09-10

Premium Quality for High-Volume Automotive Production
Ordered 25 tons of DX52D electro galvanized coil (0.68mm thickness, 1220mm width) for our automotive fender production line running at 450 parts per hour. IATF 16949 certification and PPAP documentation package met our tier-1 supplier requirements completely. Coating adhesion test results per ASTM D3359 showed 5B rating consistently. Formability in our complex draw dies exceeded expectations with Erichsen values averaging 11.2mm. Material traceability through heat number coding enables perfect lot tracking. This supplier now approved in our AVL for ongoing production orders.

Robert Brown

United Kingdom

verified purchases

2025-09-28

Acceptable Quality After Initial Width Issue Resolved
Purchased 14 tons of DX52D coil (0.65mm thickness, 1150mm width specification) for ventilation ductwork. First coil arrived at 1145mm width, outside our ±3mm tolerance. Supplier acknowledged the deviation immediately and provided replacement coil within 12 days at no additional cost. Subsequent material met all dimensional requirements. Mechanical properties tested satisfactory with yield strength 175 MPa. Zinc coating appearance uniform. Customer service handled the issue professionally. Would consider ordering again given their responsive problem resolution.

William Taylor

Australia

verified purchases

2025-10-14

Solid Performance for Non-Critical Marine Components
Ordered 10 tons of DX52D material (1.00mm thickness, 900mm width) for interior marine equipment brackets. Corrosion resistance in our accelerated salt spray chamber reached 465 hours, slightly below their stated 480 hours but sufficient for our indoor application. Surface finish quality was good with no visible pitting. Compared quotes from 4 Australian suppliers before selecting this option for 12% cost savings. Delivery was 34 days. Material performs well in our bending and punching operations with minimal springback.

Ahmed Al-Hassan

UAE

verified purchases

2025-11-02

Reliable Supply for Electrical Enclosure Production
Third consecutive order placed, 16 tons of DX52D coil (0.75mm gauge, 1300mm width) for our electrical cabinet manufacturing. Consistent mechanical properties batch-to-batch allow us to maintain stable production parameters. Tensile strength averaged 295 MPa across three coils tested. Edge quality from their slitting line is excellent with burr height under 0.015mm, no secondary deburring needed. Technical sales team responded within 4 hours to our coating weight inquiry. Logistics coordination was smooth with accurate shipping documentation.

Carlos Silva

Brazil

verified purchases

2025-11-20

Perfect Coating Uniformity for Refrigerator Doors
We sourced 20 tons of DX52D electro galvanized steel (0.50mm thickness, 1200mm width) for our refrigerator door panel line. XRF measurement data provided with shipment showed coating weight variation only ±6% across 47 test points, best consistency we've seen. Material certificates documented carbon content at 0.09%, ensuring excellent spot weldability. Our powder coating line reported superior paint adhesion compared to previous supplier. Flatness was I-unit 6, eliminating our leveling step. Delivered in 29 days to Santos port.

Hans Mueller

Germany

verified purchases

2025-12-08

Good Value Material with Acceptable Tolerances
Purchased 12 tons of DX52D coil (0.80mm thickness, 1000mm width) for HVAC cabinet production. Material quality meets EN 10346 specifications and coating weight averaged 42 g/m² per side as ordered. Thickness tolerance was within ±0.04mm, slightly wider than premium suppliers but acceptable for our application. Price point was 8% lower than German mills. Salt spray test results showed 510 hours protection. Delivery took 32 days, reasonable for import material. Would order again for cost-sensitive projects.

James Wilson

United Kingdom

verified purchases

2025-12-23

Outstanding Formability for Washing Machine Drums
This is our fourth order of DX52D material, 18 tons this time (0.60mm gauge, 1100mm width) for washing machine outer casings. The deep-drawing performance is consistently excellent with no cracking issues during our 180mm draw depth operations. Zinc coating adhesion passed our internal bend test requirements per ISO 1460. Lead time was 26 days including custom slitting to our exact width specification. Technical support team provided helpful forming parameter recommendations that reduced our scrap rate by 3%.

Michael Chen

Singapore

verified purchases

2026-01-07

Excellent Surface Quality DX52D for Automotive Panels
Ordered 22 tons of DX52D electro galvanized coil (0.70mm thickness, 1250mm width) for our door panel stamping line. EN 10204 3.1 certificates confirmed yield strength at 168 MPa and elongation 38%, exceeding our requirements. Surface roughness measured Ra 0.4μm, perfect for our direct painting process. Coating weight uniformity was impressive at ±7% across the entire coil. Delivered in 27 days as promised. Our quality team found zero surface defects after inspecting 15 random samples.
