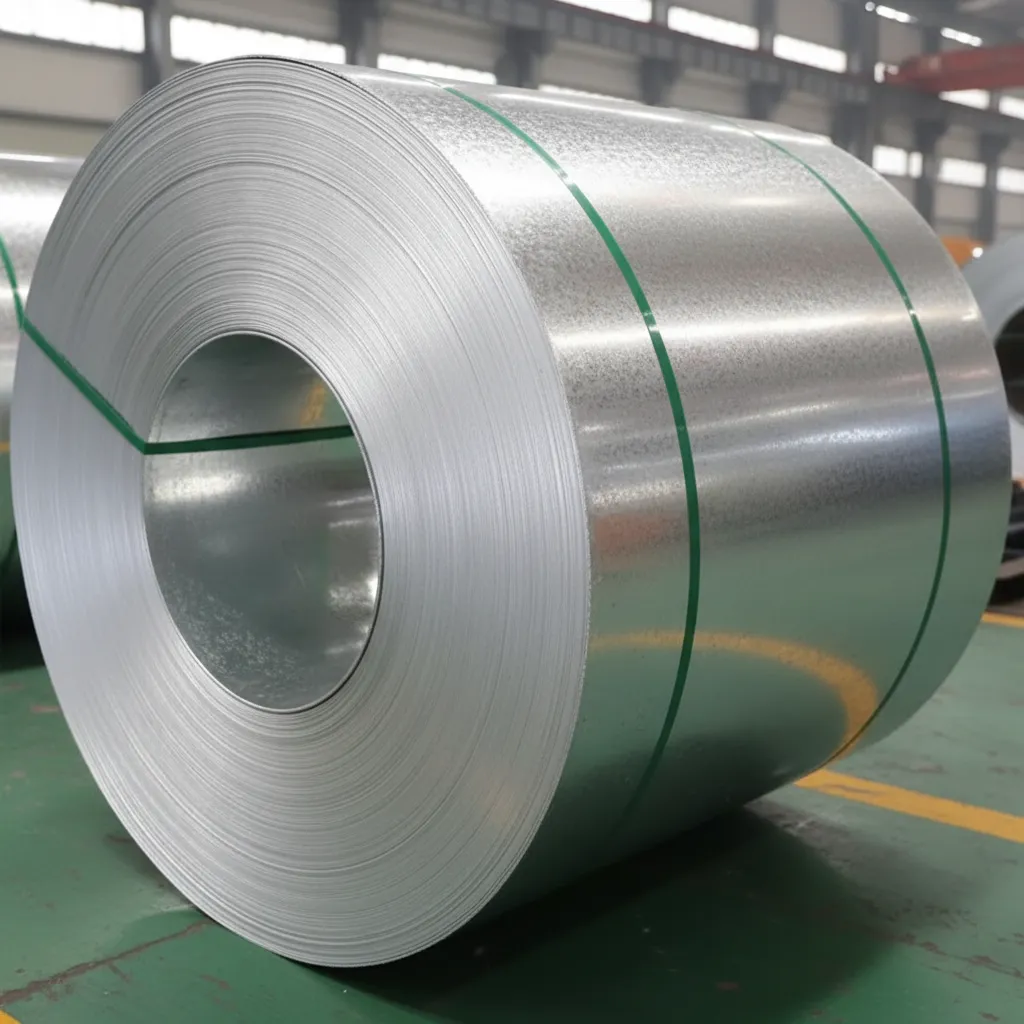

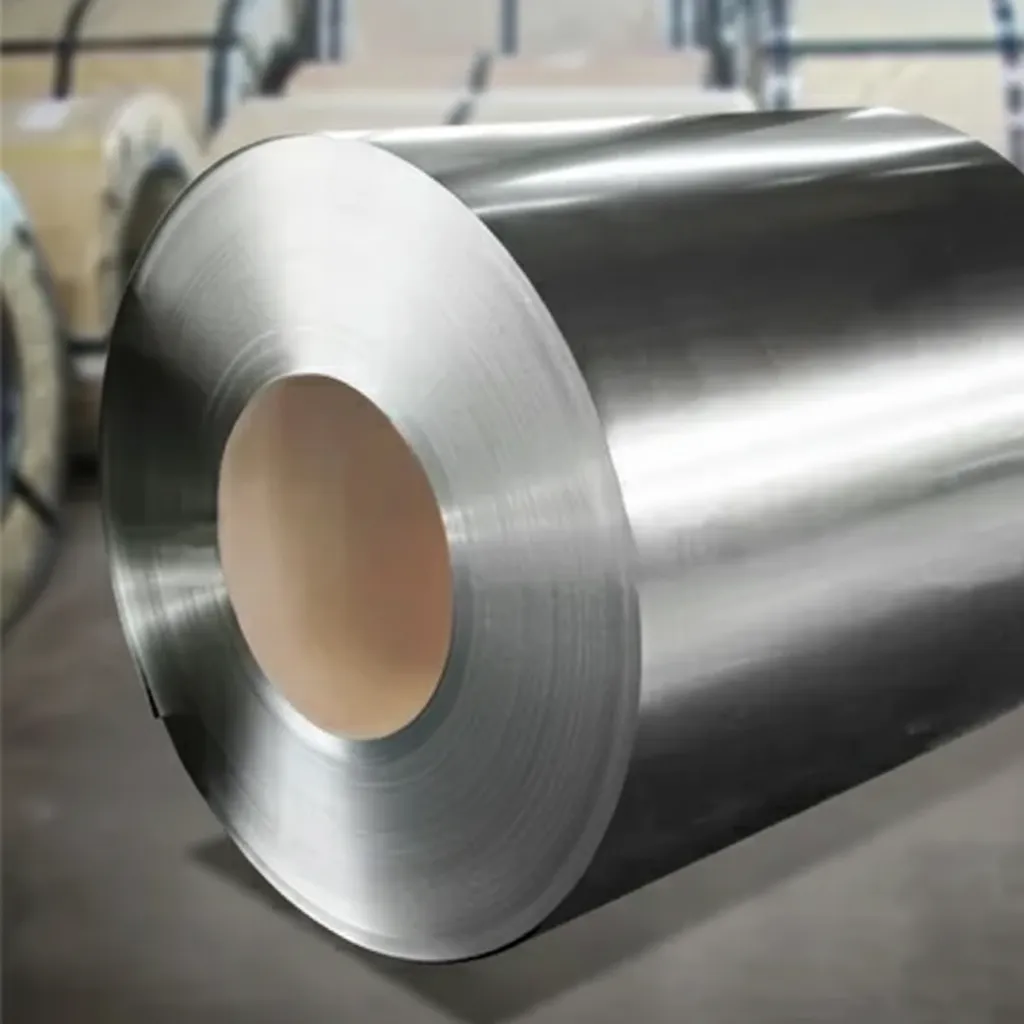

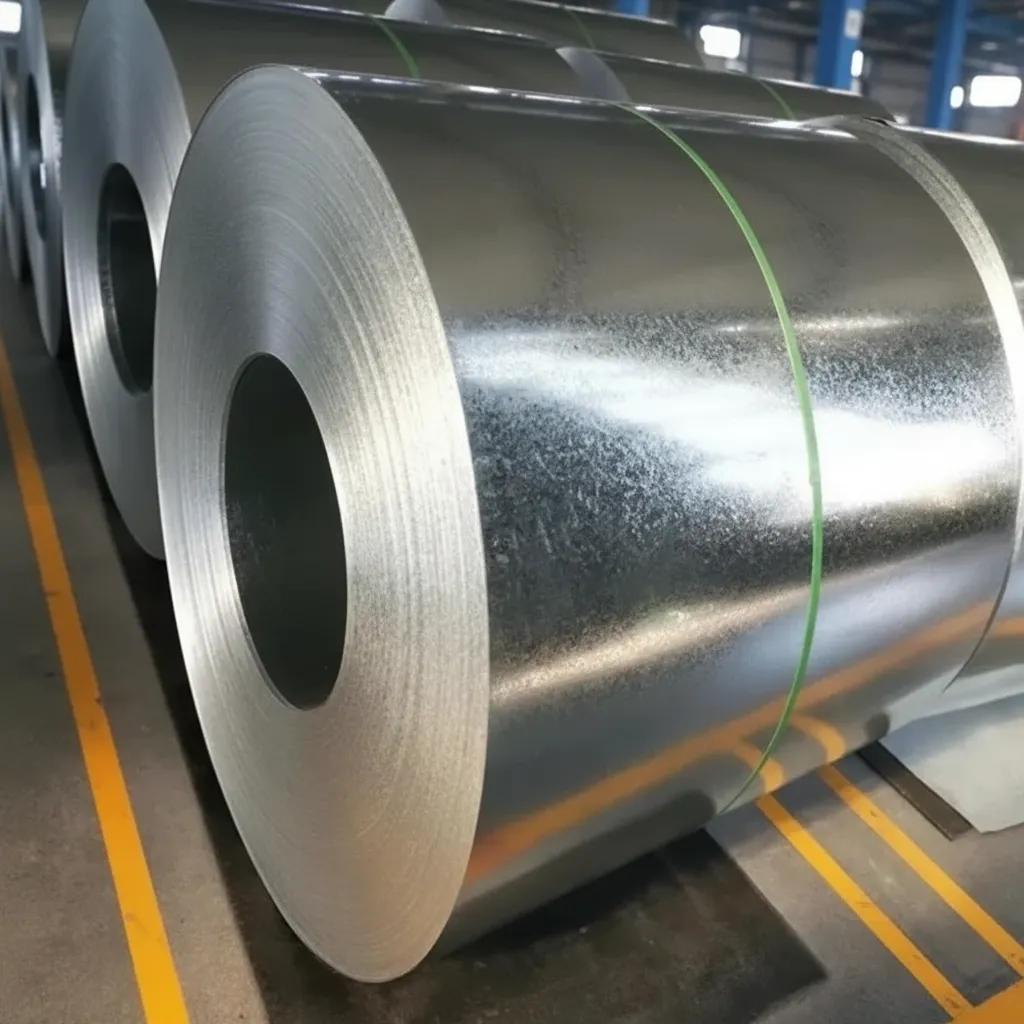

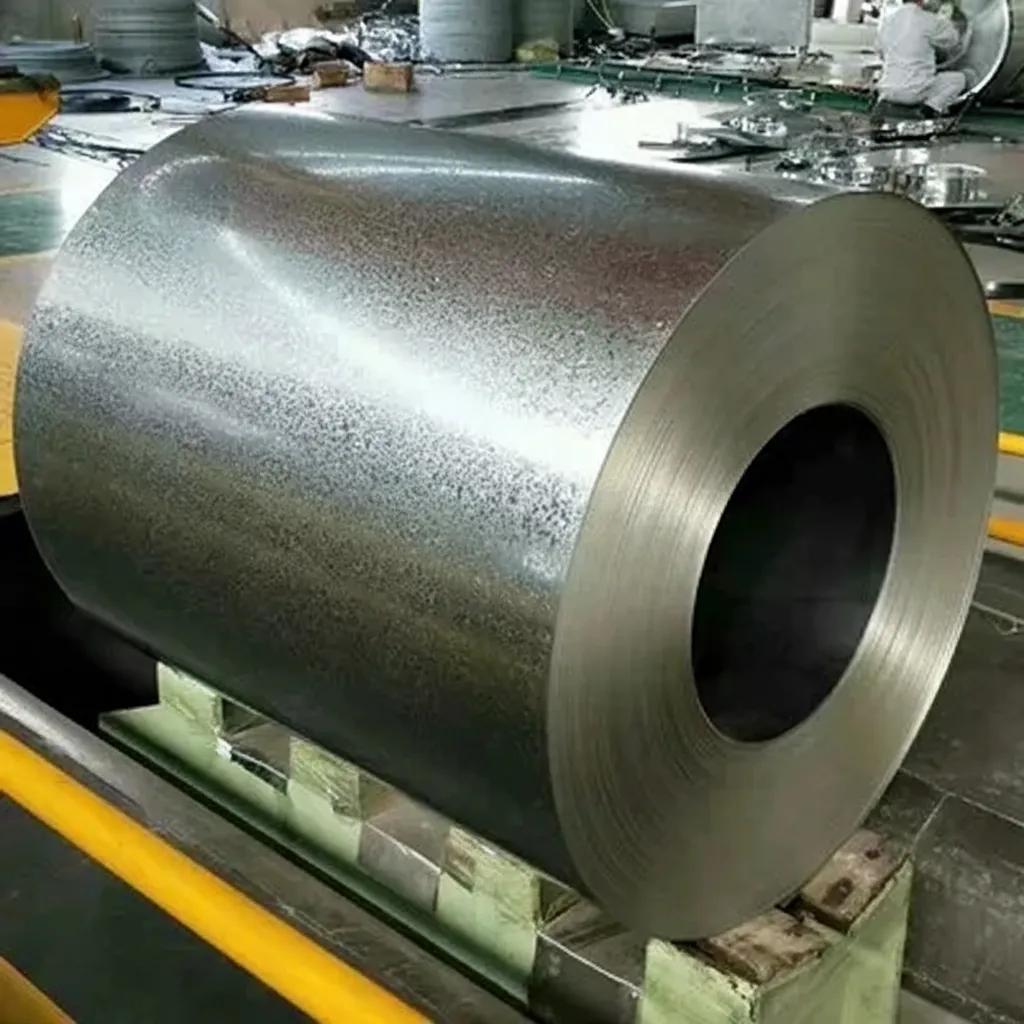

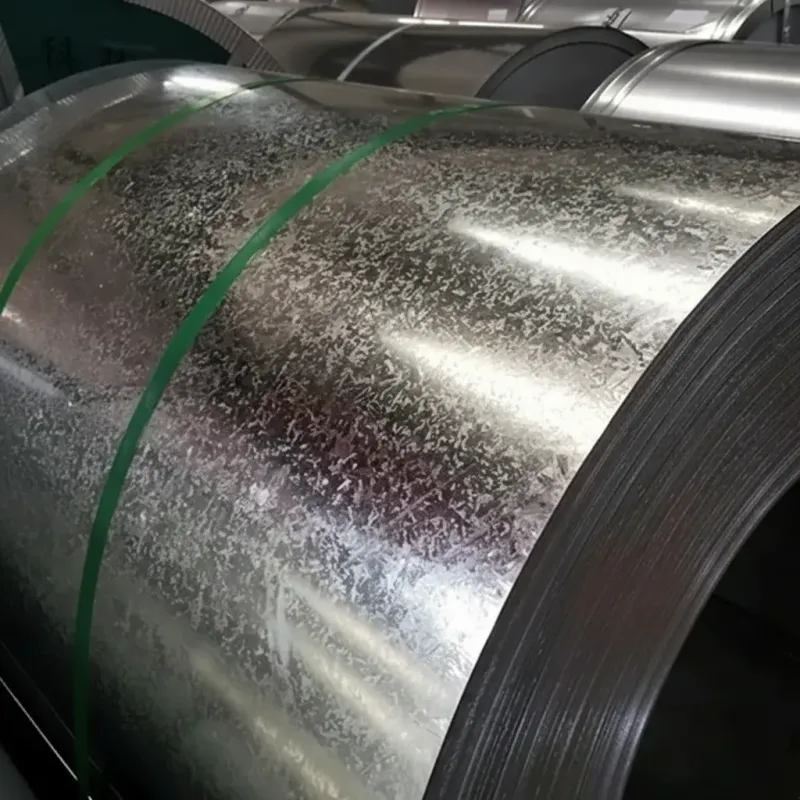

Custom Cold Rolled Galvanized Steel Coil - ASTM A653 Certified

Technical Specifications of Custom Cold Rolled Galvanized Steel Coil

Custom Cold Rolled Galvanized Steel Coil - ASTM A653 Certified

Custom cold rolled galvanized steel coil represents a precision-engineered metal product combining the superior surface finish of cold rolling with the exceptional corrosion protection of zinc coating. This material serves critical roles in automotive manufacturing, construction applications, and appliance production where dimensional accuracy and long-term durability are paramount. Our mill-direct supply ensures cost-effective pricing while maintaining strict compliance with ASTM A653/A653M standards for structural and drawing quality requirements.

What is Custom Cold Rolled Galvanized Steel Coil?

Custom cold rolled galvanized steel coil is a flat-rolled steel product that undergoes cold reduction processing followed by continuous hot-dip galvanizing. The cold rolling process achieves thickness tolerances of ±0.02mm and surface roughness values below Ra 0.4μm, while the zinc coating provides sacrificial protection ranging from Z275 (275g/m² total both sides) to Z600 grade per ASTM A653. This dual-process manufacturing delivers material with tensile strength of 270-550 MPa depending on grade selection, combined with formability characteristics suitable for deep drawing operations at elongation rates exceeding 38% for drawing quality grades.

Custom Cold Rolled Galvanized Steel Coil Technical Specifications

Our custom cold rolled galvanized steel coil complies with ASTM A653/A653M-20 Section 6 chemical composition requirements, with carbon content limited to 0.15% maximum for structural quality and 0.12% maximum for drawing quality grades. Available thickness ranges from 0.15mm to 3.0mm with width options between 600mm and 1,500mm, supplied in coil weights up to 25 metric tons. The zinc coating adheres to designation classes Z180 through Z600 per ASTM A653 Table 3, providing minimum coating mass of 180g/m² to 600g/m² total both sides. Mechanical properties meet Grade 33 (230 MPa yield strength) through Grade 80 (550 MPa yield strength) specifications with corresponding elongation values from 20% to 38% in 50mm gauge length.

Why Choose Our Custom Cold Rolled Galvanized Steel Coil

Our manufacturing facility operates continuous galvanizing lines equipped with automated thickness control systems maintaining tolerance precision within ±0.015mm across full coil width. We provide comprehensive material test certificates including chemical analysis per ASTM E415 optical emission spectroscopy, coating weight verification per ASTM A90 triple-spot test method, and mechanical property validation through ASTM E8 tensile testing. Every coil undergoes surface inspection to ISO 10474 Type 3.1 documentation standards, ensuring zero tolerance for coating defects exceeding 3mm diameter or base metal imperfections affecting formability. Our quality management system holds ISO 9001:2015 certification with specific process controls for galvanizing line operation and coil handling procedures.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard minimum order quantity is 25 metric tons per specification, equivalent to approximately one full coil for thickness ranges 0.4mm-1.2mm. For custom width requirements below 900mm or thickness outside standard ranges, MOQ increases to 50 metric tons to justify slitting line setup and edge trimming operations. We offer consolidated shipping for customers ordering multiple specifications, allowing combined tonnage to meet MOQ thresholds while maintaining individual coil traceability through heat number documentation.

Do you provide material test certificates?

Yes, we supply EN 10204 Type 3.1 mill test certificates for every coil, documenting chemical composition analysis per ASTM E415, mechanical properties per ASTM E8 testing (yield strength, tensile strength, elongation), coating weight measurement per ASTM A90 triple-spot method, and surface quality inspection results. Certificates include heat number traceability, production date, coil identification marks, and authorized quality inspector signatures. Additional third-party inspection services through SGS, Bureau Veritas, or Intertek can be arranged at customer request with 5-7 business days notice prior to shipment.

What is the typical delivery time?

Standard lead time for in-stock specifications is 15-20 business days from purchase order confirmation to port of loading, including coil preparation, eye-to-sky packaging, and export documentation processing. Custom orders requiring specific thickness-width combinations or non-standard coating weights extend to 35-45 business days to accommodate production scheduling and quality verification procedures. Rush orders may be expedited with 10% premium surcharge subject to production line availability. All delivery estimates assume standard containerized shipping; break-bulk vessel arrangements require additional 7-10 days coordination time.

Can you cut to custom sizes?

Our precision slitting capabilities accommodate width tolerances of ±1.0mm for widths 100mm-1,500mm, with edge burr height controlled below 0.02mm per ISO 9445 standards. We operate cut-to-length lines processing sheets from 500mm to 6,000mm length with squareness tolerance within 2mm per meter. Minimum slit width is 80mm to prevent edge wave defects; maximum is 1,500mm limited by coil handling equipment capacity. Custom blanking services for irregular shapes require technical drawing submission in DXF format with 50-piece minimum per pattern to justify die fabrication costs.

Get a Competitive Quote for Custom Cold Rolled Galvanized Steel Coil

Request your detailed quotation today by providing specification requirements including thickness, width, coating weight designation, quantity, and delivery destination. Our technical sales team responds within 24 hours with mill-direct pricing, material availability confirmation, and recommended shipping solutions. We offer flexible payment terms including L/C at sight, T/T with 30% deposit, and established customer credit arrangements. Contact us now to discuss your custom cold rolled galvanized steel coil requirements and receive expert guidance on grade selection for your specific application demands.
