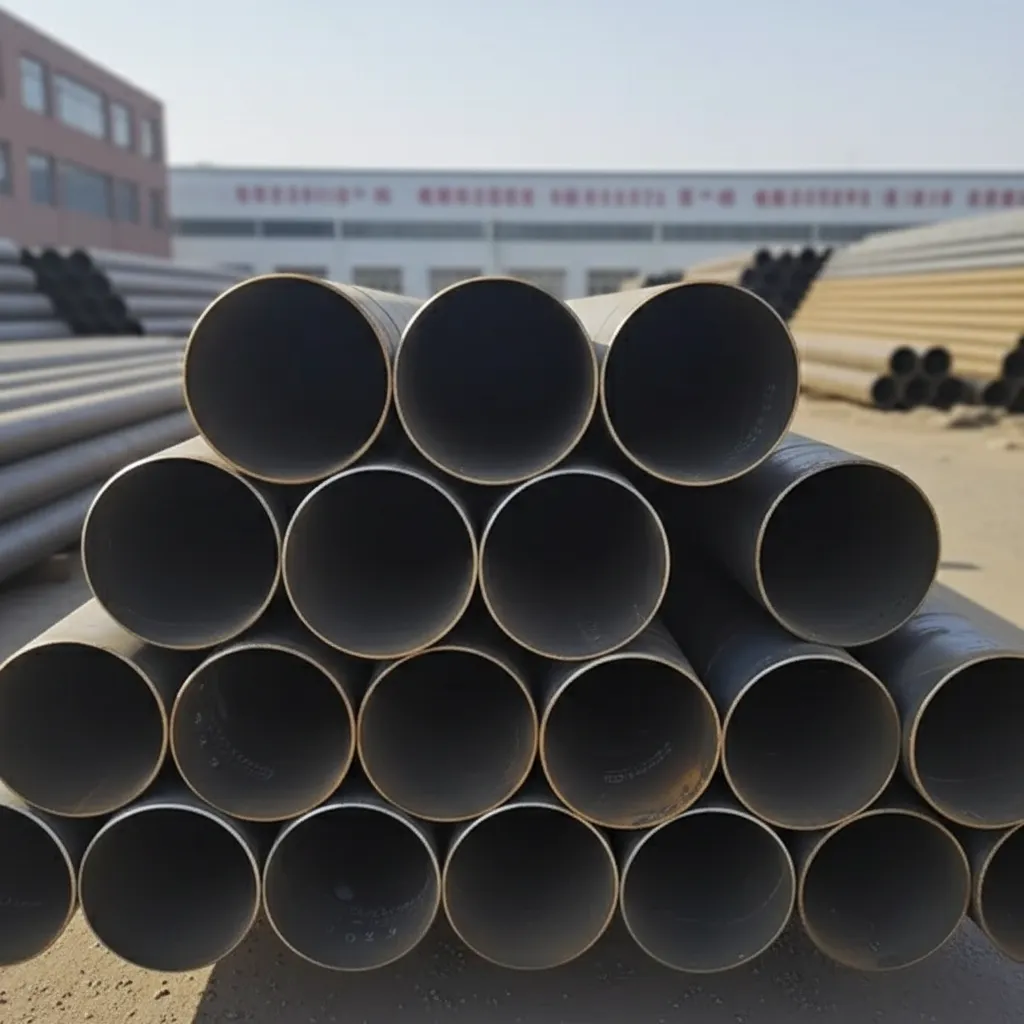

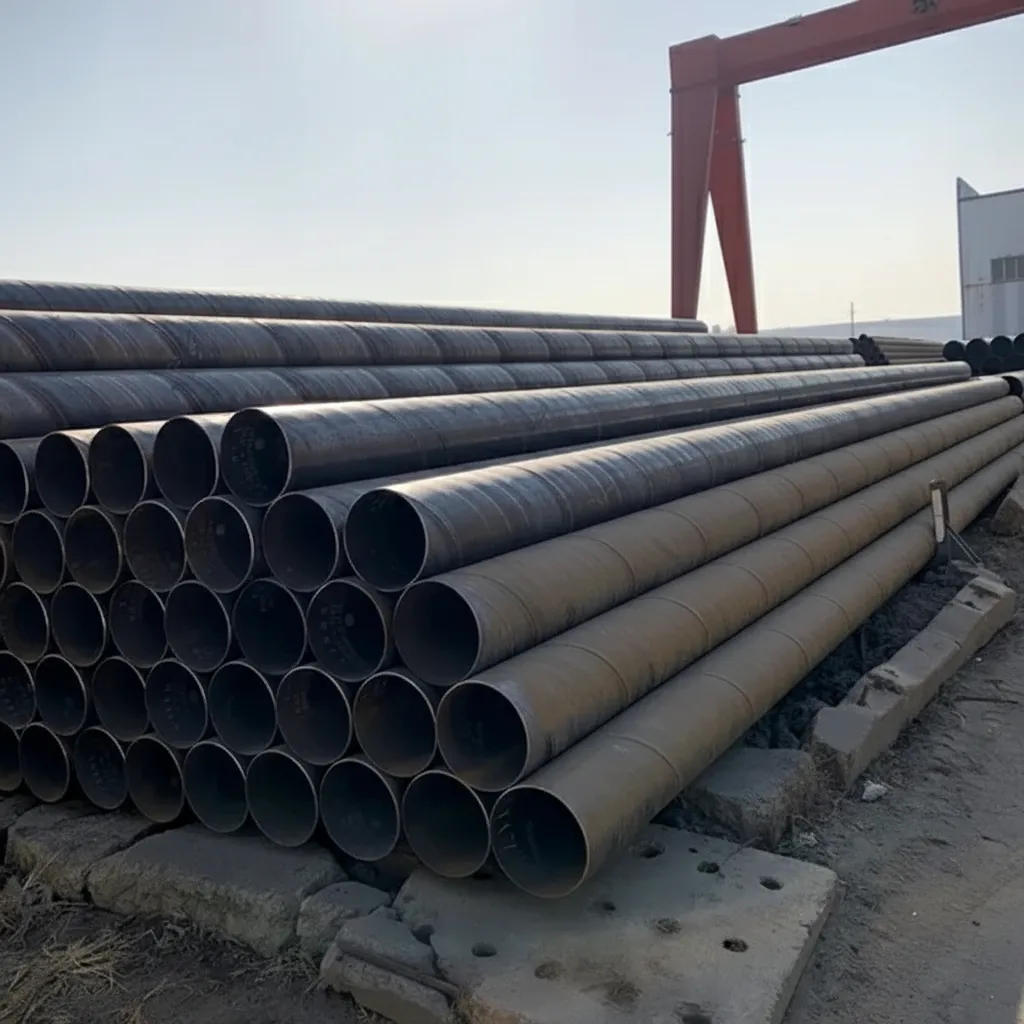

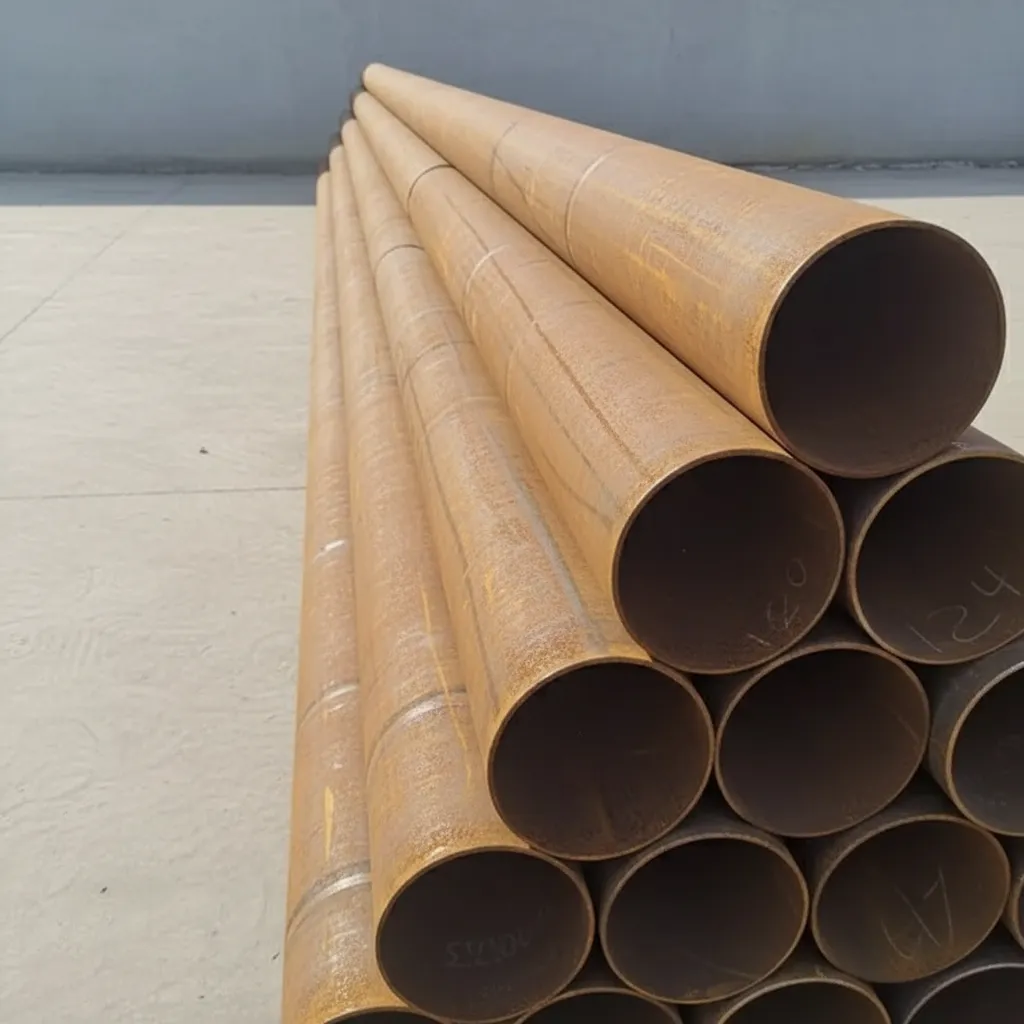

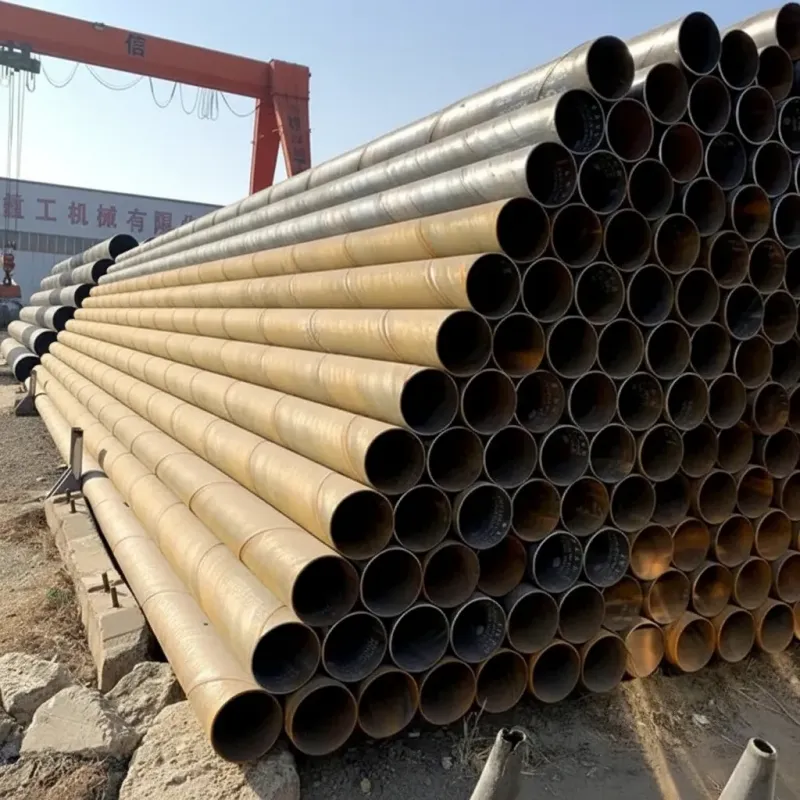

API 5L X42 Spiral Pipe - ASTM A252 Grade 2 Helical Welded Steel Pipe

Technical Specifications of API 5L X42 Spiral Pipe

API 5L X42 Spiral Pipe - ASTM A252 Grade 2 Helical Welded Steel Pipe

API 5L X42 spiral pipe represents a critical solution for oil and gas transmission systems requiring cost-effective yet reliable pipeline infrastructure. Manufactured through helical submerged arc welding (HSAW) process, this carbon steel pipe delivers exceptional structural integrity with yield strength of 290 MPa minimum, making it the preferred choice for medium-pressure applications in petroleum transportation, water conveyance, and piling projects. Complying with both API 5L PSL1/PSL2 and ASTM A252 Grade 2 specifications, our X42 spiral welded pipe serves contractors, pipeline operators, and construction firms seeking mill-direct pricing combined with comprehensive material traceability.

What is API 5L X42 Spiral Pipe?

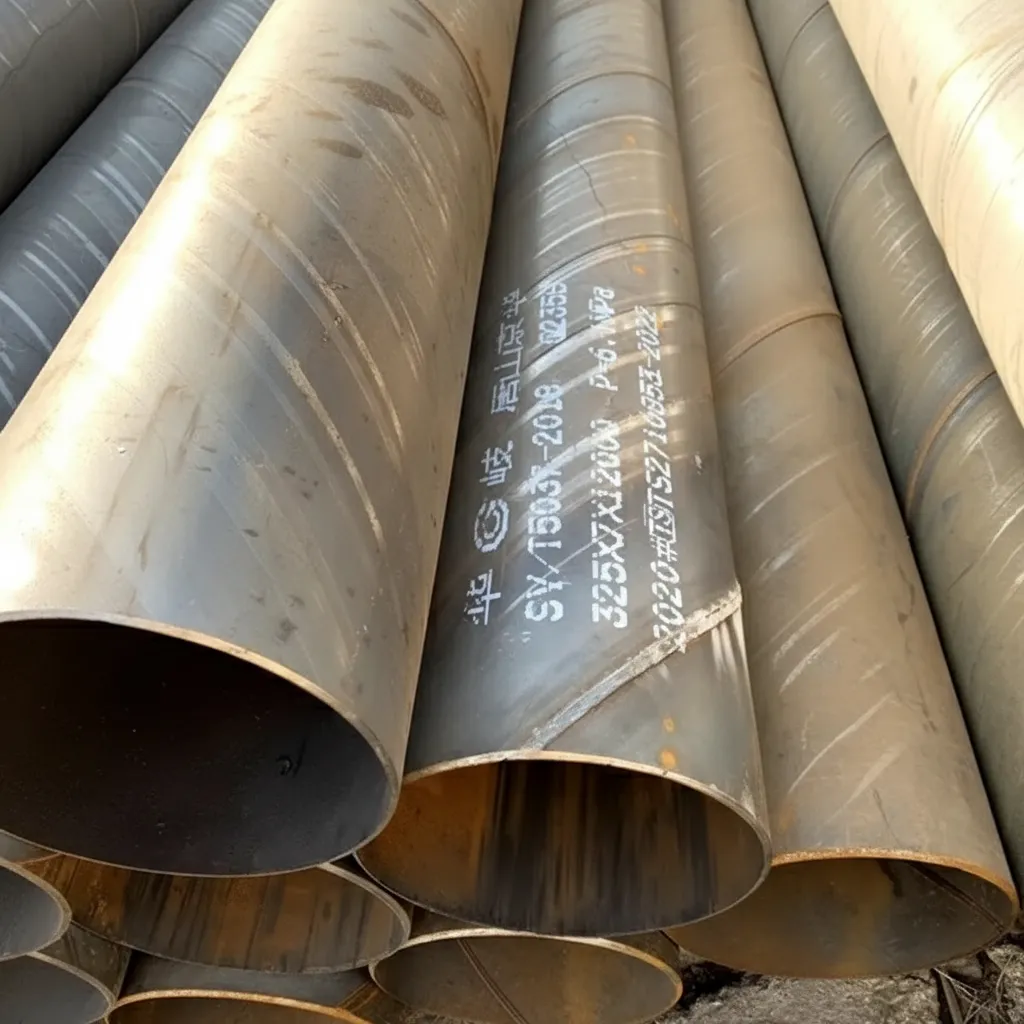

API 5L X42 spiral pipe is a helical seam welded carbon steel pipe produced by cold-forming steel coils into a tubular shape with continuous spiral weld seam, then joined using submerged arc welding technology. The X42 grade designation indicates minimum yield strength of 42,000 psi (290 MPa) per API 5L specification, with carbon content limited to 0.26% maximum for enhanced weldability. This manufacturing method enables production of large diameter pipes (219mm to 3,600mm) with wall thickness ranging from 5mm to 25.4mm, offering superior material utilization compared to longitudinal welded alternatives.

API 5L X42 Spiral Pipe Technical Specifications

Our API 5L X42 spiral welded steel pipe is manufactured according to API Specification 5L 46th Edition and ASTM A252-10 Standard. Chemical composition includes carbon 0.26% max, manganese 1.35% max, phosphorus 0.030% max, and sulfur 0.030% max per PSL2 requirements. Mechanical properties guarantee minimum yield strength of 290 MPa, tensile strength range of 415-565 MPa, and elongation of 21% minimum in 50mm gauge length. Hydrostatic testing is performed at pressure calculated per API 5L Section 11.3, with non-destructive examination including 100% ultrasonic testing of weld seams conforming to API 5L Annex E acceptance criteria.

Manufacturing Process & Quality Control

The production of API 5L X42 spiral pipe involves precision-controlled forming of hot-rolled coil through a spiral forming machine, maintaining consistent helix angle between 45-75 degrees. Double-sided submerged arc welding applies heat input of 25-45 kJ/cm, achieving full penetration weld with reinforcement height limited to 3mm maximum per API 5L Table 12. Post-weld heat treatment at 580-620°C may be applied for stress relief when specified. Each pipe undergoes visual inspection, dimensional verification, and electromagnetic inspection to detect surface imperfections exceeding 5% wall thickness depth.

Applications & Industry Use Cases

API 5L X42 spiral pipe finds extensive application in crude oil trunk lines operating at pressures up to 6.3 MPa, natural gas gathering systems, municipal water distribution networks with diameters exceeding 600mm, and foundation piling for offshore platforms. The spiral welded construction provides exceptional resistance to longitudinal stress, making it particularly suitable for river crossings, directional drilling installations, and above-ground pipeline spans. Chemical processing plants utilize X42 spiral pipe for non-corrosive fluid transfer, while construction contractors specify ASTM A252 Grade 2 spiral pipe for structural applications including bridge piers and retaining wall support.

Advantages Over Seamless & ERW Pipe

Compared to seamless pipe, API 5L X42 spiral welded pipe offers 15-25% cost reduction for diameters above 500mm while maintaining equivalent pressure ratings through proper design factor application. The helical weld seam distributes stress more uniformly than straight seam ERW pipe, reducing susceptibility to longitudinal splitting under bending loads. Material utilization efficiency reaches 98% versus 85% for seamless manufacturing, translating to lower embodied carbon footprint. For large-diameter applications, spiral pipe eliminates the need for field welding multiple sections, reducing installation time by 30-40% compared to assembling smaller diameter seamless components.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ for API 5L X42 spiral pipe is 25 metric tons per specification, equivalent to approximately 15-20 pieces of 12-meter length pipe in 600mm diameter. For stock sizes including 508mm, 610mm, and 711mm OD with 8-12mm wall thickness, we accommodate orders as low as 10 tons. Custom diameter and wall thickness combinations require 50-ton minimum to justify tooling setup. Mixed-size orders are accepted when total tonnage exceeds 40 tons, with lead time extending 7-10 days for non-standard dimensions.

Do you provide material test certificates?

Yes, we supply comprehensive Mill Test Certificates (MTC) per EN 10204 Type 3.1 for all API 5L X42 spiral pipe shipments, documenting chemical composition via optical emission spectrometry, mechanical properties from tensile testing per ASTM A370, and hydrostatic test results. Certificates include heat number traceability, dimensional inspection reports, and non-destructive examination records. Third-party inspection by SGS, Bureau Veritas, or TÜV is available upon request, with witness testing of chemical analysis, tensile specimens, and ultrasonic weld inspection at additional cost of $150-300 per lot.

What is the typical delivery time?

For standard stock sizes of API 5L X42 spiral pipe (508-914mm diameter, 6-12mm wall), delivery occurs within 15-20 days ex-works after order confirmation. Custom specifications requiring dedicated production runs have 35-45 day lead time, including 5 days for coil procurement, 15 days for forming and welding, 7 days for heat treatment and testing, and 3 days for coating application if specified. Expedited production is available with 25-30 day delivery for orders exceeding 100 tons, subject to mill capacity and raw material availability.

Can you cut to custom sizes?

We provide precision cutting services for API 5L X42 spiral pipe to custom lengths with tolerance of ±5mm, utilizing automated plasma cutting systems that maintain perpendicularity within 1mm per 1000mm diameter. Standard production length is 12 meters, with capability to produce 6-18 meter sections depending on transportation constraints. Beveling for field welding is available in 30-37.5 degree angles per ASME B16.25, with land width of 1.6mm ±0.8mm. End facing, threading, and grooving services accommodate specific installation requirements at additional cost of $8-15 per end depending on diameter.

Get a Competitive Quote for API 5L X42 Spiral Pipe

Request a detailed quotation for API 5L X42 spiral welded steel pipe by providing your required specifications including outer diameter, wall thickness, length, quantity, and delivery location. Our technical sales team responds within 24 hours with mill-direct pricing, material certifications, and logistics solutions. Volume discounts apply for orders exceeding 100 tons, with flexible payment terms available for established accounts. Contact us today to discuss your pipeline project requirements and receive expert guidance on optimal pipe specifications for your application parameters.
