Seamless Carbon Steel Pipe - High-Pressure Industrial Grade

Kuaima Steel Co., Ltd.

Verified Custom manufacturer 7yrs

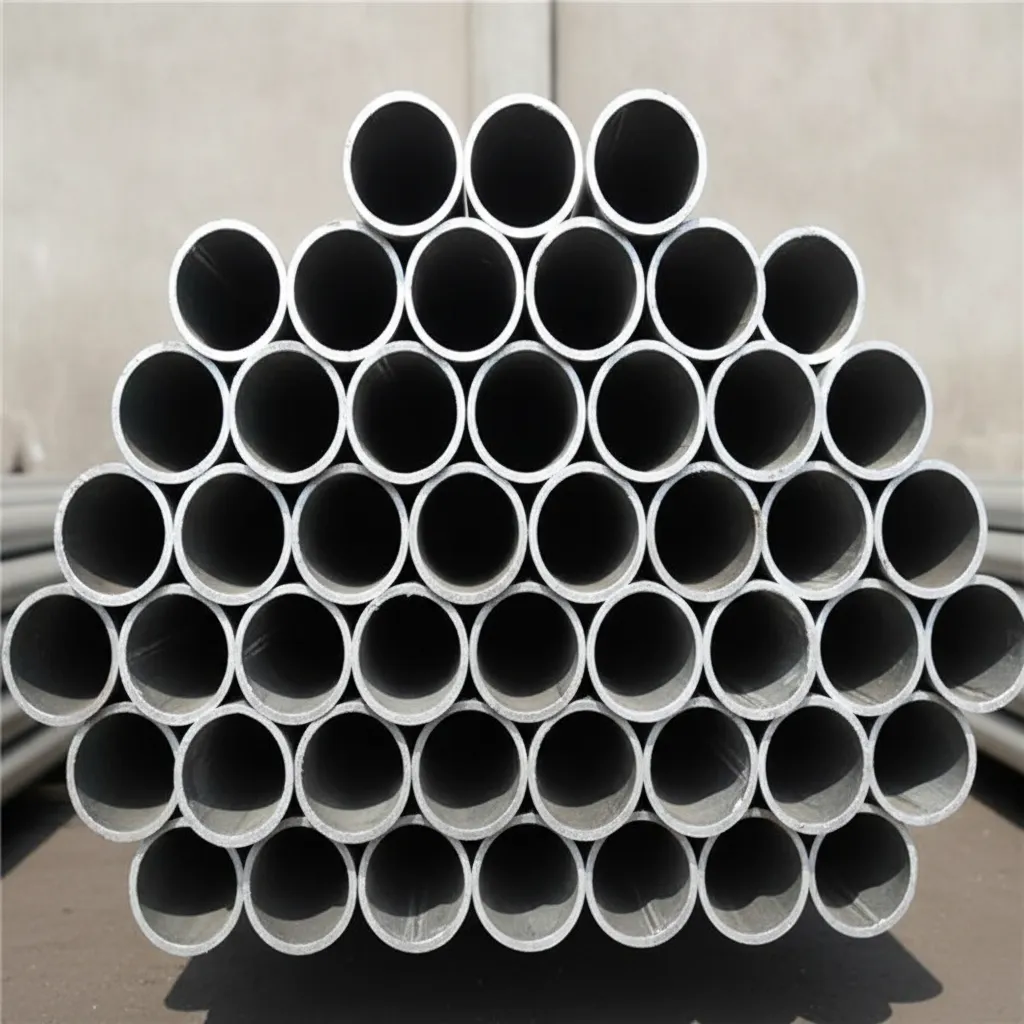

Seamless carbon steel pipe image thumbnail

Technical Specifications of Seamless Carbon Steel Pipe

Property	Parameter	Description
Product Name	Seamless Carbon Steel Pipe	Hot-rolled or cold-drawn carbon steel pipe without weld seam
Material Grade	ASTM A106 Gr.B / ASTM A53 Gr.B / API 5L Gr.B	International grade equivalents
Standard Compliance	ASTM A106, ASTM A53, API 5L, ASME SA106, DIN 17175	Meets major international standards
Manufacturing Process	Hot-rolled / Cold-drawn	Seamless pipe forming methods
Carbon (C)	≤0.30%	Primary strengthening element
Manganese (Mn)	0.29–1.06%	Improves hardenability and tensile strength
Phosphorus (P)	≤0.035%	Controlled for improved ductility
Sulfur (S)	≤0.035%	Low sulfur ensures good weldability
Silicon (Si)	≥0.10%	Acts as deoxidizer and strengthener
Tensile Strength	≥415 MPa	Minimum value per ASTM A106 Gr.B
Yield Strength	≥240 MPa	Minimum value per ASTM A106 Gr.B
Elongation	≥30%	Ductility in 50mm gauge length
OD Range	6mm – 914mm (1/8'' – 36'')	Available outer diameter options
Wall Thickness	1mm – 120mm (SCH 10 – SCH XXS)	Standard and custom wall thickness
Length	5.8m – 12m or custom	Random, fixed, or cut-to-length available
Surface Treatment	Black painted, oiled, varnished, galvanized	Multiple anti-corrosion options
Application	Oil & gas, power plants, boilers, structural, mechanical	Suitable for high-temperature and high-pressure service
Certification	EN 10204 3.1, ISO 9001, API 5L, PED 2014/68/EU	Quality certifications provided
Packaging	Bundled with steel strips, plastic caps on ends	Standard seaworthy export packaging
MOQ	5 tons	Minimum order quantity

Seamless Carbon Steel Pipe - High-Pressure Industrial Grade

Seamless carbon steel pipe is a critical tubular product manufactured without welded seams, delivering superior pressure containment and mechanical integrity for demanding industrial service. Produced through hot rolling or cold drawing processes per ASTM A106/A53 specifications, this pipe serves as the preferred choice for oil and gas transmission, power generation, and high-temperature process piping where weld-seam failures are unacceptable. Our mill-direct supply ensures factory-competitive pricing with full traceability for global procurement teams and project contractors.

What Is Seamless Carbon Steel Pipe?

Seamless carbon steel pipe is a hollow steel product formed from a solid round billet that is heated and pierced over a mandrel to create a tube without any longitudinal or spiral weld joint. This manufacturing method produces a homogeneous grain structure throughout the pipe wall, resulting in superior strength uniformity and enhanced resistance to internal pressure compared to welded alternatives.

Seamless carbon steel pipe supplier

Seamless Carbon Steel Pipe Technical Specifications

Our seamless carbon steel pipes comply with ASTM A106 Grade B and ASTM A53 Grade B standards. Key parameters include a minimum tensile strength of 415 MPa and minimum yield strength of 240 MPa per ASTM A106/A106M-18. Carbon content is controlled at 0.30% maximum, with manganese ranging from 0.29% to 1.06%. Available outside diameters span from 21.3 mm (1/2") to 610 mm (24"), with wall thicknesses from Schedule 20 through Schedule XXS. Pipe lengths are supplied in single random (5–7 m) or double random (9–13 m) as required.

Property	ASTM A106 Gr.B	ASTM A53 Gr.B
Tensile Strength (min)	415 MPa	415 MPa
Yield Strength (min)	240 MPa	240 MPa
Carbon (max)	0.30%	0.30%
Service Temperature	Up to 425°C	Up to 340°C

Key Applications of Seamless Carbon Steel Pipe

Oil and gas drilling, transmission, and refinery process piping
Boiler tubes and superheater lines in thermal power plants per ASME B31.1
High-pressure hydraulic systems and mechanical structural components
Chemical processing and petrochemical plant piping networks
Water treatment and fire protection systems requiring robust pressure ratings

Why Choose Our Seamless Carbon Steel Pipe

Every pipe ships with EN 10204 Type 3.1 Mill Test Certificates documenting chemical composition and mechanical test results. Our production facilities maintain ISO 9001:2015 certification, and products undergo 100% non-destructive testing including hydrostatic testing per ASTM A530 and ultrasonic examination per ASTM E213. For applications requiring enhanced corrosion protection, consider our anti-corrosion coated pipe or alloy steel seamless pipe options.

Frequently Asked Questions

What is the minimum order quantity (MOQ)?

Our standard MOQ is 1 metric ton per size and specification. For project-based orders requiring multiple dimensions, we accommodate mixed containers with a combined minimum of 5 metric tons.

Do you provide material test certificates?

Yes. Every shipment includes EN 10204 Type 3.1 Mill Test Certificates covering chemical analysis, mechanical properties, hydrostatic test results, and NDE reports as applicable.

Seamless carbon steel pipe wholesale

What is the typical delivery time?

Stock items in common sizes ship within 7–10 business days. Custom-manufactured seamless carbon steel pipe with specific wall thicknesses or non-standard lengths typically requires 25–35 days from order confirmation.

Seamless carbon steel pipe China

Can you cut to custom sizes?

Absolutely. We offer precision cutting to fixed lengths with tolerances of ±5 mm, beveled ends per ASME B16.25, and custom marking per client specifications at no additional lead time for stocked inventory.

Get a Competitive Quote for Seamless Carbon Steel Pipe

Ready to source premium-grade seamless carbon steel pipe for your next project? Contact our technical sales team with your required specifications—including size, schedule, grade, quantity, and delivery destination—and receive a detailed quotation within 24 hours. We support FOB, CFR, and CIF terms to major international ports worldwide.
