| Property | Parameter | Description |
|---|---|---|
| Product Name | Carbon Steel Pipe | Seamless and welded carbon steel pipes for export |
| Material Grade | ASTM A106 Gr.B / A53 Gr.B / API 5L Gr.B | Common export-grade carbon steel specifications |
| Manufacturing Process | Seamless (HFS/CDS), ERW, LSAW, SSAW | Multiple forming methods available |
| Standard Compliance | ASTM A106, ASTM A53, API 5L, EN 10210, EN 10219 | Meets major international pipeline standards |
| Carbon (C) | ≤0.30% | Controlled carbon for strength and weldability |
| Manganese (Mn) | 0.29–1.06% | Enhances hardenability and tensile strength |
| Phosphorus (P) | ≤0.035% | Low phosphorus for improved ductility |
| Sulfur (S) | ≤0.035% | Low sulfur for better weldability |
| Silicon (Si) | ≥0.10% | Acts as deoxidizer and strengthener |
| Tensile Strength | ≥415 MPa | Minimum value per ASTM A106 Gr.B |
| Yield Strength | ≥240 MPa | Minimum yield strength at room temperature |
| Elongation | ≥30% | Ductility in 50 mm gauge length |
| OD Range | 21.3 mm – 1220 mm (1/2'' – 48'') | Covers standard and large-diameter export sizes |
| Wall Thickness | 1.0 mm – 60 mm (SCH 10 – SCH XXS) | Standard schedules and custom thickness |
| Length | 5.8 m, 6 m, 11.8 m, 12 m or custom | Random and fixed lengths for container loading |
| Surface Treatment | Black painted, varnished, oiled, galvanized, 3LPE | Anti-corrosion options for overseas shipment |
| Application | Oil & gas, construction, water supply, power plants | Typical industries served by carbon steel pipe exporters |
| Certification | EN 10204 3.1, ISO 9001, API 5L, PED 2014/68/EU | Quality certifications for global market access |

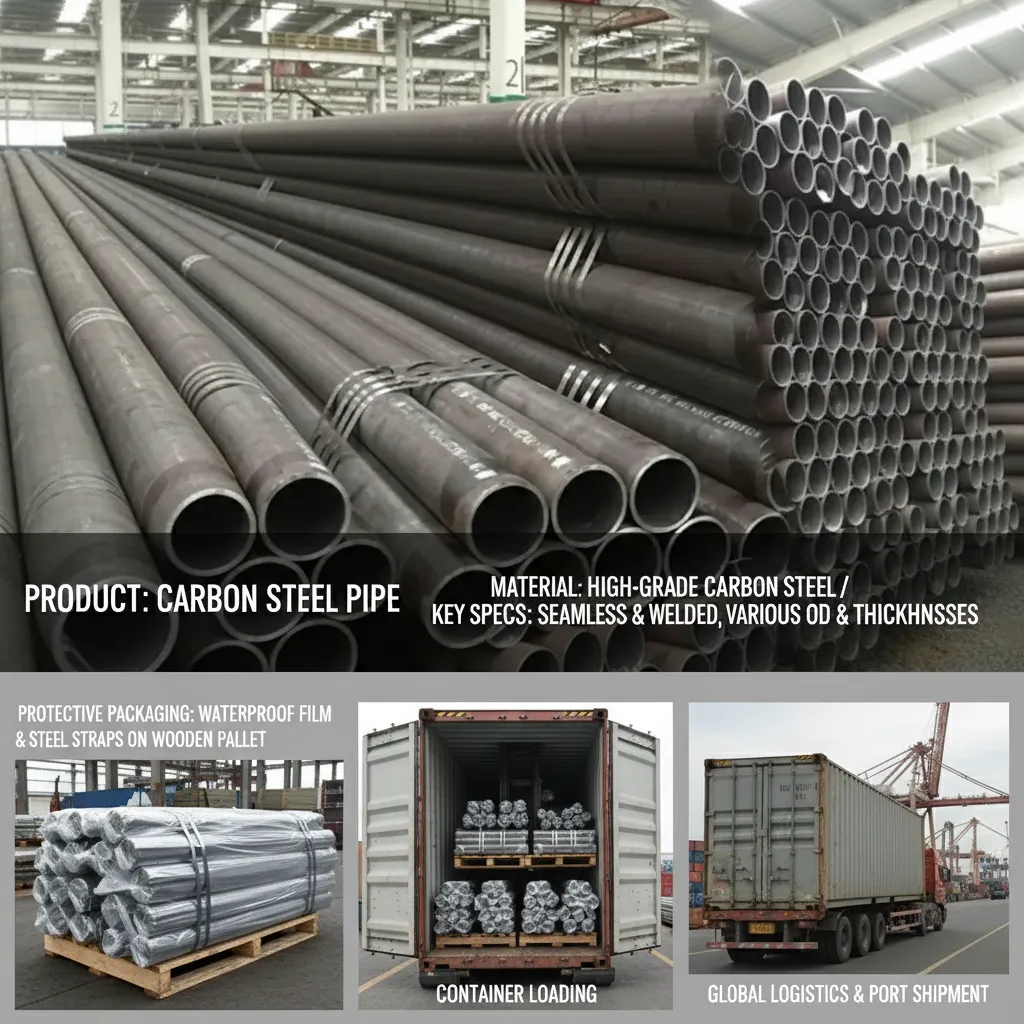

| Packaging | Bundled with steel strips, plastic caps, waterproof wrap | Seaworthy export packaging standard |
| MOQ | 5 tons | Minimum order quantity for export orders |
Acceptable Quality on Custom Wall Thickness – Documentation Issue Resolved
Ordered 8 tons of ASTM A106 Gr.B seamless pipes with a non-standard wall thickness of 11mm in OD 114.3mm for a bespoke pressure vessel application. The pipes themselves passed our incoming inspection—dimensions were within tolerance and MTC mechanical values were compliant. However, the initial documentation package was missing the hydrostatic test pressure values on the MTC, which our client's QA team flagged immediately. We raised this with the sales team and a corrected MTC was issued within 48 hours, but it caused a 3-day hold on our fabrication schedule. Delivery itself was 31 working days, within the quoted 25–35 day window for custom production. The issue was resolved professionally, but tighter document QC before dispatch would make this a straightforward 5-star experience.
Ordered 8 tons of ASTM A106 Gr.B seamless pipes with a non-standard wall thickness of 11mm in OD 114.3mm for a bespoke pressure vessel application. The pipes themselves passed our incoming inspection—dimensions were within tolerance and MTC mechanical values were compliant. However, the initial documentation package was missing the hydrostatic test pressure values on the MTC, which our client's QA team flagged immediately. We raised this with the sales team and a corrected MTC was issued within 48 hours, but it caused a 3-day hold on our fabrication schedule. Delivery itself was 31 working days, within the quoted 25–35 day window for custom production. The issue was resolved professionally, but tighter document QC before dispatch would make this a straightforward 5-star experience.
